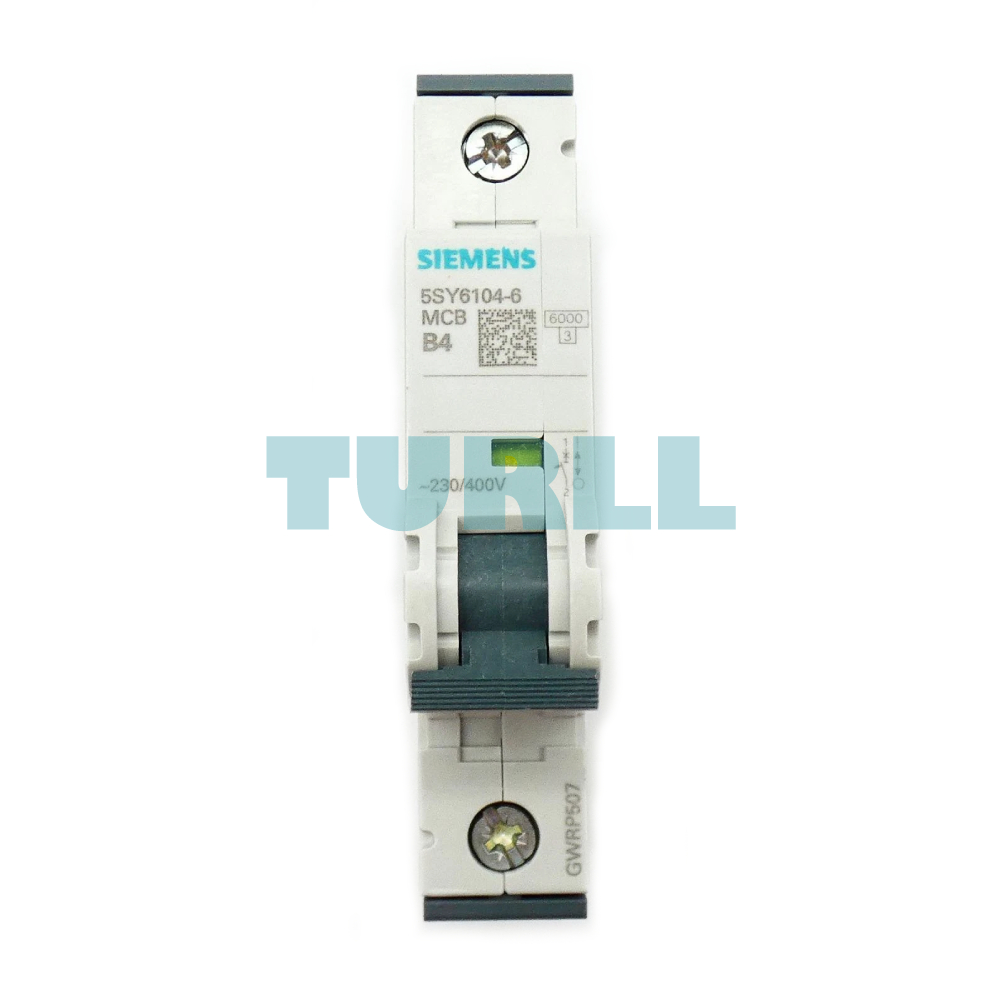

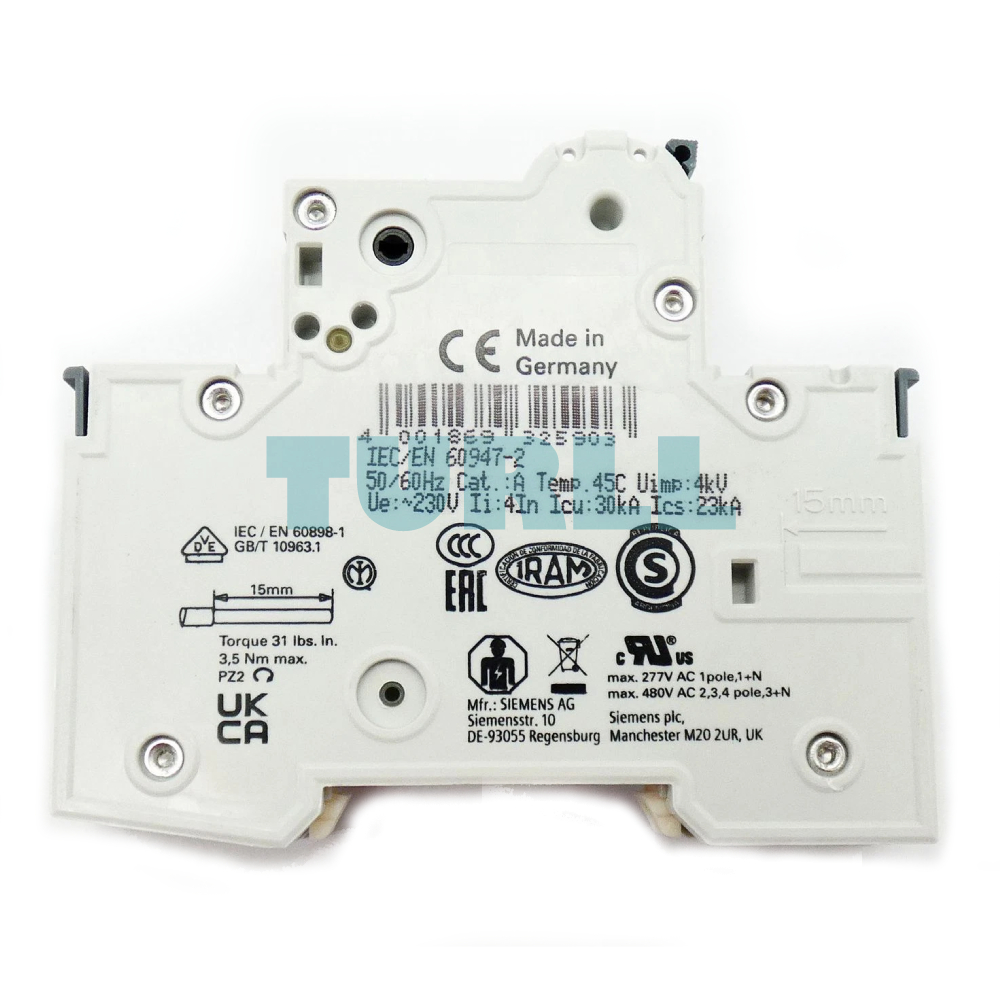

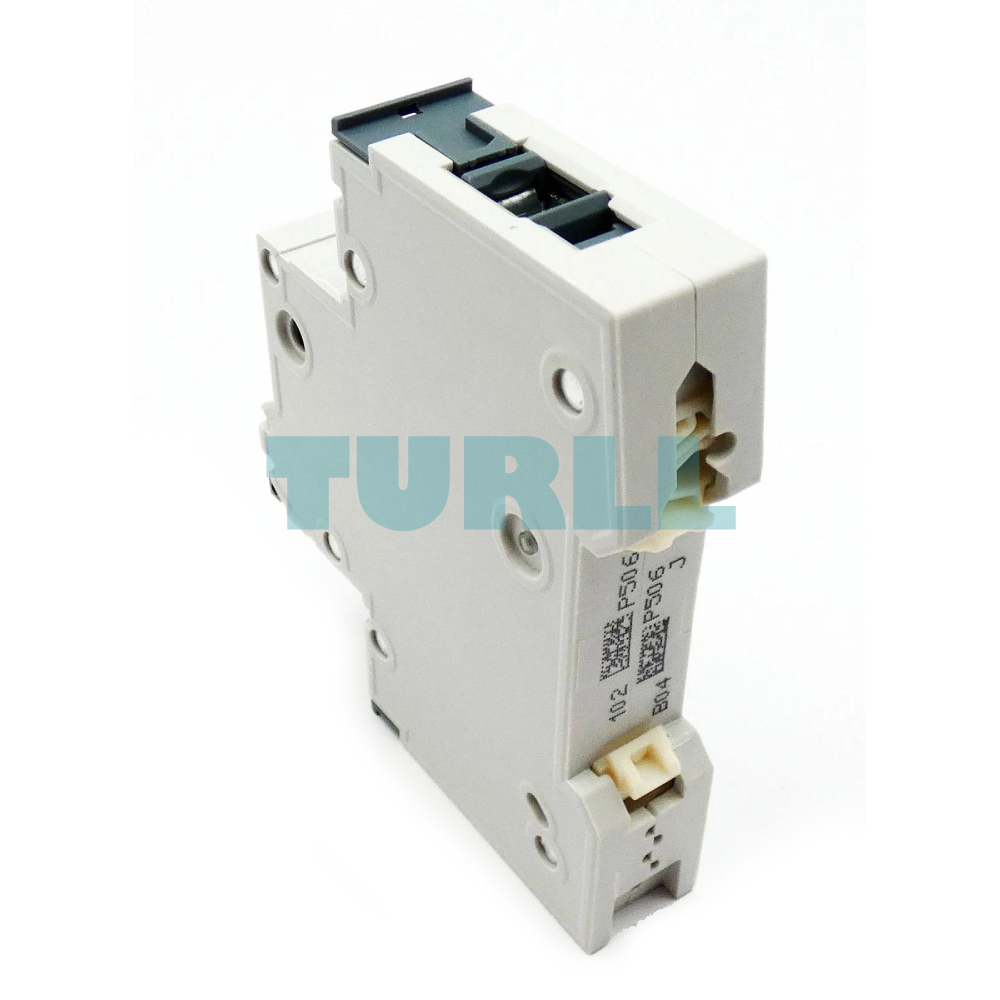

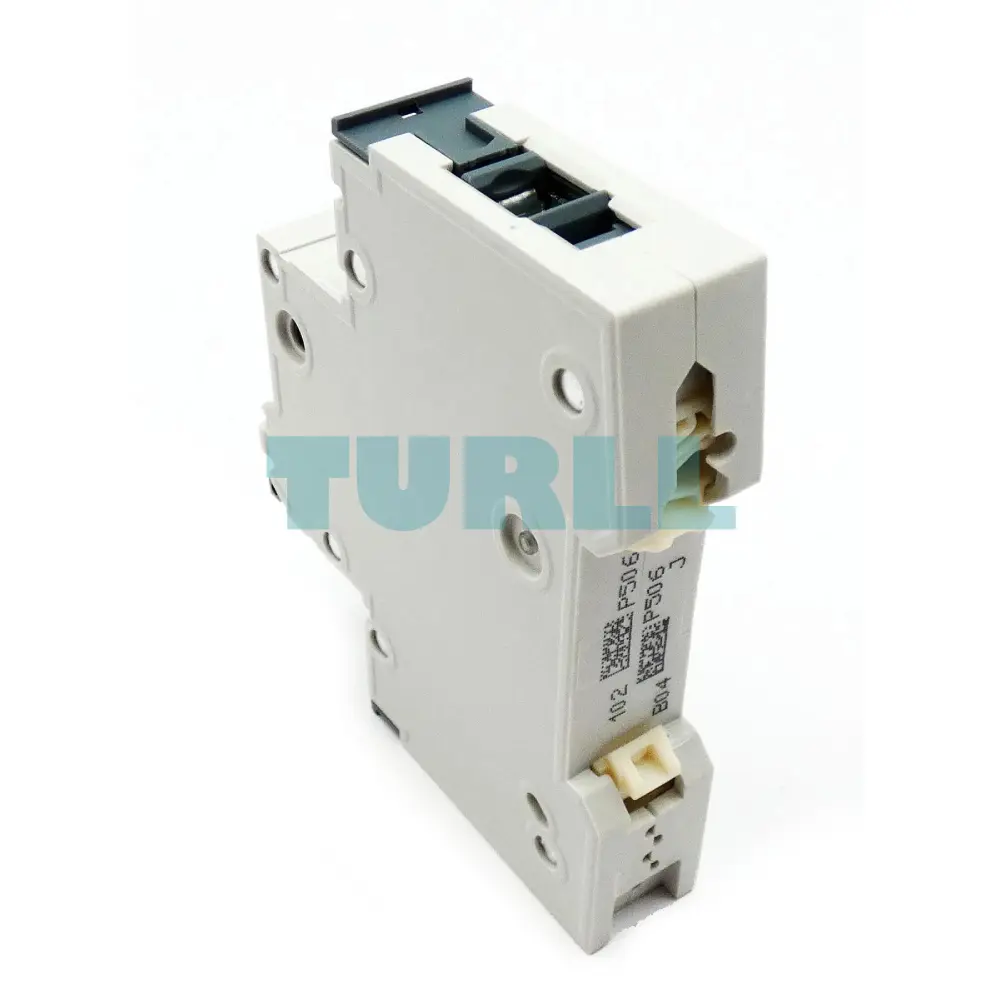

Siemens 5SY6104-6 Miniature Circuit Breaker 4A, 1-Pole, B-Curve, 6kA, 230/400V Original Brand New
$34.19
High-performance 1-pole Miniature Circuit Breaker (MCB) designed for reliable circuit protection. Featuring a 4A rated current, Type B tripping characteristic, and a 6kA breaking capacity, this 70mm depth unit ensures safety in residential and commercial electrical installations.
Availability: In stock
Overview
The Siemens 5SY6104-6 Miniature Circuit Breaker (MCB) is a high-quality electrical protection device designed to safeguard electrical circuits against overloads and short circuits. Engineered for reliability and long service life, this 1-pole MCB features a B-curve tripping characteristic, making it ideal for residential and light commercial applications where sensitive circuit protection is required.
With a rated current of 4A, breaking capacity of 6kA, and compatibility with 230/400 V systems, this Siemens miniature circuit breaker ensures stable performance and enhanced electrical safety in distribution boards and control panels.
Benefit
-
Ensures reliable protection against overloads and short circuits
-
B-curve tripping for sensitive and low-inrush current applications
-
Compact 70 mm depth, saving space in electrical panels
-
High 6kA breaking capacity for increased safety
-
Manufactured by Siemens, a globally trusted electrical brand
-
Easy installation on standard DIN rails
Function
-
Automatically disconnects circuits during fault conditions
-
Protects electrical wiring and connected devices
-
Maintains system stability in residential and commercial power systems
-
Prevents fire hazards caused by electrical overloads
Technical Specification
-
Product Number: 5SY6104-6
-
Brand: Siemens
-
Type: Miniature Circuit Breaker (MCB)
-
Rated Voltage: 230/400 V
-
Rated Current: 4A
-
Breaking Capacity: 6kA
-
Poles: 1-Pole
-
Tripping Curve: B-Curve
-
Depth (D): 70 mm
Visit 5SY6104-6 for more detail info
For more our products visit turll
Download
| Weight | 0.157 kg |
|---|---|
| Dimensions | 21.00 × 93.00 × 83.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | Miniature circuit breaker |
| number of poles | 1 |
| design of pole | 1P |
| tripping characteristic class | B |
| mechanical service life (switching cycles) / typical | 10 000 |
| overvoltage category | III |
| degree of pollution | 3 |
| type of voltage / of the operating voltage | AC |
| insulation voltage (Ui) | – |
| ● with single-phase operation / at AC / rated value | 440 V |
| ● with multi-phase operation / at AC / rated value | 440 V |
| supply voltage / with single-phase operation / at AC / rated value | 230 V |
| supply voltage | – |
| operating voltage / at DC / rated value / maximum | 72 V |
| protection class IP | IP20, with connected conductors |
| switching capacity current | – |
| ● at DC / acc. to IEC 60947-2 / rated value | 15 kA |
| ● acc. to EN 60898 / rated value | 6 kA |
| ● acc. to IEC 60947-2 / rated value | 30 kA |
| energy limitation class | 3 |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 1.5 W |
| operational current | – |
| ● at 35 °C / rated value | 4 A |
| ● at 40 °C / rated value | 3.76 A |
| ● at 45 °C / rated value | 3.63 A |
| ● at 50 °C / rated value | 3.5 A |
| ● at 55 °C / rated value | 3.36 A |
| ● at AC / rated value | 4 A |
| suitability for operation | Mechanical engineering / industry |
| product component / neutral conductor switching | No |
| product feature / touch protection | Yes |
| product component | – |
| ● combined terminal top | Yes |
| ● combined terminal bottom | Yes |
| product feature | – |
| ● properties for main switches in accordance with EN 60204-1 | Yes |
| ● halogen-free | Yes |
| ● sealable | Yes |
| ● silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |
| breaking capacity short-circuit current (Icn) | – |
| ● at AC / acc. to UL 1077 and CSA C22.2 No.235 | 5 kA |
| connectable conductor cross-section / solid | – |
| connectable conductor cross-section / stranded | – |
| connectable conductor cross-section / finely stranded / with core end processing | – |
| AWG number / as coded connectable conductor cross section | – |
| tightening torque [lbf·in] / with screw-type terminals | – |
| tightening torque / with screw-type terminals | – |
| position / of power supply cord | Any |
| installation depth | 70 mm |
| number of modular width units | 1 |
| fastening method | Quick assembly system |
| mounting position | any |
| influence of the surrounding temperature | max. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C |
| vibration resistance / acc. to IEC 60068-2-6 | ±1mm at 5 to 25Hz; 50m/s² at 25 to 150Hz |
| ambient temperature / during operation | – |
| ambient temperature / during storage | – |
| ● minimum | -40 °C |
| ● maximum | 75 °C |
| number of test cycles / for environmental testing / acc. to IEC 60068-2-30 | 6 |
| reference code | – |
| ● acc. to DIN EN 61346-2 | F |
| ● acc. to IEC 81346-2 | F |
