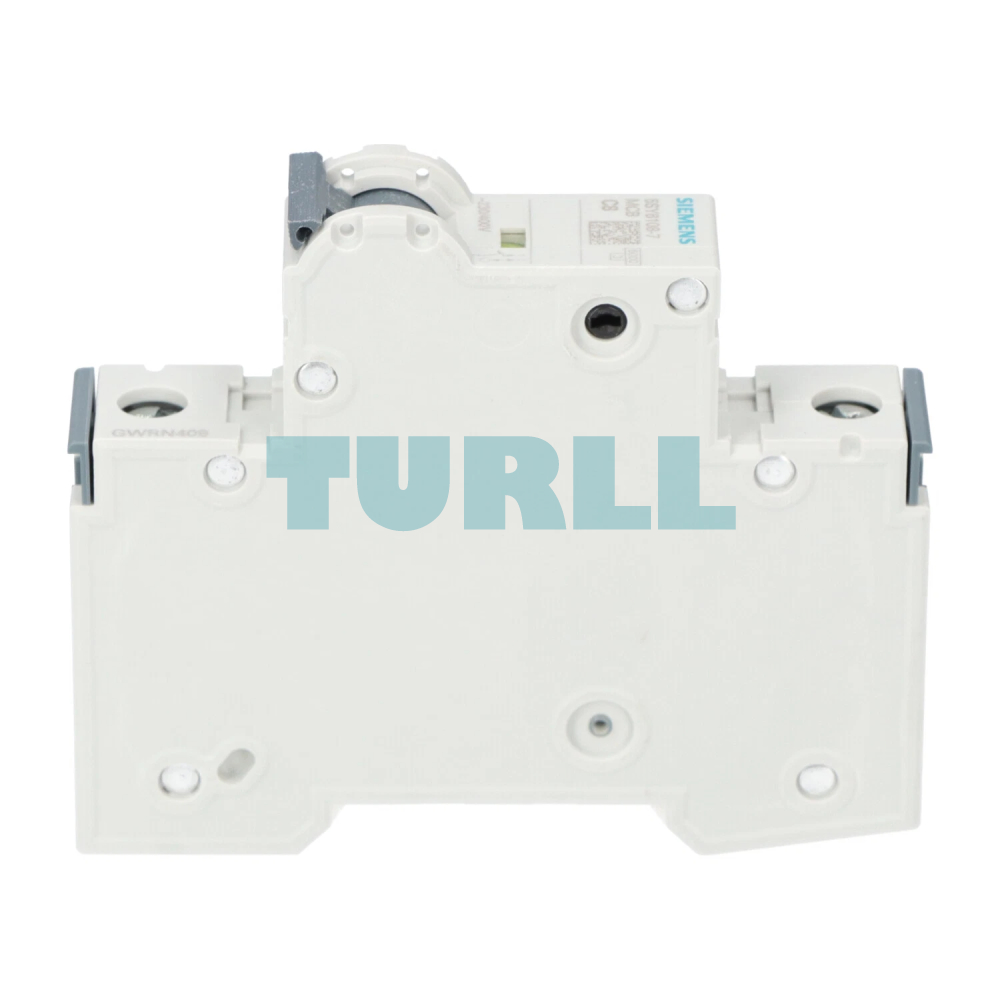

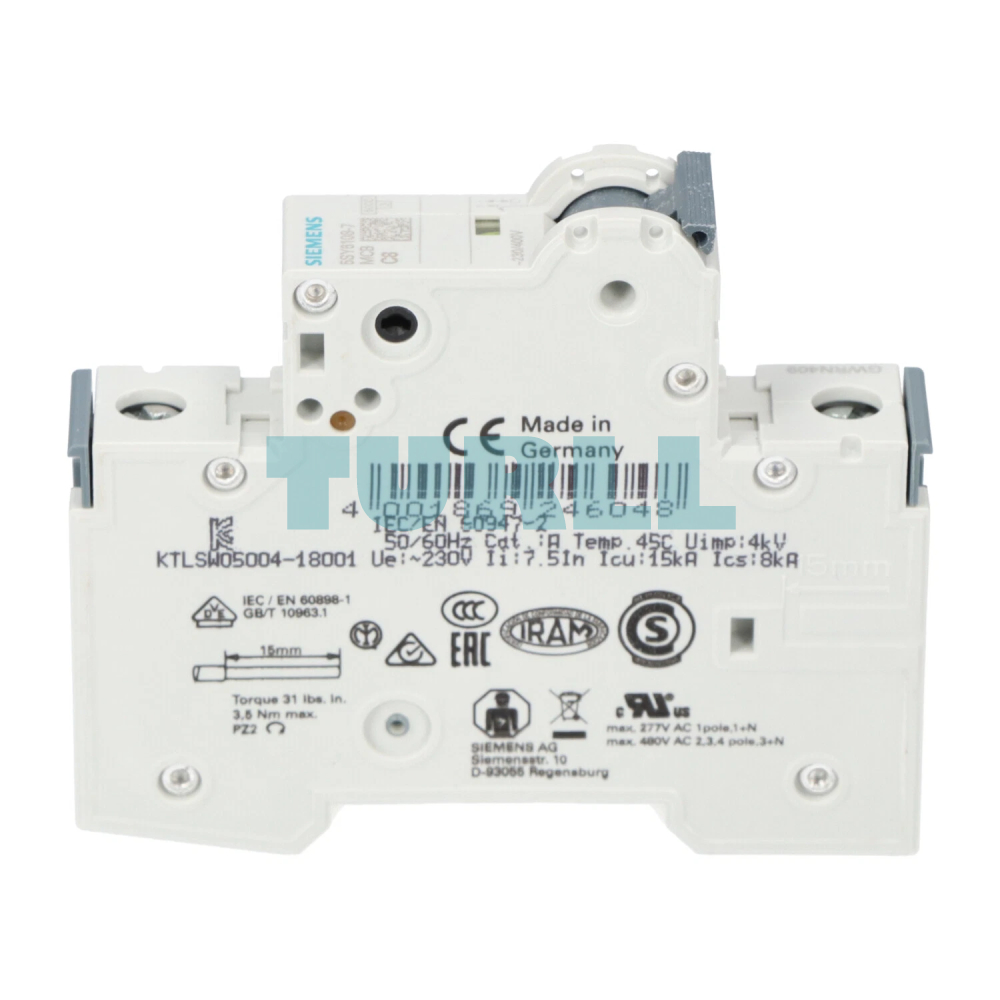

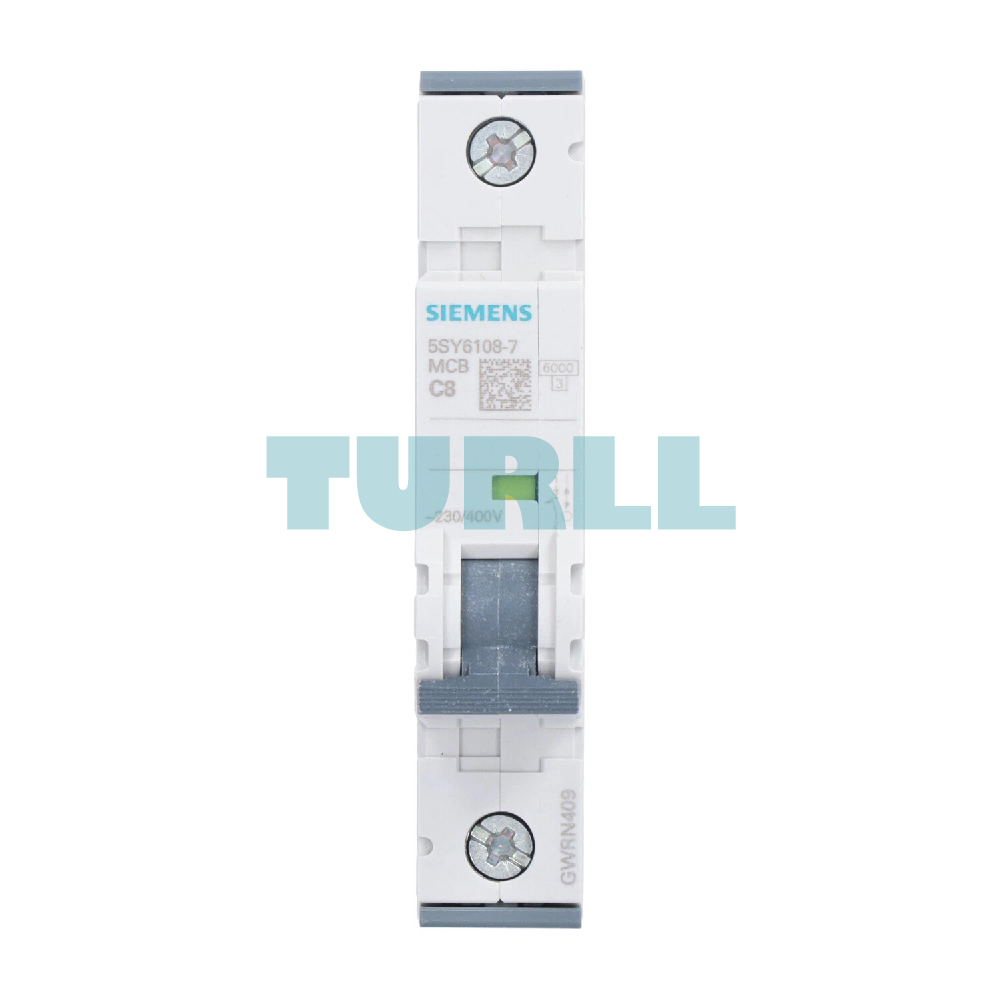

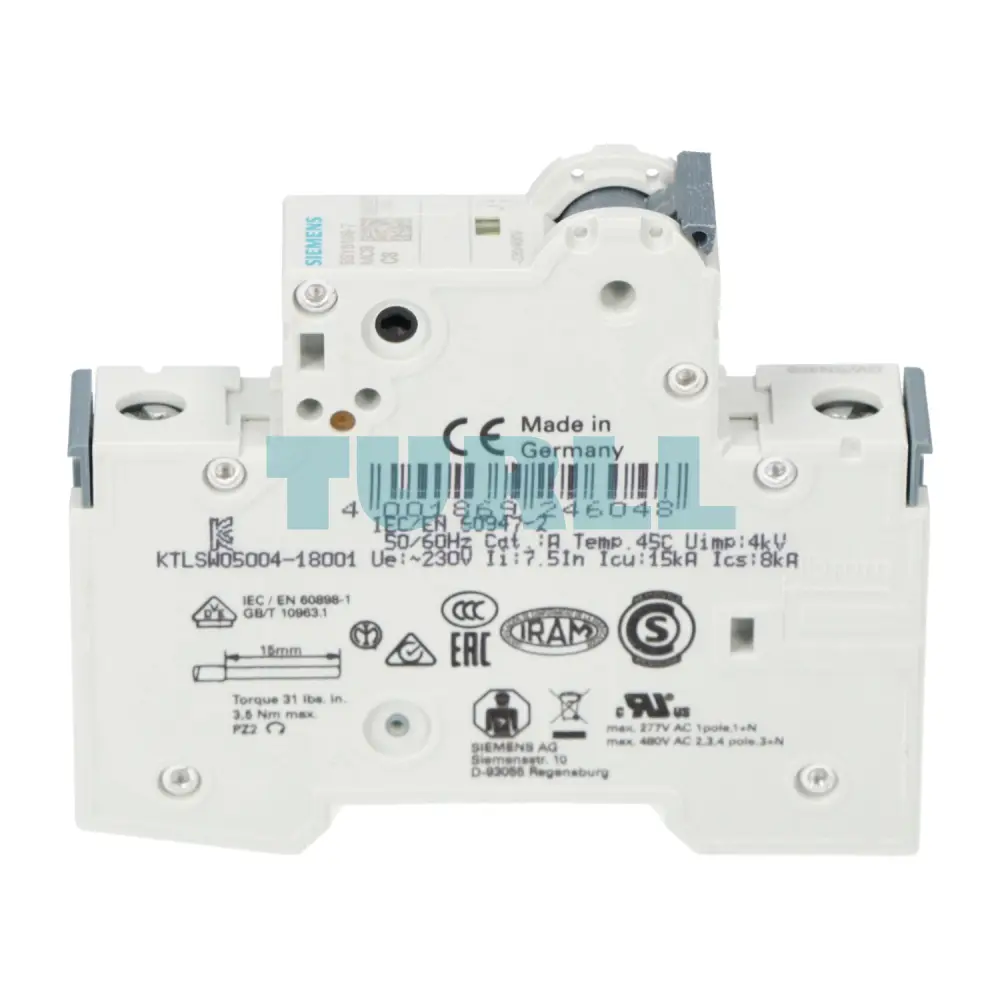

Siemens 5SY6108-7 Miniature Circuit Breaker 1-Pole, 8A, Type C, 6kA, 230/400V Original Brand New
$34.19
Siemens 5SY6108-7 is a reliable 1-pole Miniature Circuit Breaker (MCB) designed for superior circuit protection. Featuring an 8A current rating and a Type C tripping characteristic, it is ideal for handling moderate inrush currents in commercial and industrial environments. Rated for 230/400 V with a 6kA breaking capacity and a compact 70mm mounting depth.
Availability: In stock
Overview
The Siemens SENTRON 5SY6 series is engineered for advanced protection of plants and buildings. The 5SY6108-7 model provides a robust solution for preventing damage caused by overloads and short circuits. Its compact design and “Type C” curve make it the go-to choice for circuits with lamps, motors, or transformers where slight surges are expected.
Key Benefit
-
Enhanced Safety: Reliable disconnection during electrical faults to prevent equipment damage.
-
Global Standards: Fully compliant with international IEC/EN standards for safety and performance.
-
Easy Installation: Features a uniform design and accessory range consistent across the SENTRON line.
-
Compact Footprint: With a mounting depth of 70mm, it fits easily into standard distribution boards.
Function & Features
-
Tripping Characteristic C: Specifically designed for circuits with higher starting currents.
-
Breaking Capacity: Up to 6kA, ensuring durability under fault conditions.
-
High Service Life: Mechanical and electrical endurance designed for long-term industrial application.
-
Universal Compatibility: Suitable for 230V and 400V AC systems.
Technical Specification
-
Model Number: 5SY6108-7
-
Rated Voltage: 230/400 V AC
-
Breaking Capacity: 6kA
-
Poles: 1-pole
-
Tripping Curve: C
-
Current Rating: 8A
-
Width (D): 70 mm
-
Brand: Siemens
Visit 5SY6108-7 for more detail info
For more our products visit turll
Download
| Weight | 0.150 kg |
|---|---|
| Dimensions | 21.00 × 93.00 × 83.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | Miniature circuit breaker |
| number of poles | 1 |
| design of pole | 1P |
| tripping characteristic class | C |
| mechanical service life (switching cycles) / typical | 10 000 |
| overvoltage category | III |
| degree of pollution | 3 |
| type of voltage / of the operating voltage | AC |
| insulation voltage (Ui) | – |
| ● with single-phase operation / at AC / rated value | 440 V |
| ● with multi-phase operation / at AC / rated value | 440 V |
| supply voltage / with single-phase operation / at AC / rated value | 230 V |
| supply voltage | – |
| operating voltage / at DC / rated value / maximum | 72 V |
| protection class IP | IP20, with connected conductors |
| switching capacity current | – |
| ● at DC / acc. to IEC 60947-2 / rated value | 15 kA |
| ● acc. to EN 60898 / rated value | 6 kA |
| ● acc. to IEC 60947-2 / rated value | 15 kA |
| energy limitation class | 3 |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 0.9 W |
| operational current | – |
| ● at 35 °C / rated value | 8 A |
| ● at 45 °C / rated value | 7.26 A |
| ● at 50 °C / rated value | 6.99 A |
| ● at 55 °C / rated value | 6.72 A |
| ● at AC / rated value | 8 A |
| suitability for operation | Mechanical engineering / industry |
| product component / neutral conductor switching | No |
| product feature / touch protection | Yes |
| product component | – |
| ● combined terminal top | Yes |
| ● combined terminal bottom | Yes |
| product feature | – |
| ● properties for main switches in accordance with EN 60204-1 | Yes |
| ● halogen-free | Yes |
| ● sealable | Yes |
| ● silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |
| breaking capacity short-circuit current (Icn) | – |
| ● at AC / acc. to UL 1077 and CSA C22.2 No.235 | 5 kA |
| connectable conductor cross-section / solid | – |
| connectable conductor cross-section / stranded | – |
| connectable conductor cross-section / finely stranded / with core end processing | – |
| AWG number / as coded connectable conductor cross section | – |
| tightening torque [lbf·in] / with screw-type terminals | – |
| tightening torque / with screw-type terminals | – |
| position / of power supply cord | Any |
| installation depth | 70 mm |
| number of modular width units | 1 |
| fastening method | Quick assembly system |
| mounting position | any |
| influence of the surrounding temperature | max. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C |
| vibration resistance / acc. to IEC 60068-2-6 | ±1mm at 5 to 25Hz; 50m/s² at 25 to 150Hz |
| ambient temperature / during operation | – |
| ambient temperature / during storage | – |
| ● minimum | -40 °C |
| ● maximum | 75 °C |
| number of test cycles / for environmental testing / acc. to IEC 60068-2-30 | 6 |
| reference code | – |
| ● acc. to DIN EN 61346-2 | F |
| ● acc. to IEC 81346-2 | F |
