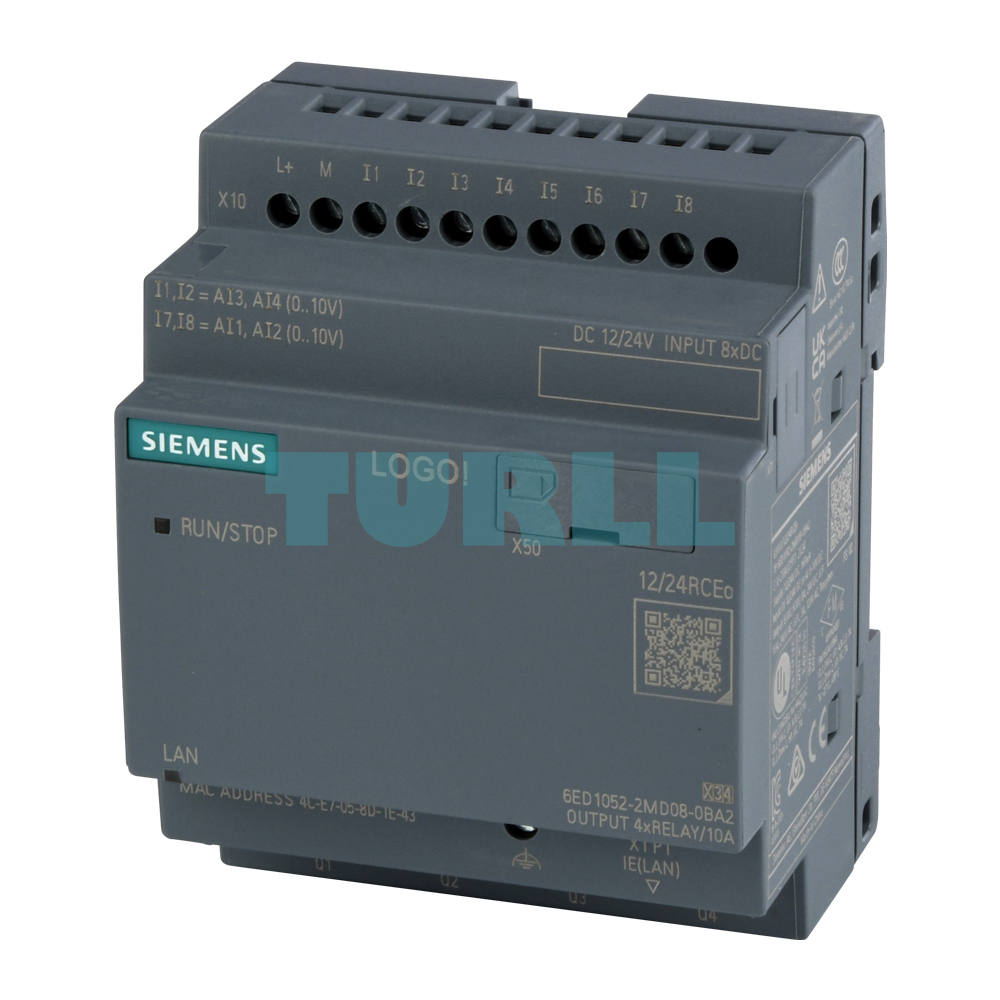

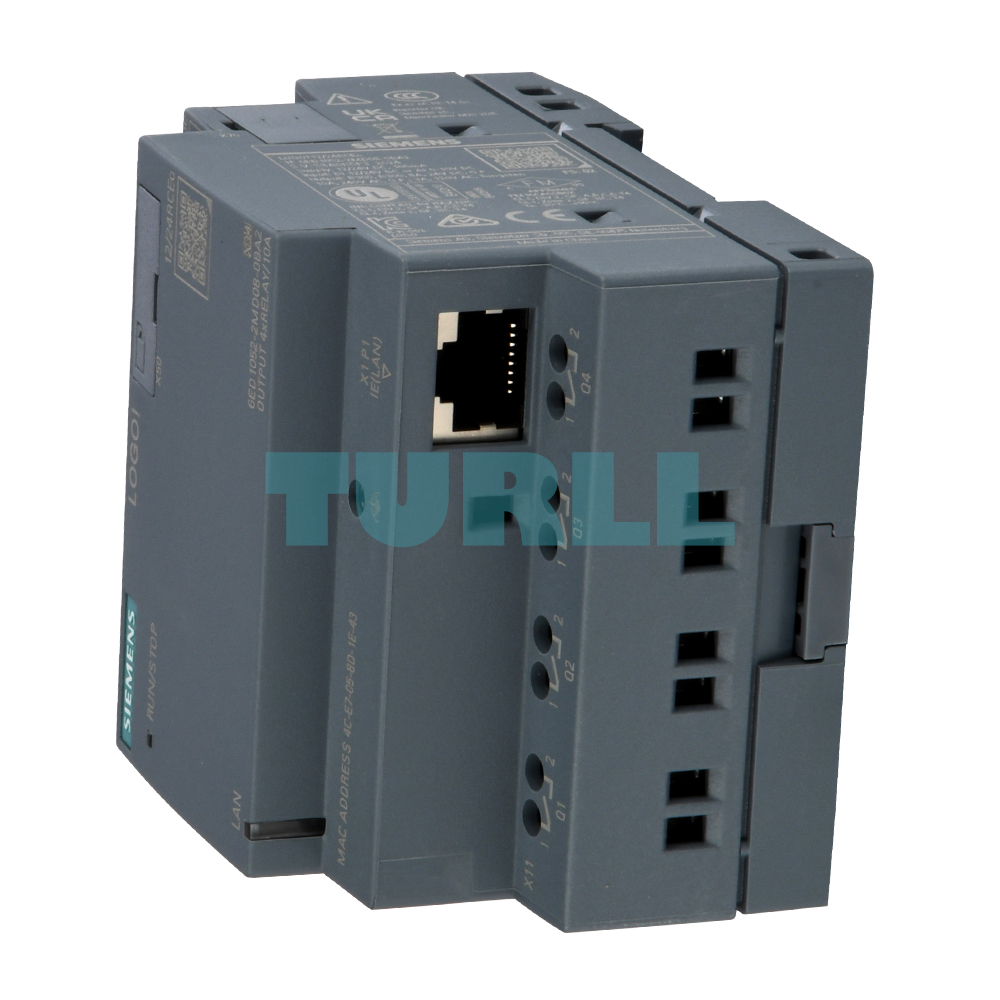

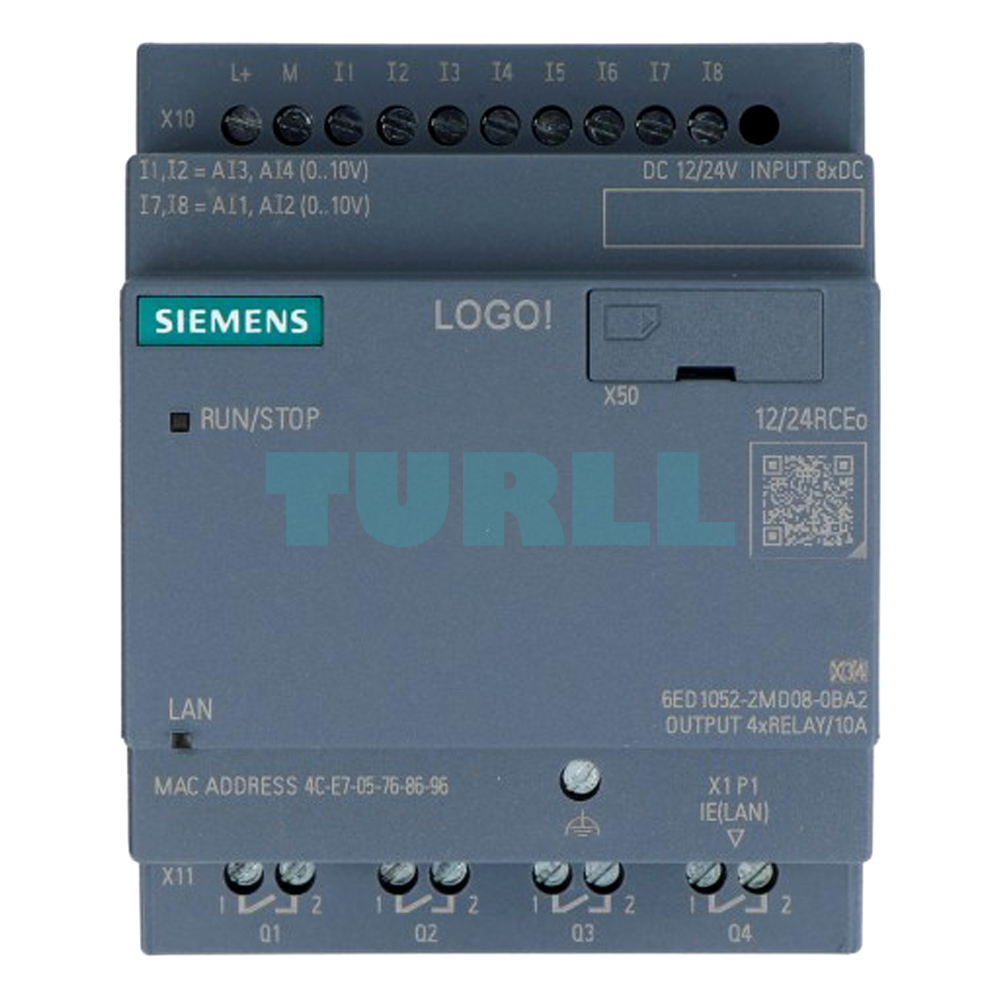

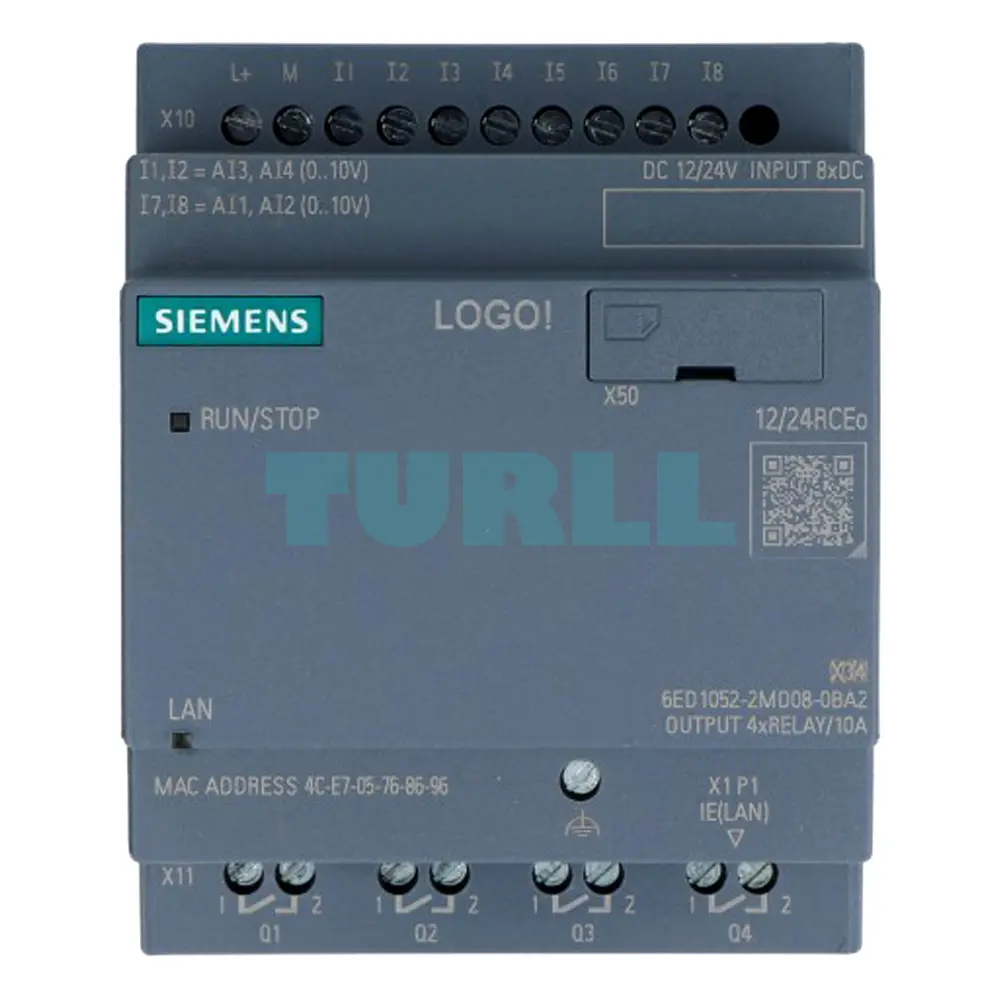

Siemens 6ED1052-2MD08-0BA2 LOGO! 12/24RCEO, Logic Module, 8 DI (4 AI), 4 DO Original Brand New
$81.43
An advanced 12/24 V DC basic logic module (without display) featuring 8 DI (4 AI)/4 DO Relay, an Ethernet interface, an integrated web server, and robust IIoT connectivity with Cloud and MQTT support. Modularly expandable, it’s the ideal solution for cost-effective, network-enabled small automation projects.
Availability: In stock
Overview
The Siemens 6ED1052-2MD08-0BA2 LOGO! 12/24RCEO is a high-performance logic module designed for flexible automation tasks in industrial and commercial environments. Engineered with a powerful feature set, this compact controller provides reliable operation, advanced connectivity, and wide application compatibility. With modular expandability, integrated Ethernet, user-defined web pages, and support for cloud connection and MQTT, this LOGO! controller delivers next-generation automation capabilities in a small footprint.
Benefit
-
Compact & Powerful: Ideal for small automation tasks while offering high-level functionality and versatility.
-
Advanced Connectivity: Integrated Ethernet and built-in web server enable simplified networking, remote monitoring, and web-based control.
-
Cloud-Ready: Supports cloud connectivity and MQTT communication, providing seamless IoT integration.
-
Flexible I/O Configuration: 8 digital inputs (4 analog-capable) and 4 relay outputs suit a wide range of automation applications.
-
Future-Proof: Compatible with LOGO! Soft Comfort V8.4 or higher, with support for standard microSD card storage.
-
Easy Expansion: Modular design allows additional modules for enhanced functionality.
Functions & Features
-
Power Supply: 12/24 V DC
-
Inputs/Outputs: 8 DI (4 configurable as AI) / 4 relay DO
-
Memory Capacity: 400 function blocks
-
Networking: Integrated Ethernet interface
-
Web Capabilities: Built-in web server and customizable web pages
-
Data Logging: Onboard data log for system monitoring and analysis
-
Compatibility: Runs older LOGO! projects and supports cloud connectivity
-
MQTT Protocol Support: Available across all LOGO! 8.4 basic units
-
No Display: Supports external HMI if needed
-
Storage: Uses standard microSD card for project transfer and backups
Download
Visit 6ED1052-2MD08-0BA2 for more detail info
For more our products visit turll
| Weight | 0.250 kg |
|---|---|
| Dimensions | 8.40 × 10.30 × 7.60 mm |
| Brand | SIEMENS |
| Mounting | on 35 mm DIN rail, 4 spacing units wide |
| Rated value (DC) | – |
| ● 12 V DC | Yes |
| ● 24 V DC | Yes |
| permissible range, lower limit (DC) | 10.8 V |
| permissible range, upper limit (DC) | 28.8 V |
| ● Number | 400; Max. 400, function-specific |
| ● Power reserve | 480 h |
| Number of digital inputs | 8; Of which 4 can be used in analog mode (0 to 10 V) |
| Number of digital outputs | 4; Relays |
| Short-circuit protection | No; external fusing necessary |
| ● for signal "1" permissible range for 0 to 55 °C, max. | 10 A |
| — with inductive load, max. | 3 A |
| — with resistive load, max. | 10 A |
| ● Limit class B, for use in residential areas | Yes; Radio interference suppression according to EN55011, Limit Value Class B |
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| FM approval | Yes |
| developed in accordance with IEC 61131 | Yes |
| according to VDE 0631 | Yes |
| Marine approval | Yes |
| ● min. | -40 °C |
| ● max. | 70 °C |
| ● Ambient air temperature-barometric pressure-altitude | Tmin … Tmax at 1 080 hPa … 795 hPa (-1 000 m … +2 000 m) |
| Width | 71.5 mm |
| Height | 90 mm |
| Depth | 60 mm |
| last modified: | 2/26/2021 |
