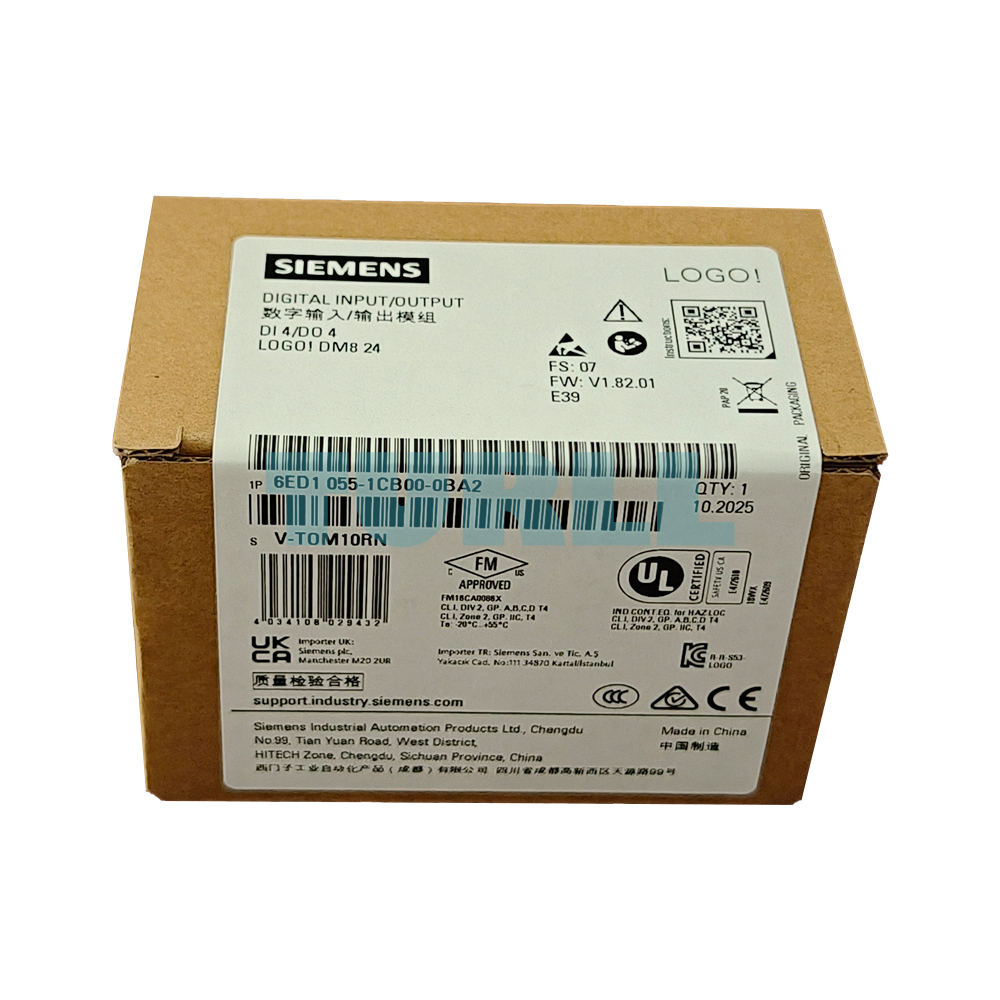

Siemens 6ED1055-1CB00-0BA2 LOGO! DM8 24 Expansion Module, 4 Digital Inputs, 4 Digital Outputs Original Brand New
$56.09
The LOGO! DM8 24 is an essential digital expansion module for the Siemens LOGO! 8 logic module, providing 4 Digital Inputs and 4 Transistor Digital Outputs (4 DI/4 DO) for 24V DC applications. Enhance your control system’s capabilities affordably.
Availability: In stock
Overview
The Siemens LOGO! DM8 24 (6ED1055-1CB00-0BA2) is a crucial expansion module designed specifically to extend the capabilities of the LOGO! 8 logic module series. It provides an economical and flexible solution for integrating additional digital inputs and outputs into your existing industrial automation and control systems. Operating reliably on a 24V DC power supply, this module seamlessly integrates to enhance the I/O count, making it ideal for small to medium-sized automation tasks, control panels, and distributed systems.
Benefit
-
System Expansion: Easily increases the I/O capacity of your base LOGO! 8 unit without needing a larger, more expensive PLC.
-
Cost-Effective Automation: Provides an affordable way to scale your control system for increased functionality.
-
Space-Saving Design: Its compact, modular form factor is perfect for installation in confined control cabinets and panels.
-
Seamless Integration: Features effortless connection and communication with the LOGO! 8 base module for quick setup and configuration.
-
Versatile Application: Suitable for a wide range of applications, including building automation, lighting control, pump control, and basic machine control.
Function
-
Adds 4 digital inputs (24V DC) for signal acquisition
-
Provides 4 digital transistor outputs (24V DC) for fast switching
-
Ensures smooth communication with LOGO! 8 controllers
-
Enhances automation flexibility without replacing the base module
Technical Specification
-
Product Number: 6ED1055-1CB00-0BA2
-
Model: LOGO! DM8 24
-
Power Supply: 24V DC
-
Inputs: 4 Digital Inputs (DI)
-
Outputs: 4 Digital Outputs (DO, transistor)
-
Compatibility: Siemens LOGO! 8
-
Mounting: DIN rail
Download
Visit 6ED1055-1CB00-0BA2 for more detail info
For more our products visit turll
| Weight | 0.136 kg |
|---|---|
| Dimensions | 5.70 × 9.60 × 7.10 mm |
| Brand | SIEMENS |
| Mounting | on 35 mm DIN rail, 2 spacing units wide |
| Rated value (DC) | – |
| ● 24 V DC | Yes |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| Number of digital inputs | 4 |
| ● Type of input voltage | DC |
| ● for signal "0" | < 5 V DC |
| ● for signal "1" | > 12 V DC |
| ● for signal "0", max. (permissible quiescent current) | 0.88 mA |
| ● for signal "1", typ. | 2.1 mA |
| — at "0" to "1", max. | 1.5 ms |
| — at "1" to "0", max. | 1.5 ms |
| Number of digital outputs | 4 |
| Short-circuit protection | Yes |
| ● for signal "1" rated value | 0.3 A |
| ● for uprating | No |
| ● with resistive load, max. | 10 Hz |
| ● with inductive load, max. | 0.5 Hz |
| ● Limit class B, for use in residential areas | Yes |
| IP degree of protection | IP20 |
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| FM approval | Yes |
| developed in accordance with IEC 61131 | Yes |
| according to VDE 0631 | Yes |
| Marine approval | Yes |
| ● min. | 0 °C; ES03 and higher: -20 °C |
| ● max. | 55 °C |
| Width | 35.5 mm |
| Height | 90 mm |
| Depth | 58 mm |
| last modified: | 3/12/2021 |
