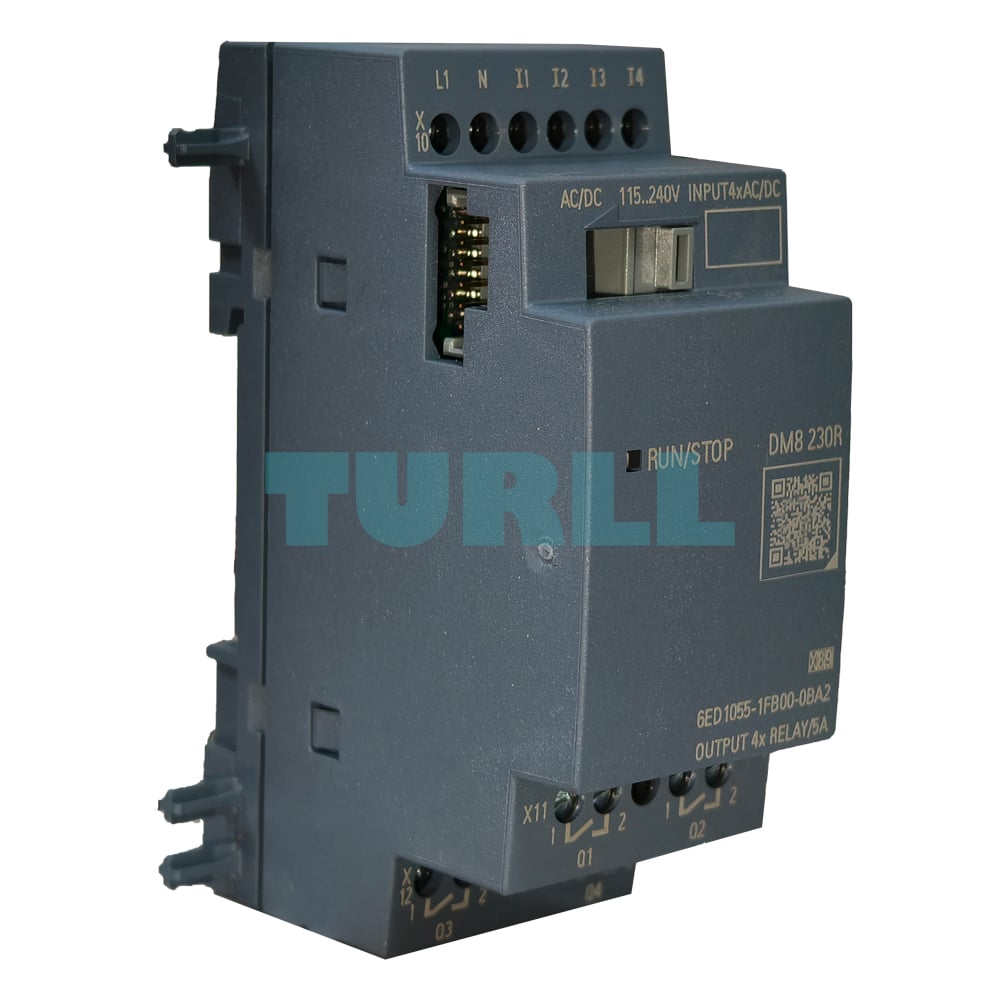

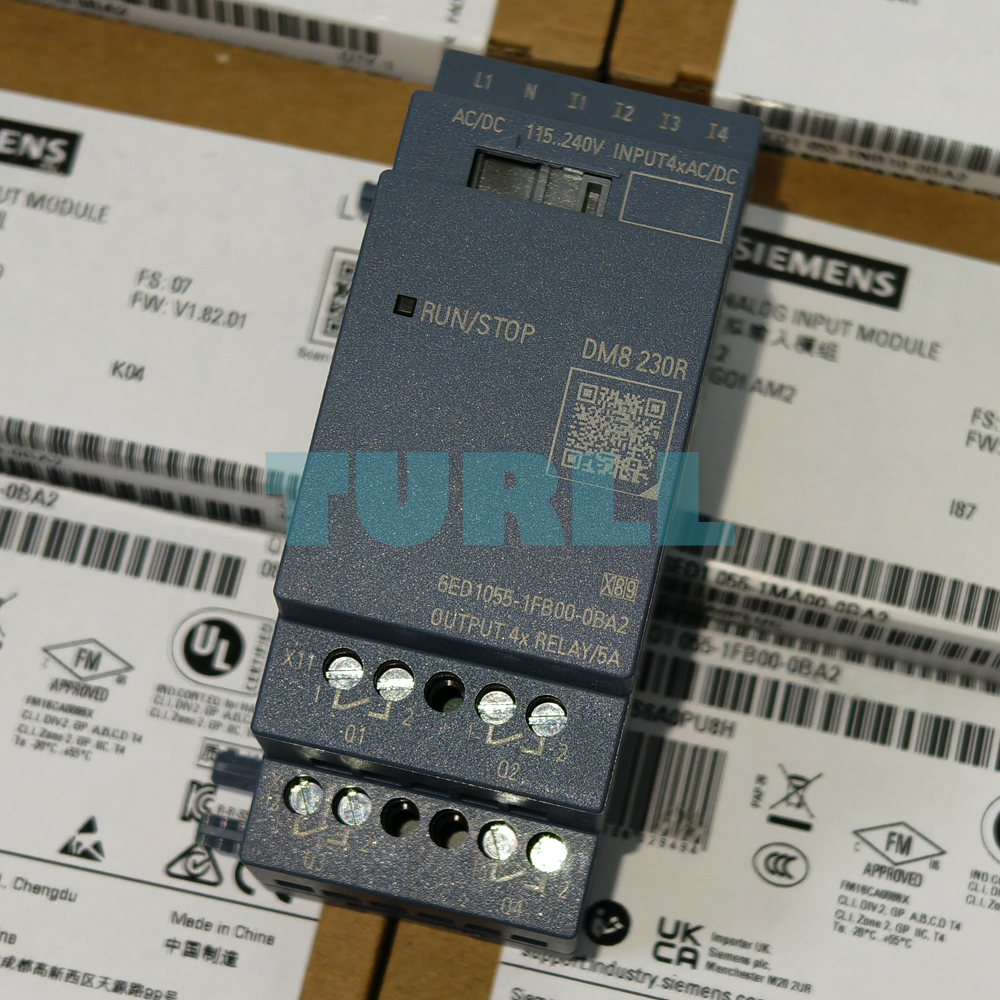

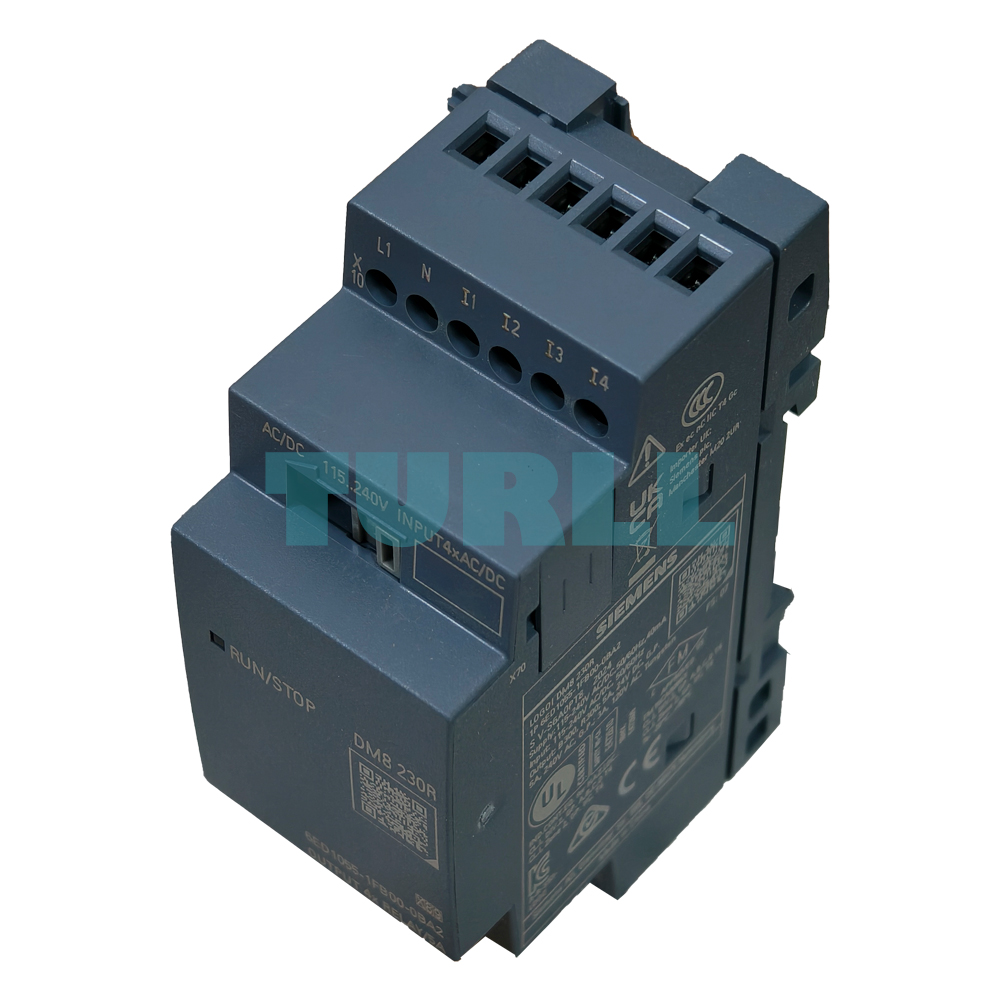

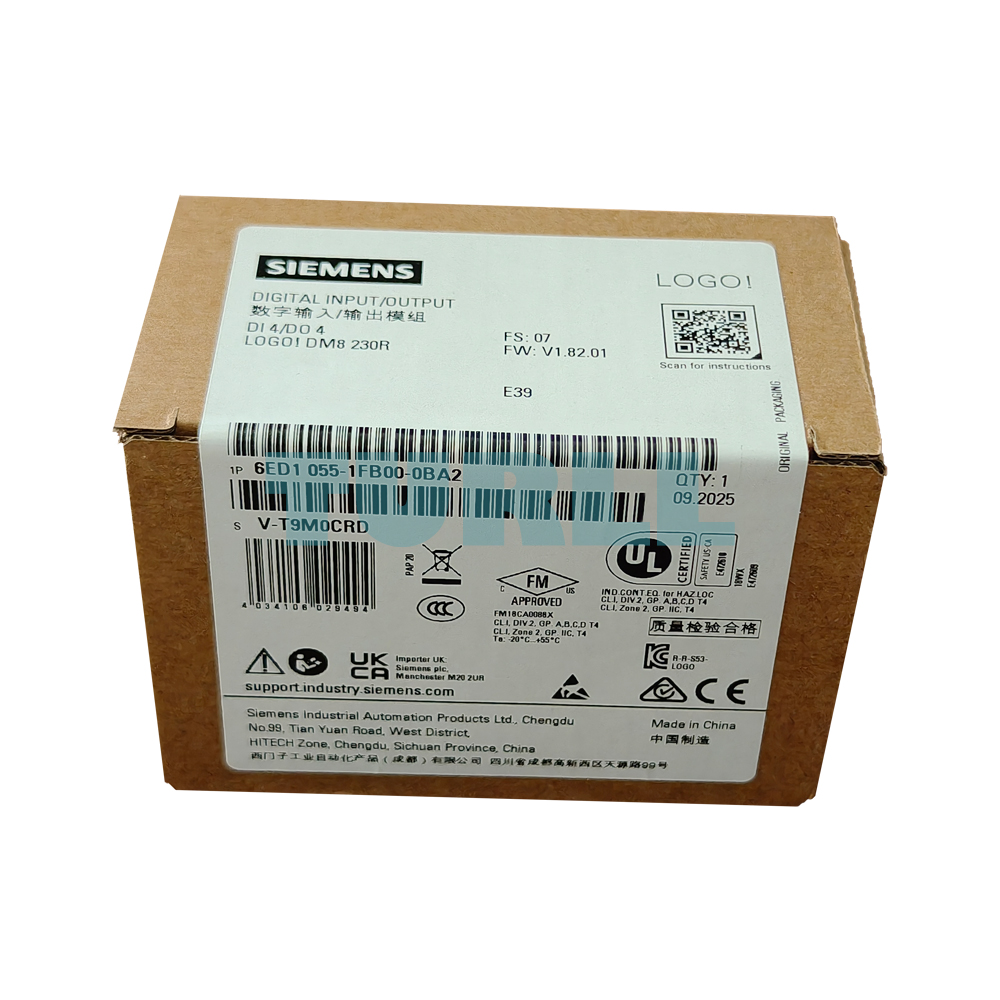

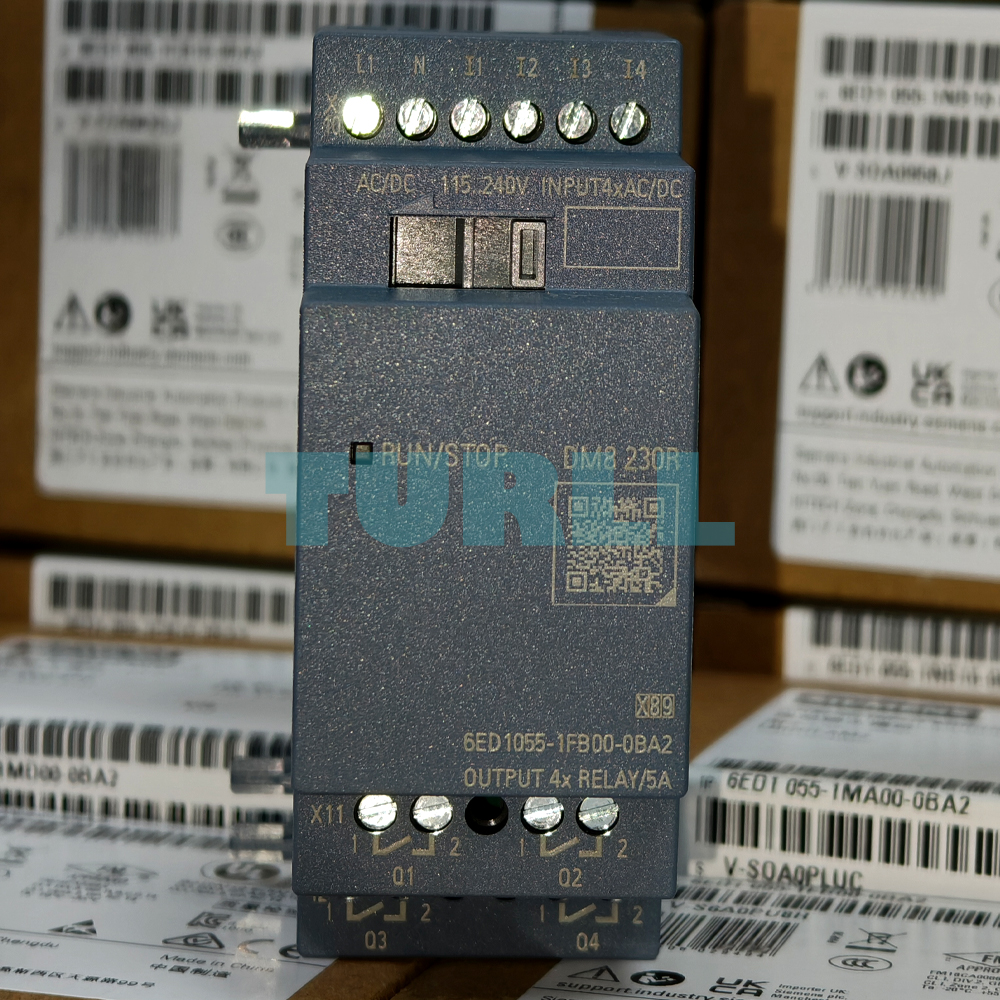

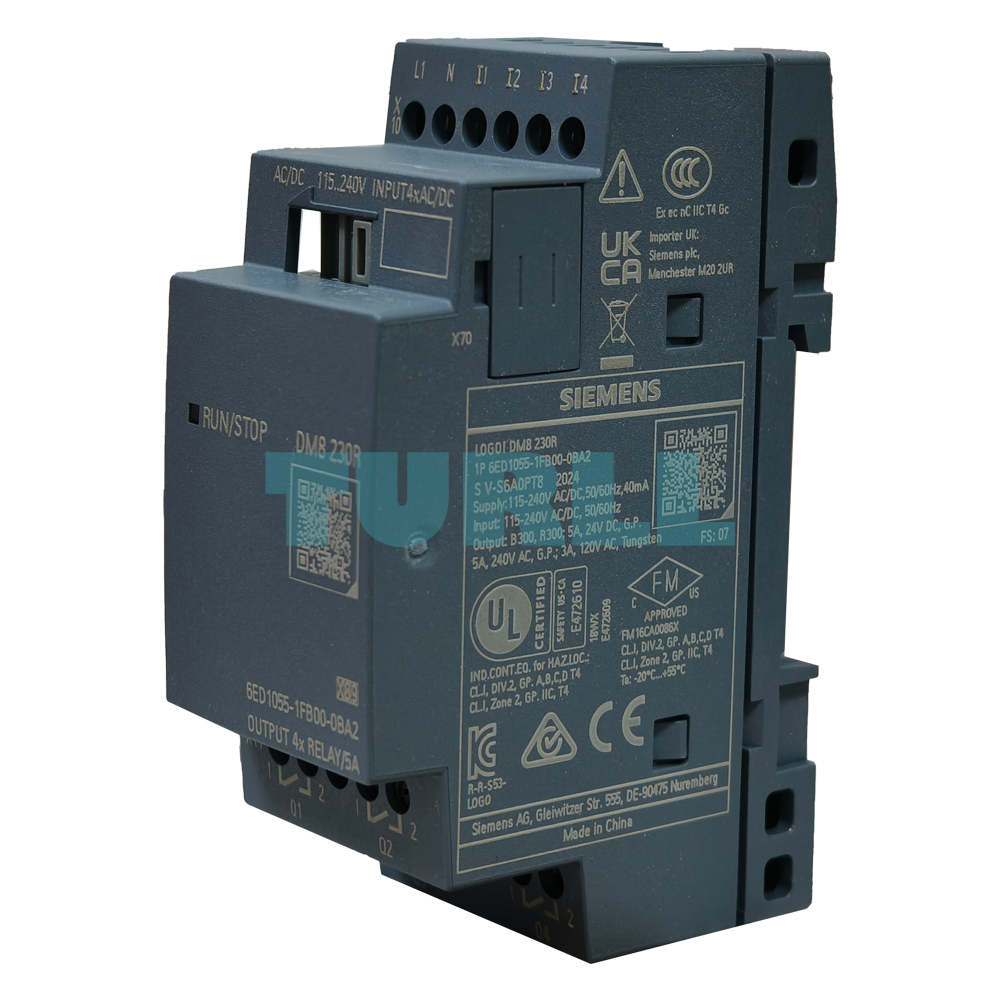

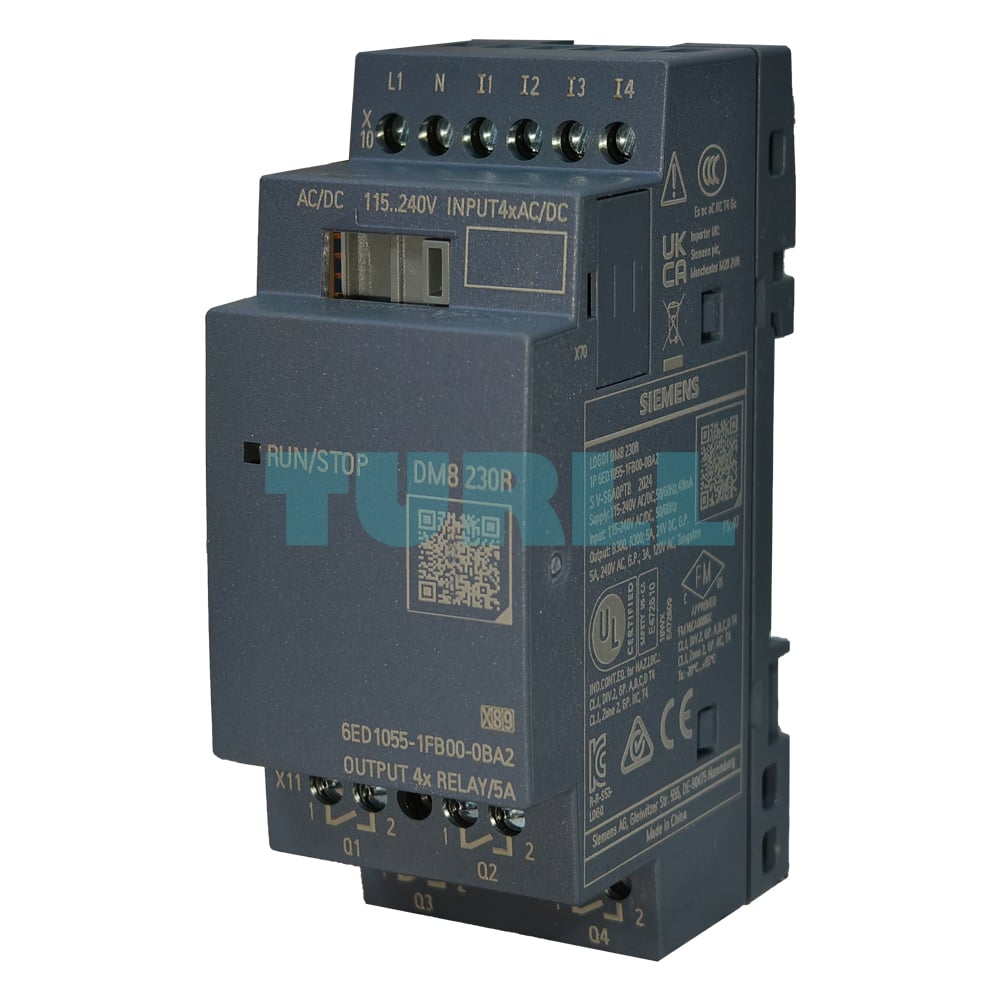

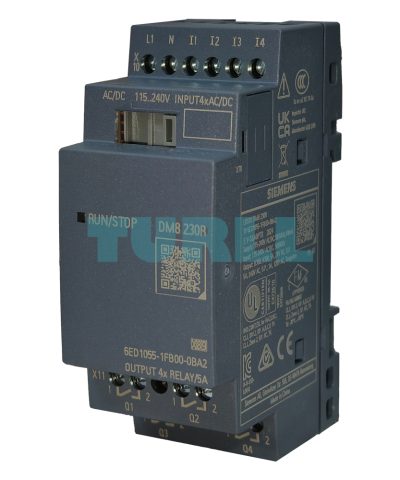

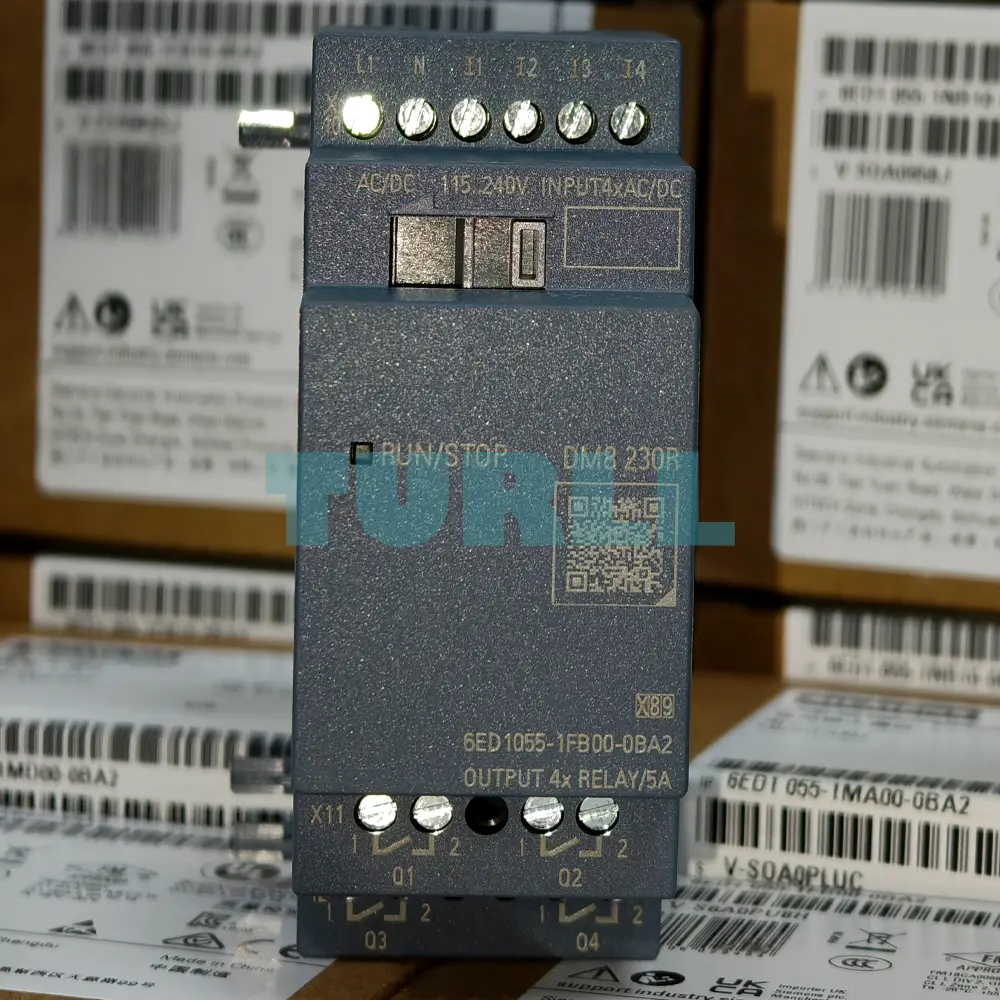

Siemens 6ED1055-1FB00-0BA2 LOGO! DM8 230R Expansion Module, 4 DI/4 DO, 230V Relay Original Brand New
$56.09
LOGO! DM8 230R expansion module with 4 digital inputs and 4 digital outputs, 230V relay, compatible with LOGO! 8. Ideal for efficient automation expansion.
Availability: In stock
Overview
The Siemens LOGO! DM8 230R (6ED1055-1FB00-0BA2) is a high-performance expansion module designed for the LOGO! 8 logic module series. This compact and reliable module allows for seamless extension of your automation systems, providing 4 digital inputs (DI) and 4 digital outputs (DO) with relay functionality. Operating at 230V, it ensures maximum compatibility and flexible configuration for a wide range of industrial and commercial automation tasks.
Key Benefit
-
Efficient Expansion: Easily extend your LOGO! 8 system to accommodate more inputs and outputs.
-
High Reliability: Durable relay outputs designed for long-term industrial use.
-
Easy Integration: Plug-and-play compatibility with LOGO! 8 logic modules.
-
Energy-Efficient: Low power consumption with high operational stability.
-
Versatile Applications: Ideal for building automation, machinery control, and industrial processes.
Function
This module serves a primary function of expanding the I/O count of the LOGO! 8 base module.
-
I/O Configuration: Adds 4 Digital Inputs (DI) and 4 Digital Outputs (DO).
-
Power Supply: Operates on 230V AC.
-
Output Type: Features high-capacity Relay Outputs, allowing direct switching of common industrial loads (e.g., contactors, solenoid valves, lights) running on 230V AC.
-
Compatibility: Fully compatible with all LOGO! 8 base units (e.g., 230V and 12/24V models).
Technical Specification
-
Product Number: 6ED1055-1FB00-0BA2
-
Supply Voltage: 230V AC
-
Digital Inputs: 4 (230V AC)
-
Digital Outputs: 4 (Relay, 230V AC switching voltage)
-
Module Width: 2 Modulus (MW)
-
Product Type: Digital Expansion Module
Download
Visit 6ED1055-1FB00-0BA2 for more detail info
For more our products visit turll
| Weight | 0.172 kg |
|---|---|
| Dimensions | 5.70 × 9.60 × 7.10 mm |
| Brand | SIEMENS |

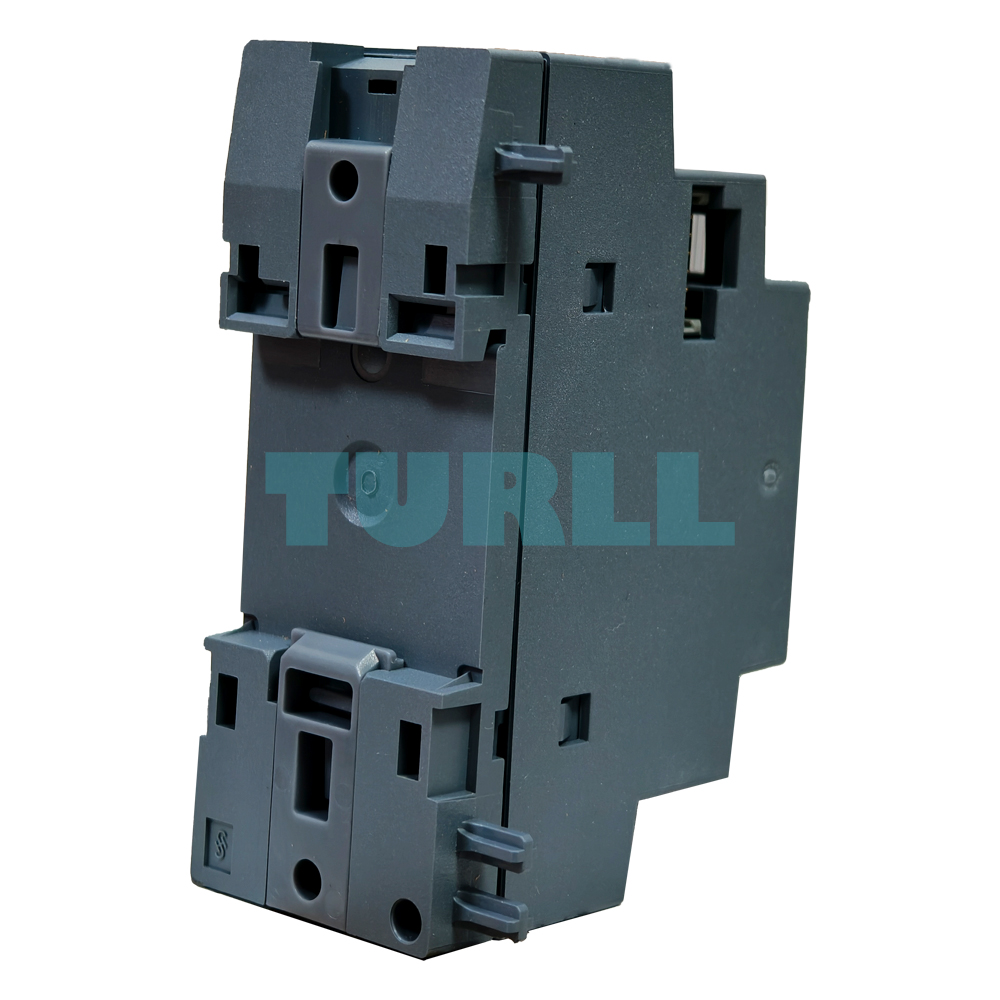

| Mounting | on 35 mm DIN rail, 2 spacing units wide |
| Rated value (DC) | – |
| ● 115 V DC | Yes |
| ● 230 V DC | Yes |
| permissible range, lower limit (DC) | 100 V |
| permissible range, upper limit (DC) | 253 V |
| Rated value (AC) | – |
| ● 115 V AC | Yes |
| ● 230 V AC | Yes |
| ● permissible range, lower limit | 47 Hz |
| ● permissible range, upper limit | 63 Hz |
| Number of digital inputs | 4 |
| ● Type of input voltage | AC/DC |
| ● for signal "0" | < 40 V AC, < 30 V DC |
| ● for signal "1" | > 79 V AC, > 79 V DC |
| ● for signal "0", max. (permissible quiescent current) | 0.06 mA; 0.05 mA with AC, 0.06 mA with DC |
| ● for signal "1", typ. | 0.13 mA |
| — at "0" to "1", max. | 40 ms |
| — at "1" to "0", max. | 75 ms |

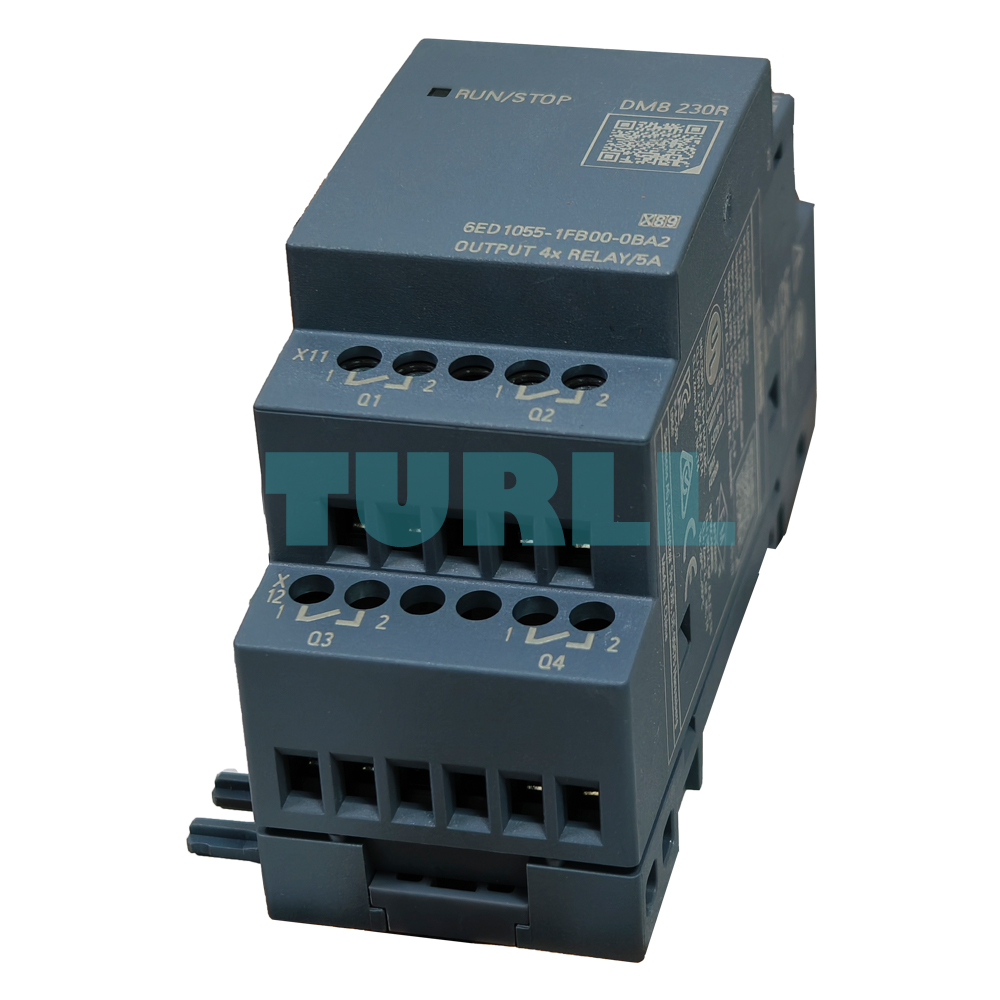

| Number of digital outputs | 4; Relays |
| Short-circuit protection | No |
| Controlling a digital input | Yes |
| ● on lamp load, max. | 1 000 W; 500 W at 115V AC |
| ● for signal "1" rated value | 5 A |
| ● for signal "1" minimum load current | 100 mA |
| ● for uprating | No |
| ● with resistive load, max. | 2 Hz |
| ● with inductive load, max. | 0.5 Hz |
| ● mechanical, max. | 10 Hz |
| — with inductive load, max. | 3 A |
| — with resistive load, max. | 5 A |
| ● Limit class B, for use in residential areas | Yes |
| IP degree of protection | IP20 |
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| FM approval | Yes |
| developed in accordance with IEC 61131 | Yes |
| according to VDE 0631 | Yes |
| Marine approval | Yes |
| ● min. | 0 °C; ES03 and higher: -20 °C |
| ● max. | 55 °C |
| Width | 35.5 mm |
| Height | 90 mm |
| Depth | 58 mm |
| last modified: | 3/12/2021 |
