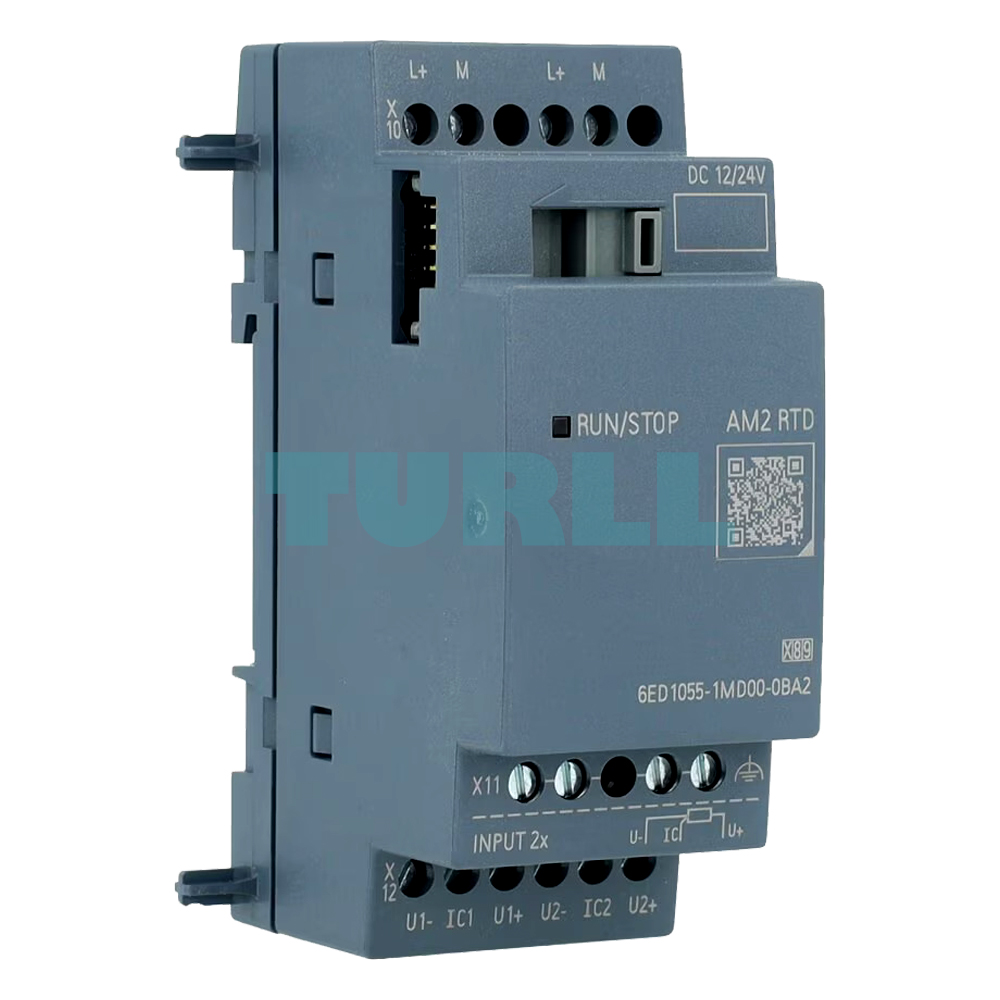

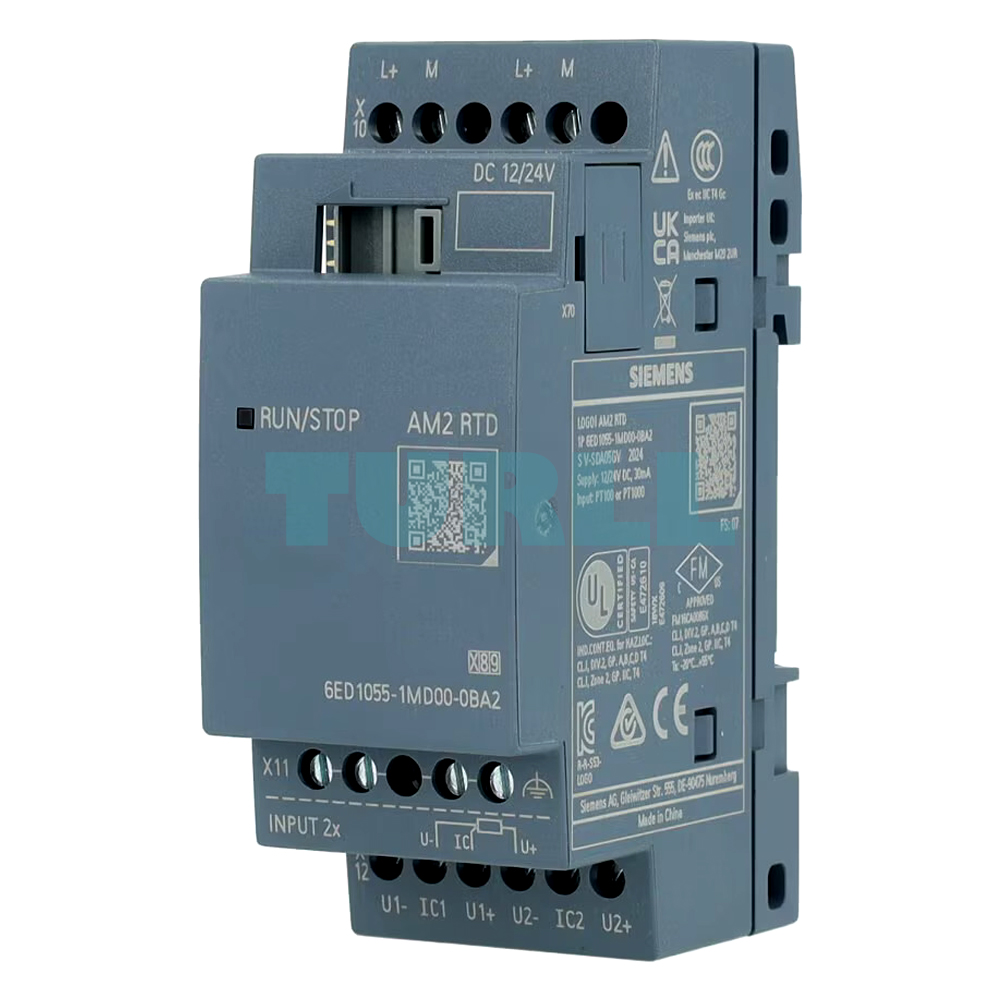

Siemens 6ED1055-1MD00-0BA2 LOGO! AM2 RTD Expansion Module, 2 AI for Pt100 / Pt1000, 12/24 V DC Original Brand New
$84.18
LOGO! AM2 RTD expansion module, PS: 12/24 V DC, 2 analog inputs (2AI) for Pt100/Pt1000 temperature sensors in the range of -50°C to +200°C. Compatible with all Siemens LOGO! 8 base modules.
Availability: In stock
Overview
The Siemens LOGO! AM2 RTD Expansion Module (6ED1055-1MD00-0BA2) is a dedicated analog input module designed to seamlessly extend the capabilities of the LOGO! 8 logic module series. It provides high-precision temperature sensing, making it an essential component for control applications requiring accurate temperature monitoring and regulation within industrial environments. This expansion module operates on a flexible 12/24V DC power supply.
Function
This module specializes in converting resistance values from Resistance Temperature Detectors (RTDs) into usable analog signals for the LOGO! 8 controller.
-
Temperature Measurement: It supports two analog input channels (2AI) for connecting standard RTD sensors: Pt100 and Pt1000.
-
Measurement Range: It handles a wide temperature measurement range of -50°C to +200°C (or -58°F to +392°F), suitable for common HVAC, process control, and machine temperature monitoring tasks.
-
Expansion: It easily plugs into the base LOGO! 8 unit, instantly increasing the system’s analog input capacity for complex applications.
Benefit
-
High Precision Temperature Control: Utilizes Pt100/Pt1000 sensors for accurate and reliable temperature data acquisition.
-
Seamless Integration: Designed specifically for the LOGO! 8 series, ensuring easy setup and programming within the LOGO! Soft Comfort environment.
-
Flexible Power Input: Compatible with standard industrial 12V DC and 24V DC power sources.
-
Increased System Capacity: Expands the input capabilities of your LOGO! 8 base module without the need for a separate costly controller.
-
Industrial Reliability: Built by Siemens for dependable performance in demanding industrial control applications.
Download
Visit 6ED1055-1MD00-0BA2 for more detail info
For more our products visit turll
| Weight | 0.136 kg |
|---|---|
| Dimensions | 5.70 × 9.60 × 7.10 mm |
| Brand | SIEMENS |
| Mounting | on 35 mm DIN rail, 2 spacing units wide |
| Rated value (DC) | – |
| ● 12 V DC | Yes; 10.8 V DC to 28.8 V DC |
| ● 24 V DC | Yes; 10.8 V DC to 28.8 V DC |
| Current consumption, typ. | 30 mA |
| Number of analog inputs | 2; 2 or 3 wire connection |
| ● Voltage | No |
| ● Current | No |
| ● Resistance thermometer | Yes; For PT100/PT1000 sensors |
| ● 0 to +10 V | No |
| ● 0 to 20 mA | No |
| ● Pt 100 | Yes |
| ● Limit class B, for use in residential areas | Yes |
| IP degree of protection | IP20 |
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| FM approval | Yes |
| developed in accordance with IEC 61131 | Yes |
| Marine approval | Yes |
| ● min. | 0 °C; ES03 and higher: -20 °C |
| ● max. | 55 °C |
| Width | 35.5 mm |
| Height | 90 mm |
| Depth | 58 mm |
| last modified: | 3/12/2021 |
