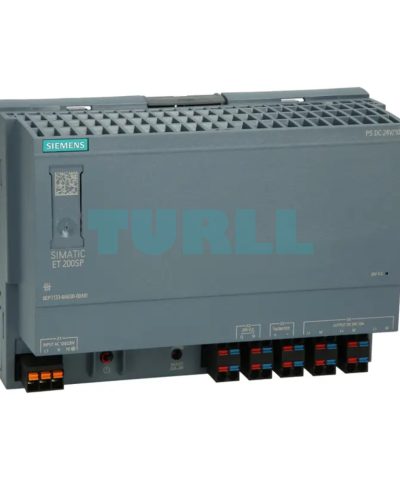

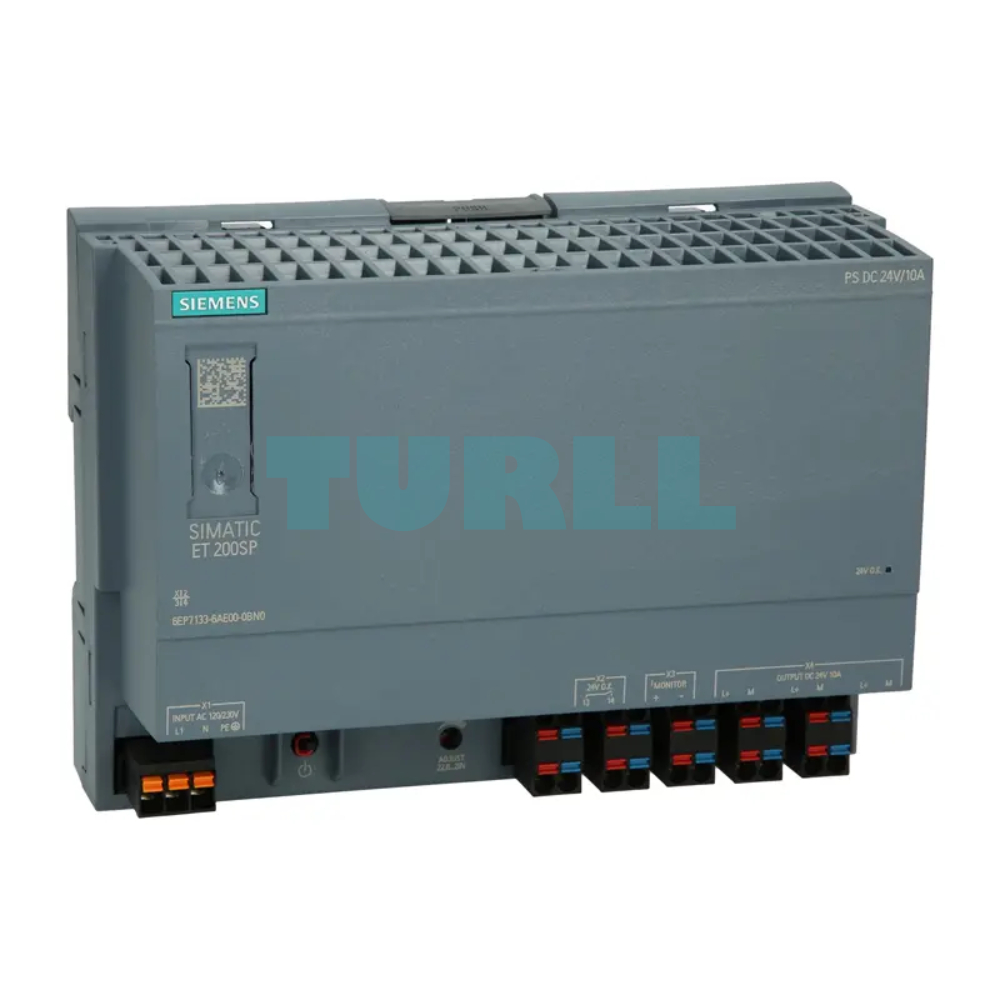

Siemens 6EP7133-6AE00-0BN0 SIMATIC ET 200SP PS 24V/10A Stabilized Power Supply Original Brand New
$206.88
High-performance SIMATIC ET 200SP PS stabilized power supply. It provides a reliable 24V DC/10A output with a flexible 120/230V AC input, designed specifically for the compact ET 200SP system.
Availability: In stock
Overview
The Siemens 6EP7133-6AE00-0BN0 is a high-performance SIMATIC ET 200SP stabilized power supply designed to deliver reliable and efficient power for industrial automation systems. It converts 120/230 V AC input into a stable 24 V DC output with 10 A current, ensuring consistent operation of connected modules and devices.
Engineered for use with the ET 200SP distributed I/O system, this power supply provides dependable voltage regulation, compact design, and seamless system integration, making it ideal for modern industrial environments.
Benefit
-
Space-Saving Design: At only 160mm wide, it integrates seamlessly into the SIMATIC ET 200SP rack system.
-
High Efficiency: Minimizes heat dissipation in the control cabinet, extending the lifespan of surrounding components.
-
Global Compatibility: Automatic range switching for 120/230 V AC allows for worldwide deployment.
-
System Integration: Fully compatible with TIA Portal for simplified engineering and diagnostics.
Function & Features
-
Input Voltage: 120 / 230 V AC
-
Output Voltage: 24 V DC
-
Output Current: 10 A
-
Power Supply Type: Stabilized power supply
-
System Compatibility: SIMATIC ET 200SP
-
Application Area: Industrial automation and control systems
Application
-
Industrial automation panels
-
Distributed I/O systems
-
Manufacturing and process control
-
Machine building
-
Factory automation systems
Visit 6EP7133-6AE00-0BN0 for more detail info
For more our products visit turll
Download
| Weight | 0.700 kg |
|---|---|
| Dimensions | 123.00 × 185.00 × 80.00 mm |
| Brand | SIEMENS |
| Input | 1-phase AC |
| supply voltage | – |
| ● 1 at AC rated value | 120 V |
| ● 2 at AC rated value | 230 V |
| input voltage | – |
| ● 1 at AC | 85 … 132 V |
| ● 2 at AC | 170 … 264 V |
| Wide-range input | No |
| Overvoltage resistance | 2.3 × Vin rated, 1.3 ms |
| Mains buffering | at Vin = 93/187 V |
| Mains buffering at Iout rated, min. | 20 ms; at Vin = 93/187 V |
| Rated line frequency 1 | 50 Hz |
| Rated line frequency 2 | 60 Hz |
| Rated line range | 47 … 63 Hz |
| input current | – |
| ● at rated input voltage 120 V | 4.34 A |
| ● at rated input voltage 230 V | 1.92 A |
| Switch-on current limiting (+25 °C), max. | 60 A |
| I²t, max. | 6.3 A²·s |
| Built-in incoming fuse | T 6.3 A/250 V (not accessible) |
| Protection in the mains power input (IEC 898) | recommended LS switch: B/C 10 A/6 A |
| Output | Controlled, isolated DC voltage |
| Rated voltage Vout DC | 24 V |
| ● output voltage at output 1 at DC rated value | 24 V |
| Total tolerance, static ± | 3 % |
| Static mains compensation, approx. | 0.1 % |
| Static load balancing, approx. | 1 % |
| Residual ripple peak-peak, max. | 150 mV |
| Residual ripple peak-peak, typ. | 50 mV |
| Spikes peak-peak, max. (bandwidth: 20 MHz) | 240 mV |
| Spikes peak-peak, typ. (bandwidth: 20 MHz) | 150 mV |
| Adjustment range | 22.8 … 28 V |
| product function output voltage adjustable | Yes |
| Output voltage setting | via potentiometer |
| Status display | Green LED for 24 V OK |
| Signaling | Relay contact (NO contact, rating 60 V DC/ 0.3 A) for "24 V OK" |
| On/off behavior | Overshoot of Vout < 3 % |
| Startup delay, max. | 0.3 s |
| Voltage rise, typ. | 30 ms |
| Rated current value Iout rated | 10 A |
| Current range | 0 … 12 A |
| ● Note | 10 A up to +60°C; +60 … +70 °C: Derating 3%/K |
| supplied active power typical | 240 W |
| short-term overload current | – |
| ● on short-circuiting during the start-up typical | 30 A |
| ● at short-circuit during operation typical | 30 A |
| duration of overloading capability for excess current | – |
| ● on short-circuiting during the start-up | 750 ms |
| ● at short-circuit during operation | 800 ms |
| Parallel switching for enhanced performance | Yes |
| Numbers of parallel switchable units for enhanced performance | 2 |
| Efficiency at Vout rated, Iout rated, approx. | 90 % |
| Power loss at Vout rated, Iout rated, approx. | 26 W |
| power loss [W] during no-load operation maximum | 2.8 W |
| Dynamic mains compensation (Vin rated ±15 %), max. | 0.3 % |
| Dynamic load smoothing (Iout: 10/90/10 %), Uout ± typ. | 3 % |
| Load step setting time 10 to 90%, typ. | 1 ms |
| Load step setting time 90 to 10%, typ. | 1 ms |
| Output overvoltage protection | protection against overvoltage in case of internal fault Vout < 31.8 V |
| Current limitation | 14 … 15 A |
| property of the output short-circuit proof | Yes |
| Short-circuit protection | Constant current characteristic |
| enduring short circuit current RMS value | – |
| overcurrent overload capability in normal operation | overload capability 150 % Iout rated up to 5 s/min |
| Overload/short-circuit indicator | – |
| Primary/secondary isolation | Yes |
| galvanic isolation | Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178 |
| Protection class | Class I |
| leakage current | – |
| ● maximum | 3.5 mA |
| ● typical | 1 mA |
| Degree of protection (EN 60529) | IP20 |
| CE mark | Yes |
| UL/cUL (CSA) approval | cULus-Listed (UL61010-2-201, CSA C22.2 No.142), cCSAus (CSA C22.2 No. 60950-1, UL 60950-1) |
| Explosion protection | IECEx Ex ec nC IIC T3 Gc; ATEX (EX) II 3G Ex ec nC IIC T3 Gc |
| certificate of suitability NEC Class 2 | No |
| CB approval | Yes |
| certificate of suitability EAC approval | Yes |
| Marine approval | BV, DNV GL |
| Emitted interference | EN 61000-6-3 Class B |
| Supply harmonics limitation | EN 61000-3-2 |
| Noise immunity | EN 61000-6-2 |
| ambient temperature | – |
| ● during operation | -30 … +70 °C |
| — Note | with natural convection |
| ● during transport | -40 … +85 °C |
| ● during storage | -40 … +85 °C |
| Humidity class according to EN 60721 | Climate class 3K3, 5 … 95% no condensation |
| Connection technology | Push-in terminals |
| Connections | – |
| ● Supply input | L, N, PE: 1 push-in terminal each for 0.2 … 2.5 mm² single-core/finely stranded |
| ● Output | +, -: 2 push-in terminals each for 0.2 … 2.5 mm² |
| ● Auxiliary | Signaling contact: 2 push-in terminals for 0.2 … 2.5 mm² |
| ● signaling contact | 2 push-in terminals for 0.2 … 2.5 mm² |
| product function | – |
| ● removable terminal at input | Yes |
| ● removable terminal at output | Yes |

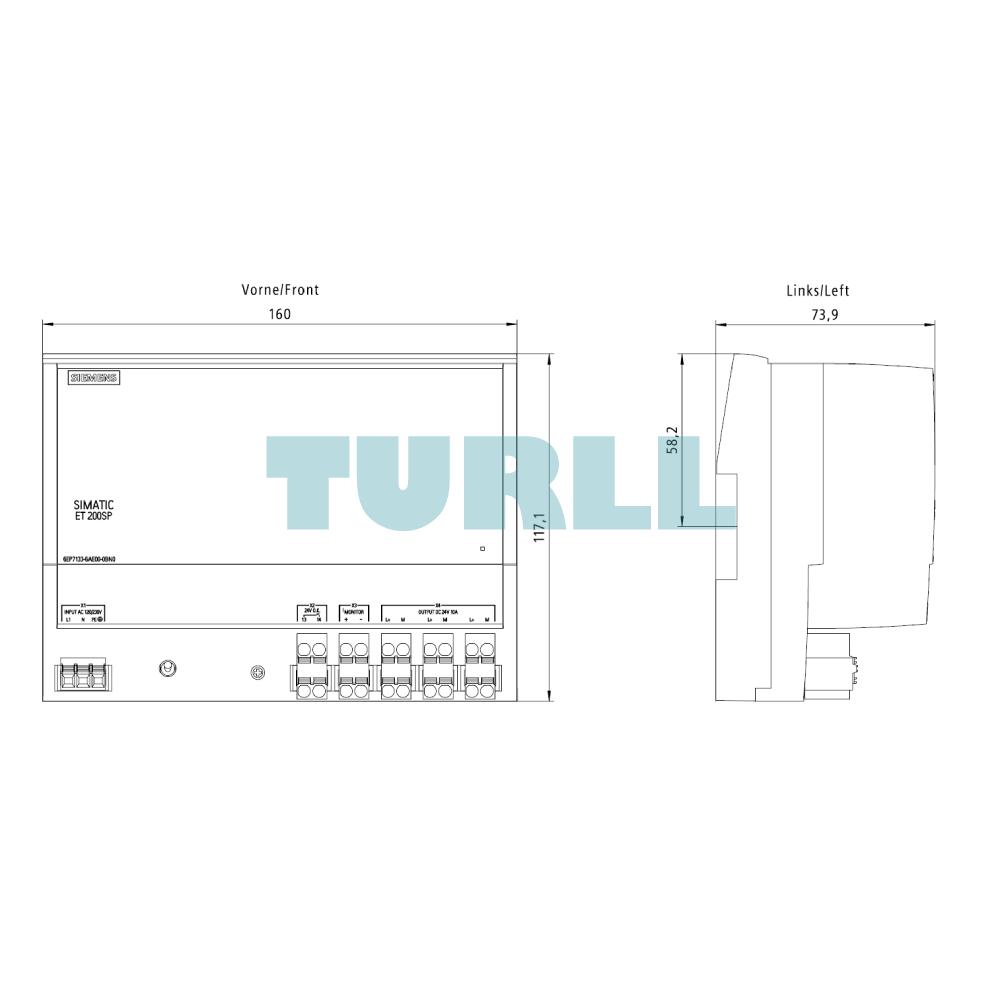

| width of the enclosure | 160 mm |
| height of the enclosure | 117 mm |
| depth of the enclosure | 74 mm |
| required spacing | – |
| ● top | 50 mm |
| ● bottom | 50 mm |
| ● left | 0 mm |
| ● right | 0 mm |
| Weight, approx. | 0.7 kg |
| product feature of the enclosure housing can be lined up | Yes |
| Installation | Snaps onto DIN rail EN 60715 35×7.5/15 |
| electrical accessories | Redundancy module, buffer module, selectivity module, DC UPS |
| MTBF at 40 °C | 1 114 510 h |
| other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
