Siemens 6ES7131-6BH01-0BA0 SIMATIC ET 200SP, Digital Input Module, 16x24V DC
Siemens 6ES7131-6BH01-0BA0 SIMATIC ET 200SP, Digital Input Module, 16x24V DC
Siemens 6ES7131-6BH01-0BA0 SIMATIC ET 200SP, Digital Input Module, 16x24V DC
Siemens 6ES7131-6BH01-0BA0 SIMATIC ET 200SP, Digital Input Module, 16x24V DC
Siemens 6ES7131-6BH01-0BA0 SIMATIC ET 200SP, Digital Input Module, 16x24V DC
Siemens 6ES7131-6BH01-0BA0 SIMATIC ET 200SP, Digital Input Module, 16x24V DC

SIEMENS

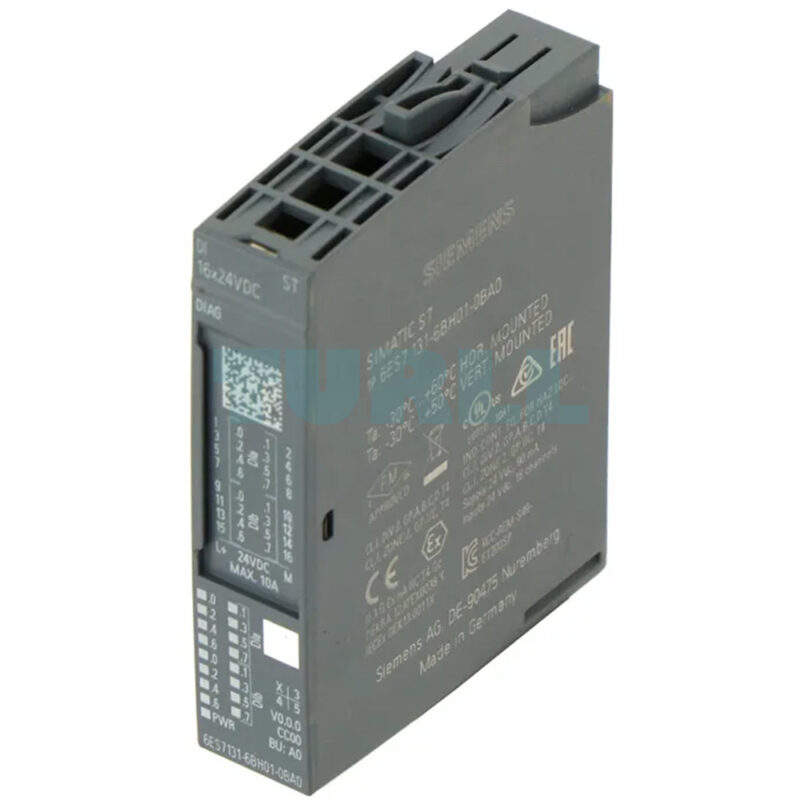

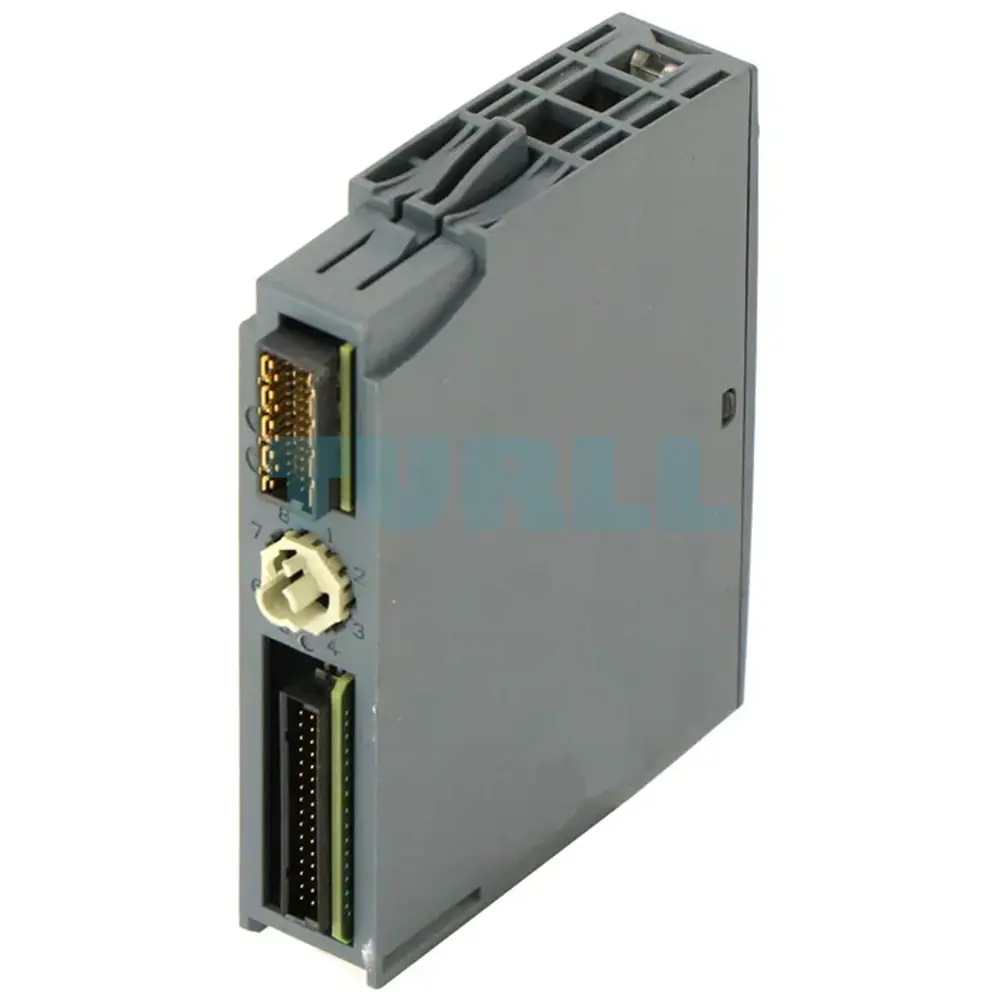

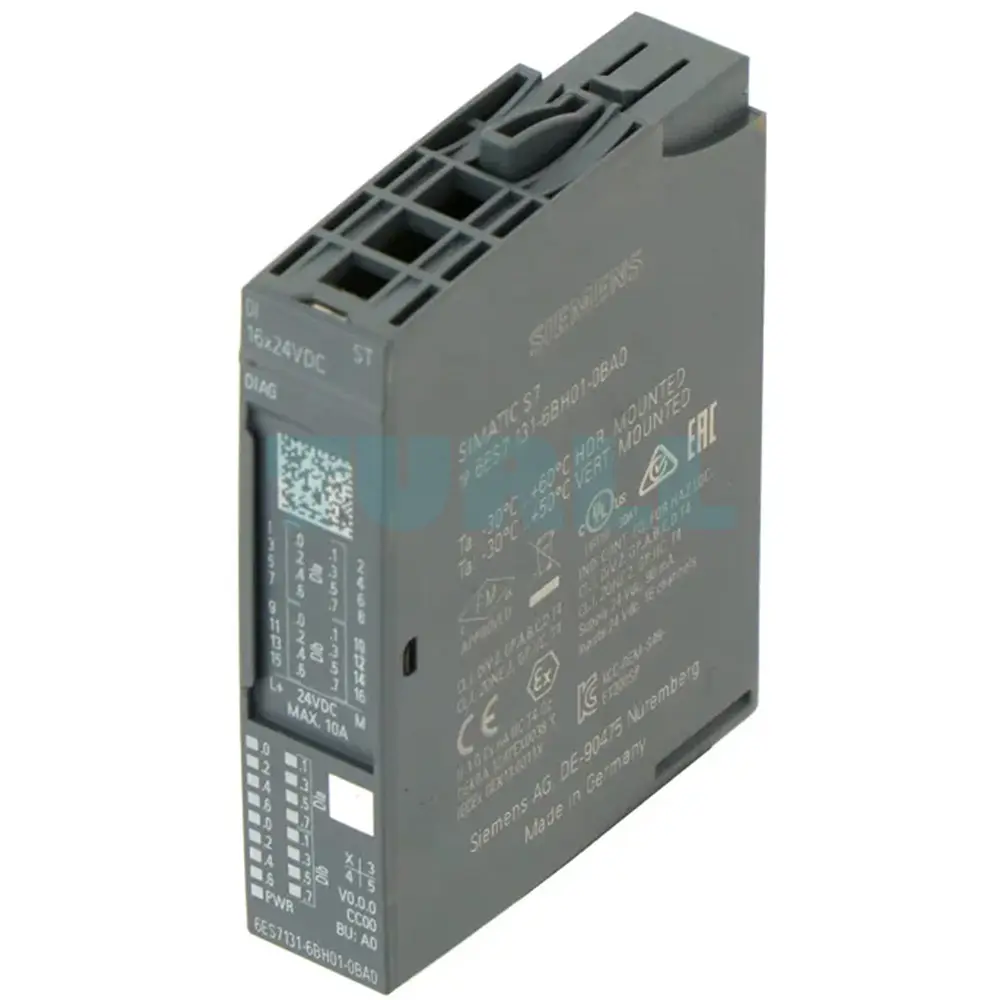

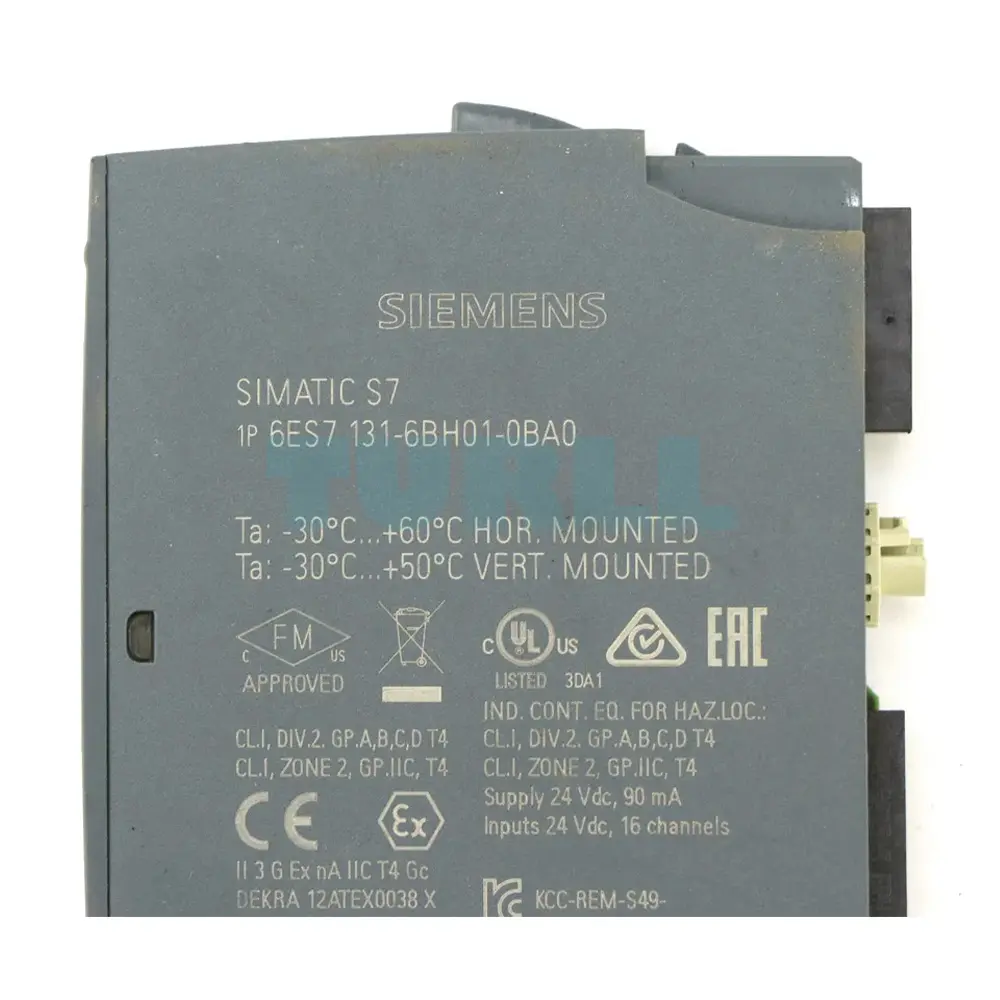

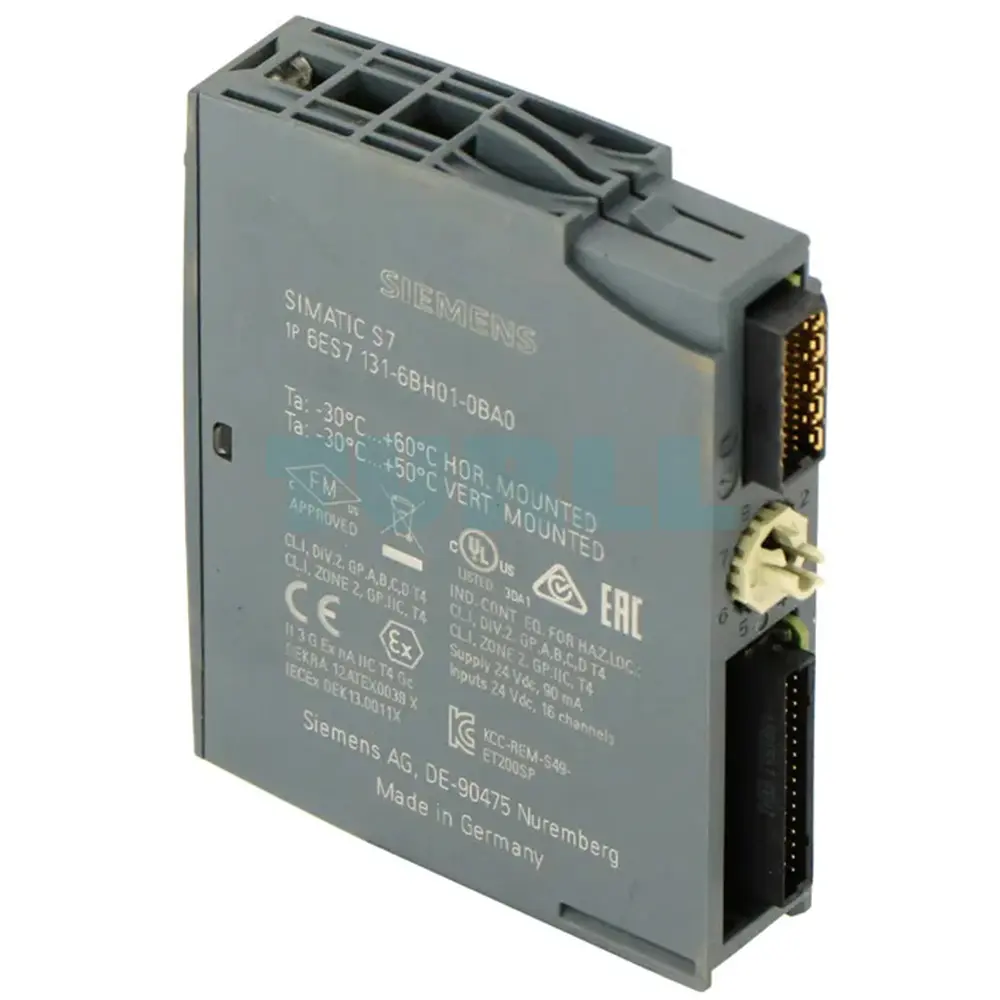

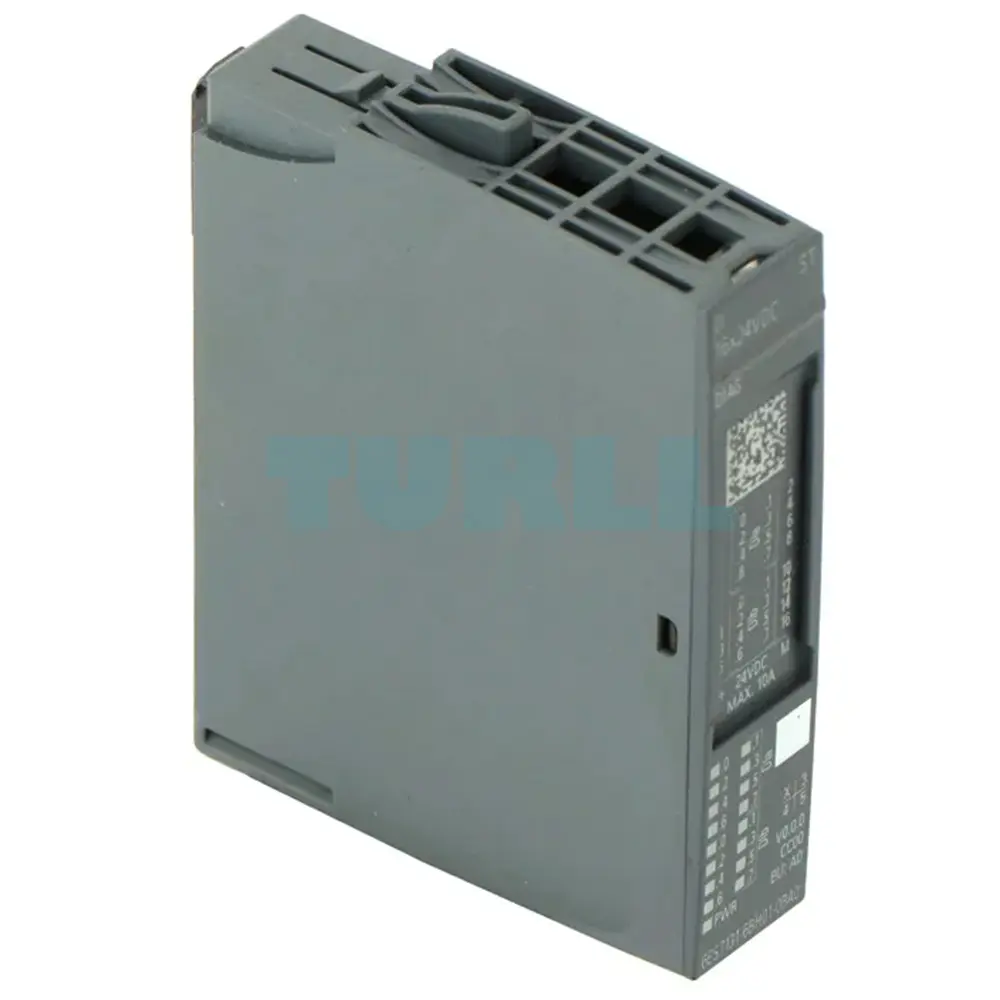

Siemens 6ES7131-6BH01-0BA0 SIMATIC ET 200SP, Digital Input Module, 16x24V DC Original Brand New

Model / SKU6ES7131-6BH01-0BA0

SIMATIC ET 200SP Digital Input Module 16x 24V DC Standard, type 3 (IEC 61131), sink input (PNP, P-reading). Diagnostics for wire break and supply voltage. Fits BU-type A0. Packing unit: 1 piece.

Original price was: $156.48.Current price is: $71.32.
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens 6ES7131-6BH01-0BA0 is a high-performance digital input module designed for SIMATIC ET 200SP distributed I/O systems. This module provides 16 standard 24V DC digital inputs with type 3 (IEC 61131) sink input configuration. It is compatible with BU-type A0 and ensures reliable signal processing with PNP input detection. With ultra-fast input delay times ranging from 0.05 to 20ms, it delivers precision control in demanding industrial environments. The module also features advanced diagnostics for wire breaks and supply voltage monitoring, ensuring optimal system reliability.

Key Benefit

  • High Channel Density: 16 digital inputs in a slim design saves valuable space in the control cabinet.

  • Reliable Diagnostics: Integrated diagnostics for wire break and supply voltage faults ensure rapid error detection and increased system uptime.

  • Flexibility: Configurable input delay times (0.05ms to 20ms) allow for precise signal filtering and adaptation to various sensor types and application needs.

  • Standard Compliance: Type 3 conformance to IEC 61131 ensures compatibility and reliable operation in industrial environments.

  • Simple Setup: Uses the standardized BU-type A0 base unit and Colour Code CC00 for error-free installation and wiring.

Function and Operation

The primary function of the 6ES7131-6BH01-0BA0 is to condition and transfer the binary signal status (ON/OFF) from 16 field devices (sensors, pushbuttons, limit switches) to the connected PLC.

  • Input Type: Sink input (PNP, P-reading). This means the module reads a logic '1' when the input receives a positive voltage (24V DC) from a PNP-type sensor.

  • Diagnostics: The module constantly monitors the integrity of the input signals. If a sensor wire breaks or the module's 24V DC supply dips below the acceptable threshold, it triggers a diagnostic alarm, which can be evaluated by the PLC.

Download

Datasheet in PDF

Product code: 6ES7131-6BH01-0BA0

For more products visit turll

Specifications

SKU / Model6ES7131-6BH01-0BA0
BrandSIEMENS
Product type designationDI 16x24VDC ST
HW functional statusFrom FS02
Firmware versionV0.0
● FW update possibleNo
usable BaseUnitsBU type A0
Color code for module-specific color identification plateCC00
● I&M dataYes; I&M0 to I&M3
● Isochronous modeNo
● STEP 7 TIA Portal configurable/integrated from versionV14
● STEP 7 configurable/integrated from versionV5.5 SP3
● PCS 7 configurable/integrated from versionV8.1 SP1
● PROFIBUS from GSD version/GSD revisionOne GSD file each, Revision 3 and 5 and higher
● PROFINET from GSD version/GSD revisionGSDML V2.3
● DIYes
● CounterNo
● OversamplingNo
● MSINo
Rated value (DC)24 V
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
Reverse polarity protectionYes
Current consumption, max.90 mA
● 24 VNo
Power loss, typ.1.7 W
● Inputs2 byte; + 2 bytes for QI information
Automatic encodingYes
● Mechanical coding elementYes
● Type of mechanical coding elementType A
● 1-wire connectionBU type A0
● 2-wire connectionBU type A0 + Potential distributor module
● 3-wire connectionBU type A0 + Potential distributor module
● 4-wire connectionBU type A0 + Potential distributor module
Number of digital inputs16
Digital inputs, parameterizableYes
Source/sink inputP-reading
Input characteristic curve in accordance with IEC 61131, type 3Yes
● Rated value (DC)24 V
● for signal "0"-30 to +5 V
● for signal "1"+11 to +30V
● for signal "1", typ.2.5 mA
— at "0" to "1", min.0.05 ms
— at "0" to "1", max.20 ms
— at "1" to "0", min.0.05 ms
— at "1" to "0", max.20 ms
● shielded, max.1 000 m
● unshielded, max.600 m
● 2-wire sensorYes
— permissible quiescent current (2-wire sensor), max.1.5 mA
Diagnostics functionYes
● Diagnostic alarmYes
● Diagnostic information readableYes
● Monitoring the supply voltageYes
— parameterizableYes
● Monitoring of encoder power supplyNo
● Wire-breakYes; Module-by-module, optional protective circuit for preventing wire-break diagnostics in the case of simple encoder contacts: 25 kOhm to 45 kOhm
● Short-circuitNo
● Group errorYes
● Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED
● Channel status displayYes; green LED
● for channel diagnosticsNo
● for module diagnosticsYes; green/red DIAG LED
● between the channelsNo
● between the channels and backplane busYes
● between the channels and the power supply of the electronicsNo
Isolation tested with707 V DC (type test)
Suitable for safety functionsNo
● horizontal installation, min.-30 °C; < 0 °C as of FS02
● horizontal installation, max.60 °C
● vertical installation, min.-30 °C; < 0 °C as of FS02
● vertical installation, max.50 °C
● Installation altitude above sea level, max.5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

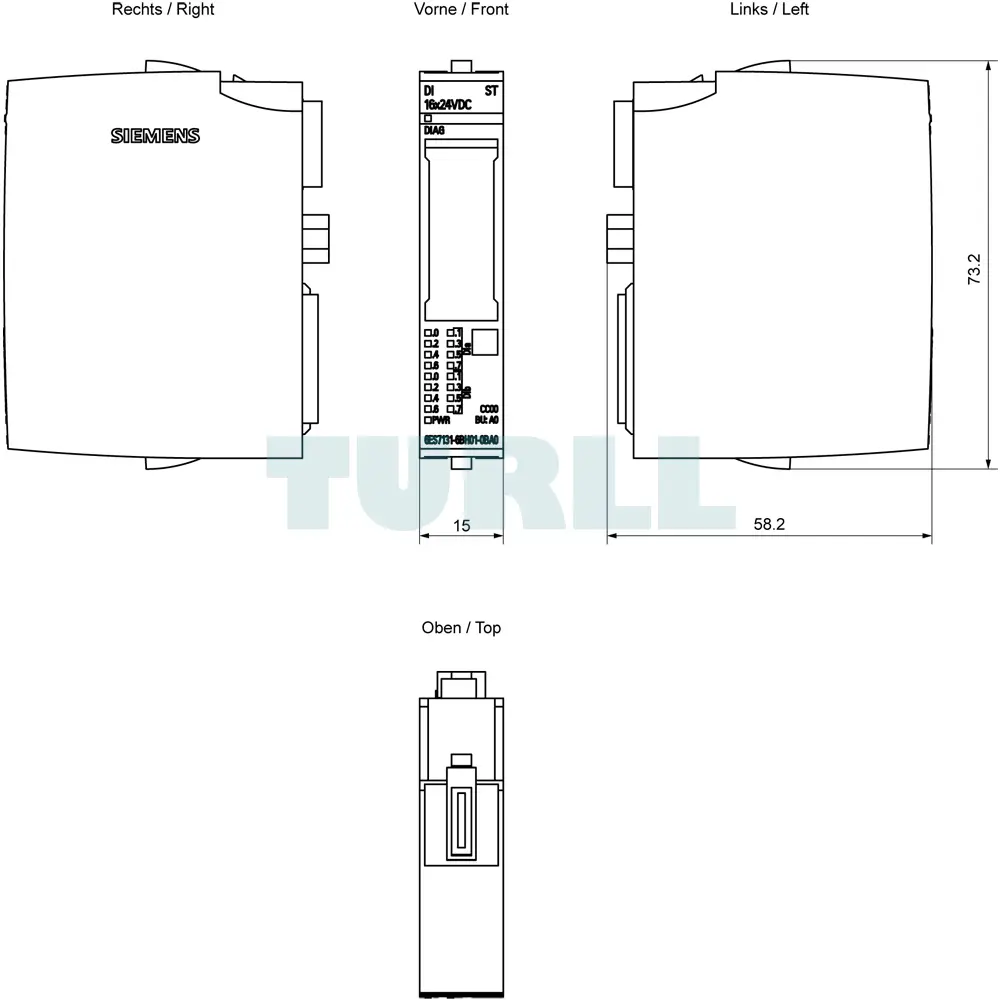

Width15 mm
Height73 mm
Depth58 mm
Weight, approx.28 g
last modified:9/24/2021
Product ConditionBrand New, New - Backlog, New - No Original Box, New - Original Box Opened, Used - Average, Used - Below Average, Used - Excellent, Used - Fairly Good, Used - Good, Used - Poor, Used - Very Good
Weight0.036 kg
Dimensions6.50 × 7.80 × 2.30 mm
