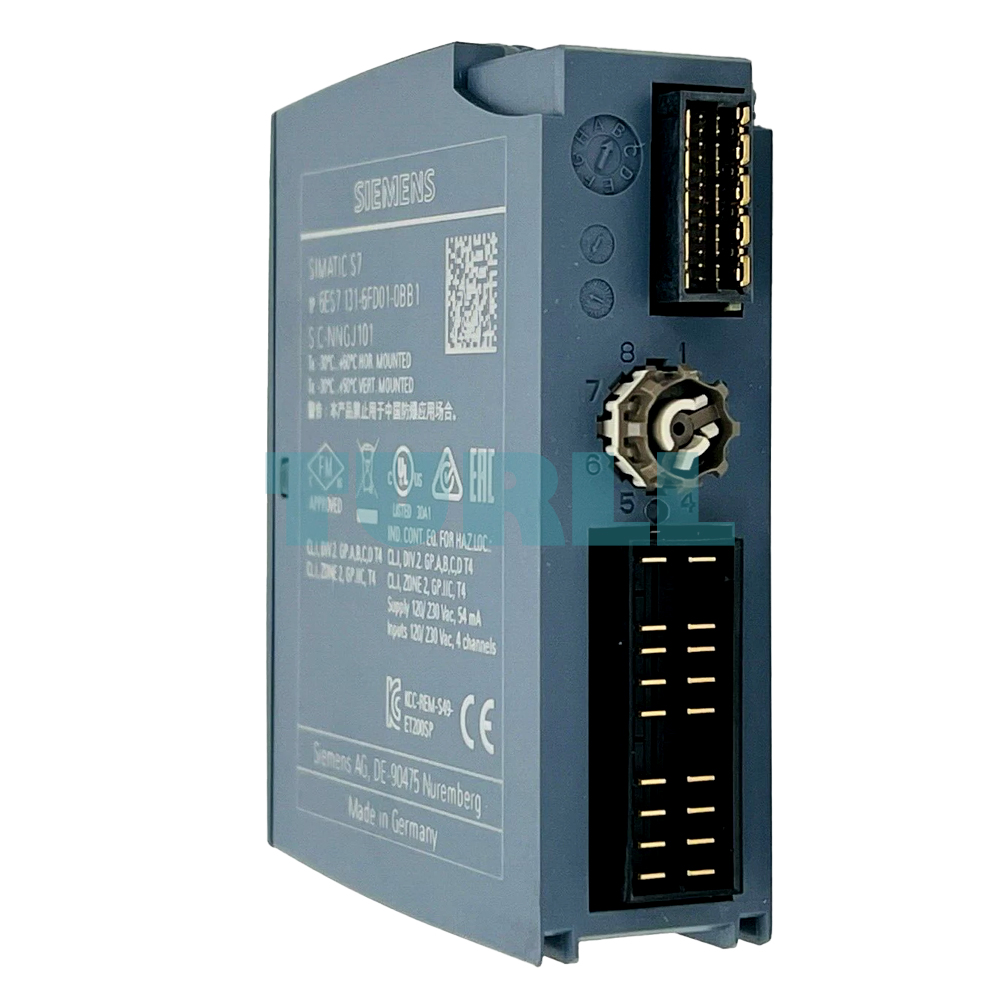

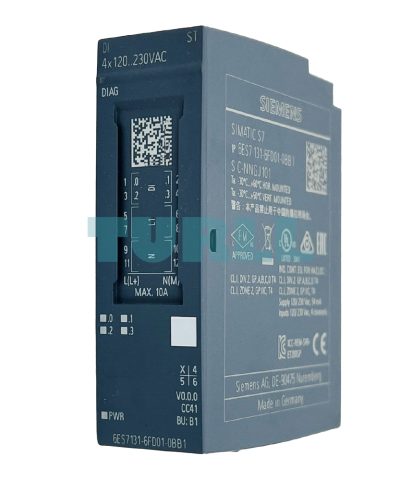

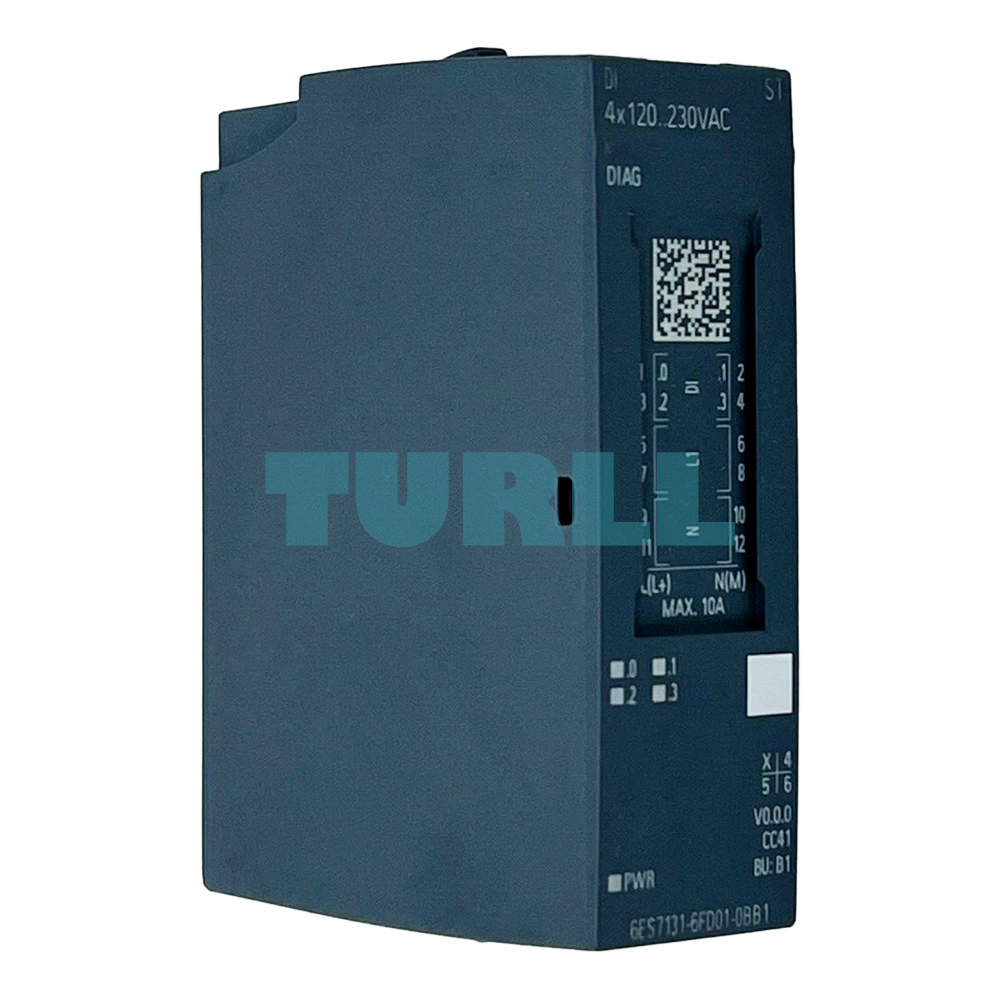

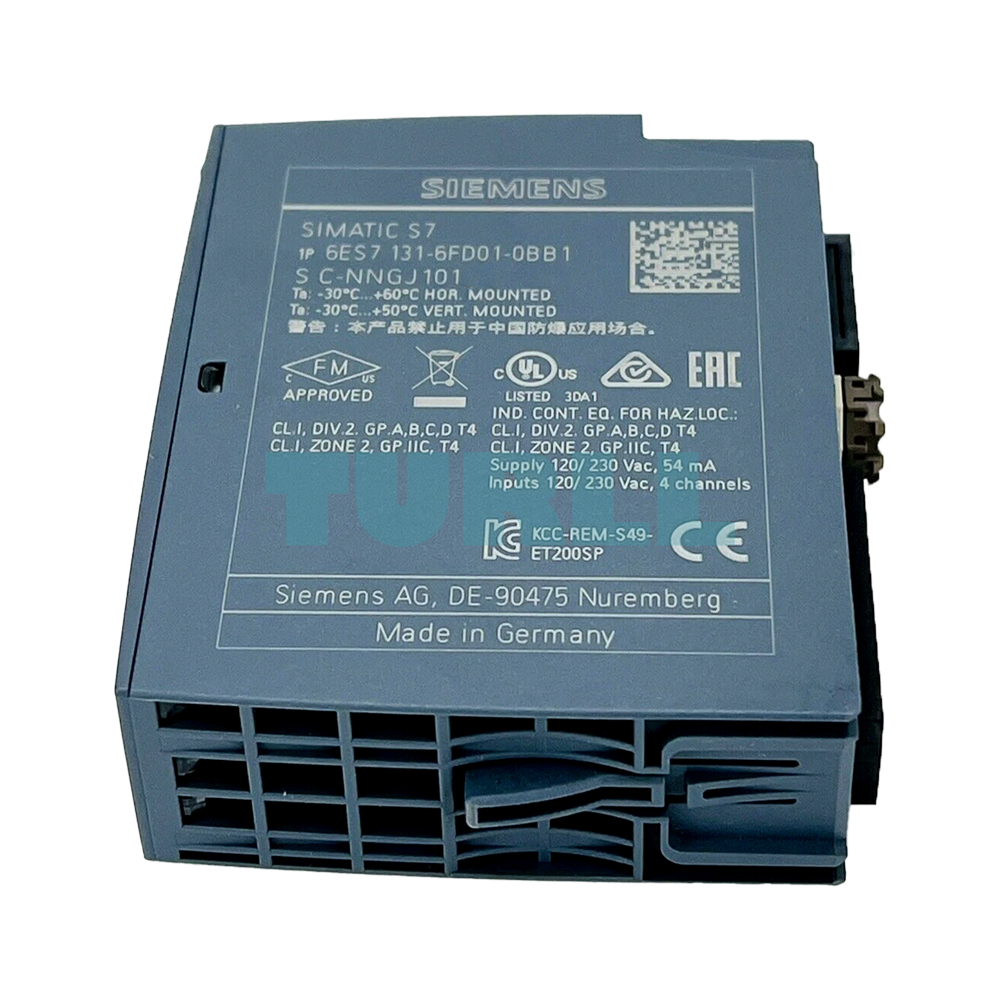

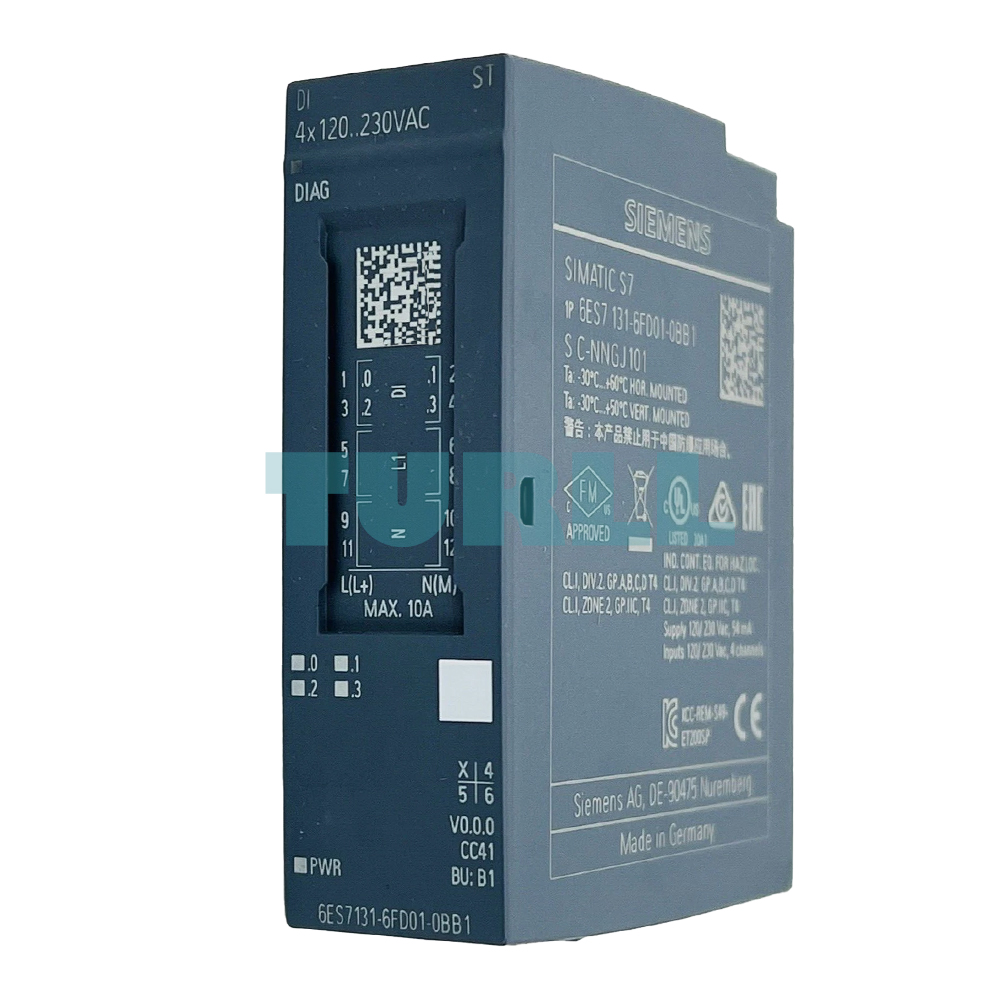

Siemens 6ES7131-6FD01-0BB1 SIMATIC ET 200SP Digital Input Module DI 4x 120–230V AC Original Brand New
Siemens 6ES7131-6FD01-0BB1 SIMATIC ET 200SP Digital Input Module DI 4x 120–230V AC Original Brand New - Image 2
Siemens 6ES7131-6FD01-0BB1 SIMATIC ET 200SP Digital Input Module DI 4x 120–230V AC Original Brand New - Image 3
Siemens 6ES7131-6FD01-0BB1 SIMATIC ET 200SP Digital Input Module DI 4x 120–230V AC Original Brand New - Image 4
Siemens 6ES7131-6FD01-0BB1 SIMATIC ET 200SP Digital Input Module DI 4x 120–230V AC
Siemens 6ES7131-6FD01-0BB1 SIMATIC ET 200SP Digital Input Module DI 4x 120–230V AC
Siemens 6ES7131-6FD01-0BB1 SIMATIC ET 200SP Digital Input Module DI 4x 120–230V AC Original Brand New - Image 7

SIEMENS

Siemens 6ES7131-6FD01-0BB1 SIMATIC ET 200SP Digital Input Module DI 4x 120–230V AC Original Brand New

Model / SKU6ES7131-6FD01-0BB1

Siemens SIMATIC ET 200SP digital input module with 4 inputs, 120–230V AC, IEC 61131 Type 3, BU-Type B1 compatible, featuring advanced module diagnostics.

Original price was: $113.51.Current price is: $61.57.
Available on backorder
  • ConditionOriginal Brand New
  • Warranty12 months

Backorder available · Factory lead time 2–3 weeks.

Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens 6ES7131-6FD01-0BB1 is a high-performance SIMATIC ET 200SP Digital Input Module designed for reliable signal acquisition in industrial automation systems. This module features 4 digital inputs operating within a 120–230V AC voltage range, compliant with IEC 61131 Type 3 standards. Engineered for efficiency and scalability, it integrates seamlessly with ET 200SP distributed I/O systems, ensuring precise diagnostics and dependable performance.

Key Benefit

  • Wide Voltage Compatibility – Supports 120–230V AC signals for versatile industrial use

  • Compact ET 200SP Design – Saves control cabinet space

  • Advanced Module Diagnostics – Enables fast fault detection and reduced downtime

  • IEC 61131 Type 3 Compliance – Ensures safe and standardized operation

  • Easy Installation – Fits perfectly with BU-Type B1 base units

Function & Features

  • Digital input module with 4 AC input channels

  • Designed for distributed automation systems

  • Color Code CC41 for easy identification

  • Integrated module-level diagnostics

  • Reliable performance in harsh industrial environments

  • Supplied as 1-piece packing unit

Technical Specification

  • Manufacturer: Siemens

  • Product Number: 6ES7131-6FD01-0BB1

  • Product Series: SIMATIC ET 200SP

  • Input Type: Digital Input (DI)

  • Number of Inputs: 4

  • Input Voltage: 120–230V AC

  • Standard: IEC 61131 Type 3

  • Base Unit Compatibility: BU-Type B1

  • Color Code: CC41

  • Diagnostics: Module diagnostics enabled

Download

Datasheet in PDF

Visit 6ES7131-6FD01-0BB1 for more detail info

For more our products visit turll

Specifications

SKU / Model6ES7131-6FD01-0BB1
BrandSIEMENS
Product type designationDI 4x120 ... 230 V AC ST
HW functional statusFrom FS02
Firmware versionV0.0
● FW update possibleNo
usable BaseUnitsBU type B1
Color code for module-specific color identification plateCC41
● I&M dataYes; I&M0 to I&M3
● Isochronous modeNo
● STEP 7 TIA Portal configurable/integrated from versionV14
● STEP 7 configurable/integrated from versionV5.5 SP3
● PROFIBUS from GSD version/GSD revisionOne GSD file each, Revision 3 and 5 and higher
● PROFINET from GSD version/GSD revisionGSDML V2.3
● DIYes
● CounterNo
● OversamplingNo
● MSINo
Rated value (AC)230 V
permissible range, lower limit (AC)187 V
permissible range, upper limit (AC)264 V
Reverse polarity protectionNo
Current consumption (rated value)10 mA
Number of outputs4
Short-circuit protectionNo; when using BU type B1, a fuse with 10 A tripping current must be provided
● up to 60 °C, max.10 A
Power loss, typ.1 W; Active power, load voltage 230 V, all inputs connected with 230 V, 50 Hz
● Inputs1 byte; + 1 byte for QI information
Automatic encodingYes
● Mechanical coding elementYes

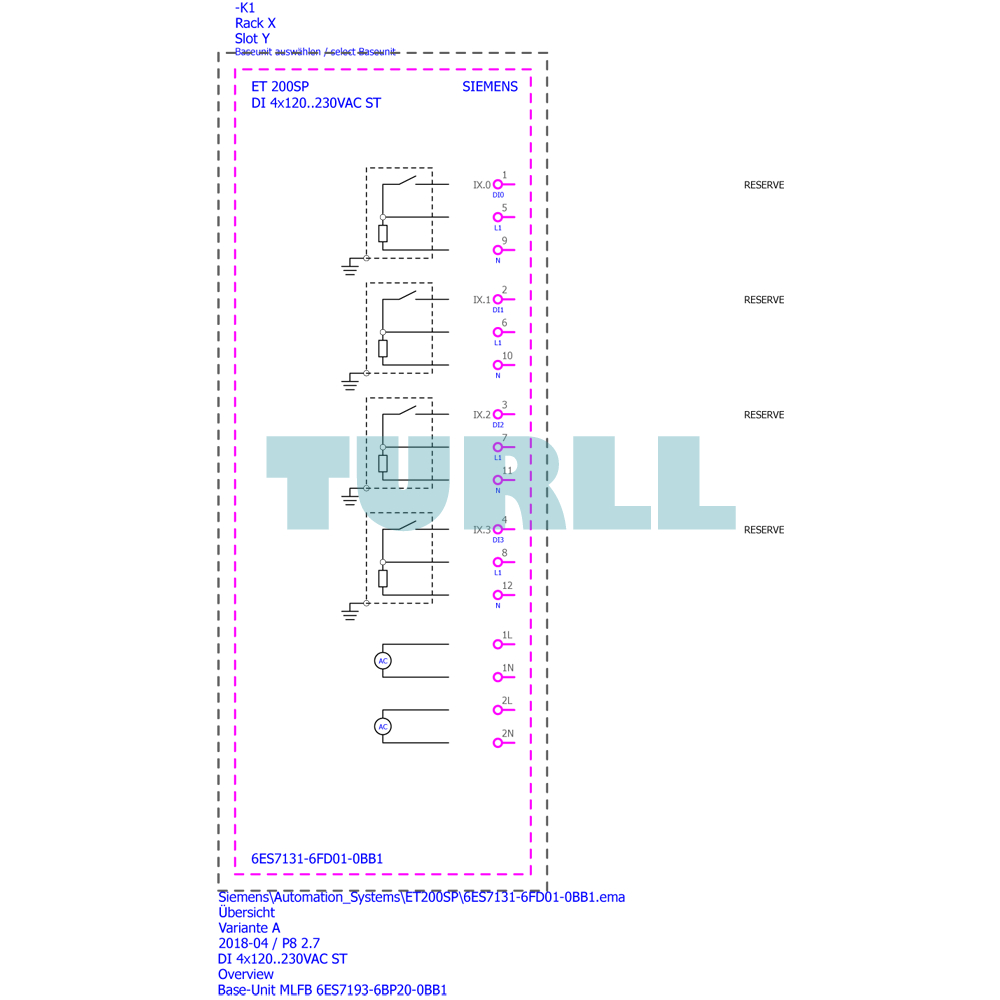

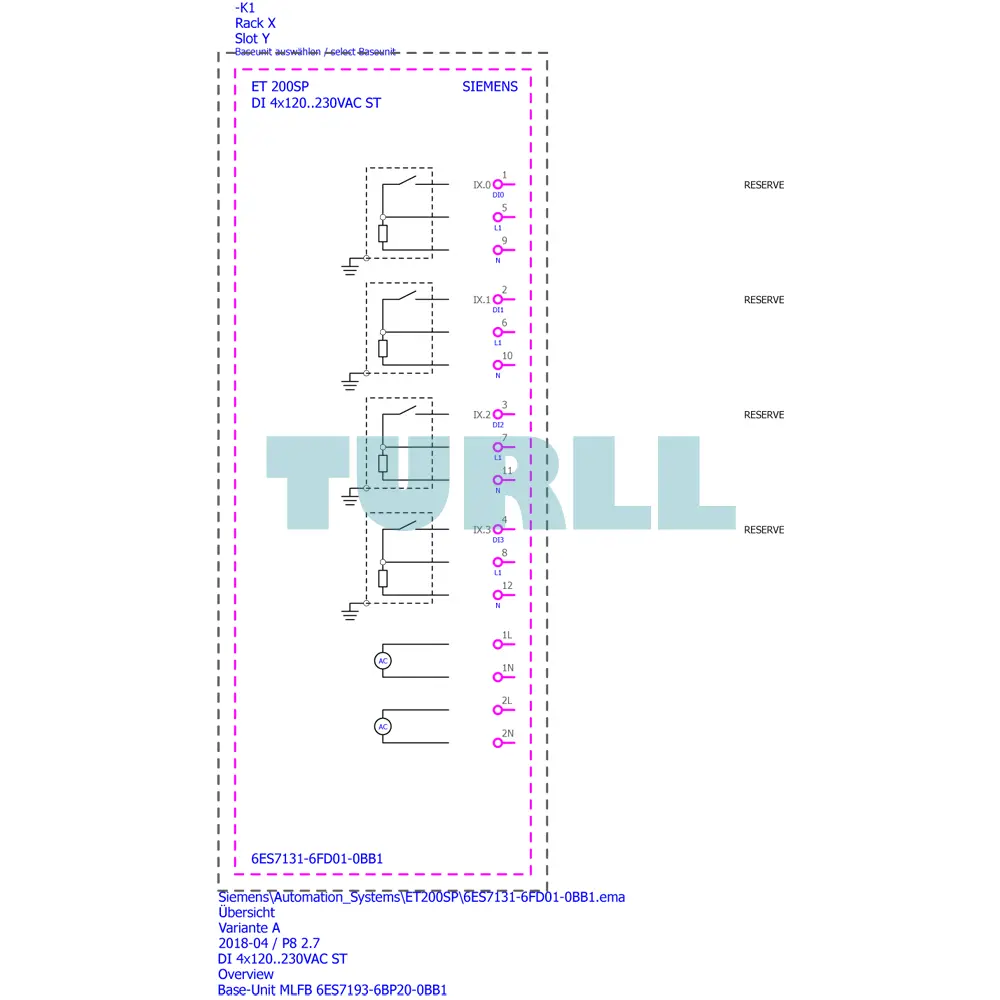

● 1-wire connectionBU type B1
● 2-wire connectionBU type B1
● 3-wire connectionBU type B1
● 4-wire connectionBU type B1 + potential distributor module
Number of digital inputs4
Input characteristic curve in accordance with IEC 61131, type 3Yes
● Rated value (AC)230 V
● for signal "0"0V AC to 40V AC
● for signal "1"74 V AC to 264 V AC
● for signal "1", typ.10.8 mA
— parameterizableNo
— at "0" to "1", min.1.5 ms
— at "0" to "1", max.4 ms
— at "1" to "0", min.10 ms
— at "1" to "0", max.10 ms
● shielded, max.1 000 m
● unshielded, max.600 m
● 2-wire sensorYes
● Diagnostic alarmNo
● Hardware interruptNo
● Monitoring the supply voltageNo
● Wire-breakNo
● Short-circuitNo
● Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED
● Channel status displayYes; green LED
● for channel diagnosticsNo
● for module diagnosticsYes; green/red DIAG LED
● between the channelsNo
● between the channels and backplane busYes
● between the channels and the power supply of the electronicsNo
Isolation tested with2 545 V DC/2 s (routine test)
Suitable for safety functionsNo

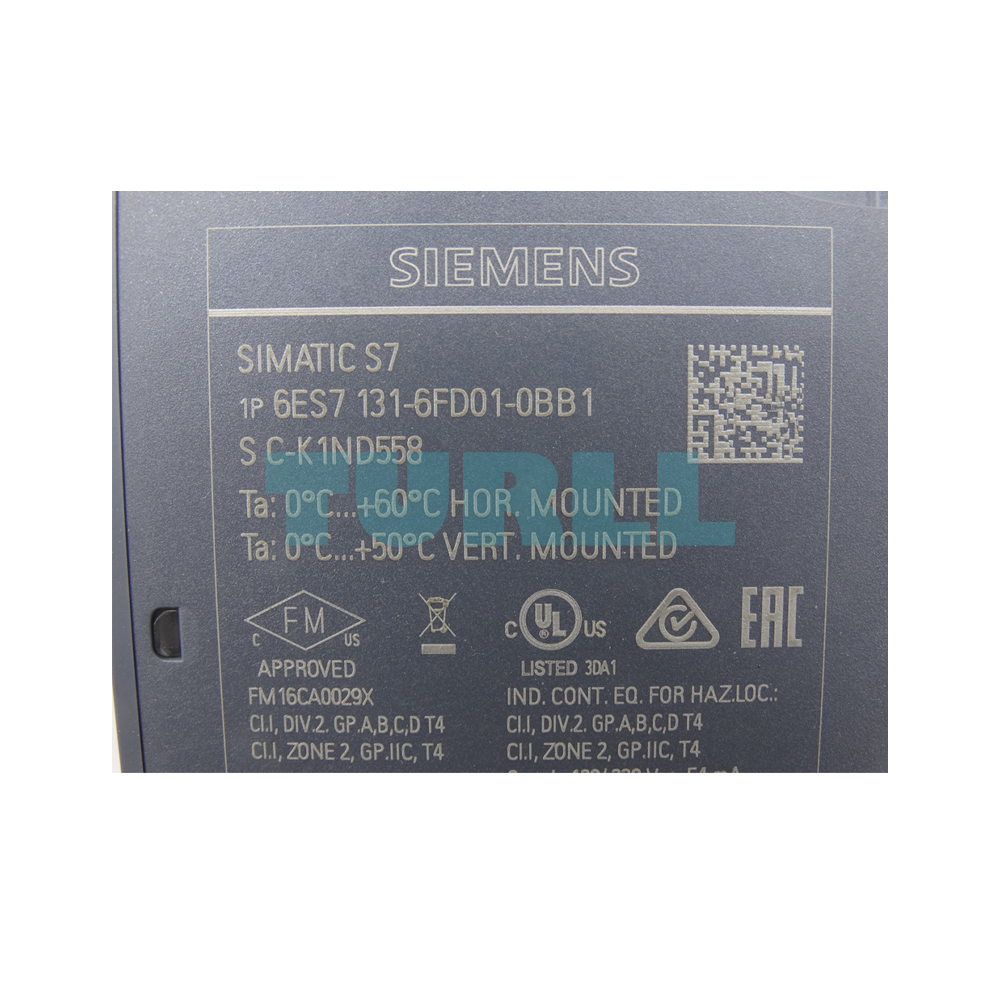

● horizontal installation, min.-30 °C
● horizontal installation, max.60 °C
● vertical installation, min.-30 °C
● vertical installation, max.50 °C
● Installation altitude above sea level, max.2 000 m; On request: Installation altitudes greater than 2 000 m

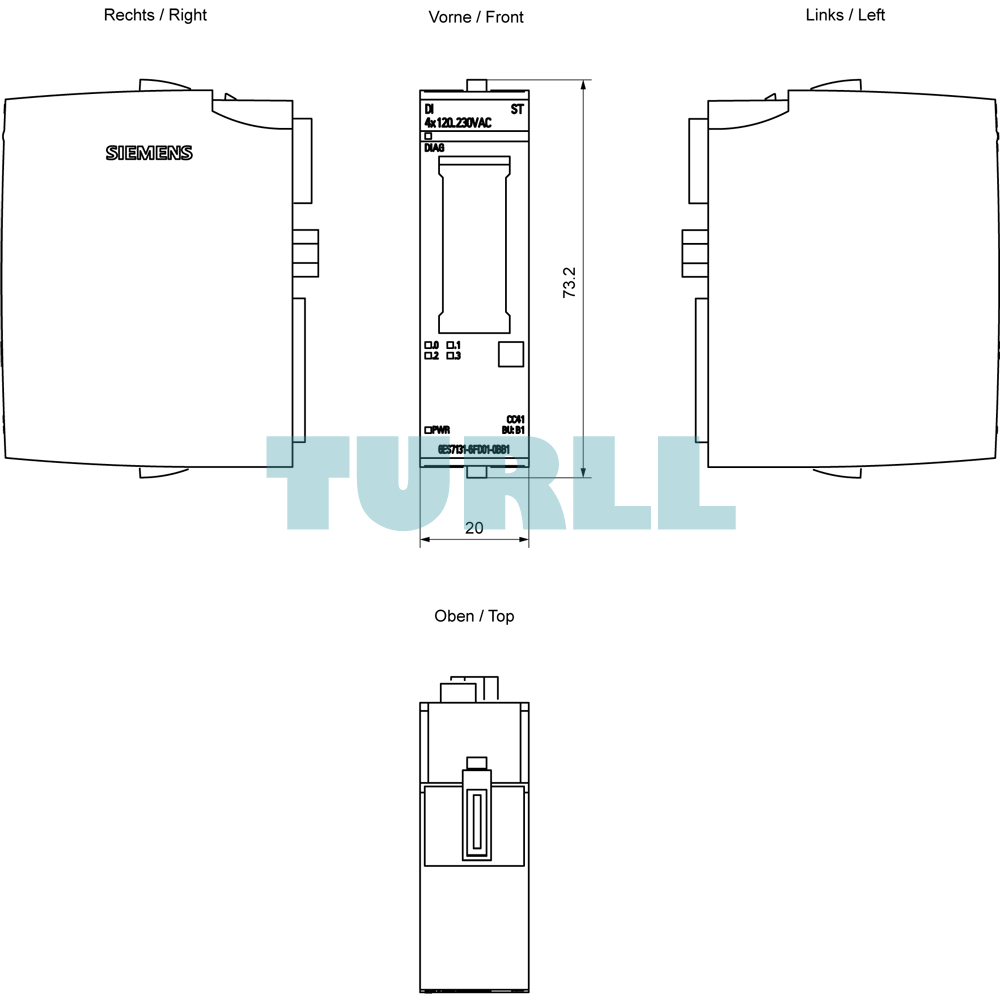

Width20 mm
Height73 mm
Depth58 mm
Weight, approx.36 g
last modified:9/24/2021
Weight0.046 kg
Dimensions6.50 × 7.70 × 2.30 mm
