6ES7134-4GB01-0AB0

Description

Overview

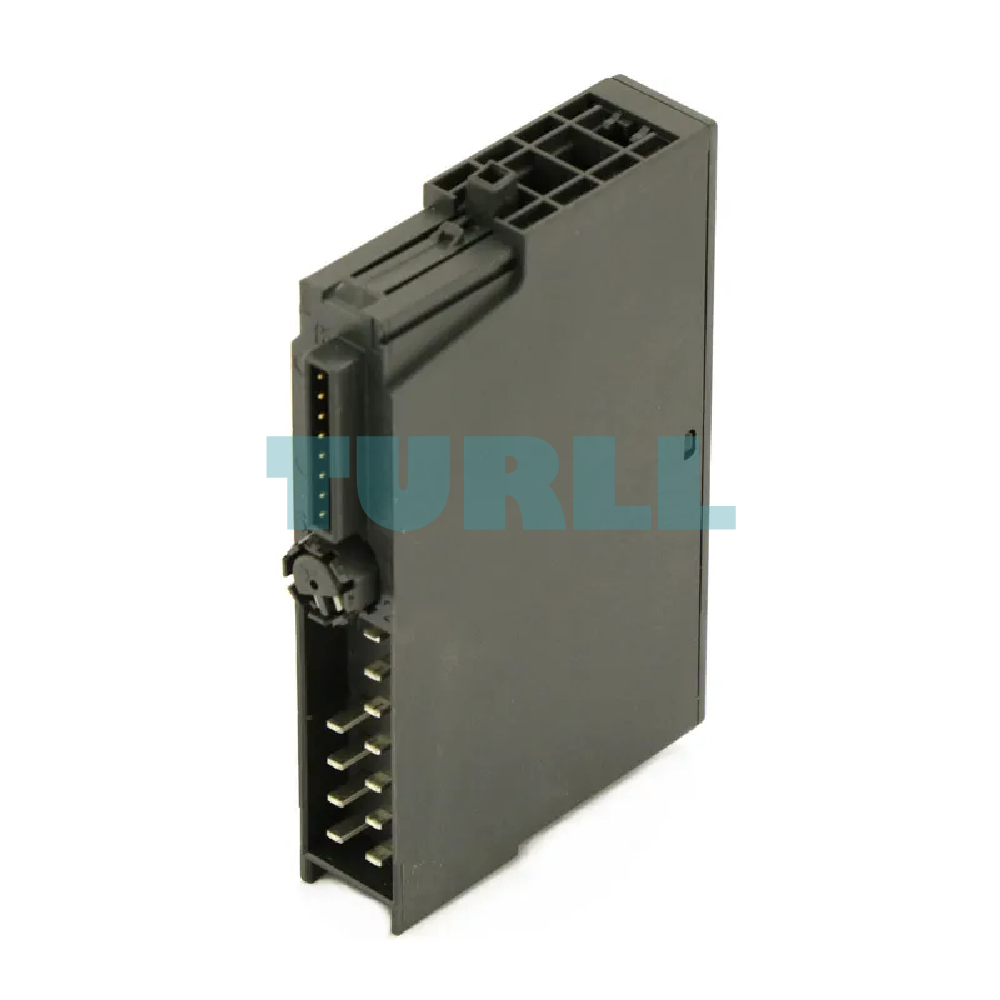

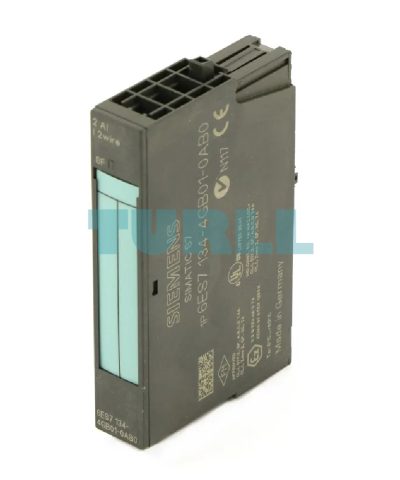

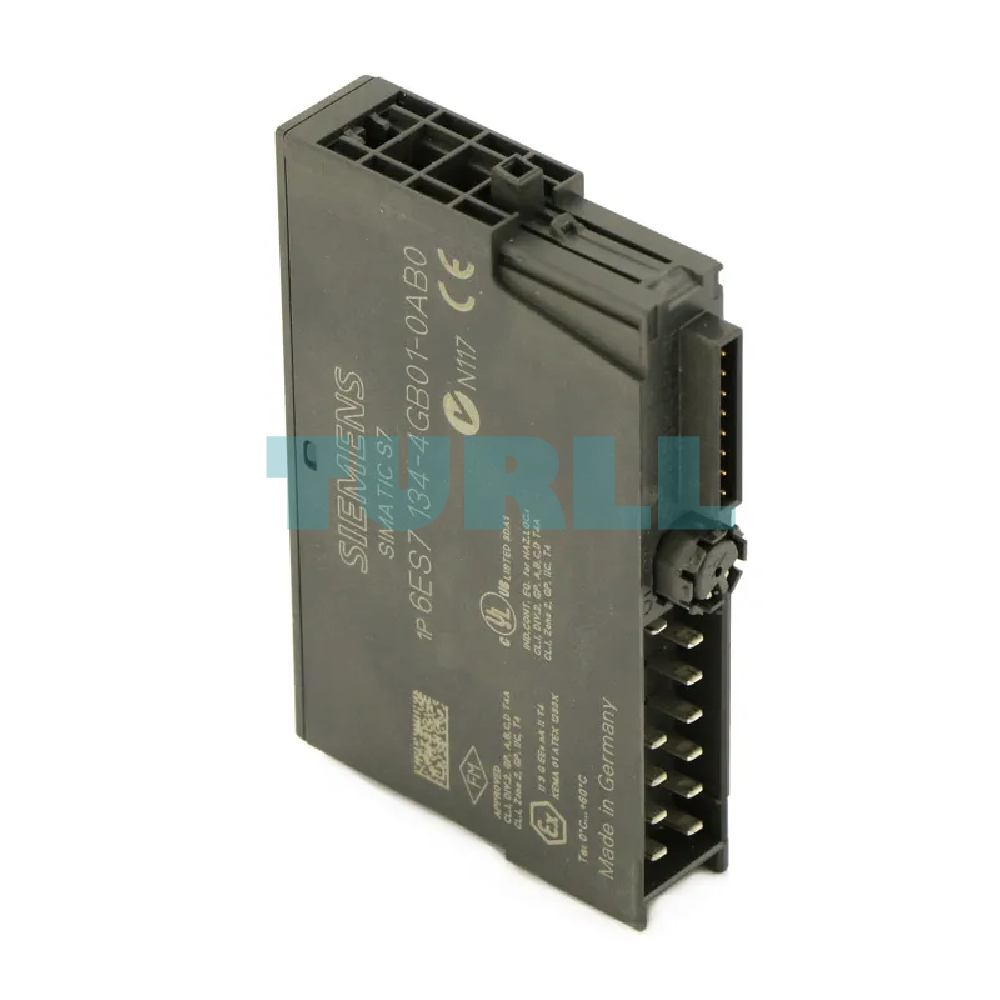

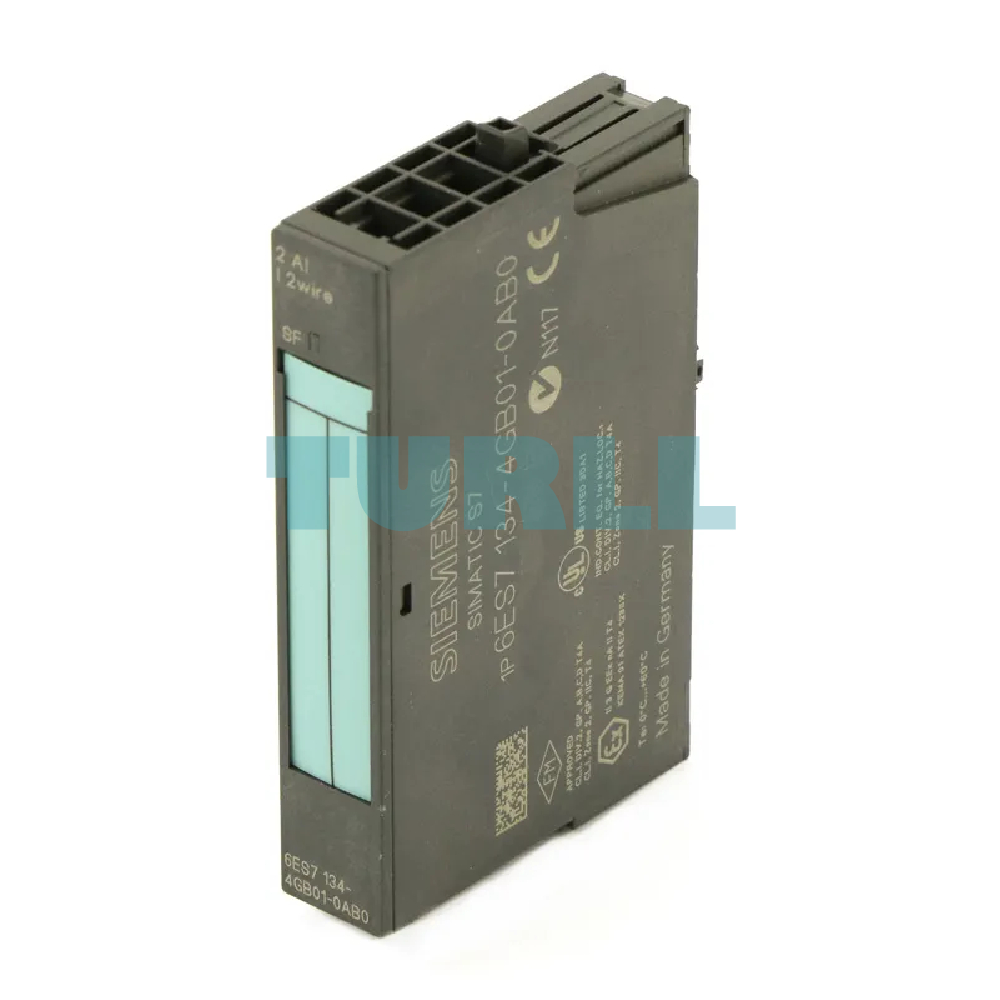

The Siemens 6ES7134-4GB01-0AB0 is a high-performance SIMATIC DP electronics module designed for the ET200S distributed I/O system. This compact module, with a width of only 15 mm, provides precise measurement and control of analog signals, supporting two 4-20mA inputs with 13-bit resolution for two-wire transducers. Its fast cycle time of 65 ms per channel ensures reliable data acquisition, and the SF LED indicates group faults for easier troubleshooting.

Ideal for industrial automation, the module enhances the accuracy, efficiency, and reliability of your control systems.

Key Benefit

• Space-Saving Design: At only 15mm wide, it maximizes rail space in complex control panels.

• High Precision: Features a 13-bit resolution, ensuring accurate data conversion for critical industrial processes.

• Rapid Diagnostics: The built-in Group Fault (SF) LED minimizes downtime by alerting operators to wiring or module errors instantly.

• Seamless Integration: Fully compatible with the Siemens TIA Portal and STEP 7 engineering environments.

Technical Function & Specification

• Module Type: Analog Input (AI) Standard.

• Input Range: 4 to 20 mA.

• Transducer Support: Optimized for 2-wire transducers (I-2DMU).

• Resolution: 13 bits (including sign).

• Cycle Time: 65 ms per channel.

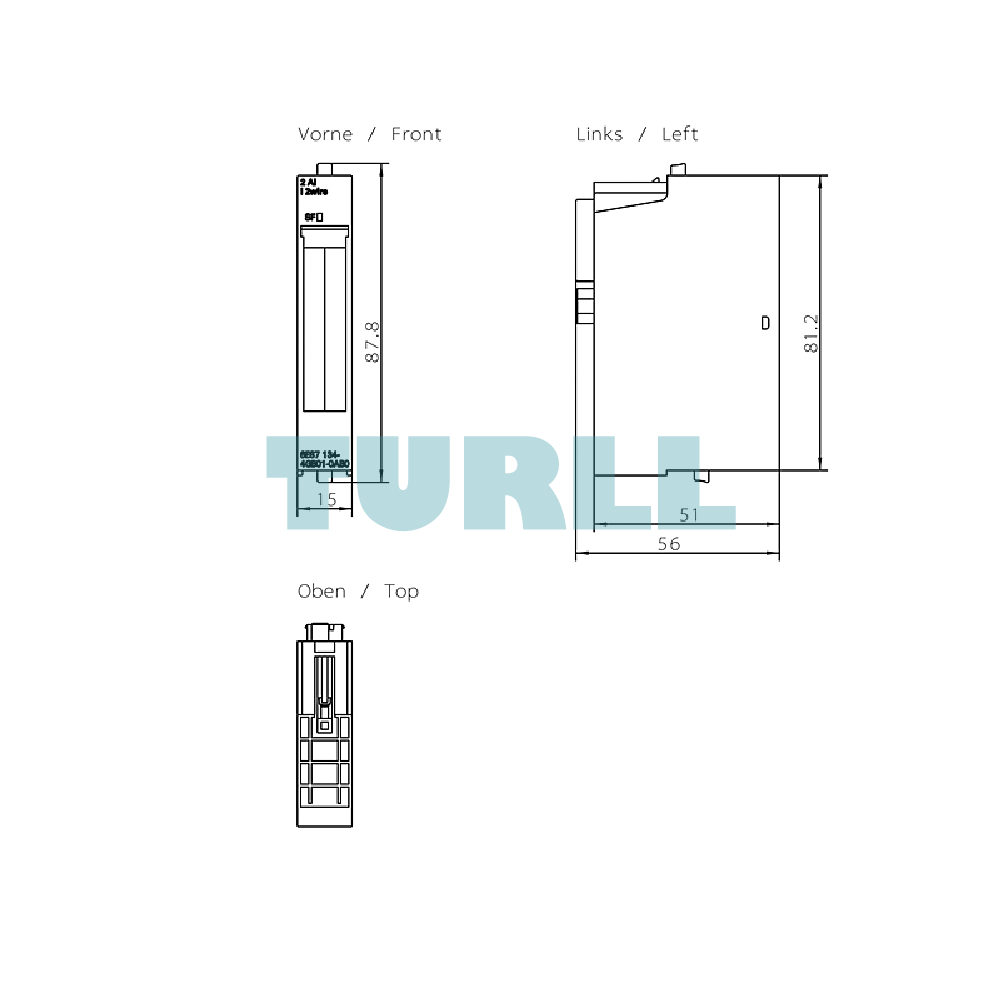

• Width: 15 mm.

• Diagnostic Functions: Group fault (SF) display.
