Siemens 6ES7134-6GD01-0BA1 SIMATIC ET 200SP, Analog Input Module, AI 4xI 2-/4-Wire Standard Original Brand New
$168.74
SIMATIC ET 200SP Analog Input Module, AI 4xI 2-/4-Wire Standard. High-precision 16-bit input, module diagnostics, ±0.3% accuracy. Fits BU-Type A0, A1, color code CC03. Packing unit: 1 piece.
Availability: In stock

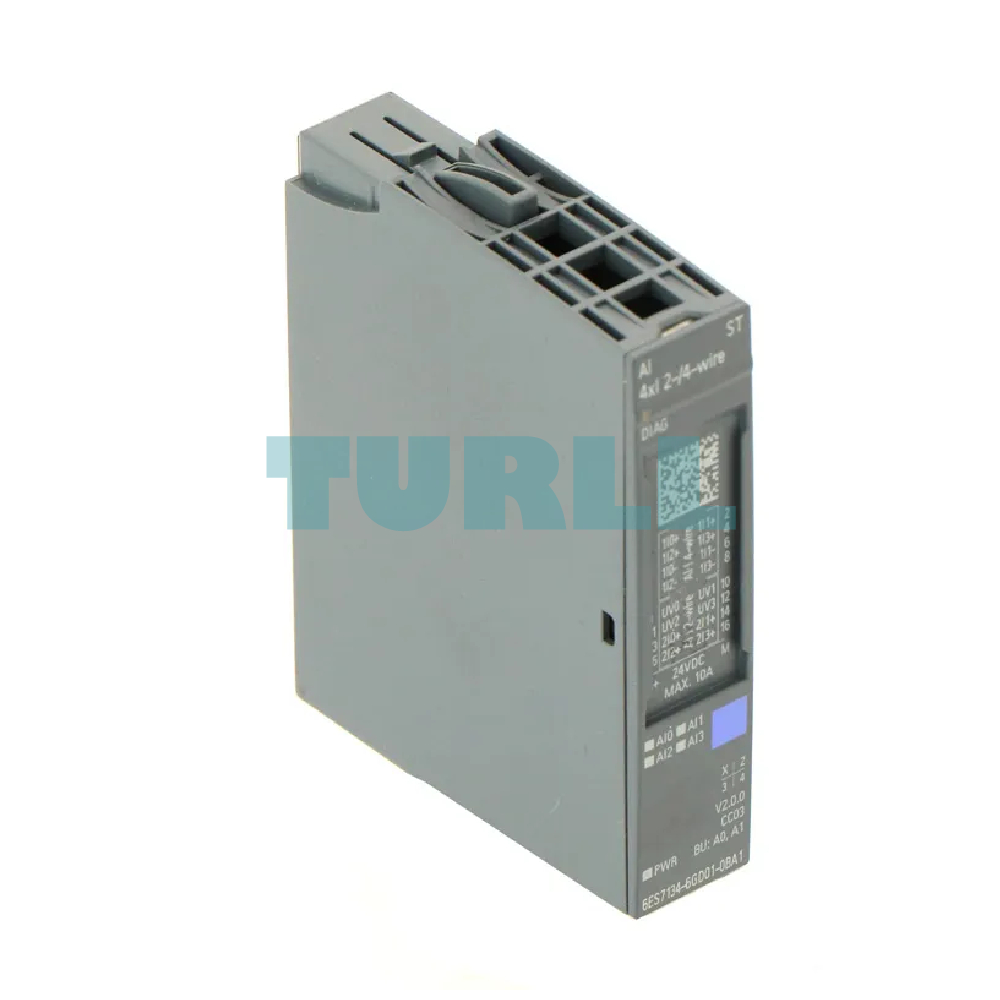

Overview
The Siemens 6ES7134-6GD01-0BA1 is a high-performance SIMATIC ET 200SP Analog Input Module designed for industrial automation applications. Featuring 4 analog inputs (AI 4xI) compatible with 2- or 4-wire standard sensors, this module ensures precise signal acquisition and processing. With a 16-bit resolution and ±0.3% accuracy, it delivers reliable performance for critical automation processes. Its built-in module diagnostics enhance system reliability, making it ideal for modern manufacturing and process control environments.
Key Benefit
-
High Accuracy: 16-bit resolution with ±0.3% measurement precision.
-
Flexible Connectivity: Supports 2-/4-wire standard sensors.
-
Enhanced Diagnostics: Integrated module diagnostics for early fault detection.
-
Compact and Modular: Fits BU-Type A0, A1, and color-coded CC03 for easy installation.
-
Reliable Performance: Ideal for demanding industrial automation tasks.

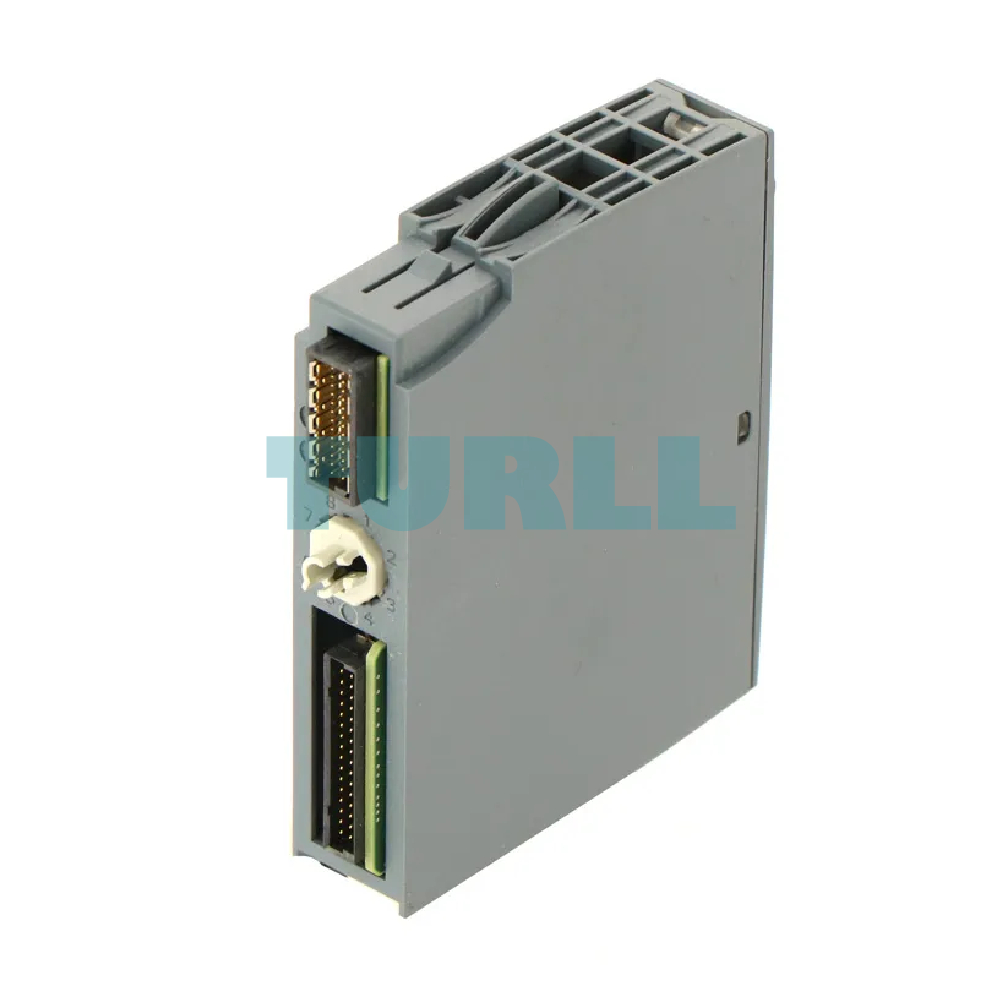

Functions & Features
-
Analog input module for SIMATIC ET 200SP series.
-
4 AI channels for 2-/4-wire sensors.
-
Module diagnostics for improved maintenance efficiency.
-
High-precision 16-bit resolution.
-
±0.3% accuracy ensures dependable data acquisition.
-
Color-coded CC03 for easy identification.
-
Packing unit: 1 piece.
Technical Specification
-
Product Number: 6ES7134-6GD01-0BA1
-
Module Type: Analog Input Module
-
Channels: 4x AI
-
Wiring: 2-/4-Wire Standard
-
Resolution: 16-bit
-
Accuracy: ±0.3%
-
BU Type Compatibility: A0, A1
-
Color Code: CC03
-
Diagnostics: Module diagnostics included
-
Packing Unit: 1 piece
Download
Visit 6ES7134-6GD01-0BA1 for more detail info
For more our products visit turll
| Weight | 0.040 kg |
|---|---|
| Dimensions | 6.50 × 7.70 × 2.30 mm |
| Brand | SIEMENS |
| Product type designation | AI 4xI 2-/4-wire ST |
| HW functional status | From FS02 |
| Firmware version | – |
| ● FW update possible | Yes |
| usable BaseUnits | BU type A0, A1 |
| Color code for module-specific color identification plate | CC03 |
| ● I&M data | Yes; I&M0 to I&M3 |
| ● Isochronous mode | No |
| ● Measuring range scalable | No |
| ● STEP 7 TIA Portal configurable/integrated from version | V14 / – |
| ● STEP 7 configurable/integrated from version | V5.6 and higher |
| ● PCS 7 configurable/integrated from version | V8.1 SP1 |
| ● PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher |
| ● PROFINET from GSD version/GSD revision | GSDML V2.3 |
| ● Oversampling | No |
| ● MSI | No |
| Reparameterization possible in RUN | Yes |
| Calibration possible in RUN | No |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Current consumption, max. | 37 mA; without sensor supply |
| ● 24 V | Yes |
| ● Short-circuit protection | Yes |
| ● Output current, max. | 20 mA; max. 50 mA per channel for a duration < 10 s |
| Power loss, typ. | 0.85 W; Without encoder supply voltage |
| ● Address space per module, max. | 8 byte; + 1 byte for QI information |
| Automatic encoding | Yes |
| ● Mechanical coding element | Yes |
| ● Type of mechanical coding element | Type A |

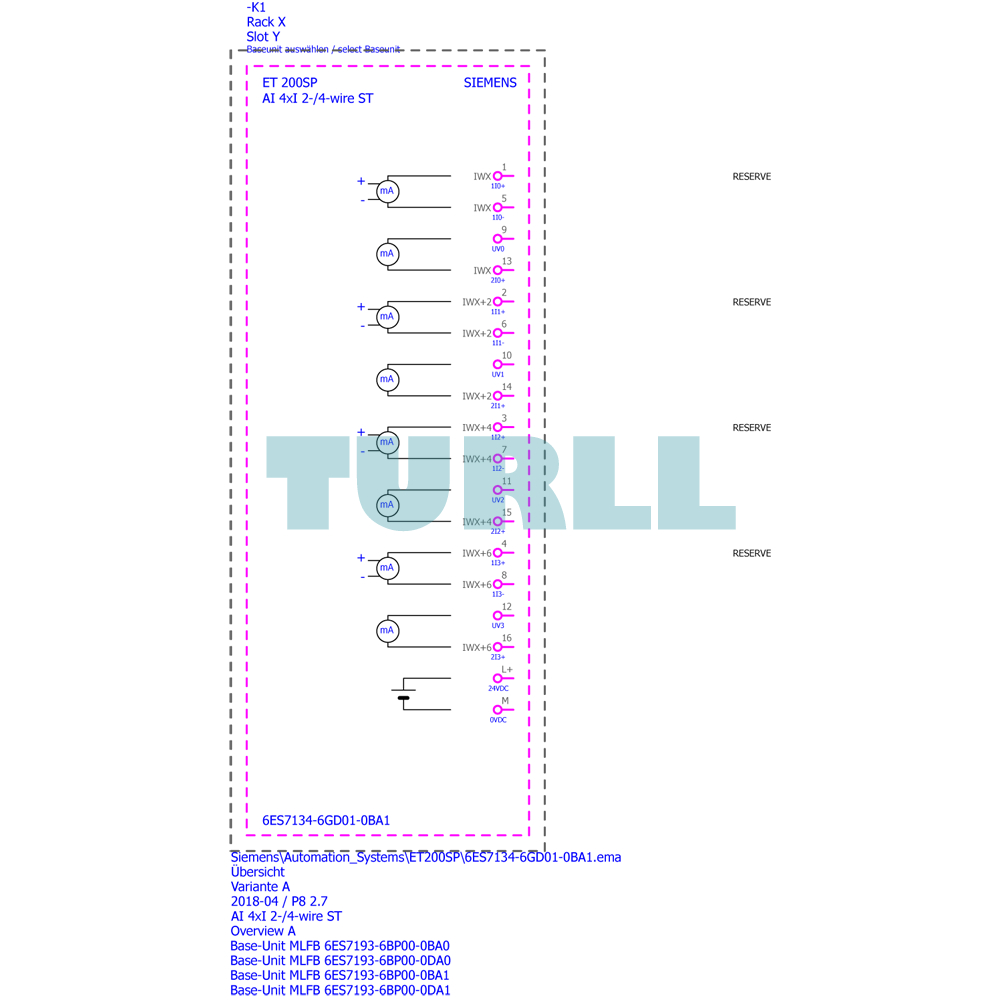

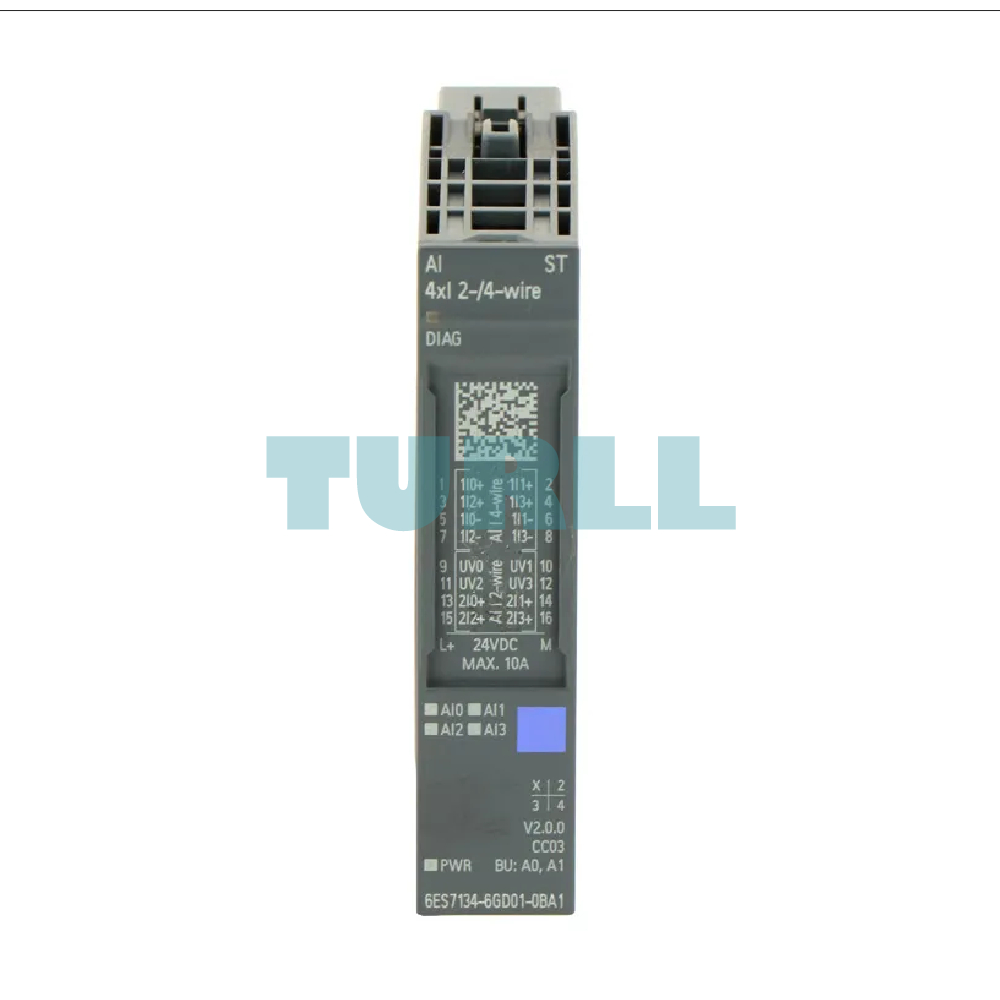

| ● 2-wire connection | BU type A0, A1 |
| ● 4-wire connection | BU type A0, A1 |
| Number of analog inputs | 4; Differential inputs |
| permissible input current for current input (destruction limit), max. | 50 mA |
| Cycle time (all channels), min. | Sum of the basic conversion times and additional processing times (depending on the parameterization of the active channels) |
| ● 0 to 20 mA | Yes; 16 bit incl. sign |
| — Input resistance (0 to 20 mA) | 100 Ω; + approx. 0.7 V diode forward voltage in 2-wire operation |
| ● -20 mA to +20 mA | Yes |
| — Input resistance (-20 mA to +20 mA) | 100 Ω |
| ● 4 mA to 20 mA | Yes; 15 bit |
| — Input resistance (4 mA to 20 mA) | 100 Ω; + approx. 0.7 V diode forward voltage in 2-wire operation |
| ● shielded, max. | 1 000 m |
| Measurement principle | integrating (Sigma-Delta) |
| ● Resolution with overrange (bit including sign), max. | 16 bit |
| ● Integration time, parameterizable | Yes |
| ● Interference voltage suppression for interference frequency f1 in Hz | 16.6 / 50 / 60 Hz |
| ● Conversion time (per channel) | 180 / 60 / 50 ms |
| ● Number of smoothing levels | 4; None; 4/8/16 times |
| ● parameterizable | Yes |
| ● for voltage measurement | No |
| ● for current measurement as 2-wire transducer | Yes |
| — Burden of 2-wire transmitter, max. | 650 Ω |
| ● for current measurement as 4-wire transducer | Yes |
| Linearity error (relative to input range), (+/-) | 0.01 % |
| Temperature error (relative to input range), (+/-) | 0.005 %/K |
| Crosstalk between the inputs, min. | 50 dB; Applies to up to ±5 V overvoltage in other channels |
| Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) | 0.05 % |
| ● Current, relative to input range, (+/-) | 0.3 % |
| ● Series mode interference (peak value of interference < rated value of input range), min. | 70 dB |
| ● Common mode voltage, max. | 10 V |
| ● Common mode interference, min. | 90 dB |
| Diagnostics function | Yes |
| ● Diagnostic alarm | Yes |
| ● Limit value alarm | No |
| ● Monitoring the supply voltage | Yes |
| ● Wire-break | Yes; at 4 to 20 mA |
| ● Short-circuit | Yes; 2-wire mode: Short-circuit of the encoder supply to ground or of an input to the encoder supply |
| ● Group error | Yes |
| ● Overflow/underflow | Yes |
| ● Monitoring of the supply voltage (PWR-LED) | Yes; green LED |
| ● Channel status display | Yes; green LED |
| ● for channel diagnostics | No |
| ● for module diagnostics | Yes; green/red LED |
| ● between the channels | Yes; channel group-specific between 2-wire current input group and 4-wire voltage input group |
| ● between the channels and backplane bus | Yes |
| ● between the channels and the power supply of the electronics | Yes; only for 4-wire transducer |
| between the inputs (UCM) | 10 V DC |
| Isolation tested with | 707 V DC (type test) |
| ● horizontal installation, min. | -30 °C; < 0 °C as of FS02 |
| ● horizontal installation, max. | 60 °C |
| ● vertical installation, min. | -30 °C; < 0 °C as of FS02 |
| ● vertical installation, max. | 50 °C |
| ● Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |

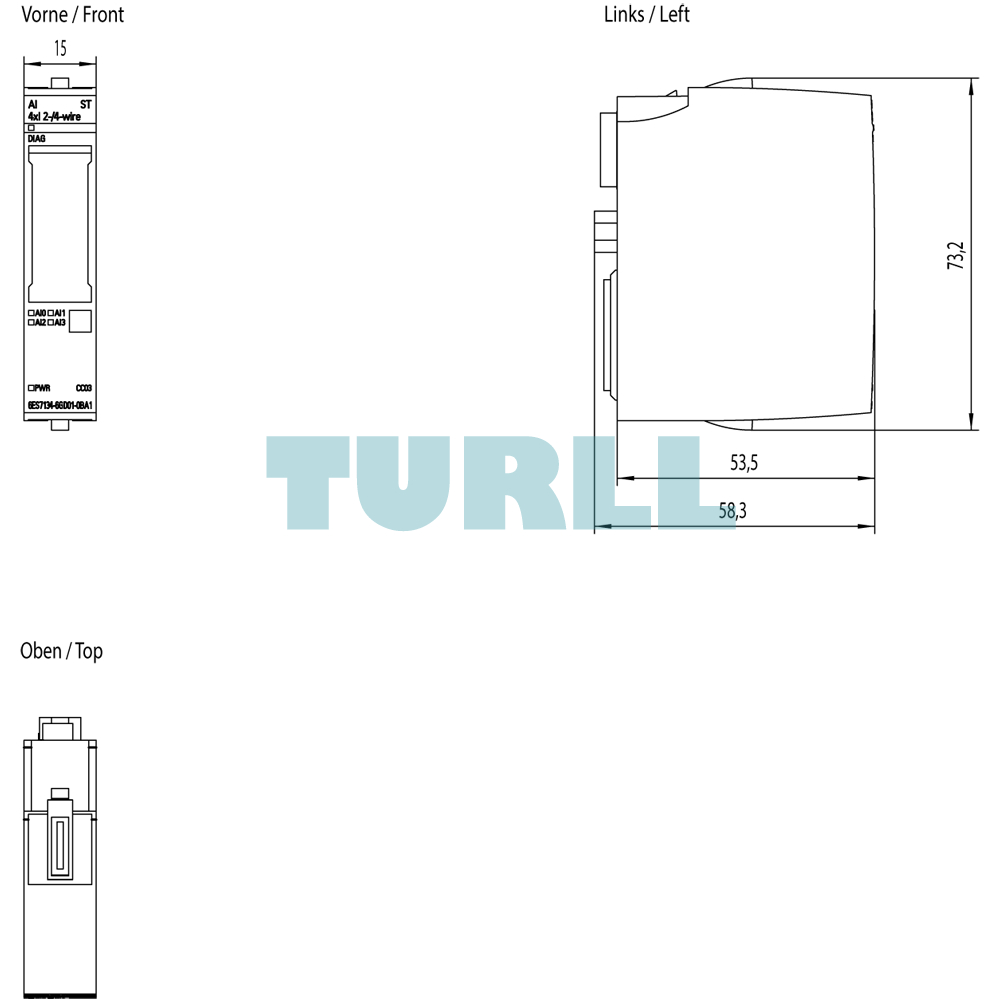

| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weight, approx. | 31 g |
| last modified: | 12/19/2020 |
| Product Condition | Brand New, New – Backlog, New – No Original Box, New – Original Box Opened, Used – Average, Used – Below Average, Used – Excellent, Used – Fairly Good, Used – Good, Used – Poor, Used – Very Good |
