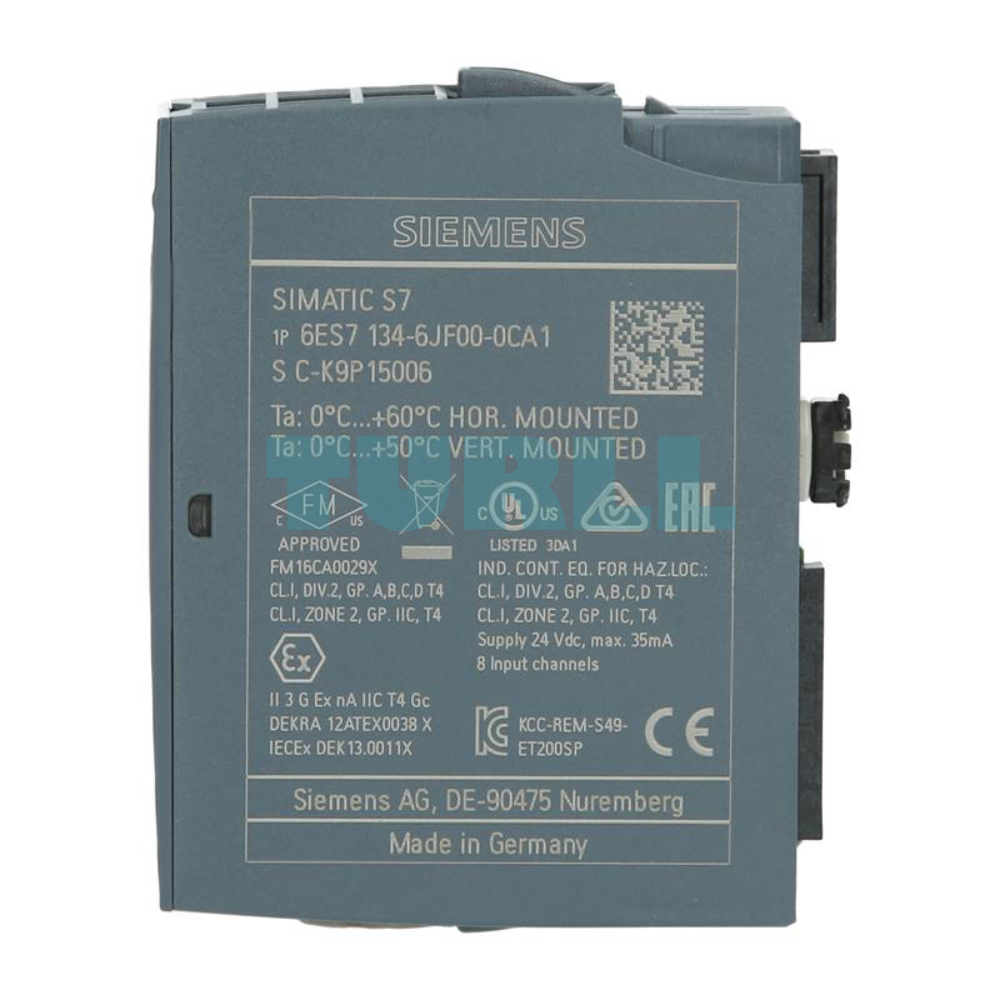

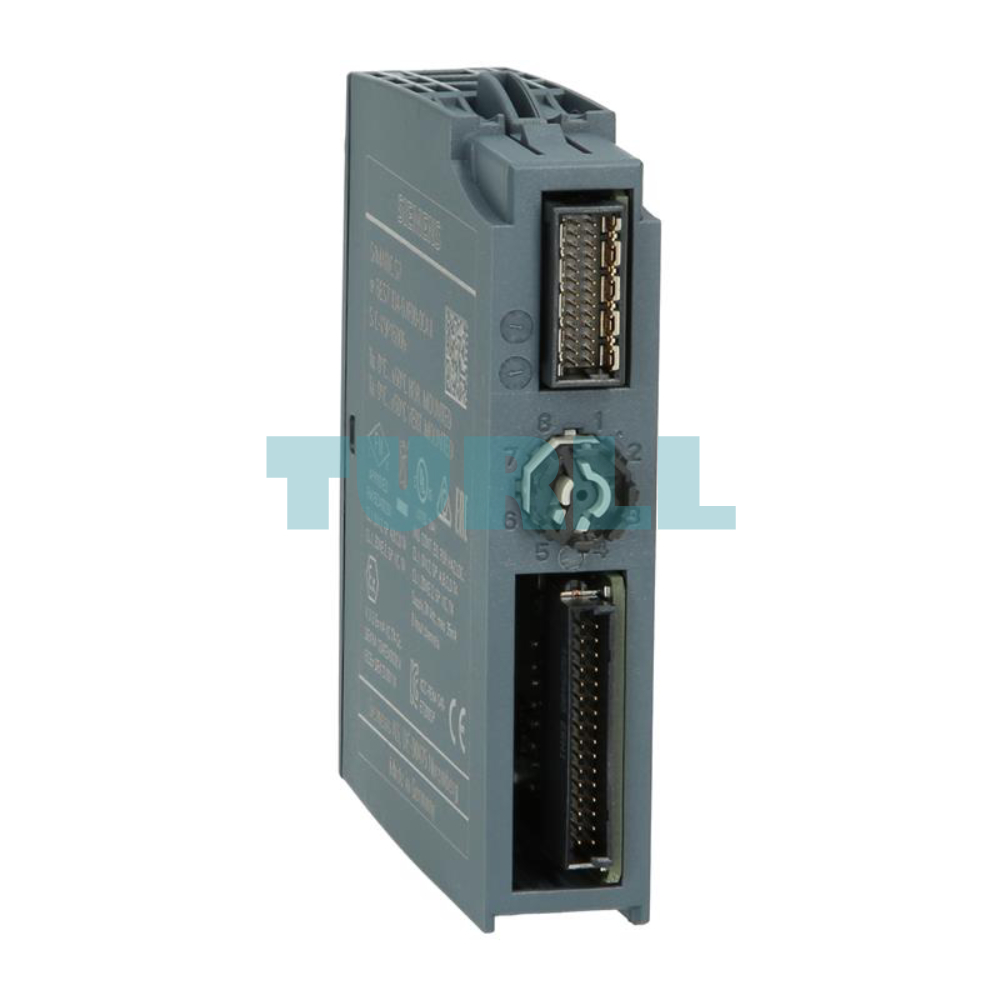

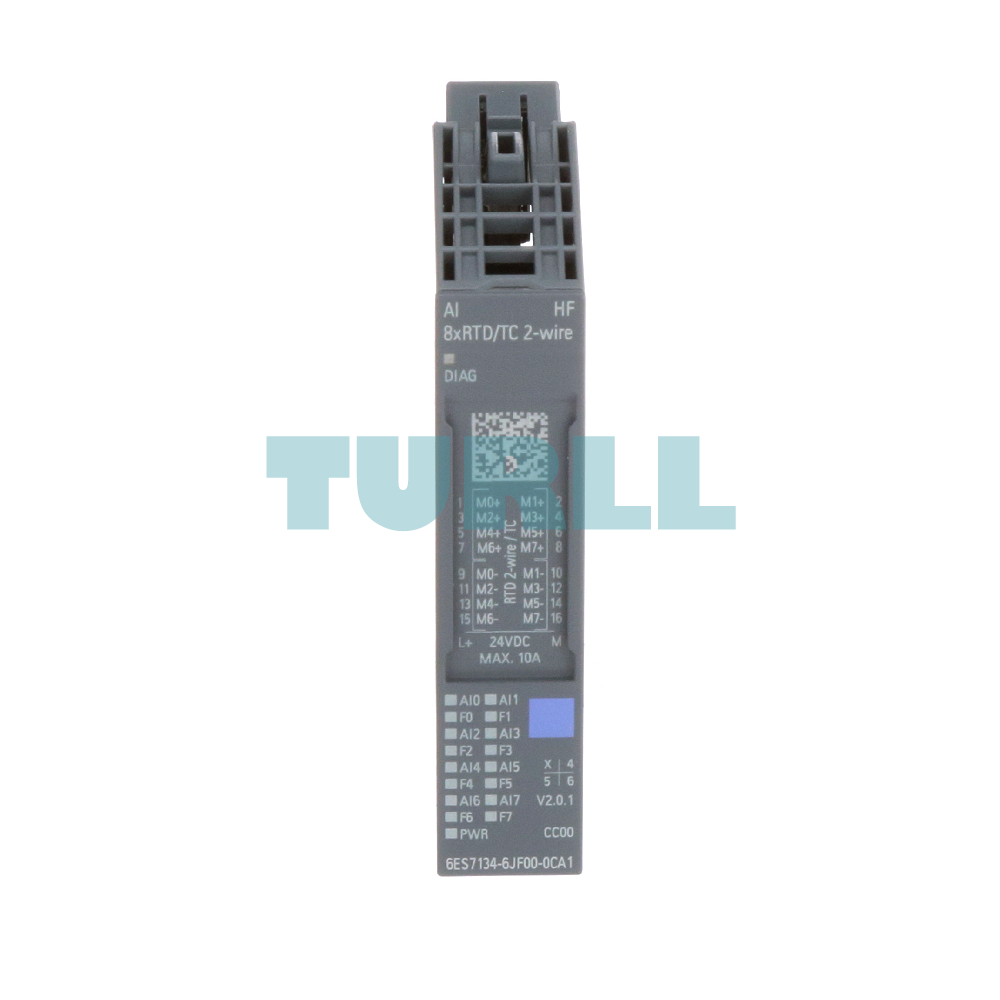

Siemens 6ES7134-6JF00-0CA1 SIMATIC ET 200SP, Analog Input Module, AI 8xRTD/TC Original Brand New

Model / SKU6ES7134-6JF00-0CA1

SIMATIC ET 200SP analog input module featuring 8xRTD/TC 2-wire inputs, 16-bit resolution, ±0.1% accuracy, advanced channel diagnostics, and high-feature performance, designed for precise industrial temperature measurement.

$14,675.74
Out of stockSubject to sourcing — request a quote
  • ConditionOriginal Brand New
  • Warranty12 months
Request a Quote
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens 6ES7134-6JF00-0CA1 SIMATIC ET 200SP Analog Input Module is a high-performance solution engineered for precise temperature measurement in demanding industrial automation environments. Designed as part of the compact and flexible ET 200SP distributed I/O system, this module supports 8 analog input channels for RTD (Resistance Temperature Detector) and Thermocouple (TC) sensors using a 2-wire connection.

With 16-bit resolution and an impressive measurement accuracy of ±0.1%, this high-feature analog input module ensures reliable data acquisition for critical process control applications. It is compatible with Base Units type A0 and A1, uses Color Code CC00, and integrates seamlessly with Siemens PLC systems, making it an ideal choice for modern automation architectures.

Key Benefit

  • High Precision Measurement: Delivers accurate temperature readings with ±0.1% precision and 16-bit resolution.

  • Multi-Sensor Compatibility: Supports both RTD and thermocouple sensors, reducing the need for multiple modules.

  • Advanced Diagnostics: Built-in channel diagnostics help identify wiring faults, sensor failures, and signal errors quickly.

  • Compact Design: Space-saving ET 200SP form factor allows efficient cabinet layout.

  • Scalable System Integration: Easily expandable within Siemens SIMATIC automation systems.

  • High Feature Performance: Designed for applications requiring advanced functionality and reliability.

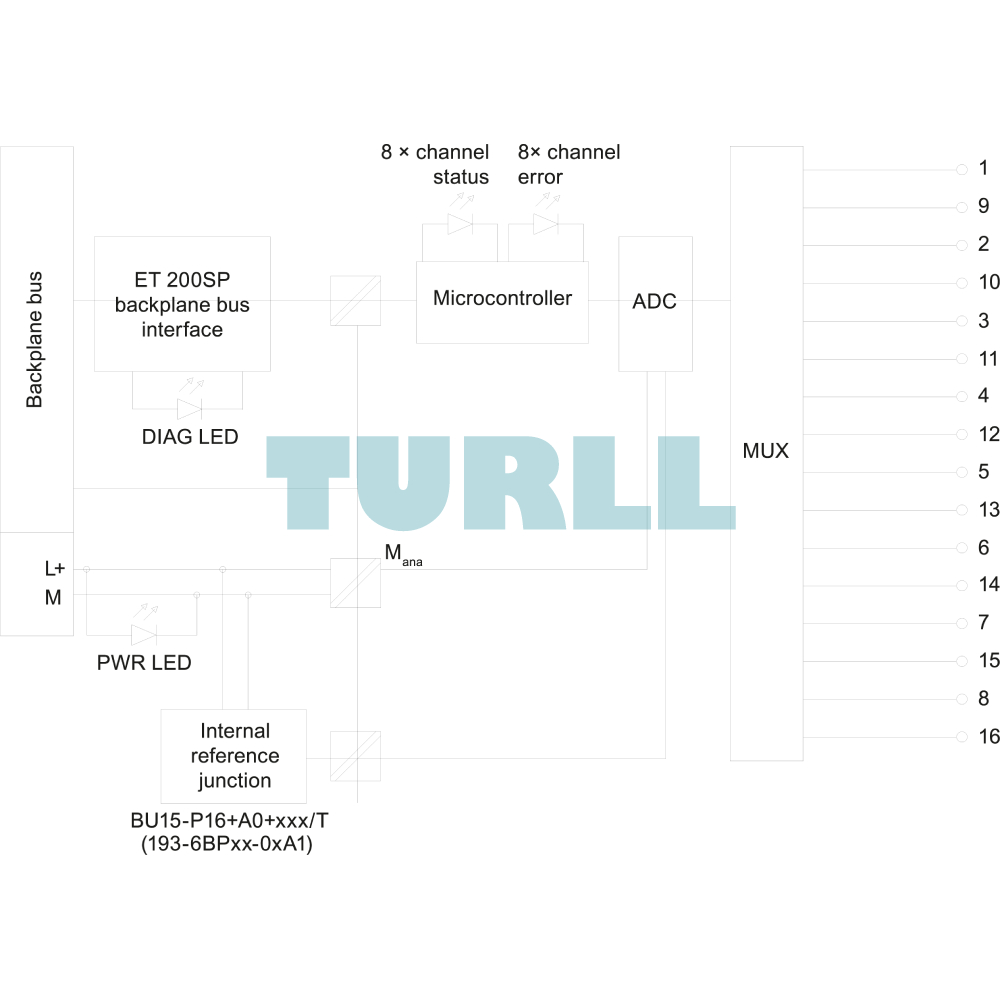

Function & Features

The Siemens 6ES7134-6JF00-0CA1 performs accurate analog signal acquisition from temperature sensors and converts them into digital values for PLC processing. Its 8 independent input channels allow simultaneous temperature monitoring across multiple points.

Key functional highlights include:

  • Support for RTD and TC sensors

  • 2-wire connection technology

  • 16-bit digital conversion

  • Channel-specific diagnostics

  • High immunity to electrical interference

  • Seamless communication with SIMATIC controllers

This ensures stable operation even in electrically noisy industrial environments.

Application

The Siemens AI 8xRTD/TC analog input module is widely used across multiple industries, including:

  • Manufacturing automation

  • Process industries (oil & gas, chemical, pharmaceutical)

  • Power plants and energy management

  • Food and beverage processing

  • Water and wastewater treatment

  • HVAC and building automation

  • Industrial temperature monitoring systems

Its flexibility makes it suitable for both centralized and distributed control systems.

Technical Specification

  • Product Number: 6ES7134-6JF00-0CA1

  • Series: SIMATIC ET 200SP

  • Module Type: Analog Input

  • Inputs: 8x RTD/TC

  • Connection Type: 2-wire

  • Resolution: 16-bit

  • Accuracy: ±0.1%

  • Diagnostics: Channel diagnostics included

  • Base Unit Compatibility: BU Type A0, A1

  • Color Code: CC00

Installation and Compatibility

This module is part of the modular ET 200SP system. To install, simply plug the module into a compatible BaseUnit (BU) Type A0 or A1. The push-in terminals allow for tool-free wiring, reducing installation time by up to 50%. It is fully compatible with TIA Portal, providing a user-friendly drag-and-drop configuration interface.

Download

Datasheet in PDF

Visit 6ES7134-6JF00-0CA1 for more detail info

For more our products visit turll

Specifications

SKU / Model6ES7134-6JF00-0CA1
BrandSIEMENS
Product type designationAI 8xRTD/TC 2-wire HF
HW functional statusFrom FS05
Firmware versionV2.1
● FW update possibleYes
usable BaseUnitsBU type A0, A1
Color code for module-specific color identification plateCC00
● I&M dataYes; I&M0 to I&M3
● Isochronous modeNo
● Measuring range scalableYes
● STEP 7 TIA Portal configurable/integrated from versionV16, V17 / V18
● STEP 7 configurable/integrated from versionV5.5 SP3 / V5.5 SP4
● PCS 7 configurable/integrated from versionV8.1 SP1
● PROFIBUS from GSD version/GSD revisionOne GSD file each, Revision 3 and 5 and higher
● PROFINET from GSD version/GSD revisionGSDML V2.35
● OversamplingNo
● MSINo
Reparameterization possible in RUNYes
Calibration possible in RUNYes
Rated value (DC)24 V
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
Reverse polarity protectionYes
Current consumption, max.35 mA
Power loss, typ.0.75 W
● Address space per module, max.16 byte; + 1 byte for QI information
Automatic encoding-
● Mechanical coding elementYes
● 2-wire connectionBU type A0, A1
Number of analog inputs8
permissible input voltage for voltage input (destruction limit), max.30 V
Constant measurement current for resistance-type transmitter, typ.2 mA
Cycle time (all channels), min.Sum of the basic conversion times and additional processing times (depending on the parameterization of the active channels)
Technical unit for temperature measurement adjustableYes; °C/°F/K
● -1 V to +1 VYes; 16 bit incl. sign
— Input resistance (-1 V to +1 V)1 MΩ
● -250 mV to +250 mVYes; 16 bit incl. sign
— Input resistance (-250 mV to +250 mV)1 MΩ
● -50 mV to +50 mVYes; 16 bit incl. sign
— Input resistance (-50 mV to +50 mV)1 MΩ
● -80 mV to +80 mVYes; 16 bit incl. sign
— Input resistance (-80 mV to +80 mV)1 MΩ
● Type BYes; 16 bit incl. sign
— Input resistance (Type B)1 MΩ
● Type CYes; 16 bit incl. sign
— Input resistance (Type C)1 MΩ
● Type EYes; 16 bit incl. sign
— Input resistance (Type E)1 MΩ
● Type JYes; 16 bit incl. sign
— Input resistance (type J)1 MΩ
● Type KYes; 16 bit incl. sign
— Input resistance (Type K)1 MΩ
● Type LYes; 16 bit incl. sign
— Input resistance (Type L)1 MΩ
● Type NYes; 16 bit incl. sign
— Input resistance (Type N)1 MΩ
● Type RYes; 16 bit incl. sign
— Input resistance (Type R)1 MΩ
● Type SYes; 16 bit incl. sign
— Input resistance (Type S)1 MΩ
● Type TYes; 16 bit incl. sign
— Input resistance (Type T)1 MΩ
● Type UYes; 16 bit incl. sign
— Input resistance (Type U)1 MΩ
● Type TXK/TXK(L) to GOSTYes; 16 bit incl. sign
— Input resistance (Type TXK/TXK(L) to GOST)1 MΩ
● Ni 100Yes; 16 bit incl. sign
— Input resistance (Ni 100)1 MΩ
● Ni 1000Yes; 16 bit incl. sign
— Input resistance (Ni 1000)1 MΩ
● LG-Ni 1000Yes; 16 bit incl. sign
— Input resistance (LG-Ni 1000)1 MΩ
● Ni 120Yes; 16 bit incl. sign
— Input resistance (Ni 120)1 MΩ
● Ni 200Yes; 16 bit incl. sign
— Input resistance (Ni 200)1 MΩ
● Ni 500Yes; 16 bit incl. sign
— Input resistance (Ni 500)1 MΩ
● Pt 100Yes; 16 bit incl. sign
— Input resistance (Pt 100)1 MΩ
● Pt 1000Yes; 16 bit incl. sign
— Input resistance (Pt 1000)1 MΩ
● Pt 200Yes; 16 bit incl. sign
— Input resistance (Pt 200)1 MΩ
● Pt 500Yes; 16 bit incl. sign
— Input resistance (Pt 500)1 MΩ
● 0 to 150 ohmsYes; 15 bit
— Input resistance (0 to 150 ohms)1 MΩ
● 0 to 300 ohmsYes; 15 bit
— Input resistance (0 to 300 ohms)1 MΩ
● 0 to 600 ohmsYes; 15 bit
— Input resistance (0 to 600 ohms)1 MΩ
● 0 to 3000 ohmsYes; 15 bit
— Input resistance (0 to 3000 ohms)1 MΩ
● 0 to 6000 ohmsYes; 15 bit
— Input resistance (0 to 6000 ohms)1 MΩ
● PTCYes; 15 bit
— Input resistance (PTC)1 MΩ
— parameterizableYes
— Reference channel of the moduleYes
— internal comparison pointYes; with BaseUnit type A1
— Reference channel of the groupYes
— Number of reference channel groups4; Group 0 to 3
— fixed reference temperatureYes
● shielded, max.200 m; 50 m with thermocouples
Measurement principleintegrating (Sigma-Delta)
● Resolution with overrange (bit including sign), max.16 bit
● Integration time, parameterizableYes
● Basic conversion time, including integration time (ms)-
— additional processing time for wire-break check2 ms; In the ranges resistance thermometers, resistors and thermocouples
● Interference voltage suppression for interference frequency f1 in Hz16.6 / 50 / 60 Hz
● Conversion time (per channel)180 / 60 / 50 / (67.5 / 22.5 / 18.75) ms
● Number of smoothing levels4; None; 4/8/16 times
● parameterizableYes
● for voltage measurementYes
● for resistance measurement with two-wire connectionYes
● for resistance measurement with three-wire connectionNo
● for resistance measurement with four-wire connectionNo
Linearity error (relative to input range), (+/-)0.01 %; ±0.1 % for resistance thermometers and resistance
Temperature error (relative to input range), (+/-)0.0009 %/K; ±0.005 % / K at thermocouple
Crosstalk between the inputs, min.-50 dB
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)0.05 %
● Voltage, relative to input range, (+/-)0.05 %
● Resistance, relative to input range, (+/-)0.05 %
● Series mode interference (peak value of interference < rated value of input range), min.70 dB; With conversion time 67.5 / 22.5 / 18.75 ms: 40 dB
● Common mode voltage, max.10 V
● Common mode interference, min.90 dB
● Diagnostic alarmYes
● Limit value alarmYes; two upper and two lower limit values in each case
● Monitoring the supply voltageYes
● Wire-breakYes; channel by channel
● Group errorYes
● Overflow/underflowYes; channel by channel
● Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED
● Channel status displayYes; green LED
● for channel diagnosticsYes; red LED
● for module diagnosticsYes; green/red DIAG LED
● between the channelsNo
● between the channels and backplane busYes
● between the channels and the power supply of the electronicsYes
between the inputs (UCM)10 V DC
Isolation tested with707 V DC (type test)
● horizontal installation, min.-30 °C
● horizontal installation, max.60 °C
● vertical installation, min.-30 °C
● vertical installation, max.50 °C
● Installation altitude above sea level, max.2 000 m; On request: Installation altitudes greater than 2 000 m

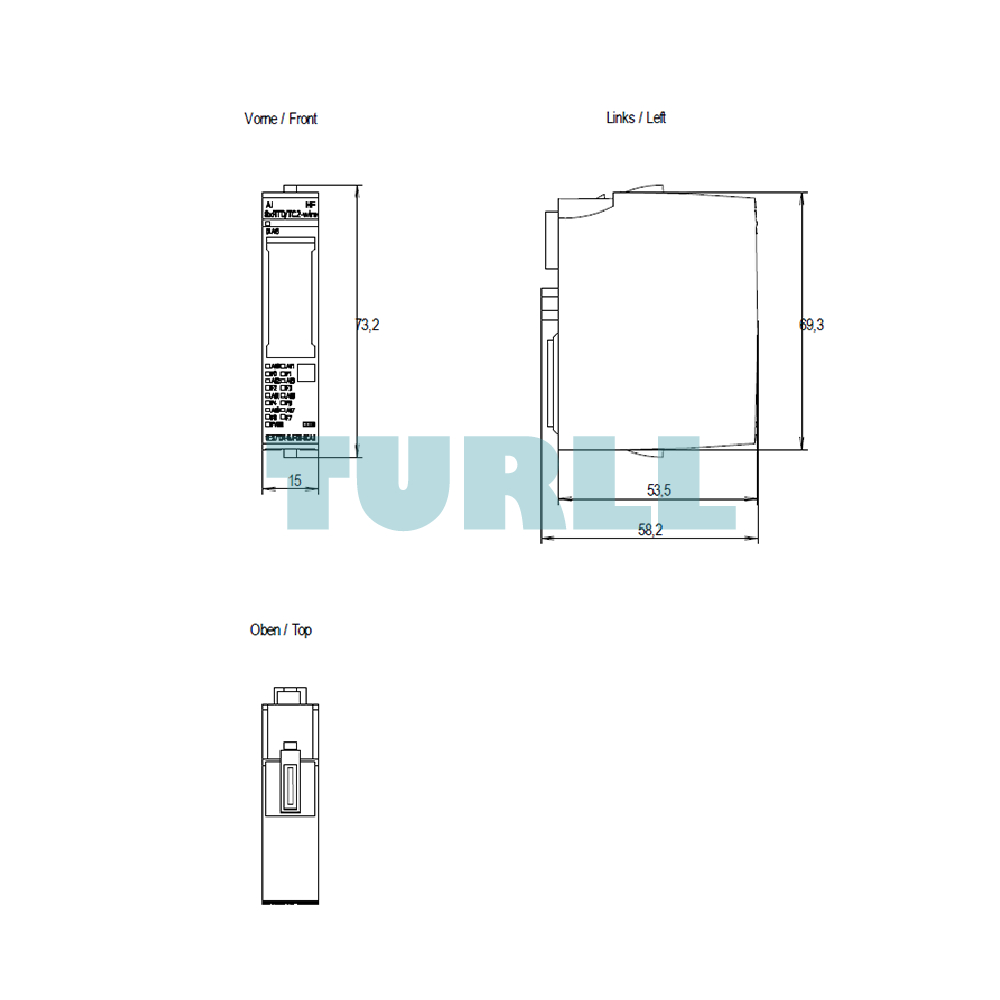

Width15 mm
Height73 mm
Depth58 mm
last modified:9/22/2021
Product ConditionBrand New, New - Backlog, New - No Original Box, New - Original Box Opened, Used - Average, Used - Below Average, Used - Excellent, Used - Fairly Good, Used - Good, Used - Poor, Used - Very Good
Weight0.039 kg
Dimensions6.50 × 7.70 × 2.30 mm
