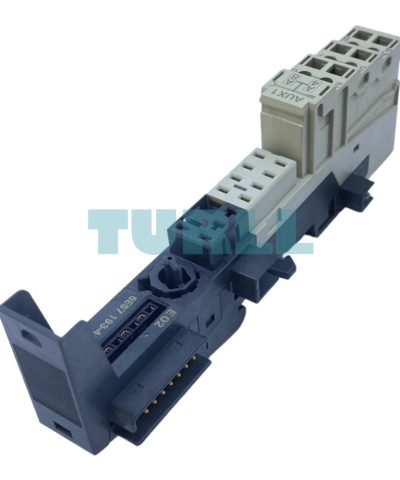

Siemens 6ES7193-4CC30-0AA0 SIMATIC DP Terminal Module TM-P15C23-A1 for ET 200S Original Brand New

Overview

The SIMATIC DP TM-P15C23-A1 serves as the essential base unit for power modules within the Siemens ET 200S ecosystem. This terminal module ensures secure mechanical and electrical connectivity, allowing for seamless power distribution across your PLC configuration. Its specialized design facilitates easy "permanent wiring," meaning the I/O module can be replaced without disturbing the terminal connections.

Key Function

• Power Distribution: Acts as the interface for ET 200S power modules to supply voltage to the internal bitbus and power bus.

• AUX1 Connection: Provides dedicated terminal access to the AUX1 bus, which is continuous across the assembly.

• Spring-Type Terminals: Utilizes Cage Clamp technology for vibration-proof, maintenance-free wiring connections.

Technical Benefit

• Space Efficiency: The ultra-slim 15mm width allows for high-density control cabinet configurations.

• Rapid Installation: Spring-type terminals significantly reduce wiring time compared to traditional screw terminals.

• Hot-Swapping Support: Enables the replacement of power modules while the system is under voltage, minimizing downtime.

• Reliability: Built to Siemens' rigorous industrial standards, ensuring long-term durability in harsh environments.

Technical Specification

• Product Number: 6ES7193-4CC30-0AA0

• Module Type: TM-P15C23-A1

• Compatibility: SIMATIC ET 200S Power Modules

• Connection Type: 2x3 Spring-type terminals (Cage Clamp)

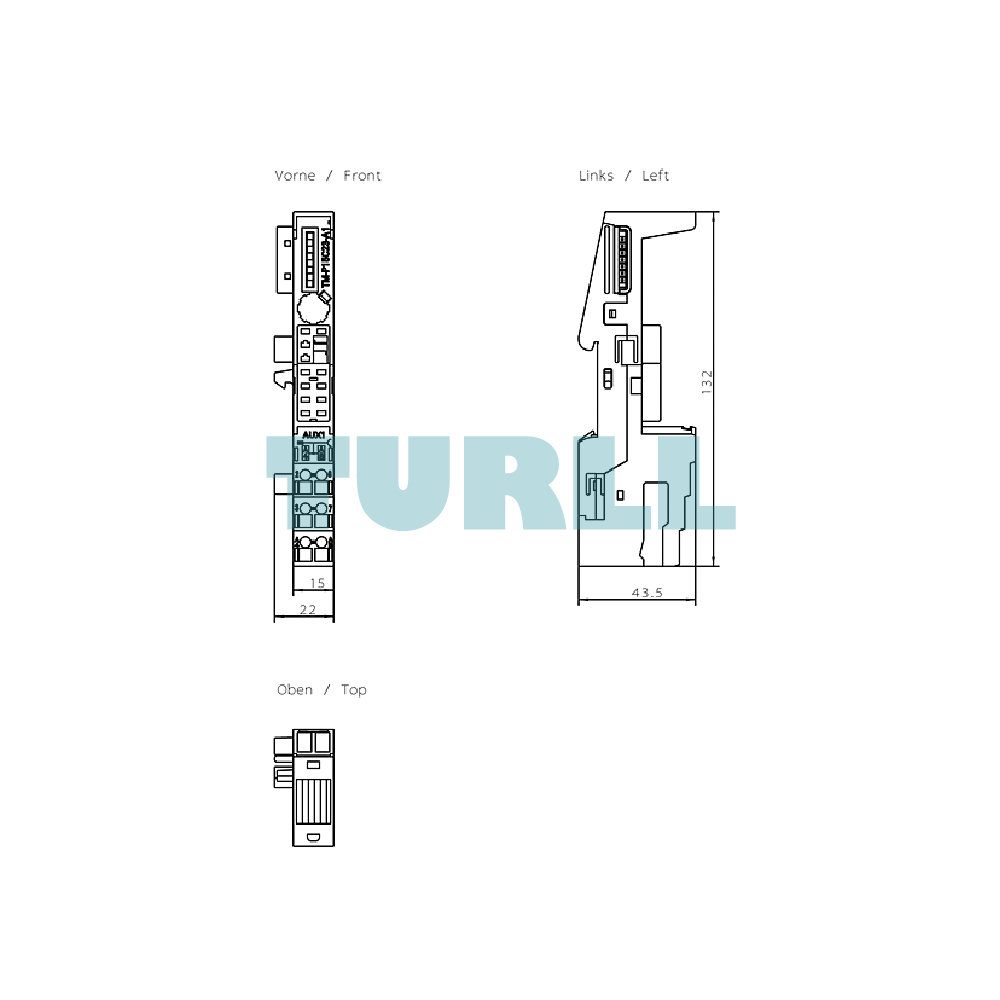

• Width: 15 mm

• Bus Access: AUX1 (Continuous)
