Siemens 6ES7222-1BF32-0XB0 SIMATIC S7-1200 Digital Output SM 1222, 8 DO, 24V DC, 0.5A Original Brand New

Model / SKU6ES7222-1BF32-0XB0

High-performance SIMATIC S7-1200 Digital Output Module (SM 1222). It provides 8 digital outputs with 24V DC transistor switching at 0.5A, offering seamless expansion for your S7-1200 PLC system.

Original price was: $234.66.Current price is: $107.71.
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

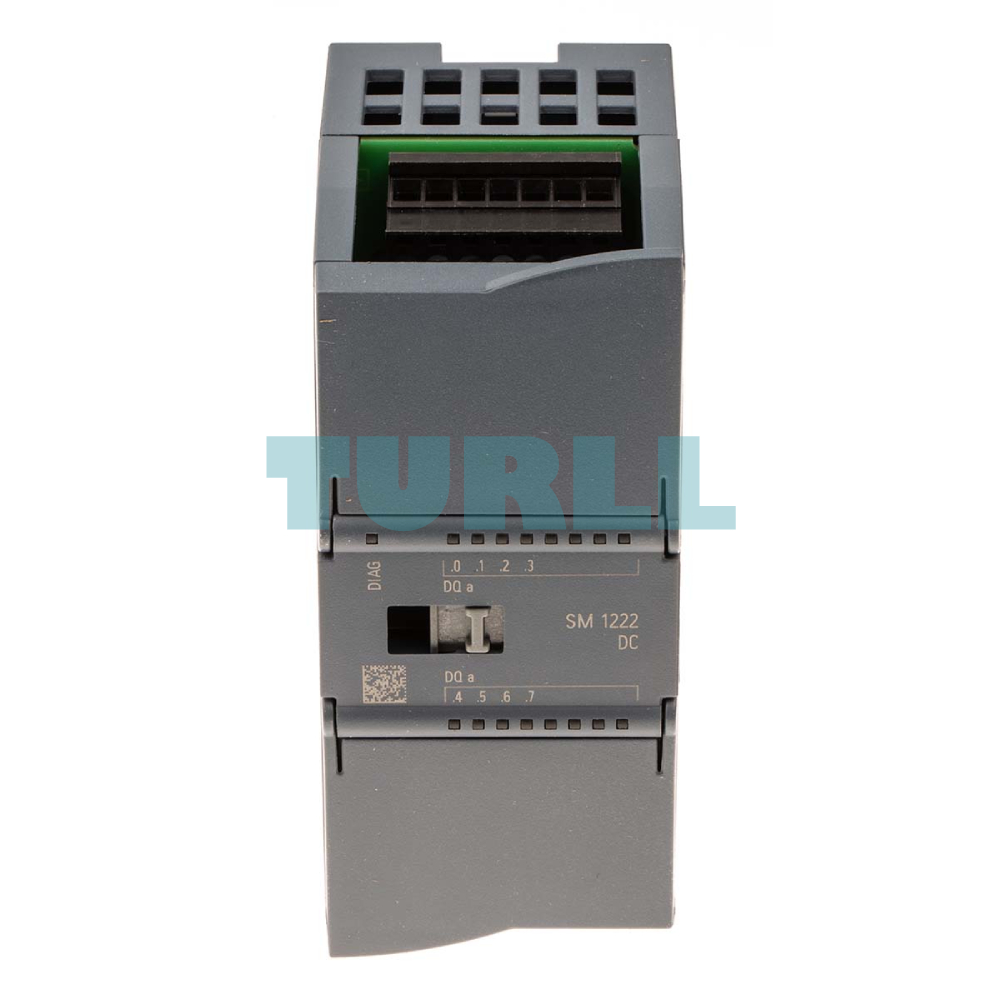

The Siemens 6ES7222-1BF32-0XB0 is a compact Digital Output (DO) signal module from the SIMATIC S7-1200 series. Designed to handle frequent switching cycles, this SM 1222 module utilizes transistor outputs instead of relays, making it ideal for high-speed automation tasks and long-term durability in industrial environments.

Key Benefit

  • High Reliability: Transistor outputs offer a longer service life compared to mechanical relays, especially in high-frequency switching.

  • Space-Saving Design: Easily snaps onto the right side of the S7-1200 CPU, maintaining a compact cabinet footprint.

  • Seamless Integration: Fully compatible with TIA Portal for easy configuration and diagnostics.

  • Energy Efficient: Low power loss of only 1.5W during operation.

Function & Specification

  • Number of Outputs: 8 Digital Outputs (DO).

  • Output Type: Transistor (Source/M-switching).

  • Rated Voltage: 24V DC.

  • Current Rating: 0.5A per channel.

  • Switching Frequency: Ideal for resistive loads (up to 10 Hz) and inductive loads (up to 0.5 Hz).

  • Galvanic Isolation: 500V AC between channels and backplane bus.

Download

Datasheet in PDF

Visit 6ES7222-1BF32-0XB0 for more detail info

For more our products visit turll



Specifications

SKU / Model6ES7222-1BF32-0XB0
BrandSIEMENS
Product type designationSM 1222, DQ 8x24 V DC/0.5 A
permissible range, lower limit (DC)20.4 V
permissible range, upper limit (DC)28.8 V
from backplane bus 5 V DC, max.120 mA
Power loss, typ.1.5 W
Number of digital outputs8
● in groups of1
Short-circuit protectionNo; to be provided externally
Limitation of inductive shutdown voltage totyp. (L+) -48 V
● with resistive load, max.0.5 A
● on lamp load, max.5 W
● Rated value (DC)24 V
● for signal "0", max.0.1 V; with 10 kOhm load
● for signal "1", min.20 V DC
● for signal "1" rated value0.5 A
● for signal "0" residual current, max.10 µA
● "0" to "1", max.50 µs
● "1" to "0", max.200 µs
— up to 50 °C, max.4 A; Current per mass
— with inductive load, max.0.5 A
— on lamp load, max.5 W
— with resistive load, max.0.5 A
● shielded, max.500 m
● unshielded, max.150 m
● Diagnostic alarmYes
● for status of the outputsYes
● between the channels, in groups of1
● between the channels and backplane bus500 V AC
IP degree of protectionIP20
CE markYes
CSA approvalYes
UL approvalYes
cULusYes
FM approvalYes
RCM (formerly C-TICK)Yes
KC approvalYes
Marine approvalYes
● Fall height, max.0.3 m; five times, in product package
● horizontal installation, min.-20 °C
● horizontal installation, max.60 °C
● vertical installation, min.-20 °C
● vertical installation, max.50 °C
● permissible temperature change5°C to 55°C, 3°C / minute
● min.-40 °C
● max.70 °C
● Storage/transport, min.660 hPa
● Storage/transport, max.1 080 hPa
● Operation at 25 ℃ without condensation, max.95 %
required front connectorYes
Enclosure material (front)-
● PlasticYes

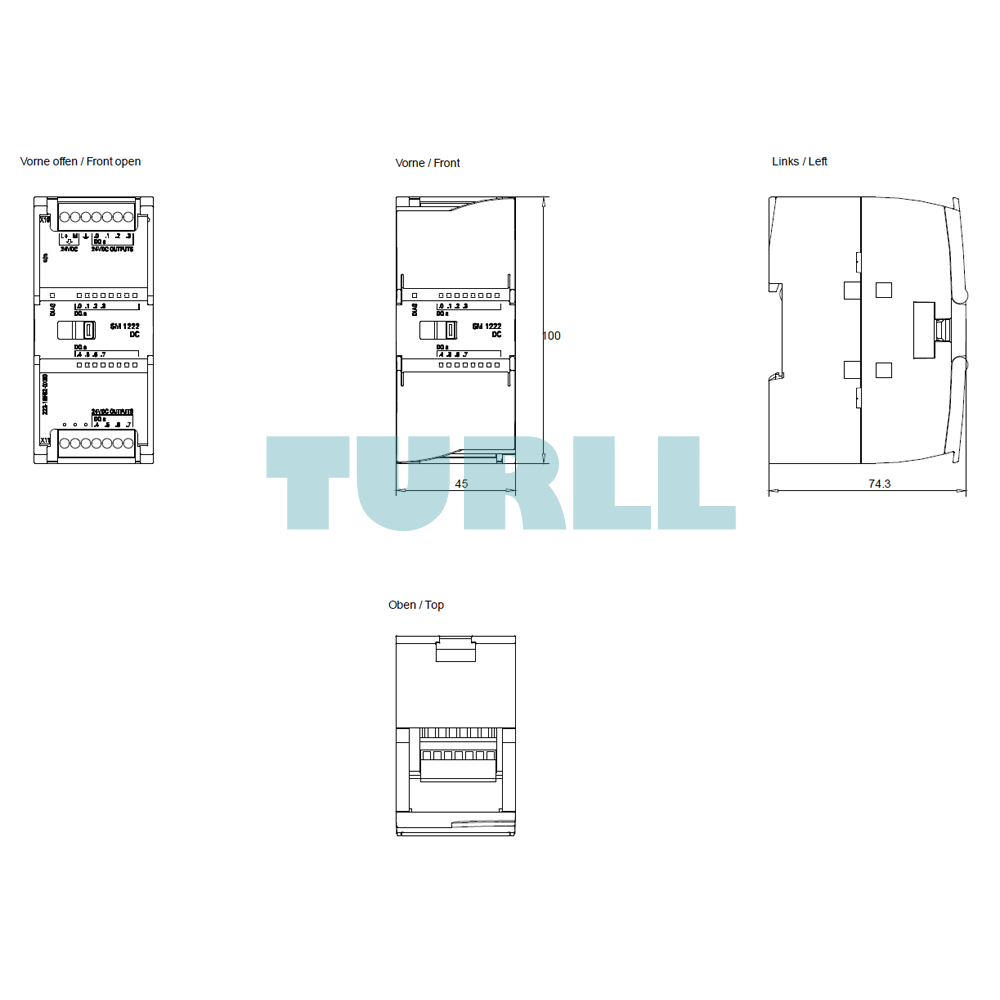

Width45 mm
Height100 mm
Depth75 mm
Weight, approx.180 g
last modified:2/26/2021
Product ConditionBrand New, New - Backlog, New - No Original Box, New - Original Box Opened, Used - Average, Used - Below Average, Used - Excellent, Used - Fairly Good, Used - Good, Used - Poor, Used - Very Good
Weight0.180 kg
Dimensions8.80 × 10.40 × 5.80 mm
