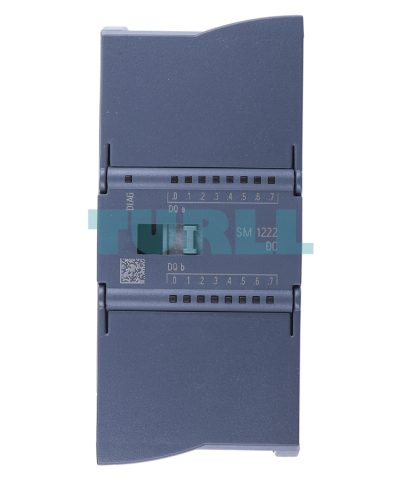

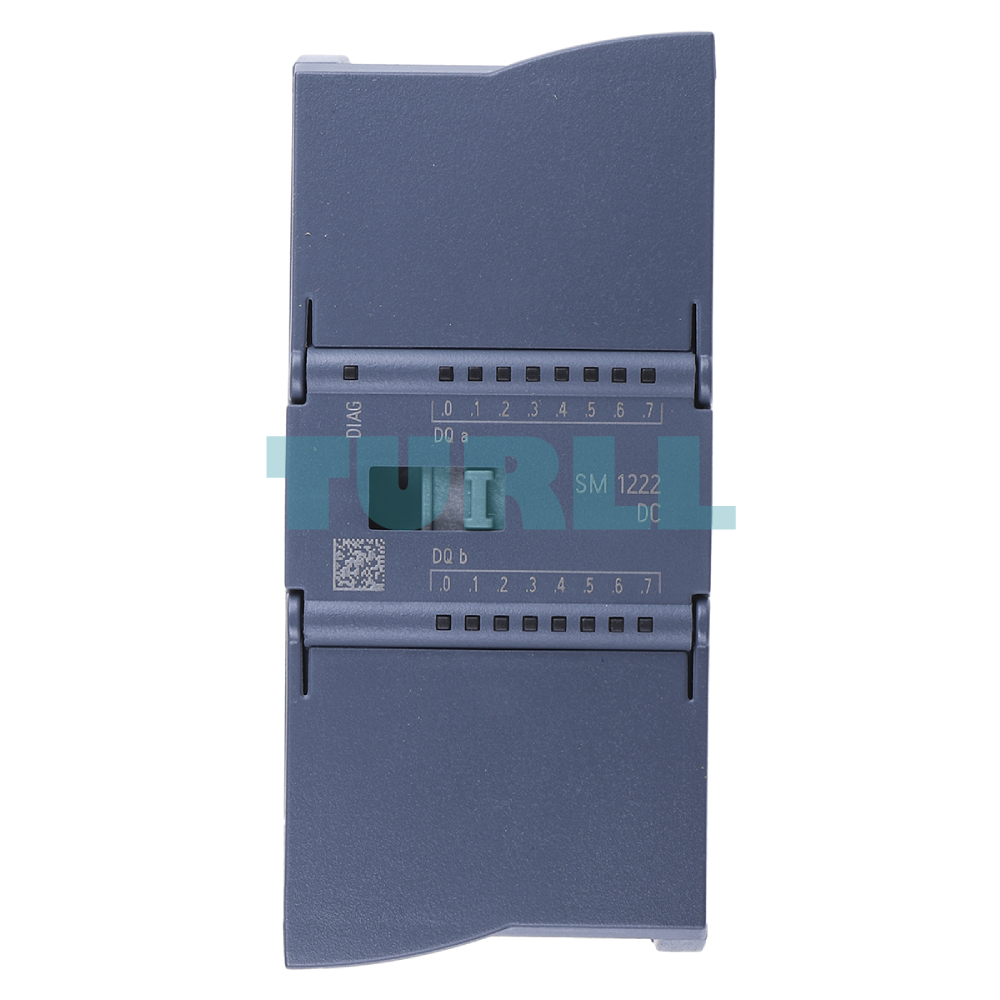

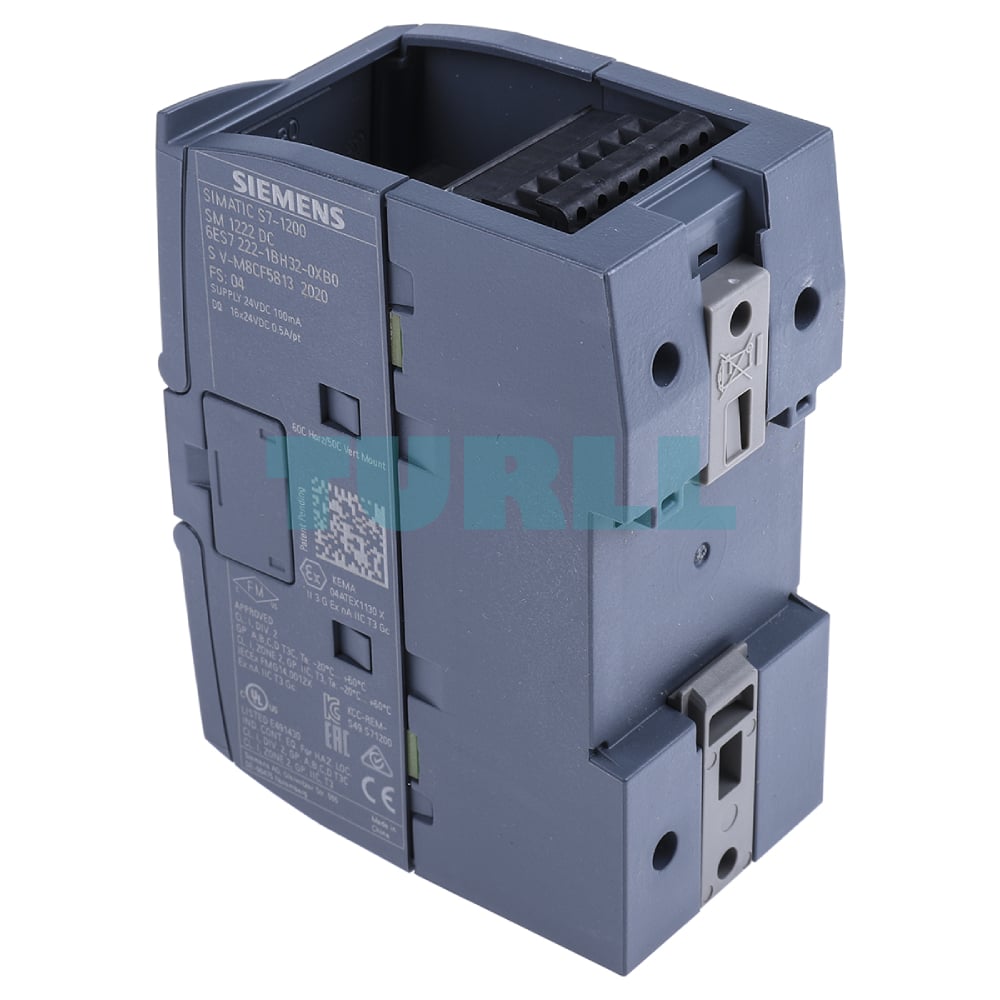

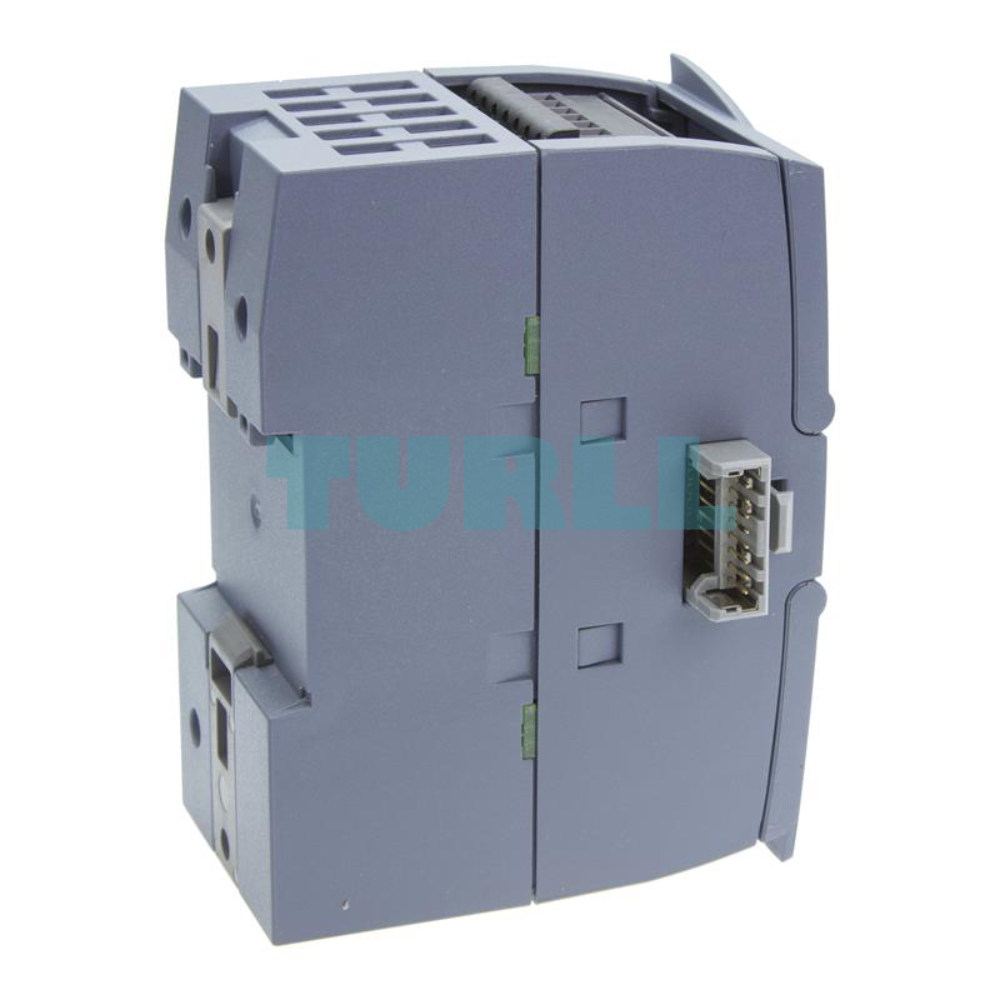

Siemens 6ES7222-1BH32-0XB0 SIMATIC S7-1200, Digital Output Module SM 1222, 16 DO, 24 V DC Original Brand New
Model / SKU6ES7222-1BH32-0XB0
High-performance SIMATIC S7-1200 Digital Output SM 1222 module. It provides 16 reliable 24V DC transistor outputs at 0.5A, designed for seamless integration with S7-1200 PLC systems to enhance automation scalability.
Original price was: $423.55.$161.54Current price is: $161.54.
In stockShips in 1–3 business days
- ConditionOriginal Brand New
- Warranty12 months
- Genuine Products
- Up to 1-Year Warranty
- Global Shipping
- Secure Payment
- PI / Bank Transfer Available
- Bulk Quote Support
Description
Overview
The SIMATIC S7-1200 SM 1222 digital output module is the ideal solution for expanding the control capabilities of your Siemens PLC. By adding 16 digital transistor outputs, this module allows for precise control of actuators, valves, and relays in industrial environments. Its compact design ensures a small footprint in the control cabinet while maintaining the rugged reliability Siemens is known for.
Key Benefit
-
Enhanced Scalability: Easily expand your existing S7-1200 CPU capacity without replacing the entire unit.
-
High Efficiency: Transistor outputs offer faster switching cycles and longer service life compared to mechanical relays.
-
Space-Saving: The slim design allows for high-density I/O configurations in tight industrial panels.
-
Seamless Integration: Fully compatible with TIA Portal for easy configuration and diagnostics.
Functions & Features
-
Output Switching: Converts internal PLC logic signals into 24V DC external electrical signals.
-
Galvanic Isolation: Protects the sensitive CPU electronics from field-level electrical interference.
-
Status Indicators: Features integrated LEDs for clear diagnostic feedback on the status of each output channel.
Application
Ideal for industrial automation, machine building, process control, and factory automation environments that require reliable digital output modules.
Download
Visit 6ES7222-1BH32-0XB0 for more detail info
For more our products visit turll
Specifications
| SKU / Model | 6ES7222-1BH32-0XB0 |
|---|---|
| Brand | SIEMENS |
| Product type designation | SM 1222, DQ 16x24 V DC/0.5 A |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| from backplane bus 5 V DC, max. | 140 mA |
| Power loss, typ. | 2.5 W |
| Number of digital outputs | 16 |
| ● in groups of | 1 |
| Short-circuit protection | No; to be provided externally |
| Limitation of inductive shutdown voltage to | typ. (L+) -48 V |
| ● with resistive load, max. | 0.5 A |
| ● on lamp load, max. | 5 W |
| ● Rated value (DC) | 24 V |
| ● for signal "0", max. | 0.1 V; with 10 kOhm load |
| ● for signal "1", min. | 20 V DC |
| ● for signal "1" rated value | 0.5 A |
| ● for signal "0" residual current, max. | 10 µA |
| ● "0" to "1", max. | 50 µs |
| ● "1" to "0", max. | 200 µs |
| — up to 50 °C, max. | 8 A; Current per mass |
| — with inductive load, max. | 0.5 A |
| — on lamp load, max. | 5 W |
| — with resistive load, max. | 0.5 A |
| ● shielded, max. | 500 m |
| ● unshielded, max. | 150 m |
| ● Diagnostic alarm | Yes |
| ● for status of the outputs | Yes |
| ● between the channels, in groups of | 1 |
| ● between the channels and backplane bus | 500 V AC |
| IP degree of protection | IP20 |
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| cULus | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| Marine approval | Yes |
| ● Fall height, max. | 0.3 m; five times, in product package |
| ● horizontal installation, min. | -20 °C |
| ● horizontal installation, max. | 60 °C |
| ● vertical installation, min. | -20 °C |
| ● vertical installation, max. | 50 °C |
| ● permissible temperature change | 5°C to 55°C, 3°C / minute |
| ● min. | -40 °C |
| ● max. | 70 °C |
| ● Storage/transport, min. | 660 hPa |
| ● Storage/transport, max. | 1 080 hPa |
| ● Operation at 25 ℃ without condensation, max. | 95 % |
| required front connector | Yes |
| Enclosure material (front) | - |
| ● Plastic | Yes |

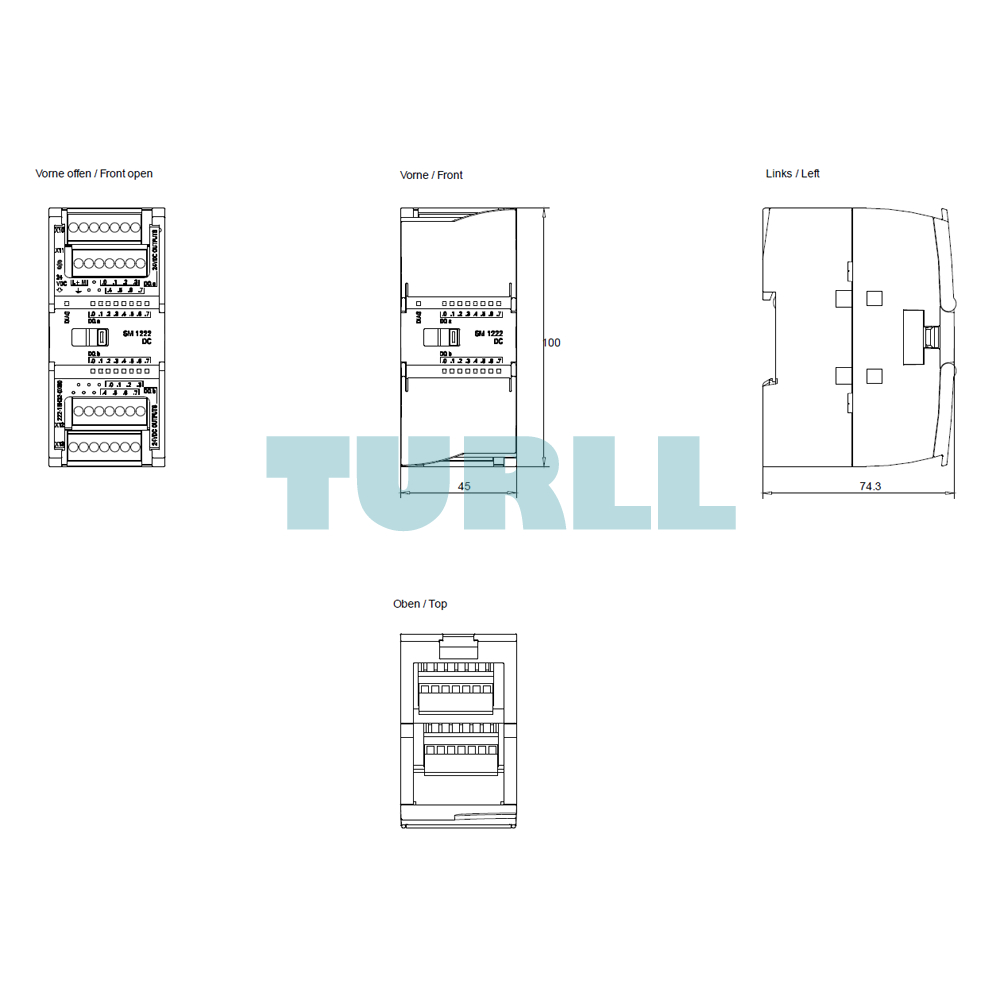

| Width | 45 mm |
| Height | 100 mm |
| Depth | 75 mm |
| Weight, approx. | 220 g |
| last modified: | 2/26/2021 |
| Product Condition | Brand New, New - Backlog, New - No Original Box, New - Original Box Opened, Used - Average, Used - Below Average, Used - Excellent, Used - Fairly Good, Used - Good, Used - Poor, Used - Very Good |
| Weight | 0.220 kg |
| Dimensions | 8.80 × 10.80 × 5.60 mm |
