High-performance Digital I/O expansion module for the SIMATIC S7-200 series. Designed exclusively for S7-22X CPUs, it provides 8 Digital Inputs (24V DC, Sink/Source) and 8 Digital Relay Outputs with a 2A current rating per channel.

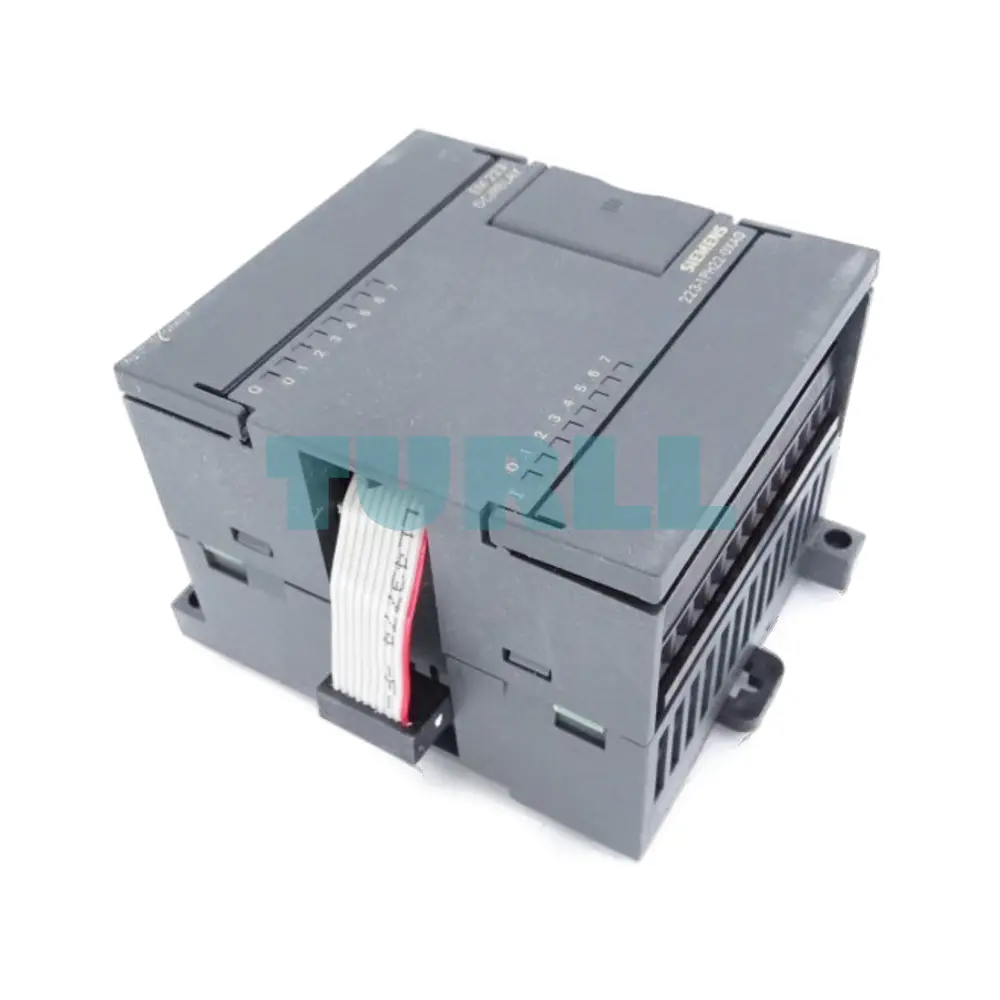

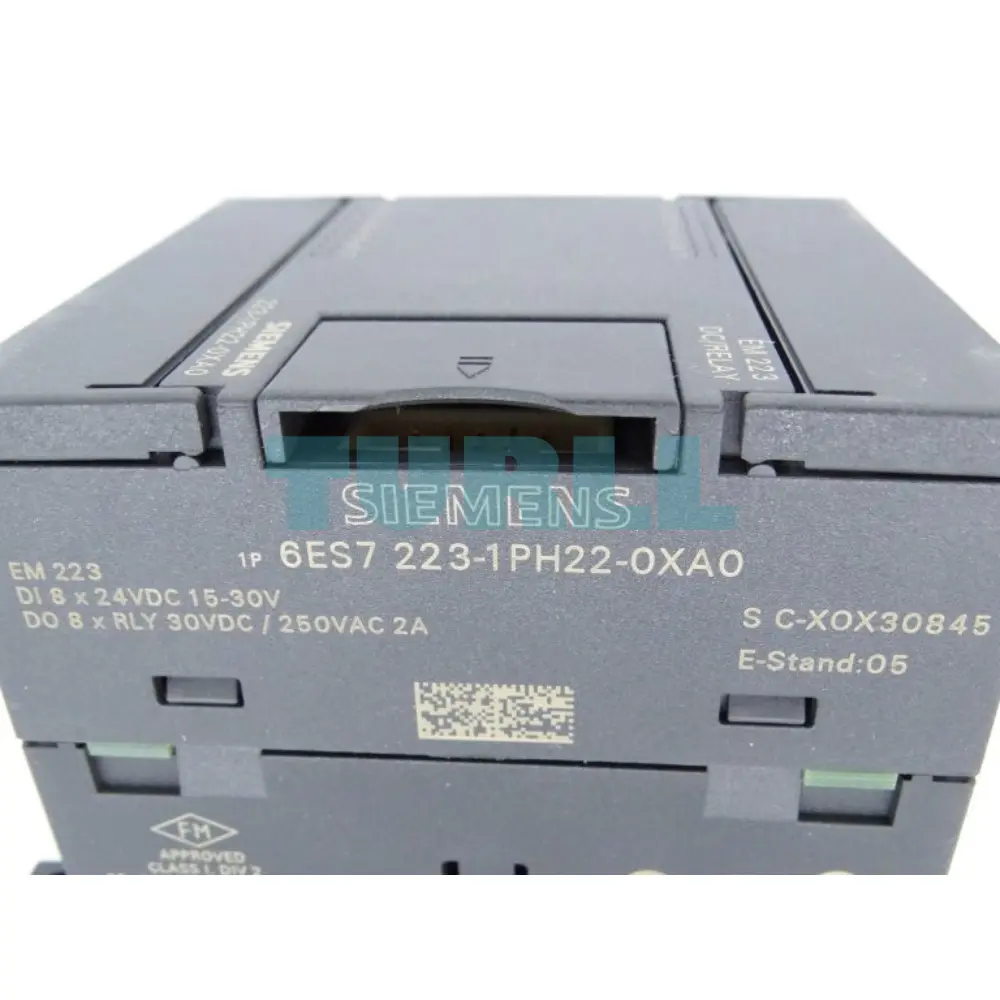

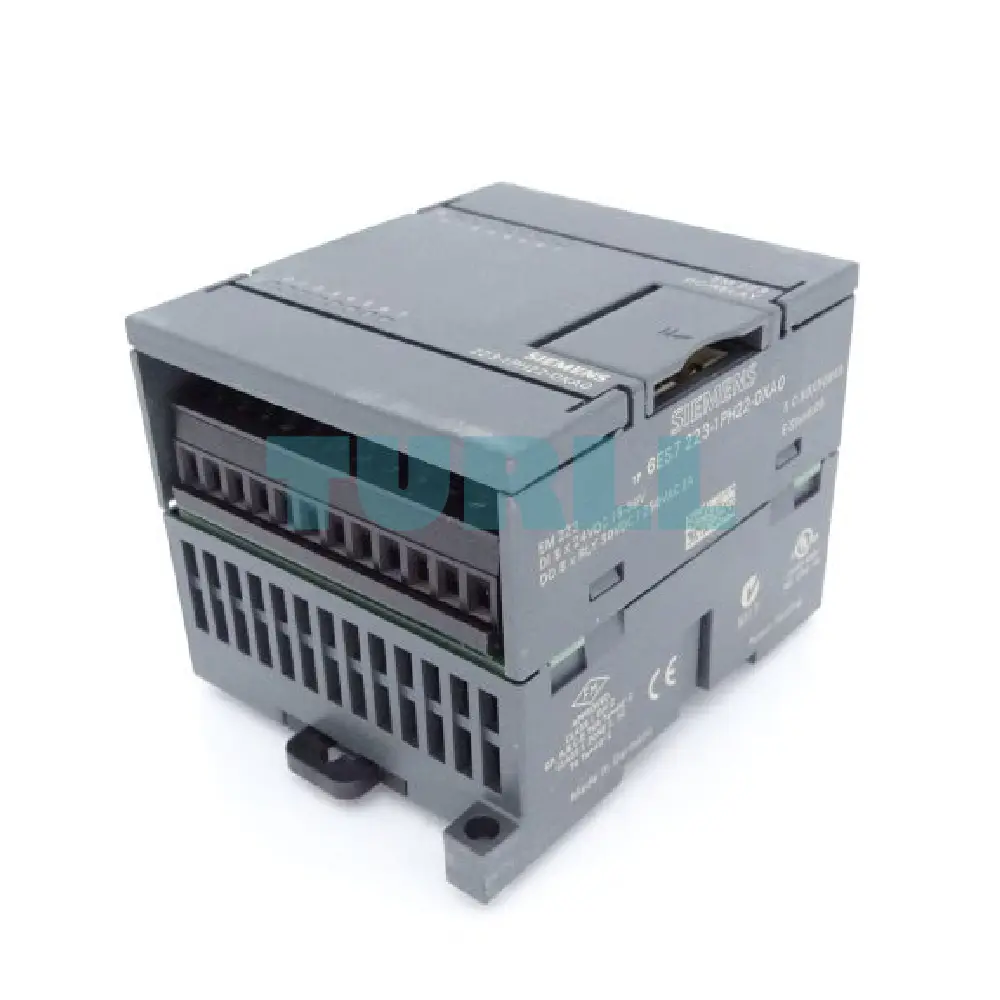

Siemens 6ES7223-1PH22-0XA0 is a SIMATIC S7-200 EM 223 Digital I/O Expansion Module designed specifically for S7-22X CPUs. This module provides a reliable and flexible solution for expanding digital input and output capabilities in industrial automation systems.
It features 8 digital inputs (24 V DC, sink/source) and 8 relay digital outputs rated at 2 A per channel, making it ideal for controlling sensors, actuators, and switching devices in demanding industrial environments.
Compact Expansion: Adds 16 total I/O points without requiring a larger PLC base.
Versatile Input Logic: Supports both Sink and Source wiring configurations for 24V DC inputs.
High Switching Capacity: The 8 relay outputs handle up to 2A per channel, suitable for driving solenoids, contactors, and small motors.
Industrial Reliability: Built to Siemens’ rigorous standards for longevity in harsh electrical environments.
Compatibility: Specifically engineered for use only with SIMATIC S7-22X CPUs.
Input Specifications: 8 Digital Inputs, 24V DC (Sink/Source capability).
Output Specifications: 8 Digital Relay Outputs, switching capacity of 2A per channel.
Galvanic Isolation: Provides protection between the internal logic and the external load.
Series: SIMATIC S7-200
Module Type: EM 223 Digital I/O
Digital Inputs: 8 × 24 V DC (Sink/Source)
Digital Outputs: 8 × Relay
Output Current: 2 A per channel
CPU Compatibility: S7-22X only
Manufacturer: Siemens
Visit 6ES7223-1PH22-0XA0 for more detail info
For more our products visit turll
| SKU / Model | 6ES7223-1PH22-0XA0 |
|---|---|
| Product Condition | Brand New, New - Backlog, New - No Original Box, New - Original Box Opened, Used - Average, Used - Below Average, Used - Excellent, Used - Fairly Good, Used - Good, Used - Poor, Used - Very Good |
| Dimensions | 62 × 71.2 × 80 mm |
Request a quote for project quantities, discontinued or obsolete models, and pro-forma invoice / bank transfer orders. Our sourcing team responds fast.
