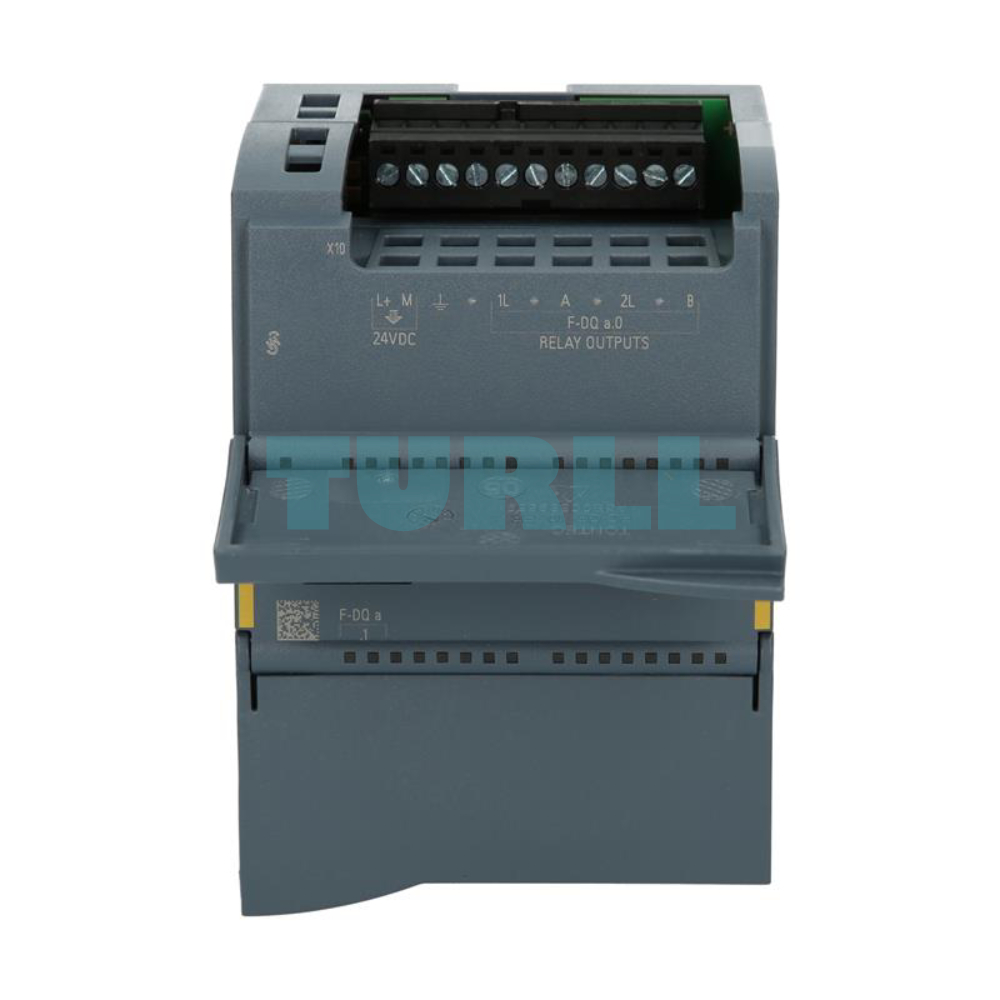

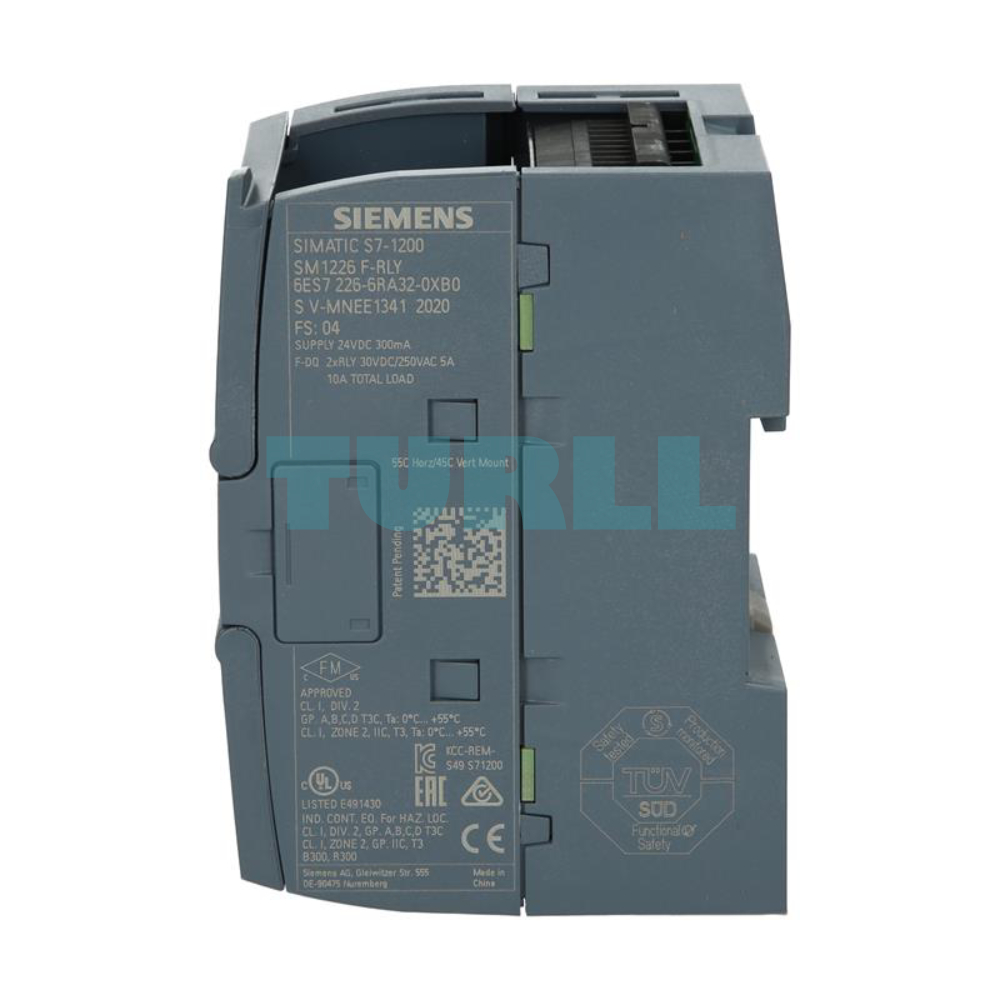

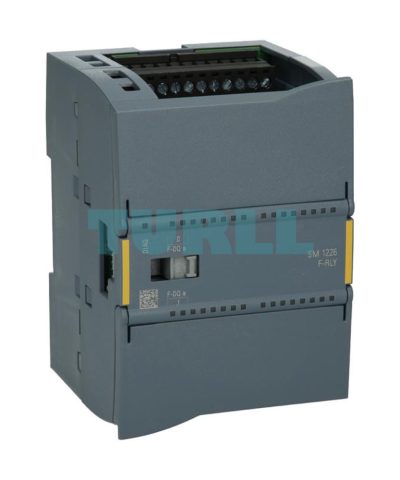

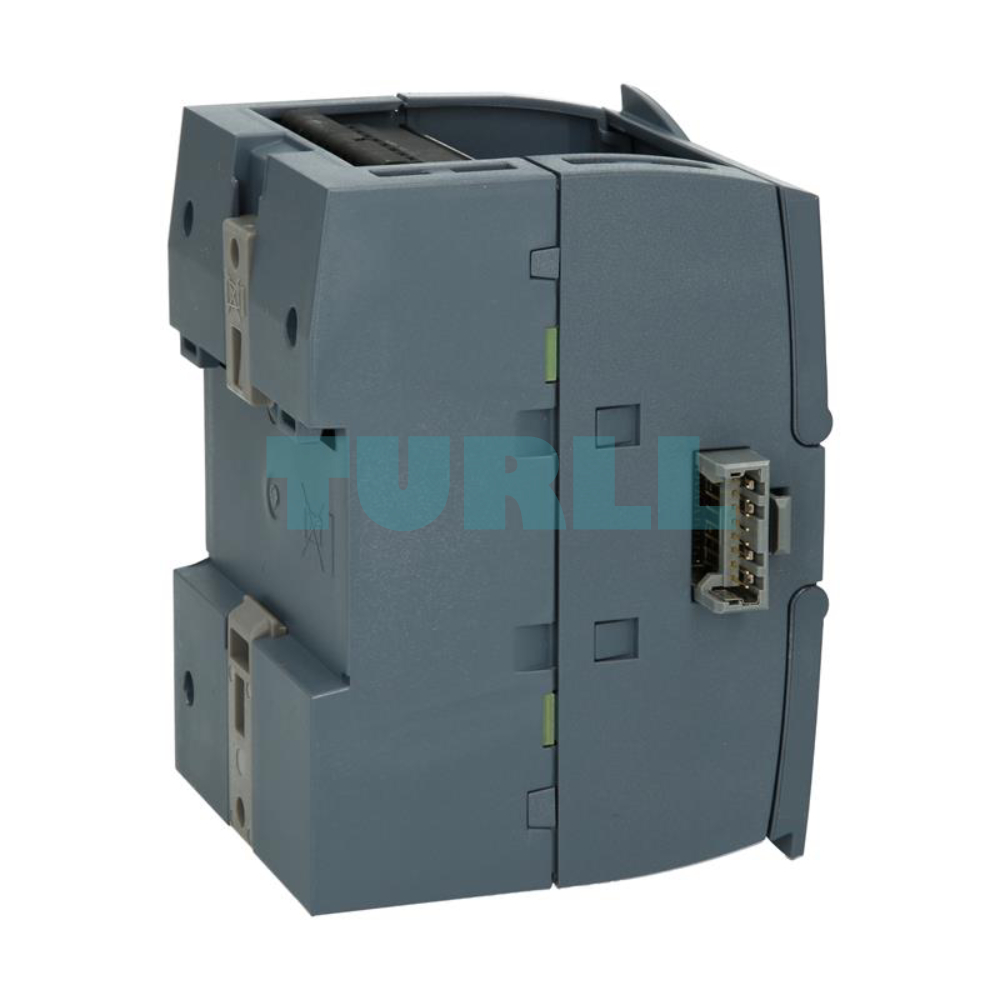

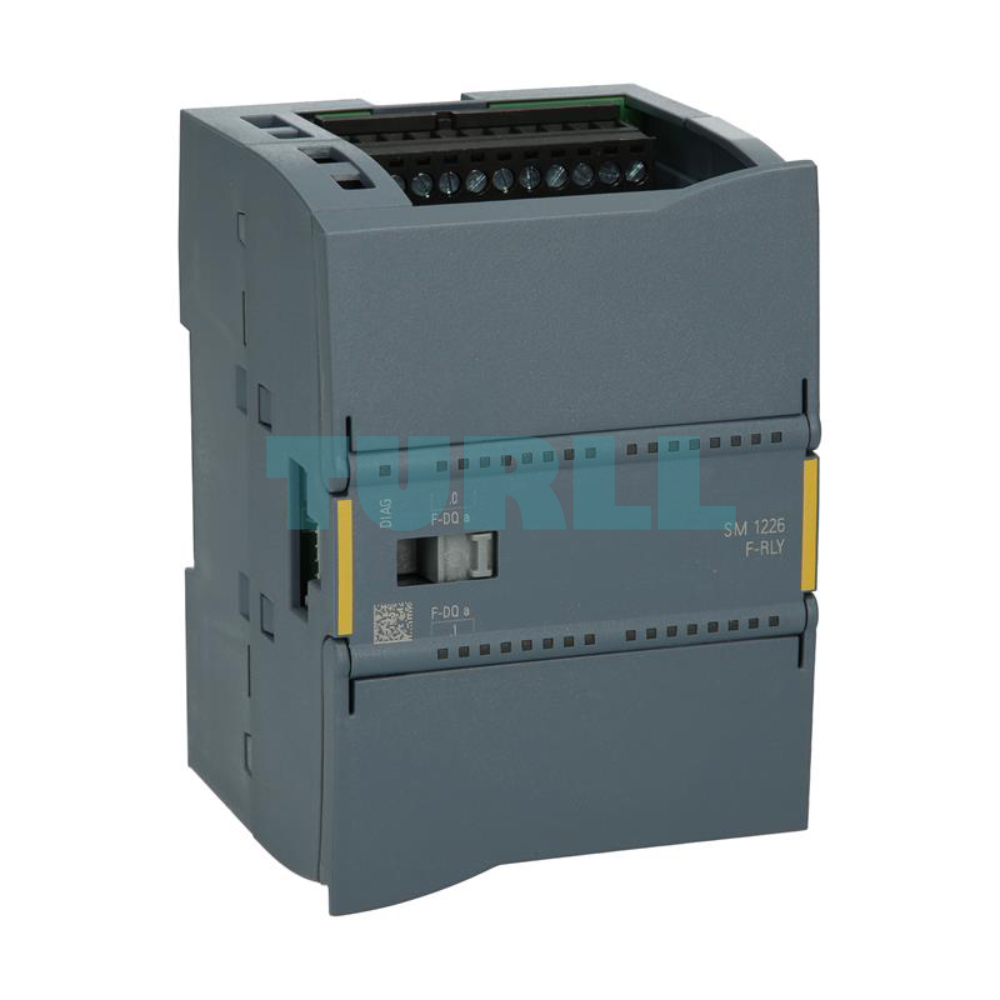

Siemens 6ES7226-6RA32-0XB0 SIMATIC S7-1200, SM1226, F-DQ 2x Relay Output Module Original Brand New
$216.00
SIMATIC S7-1200 fail-safe relay output module SM1226 F-DQ, 2x relay 5A, PROFIsafe communication, 70 mm width, certified up to PL E / SIL3 for advanced safety automation.
Availability: In stock
Overview
The Siemens 6ES7226-6RA32-0XB0 SM1226 F-DQ Relay Output Module is part of the advanced SIMATIC S7-1200 automation family. Designed specifically for safety applications, it provides two fail-safe relay outputs capable of handling loads up to 5A. This module ensures compliance with the most stringent international safety standards, including ISO 13849-1 PL E and IEC 61508 SIL3.
With its integrated PROFIsafe communication protocol, the module guarantees safe data exchange across PROFINET networks, minimizing the risk of hazardous failures. The compact design allows easy installation in modern control cabinets, making it ideal for machinery safety, industrial automation, factory processes, and system protection tasks.
Benefit
-
High Safety Level: Certified up to SIL3/PL E, making it ideal for safety-critical automation.
-
Reliable Relay Outputs: Features 2x Relay outputs (5A) for robust and secure signal switching.
-
Plug-and-Play Integration: Fully compatible with SIMATIC S7-1200 controllers.
-
Advanced Safety Communication: PROFIsafe ensures safe and error-free data transmission.
-
Compact & Space-Saving: Only 70 mm width, optimized for control cabinet space.
Function
-
Fail-safe digital switching for emergency stops, interlocks, and safety monitoring devices.
-
Secure shutdown capability for hazardous machine operations.
-
Integrated PROFIsafe communication for high-integrity safety networks.
-
Relay-based load handling for higher current switching applications (up to 5A).
-
Flexible integration into both standard and safety-related S7-1200 configurations.
Visit 6ES7226-6RA32-0XB0 for more detail info
For more our products visit turll
Download

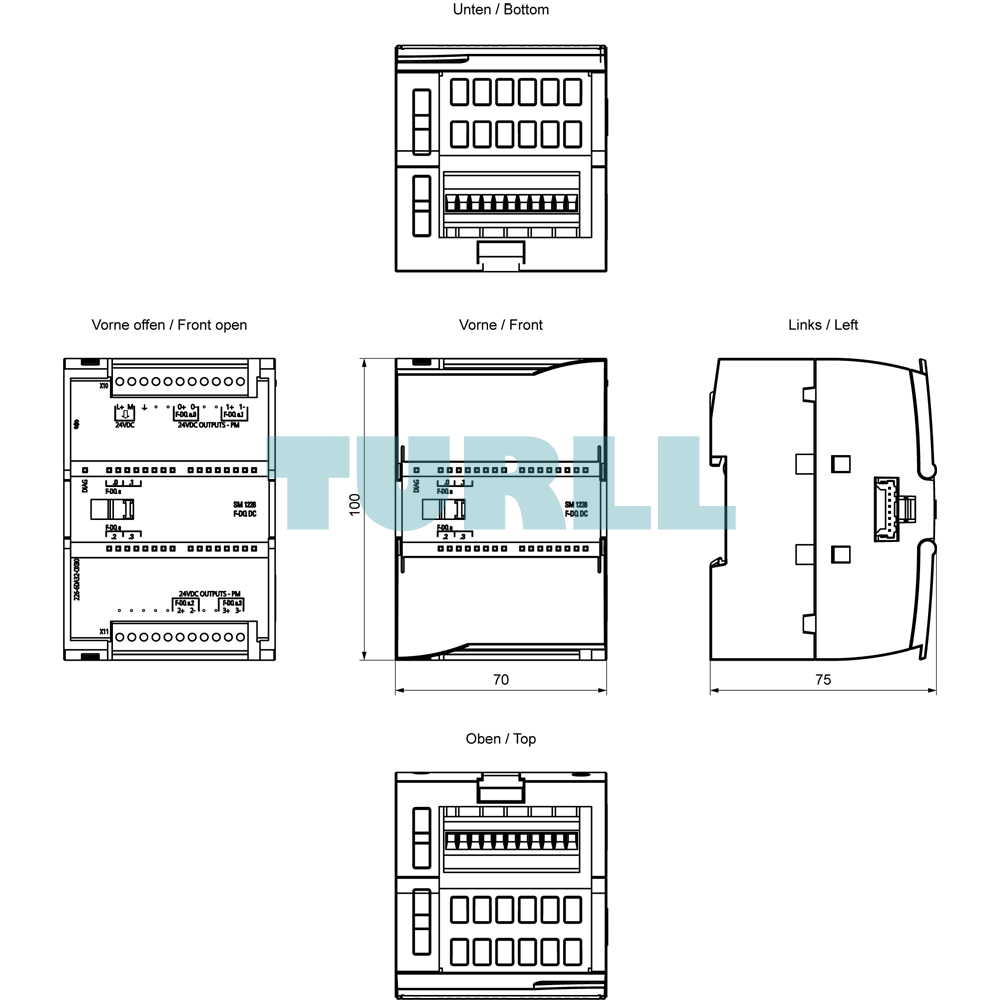

| Weight | 0.001 kg |
|---|---|
| Dimensions | 6.50 × 9.20 × 3.80 mm |
| Brand | SIEMENS |
| Product type designation | SM 1226, F-DQ 2x relay/5 A |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| power supply according to NEC Class 2 required | No |
| from backplane bus 5 V DC, max. | 120 mA |
| ● from load voltage L+, max. | 300 mA |
| Power loss, typ. | 10 W |
| Number of digital outputs | 2 |
| Short-circuit protection | No |
| ● Rated value (DC) | 5 V DC to 30 V DC |
| ● Rated value (AC) | 5 V AC to 250 V AC |
| ● for signal "1" permissible range, max. | 5 A maximum per circuit and 10 A maximum of all circuits per module |
| ● Number of relay outputs | 2; 2 circuits per output |
| — with inductive load, max. | 0.1 Hz, accordance with IEC 60947-5-1, DC-13; 2 Hz, accordance with IEC 60947-5-1, AC-15 |
| — with resistive load, max. | 2 Hz |
| ● shielded, max. | 200 m |
| ● unshielded, max. | 200 m |
| ● for status of the outputs | Yes |
| IP degree of protection | IP20 |
| CE mark | Yes |
| cULus | Yes |
| FM approval | Yes |
| ● Performance level according to ISO 13849-1 | Category 4, PL e |
| ● SIL acc. to IEC 61508 | SIL 3 |
| — Low demand mode: PFDavg in accordance with SIL3 | < 1.00E-05 |
| — High demand/continuous mode: PFH in accordance with SIL3 | < 4.00E-09 |
| ● Fall height, max. | 0.3 m; five times, in product package |
| ● permissible temperature change | 5°C to 55°C, 3°C / minute |
| ● min. | -40 °C |
| ● max. | 70 °C |
| ● Storage/transport, min. | 660 hPa |
| ● Storage/transport, max. | 1 080 hPa |
| ● Operation at 25 ℃ without condensation, max. | 95 % |
| Enclosure material (front) | – |
| ● Plastic | Yes |
| Width | 70 mm |
| Height | 100 mm |
| Depth | 75 mm |
| Weight, approx. | 300 g |
| last modified: | 10/7/2021 |
