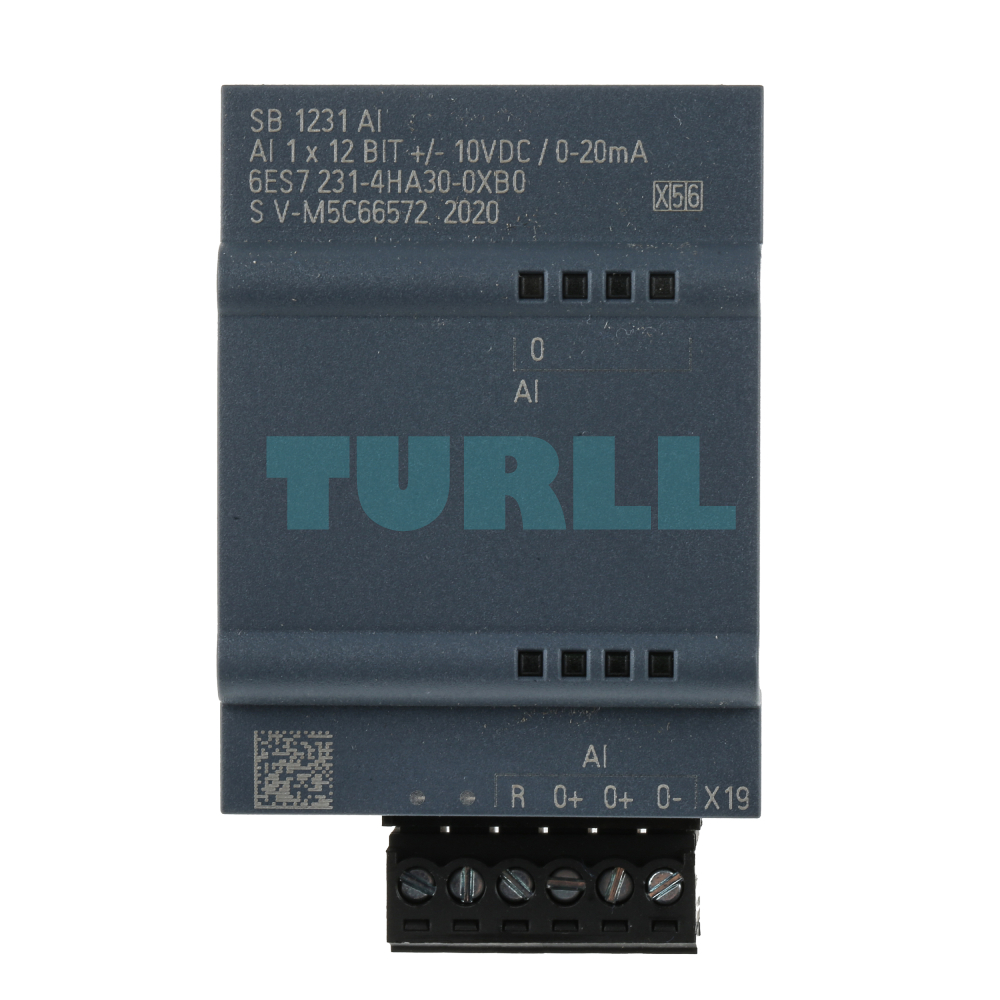

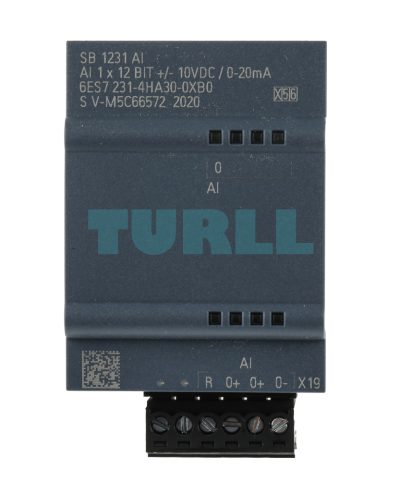

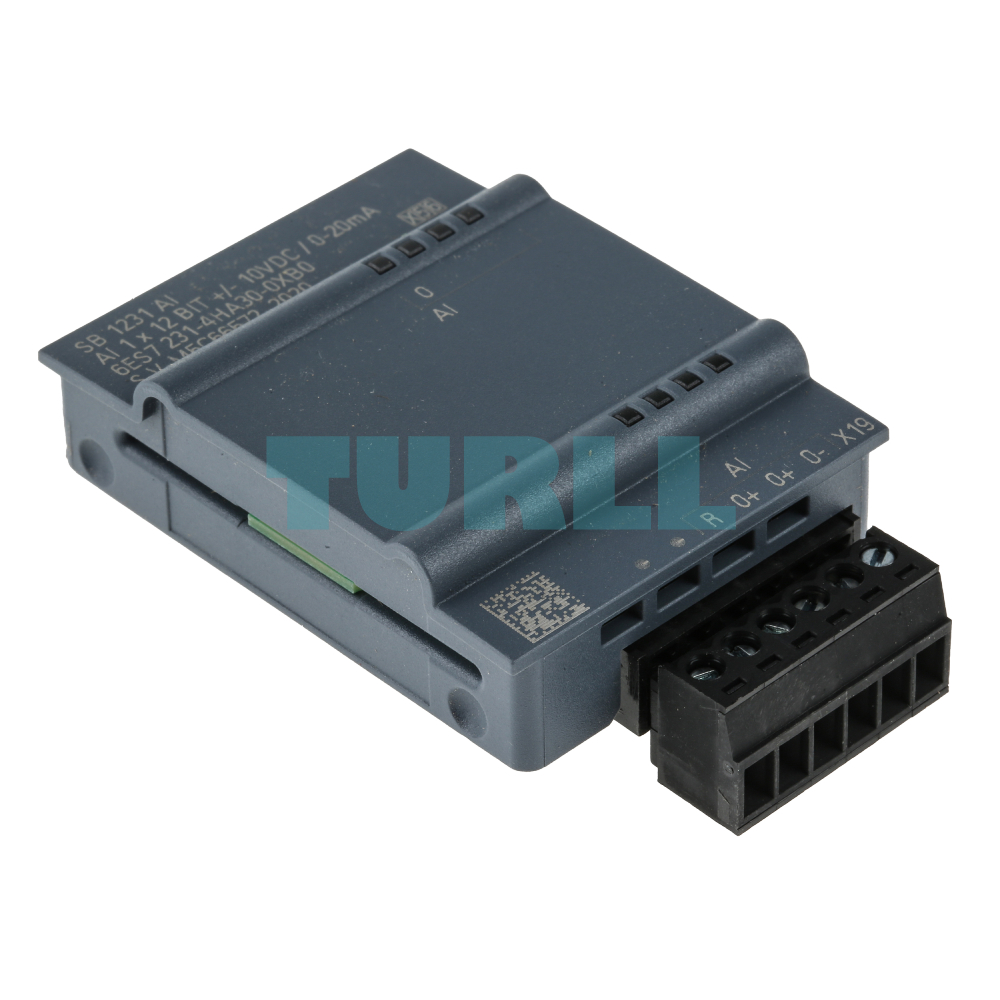

Siemens 6ES7231-4HA30-0XB0 SIMATIC S7-1200, Analog Input Module, SB 1231 Original Brand New
$45.00
SIMATIC S7-1200 Analog Input Module SB 1231 with 1 AI, supporting +/-10 V DC (12-bit resolution) or 0-20 mA signals – reliable and precise for industrial automation applications.
Availability: In stock
Overview
The Siemens 6ES7231-4HA30-0XB0 SB 1231 Analog Input Signal Board is a compact, high-performance expansion module designed specifically for the SIMATIC S7-1200 PLC series. This board provides a cost-effective and space-saving way to integrate analog signals directly into your S7-1200 CPU, eliminating the need for a separate, larger module.
It is ideal for applications requiring the measurement of a single analog value, such as temperature, pressure, flow rate, or level, ensuring precise monitoring and control in a variety of industrial environments. By attaching directly to the front of the CPU, it maintains the compact footprint that the S7-1200 is known for.
Key Benefit
-
High-precision analog measurements with 12-bit resolution.
-
Flexible input options: +/-10 V DC or 0-20 mA signals.
-
Seamless integration with the SIMATIC S7-1200 PLC system.
-
Compact and robust design for industrial environments.
-
Enhances process control and automation efficiency.
Function
-
Converts analog signals from sensors into digital signals for PLC processing.
-
Supports real-time monitoring and data acquisition for industrial processes.
-
Works with a variety of input devices including sensors and transmitters.
-
Simplifies automation setup with easy configuration and reliable performance.
Application
-
Industrial automation and process control.
-
Data acquisition in manufacturing and production lines.
-
Measurement of voltages and currents in control systems.
-
Integration with SIMATIC S7-1200 PLC for enhanced automation capabilities.
Visit 6ES7231-4HA30-0XB0 for more detail info
For more our products visit turll
Download
| Weight | 0.027 kg |
|---|---|
| Dimensions | 5.20 × 8.10 × 3.00 mm |
| Brand | SIEMENS |
| Product type designation | SB 1231, AI 1×12 bit |
| Rated value (DC) | 24 V |
| from backplane bus 5 V DC, typ. | 55 mA |
| Power loss, typ. | 0.4 W |
| Number of analog inputs | 1; Current or voltage differential inputs |
| permissible input voltage for current input (destruction limit), max. | ±35 V |
| permissible input voltage for voltage input (destruction limit), max. | 35 V |
| permissible input current for voltage input (destruction limit), max. | 40 mA |
| permissible input current for current input (destruction limit), max. | 40 mA |
| Cycle time (all channels) max. | 156.25 µs; 400 Hz suppression |
| ● Voltage | Yes; ±10V, ±5V, ±2.5V |
| ● Current | Yes; 0 to 20 mA |
| ● Thermocouple | No |
| ● Resistance thermometer | No |
| ● Resistance | No |
| ● -10 V to +10 V | Yes |
| — Input resistance (-10 V to +10 V) | ≥9 MOhm |
| ● -2.5 V to +2.5 V | Yes |
| — Input resistance (-2.5 V to +2.5 V) | ≥9 MOhm |
| ● -5 V to +5 V | Yes |
| — Input resistance (-5 V to +5 V) | ≥9 MOhm |
| ● 0 to 20 mA | Yes |
| — Input resistance (0 to 20 mA) | ≥ 250 Ohm |
| Number of analog outputs | 0 |
| ● shielded, max. | 100 m; shielded, twisted pair |
| Measurement principle | integrating |
| ● Resolution with overrange (bit including sign), max. | 11 bit; + sign |
| ● Integration time, parameterizable | Yes |
| ● Interference voltage suppression for interference frequency f1 in Hz | 40 dB, DC to 60 Hz |
| ● parameterizable | Yes |
| ● Step: None | Yes |
| ● Step: low | Yes |
| ● Step: Medium | Yes |
| ● Step: High | Yes |
| Temperature error (relative to input range), (+/-) | 25 °C ±0.3%, to 55 °C ±0.6% total measurement range |
| Alarms | Yes |
| Diagnostics function | Yes |
| ● Diagnostic alarm | Yes |
| ● Wire-break | No |
| ● for status of the inputs | Yes |
| ● for maintenance | Yes |
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| cULus | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| Marine approval | Yes |
| ● Fall height, max. | 0.3 m; five times, in product package |
| ● horizontal installation, min. | -20 °C |
| ● horizontal installation, max. | 60 °C |
| ● vertical installation, min. | -20 °C |
| ● vertical installation, max. | 50 °C |
| ● min. | -40 °C |
| ● max. | 70 °C |
| ● Operation, min. | 795 hPa |
| ● Operation, max. | 1 080 hPa |
| ● Storage/transport, min. | 660 hPa |
| ● Storage/transport, max. | 1 080 hPa |
| ● Operation at 25 ℃ without condensation, max. | 95 % |
| ● SO2 at RH < 60% without condensation | S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60% condensation-free |
| required front connector | Yes |
| Enclosure material (front) | – |
| ● Plastic | Yes |

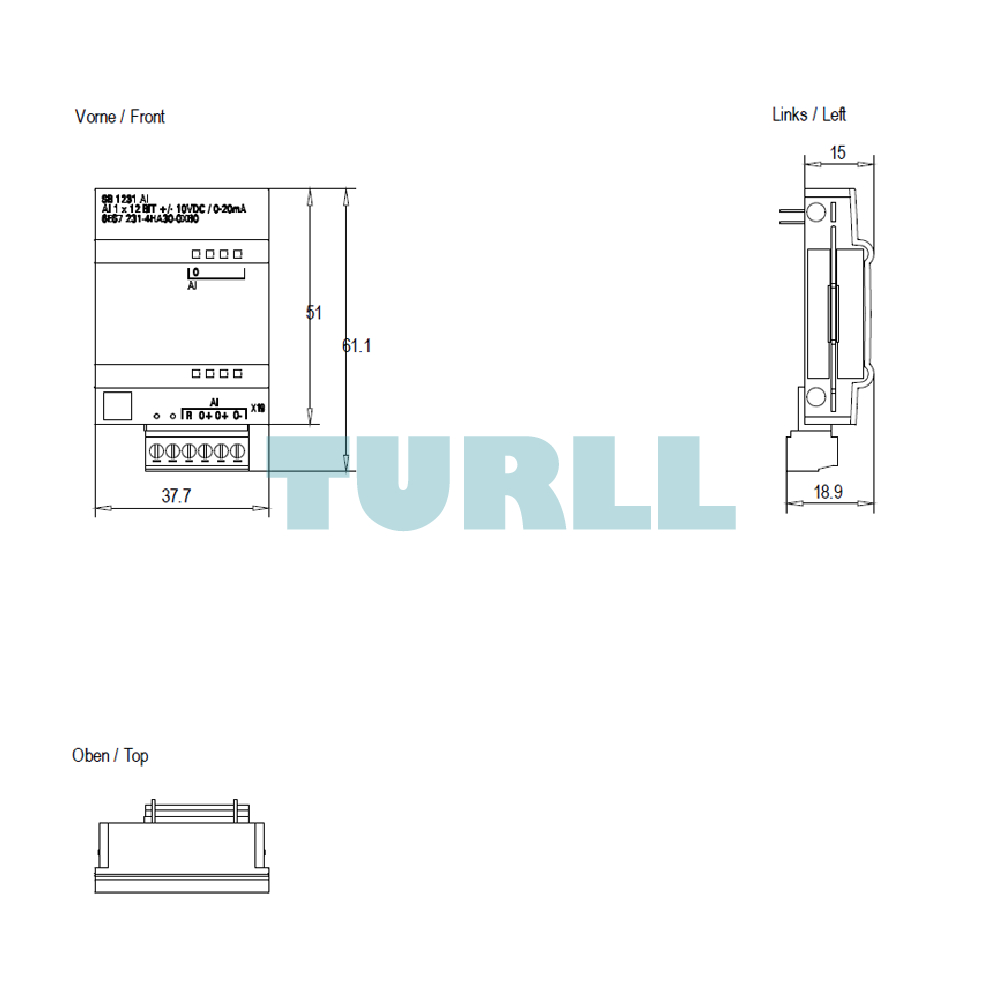

| Width | 38 mm |
| Height | 62 mm |
| Depth | 21 mm |
| Weight, approx. | 35 g |
| last modified: | 2/9/2021 |
