Siemens 6ES7288-2DR32-0AA0 SIMATIC S7-200 SMART Digital I/O Expansion Module SM DR32 Original Brand New
$240.55
High-density Digital I/O expansion module for the SIMATIC S7-200 SMART PLC series. This SM DR32 module provides 16 Digital Inputs (24V DC, Sink/Source) and 16 Digital Outputs (Relay, 2A), offering a cost-effective solution for expanding your system’s control capabilities.
Availability: In stock
Overview
SIMATIC S7-200 SMART SM DR32 Digital I/O module from Siemens is engineered to expand the I/O capability of S7-200 SMART PLC systems. It delivers 16 digital inputs (24 V DC, sink/source) and 16 relay outputs (2 A), making it ideal for controlling a wide range of industrial devices.
This module is known for its durability, easy integration, and consistent performance in demanding automation environments such as manufacturing lines, machine control systems, and process automation.
Key Benefit
-
Space-Saving Design: Combines 32 total I/O points in a single compact module to save cabinet space.
-
Versatile Connectivity: Supports both Sink and Source input configurations for maximum flexibility with different sensor types.
-
High Load Capacity: The 2A relay outputs are capable of switching higher current loads directly compared to transistor outputs.
-
Reliable Performance: Built with Siemens’ industrial-grade standards for long-term stability in harsh environments.
Function
-
Digital Input (DI): 16 channels, 24V DC, suitable for switches, proximity sensors, and encoders.
-
Digital Output (DO): 16 channels, Relay type, 2A current rating per point, ideal for motor starters, solenoids, and indicators.
-
Expansion: Easily connects to the right side of an S7-200 SMART CPU via the integrated bus connector.
Download
Visit 6ES7288-2DR32-0AA0 for more detail info
For more our products visit turll
| Weight | 0.354 kg |
|---|---|

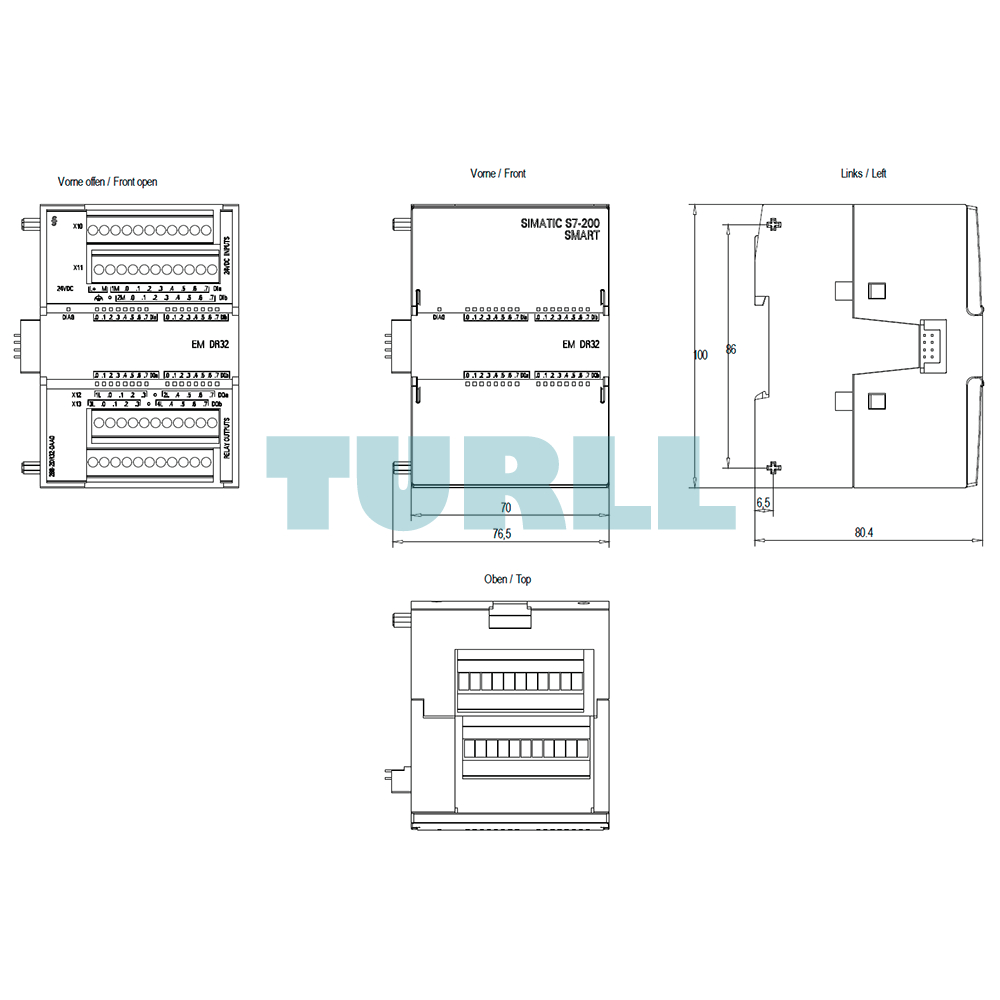

| Dimensions | 81 × 70 × 100 mm |
| Product Condition | Brand New, New – Backlog, New – No Original Box, New – Original Box Opened, Used – Average, Used – Below Average, Used – Excellent, Used – Fairly Good, Used – Good, Used – Poor, Used – Very Good |
