Overview
The SIMATIC S7-200 SMART series is designed to meet the needs of developing markets that require high performance in a compact package. The 6ES7288-2DT08-0AA0 (SM DT08) digital output module allows users to expand the physical output capacity of their S7-200 SMART CPU. With its transistor-based switching, it is ideal for high-frequency switching tasks and driving DC loads with precision.
Key Benefit
-
Seamless Integration: Designed specifically for the S7-200 SMART PLC ecosystem for “plug-and-play” configuration.
-
Space-Efficient: The slim design allows for significant I/O expansion without occupying excessive cabinet space.
-
High Reliability: Built with Siemens’ industrial-grade standards to ensure long-term stability in harsh environments.
-
Fast Response: Transistor outputs provide faster switching times compared to relay modules, reducing cycle lag.
Function
-

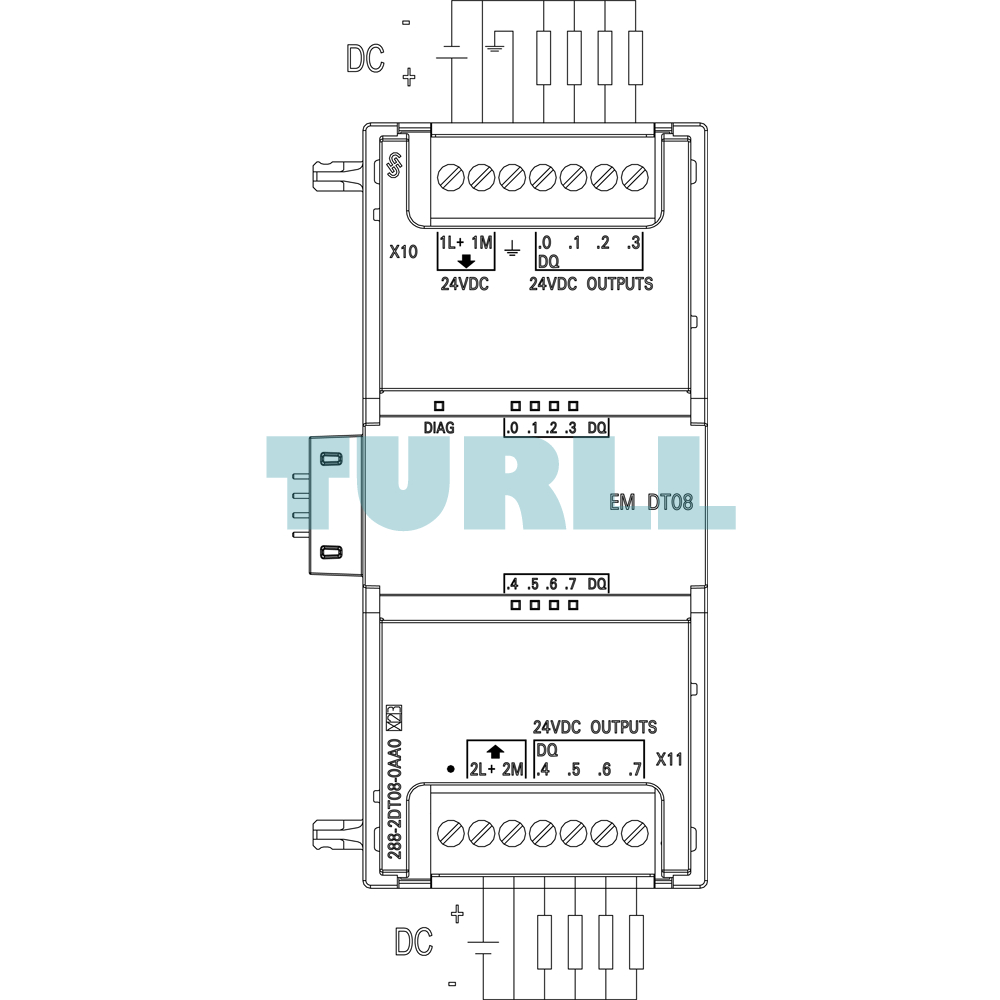

Digital Signal Conversion: Converts internal PLC logic into 24V DC signals to control external actuators.
-
Load Management: Supports up to 0.75A per channel, suitable for solenoids, small DC motors, and indicator lights.
-
Diagnostic LEDs: Integrated status displays for each channel to simplify troubleshooting and maintenance.
Download
Visit 6ES7288-2DT08-0AA0 for more detail info
