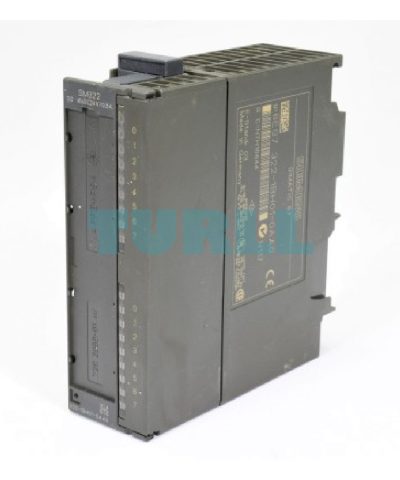

Siemens 6ES7322-1BH01-0AA0 SIMATIC S7-300 Digital Output SM 322, 16 DO, 24V DC, 0.5A Original Brand New

Overview

The Siemens 6ES7322-1BH01-0AA0 is a high-performance SIMATIC S7-300 digital output module (SM 322) designed for industrial automation applications. Featuring 16 isolated digital outputs, each supporting 24 V DC at 0.5 A, this module ensures reliable and safe signal transmission for your control systems. Its 20-pole connector and total current capacity of 4 A per group (8 A per module) provide flexible integration into your automation setup.

Key Benefit

• High Reliability: Optically isolated channels protect your PLC central processing unit from field-side electrical noise and surges.

• Compact Design: Fits perfectly into standard S7-300 rails, maximizing cabinet space.

• Scalable Output: Supports up to 0.5 A per channel, making it versatile for various 24V DC applications.

• Simplified Maintenance: Features status LEDs for each channel to allow for rapid troubleshooting.

Function

• Digital switching of actuators and relays.

• Provides safe, isolated signals for industrial control systems.

• Ensures efficient load management with 4 A per group and 8 A per module.

Technical Specification

• Model: 6ES7322-1BH01-0AA0

• Type: Digital Output Module (SM 322)

• Number of Outputs: 16 DO

• Output Voltage: 24 V DC

• Output Current: 0.5 A per channel

• Connection: 1x 20-pole connector

• Total Current: 4 A/group, 8 A/module

• Isolation: Electrically isolated channels

• Compatible With: SIMATIC S7-300 PLC

Download

Datasheet in PDF

Visit 6ES7322-1BH01-0AA0 for more detail info
