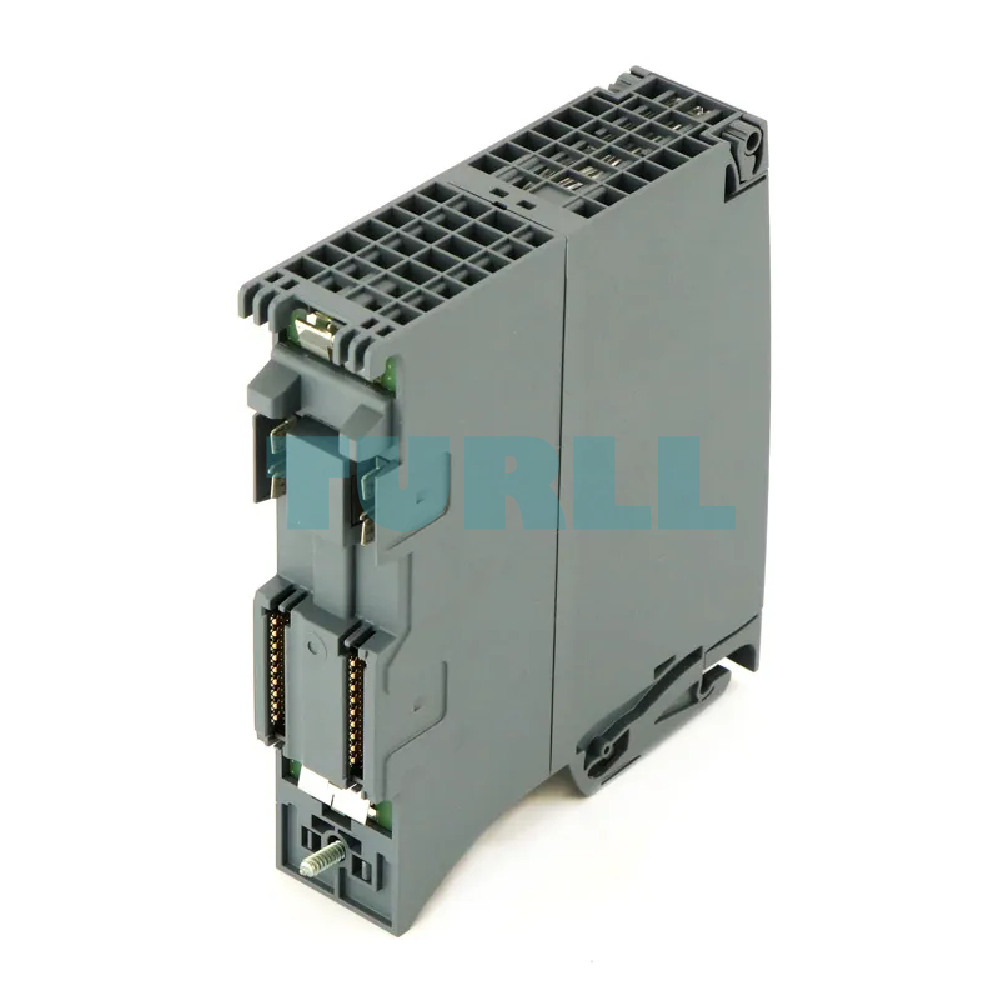

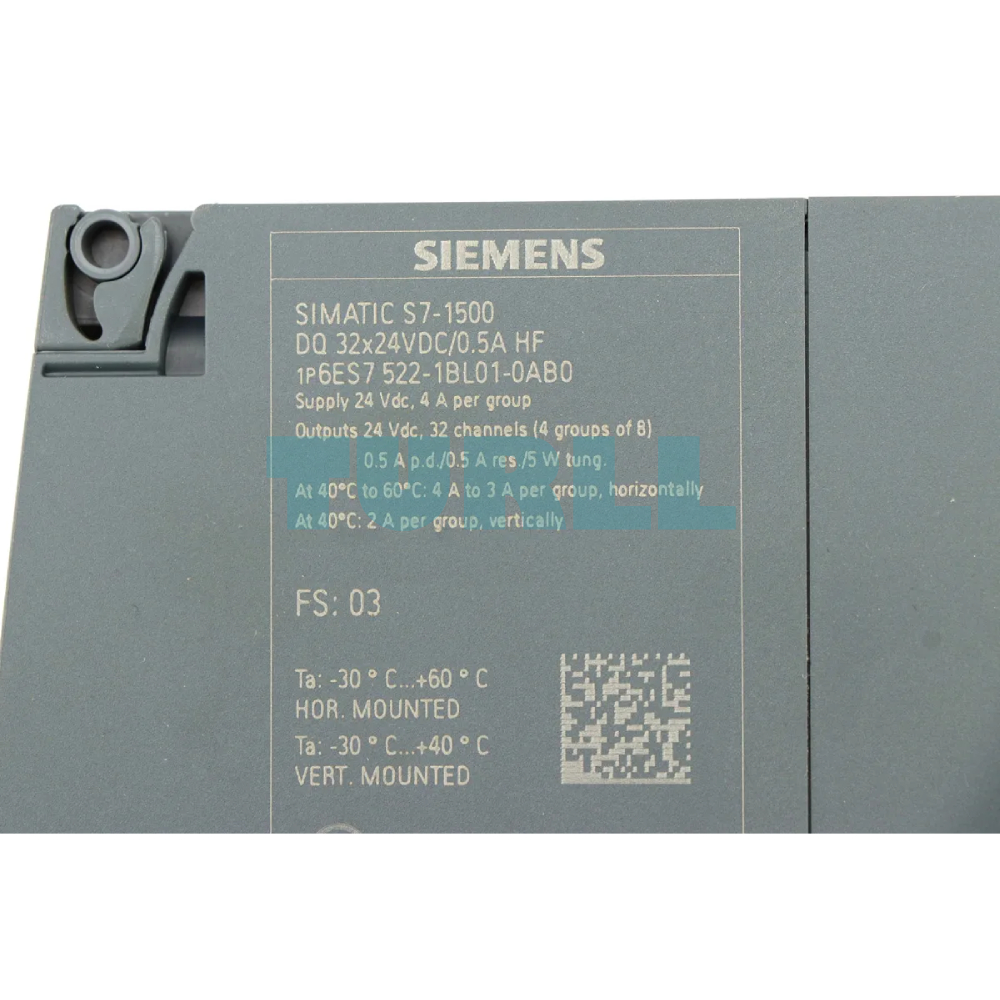

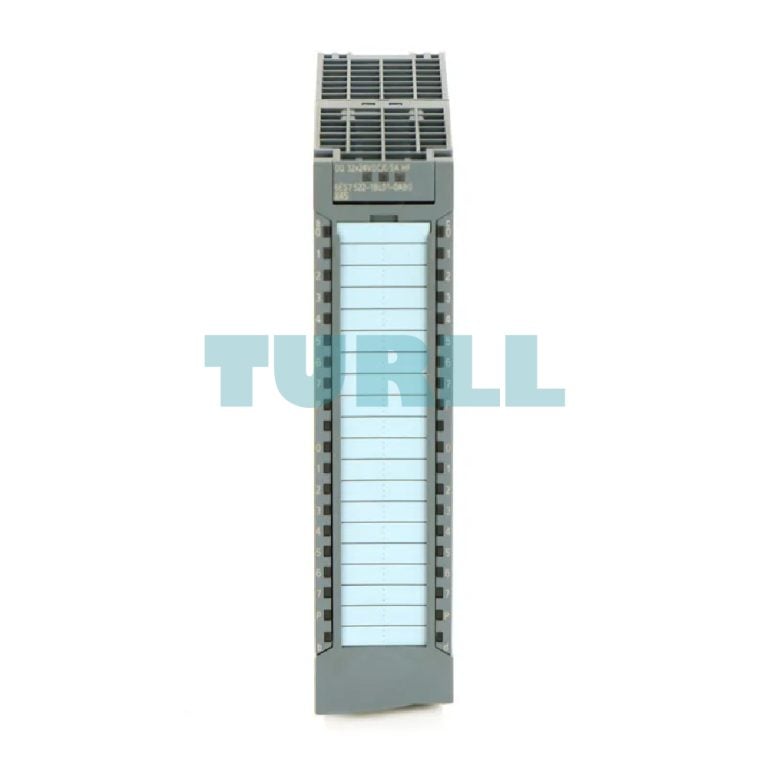

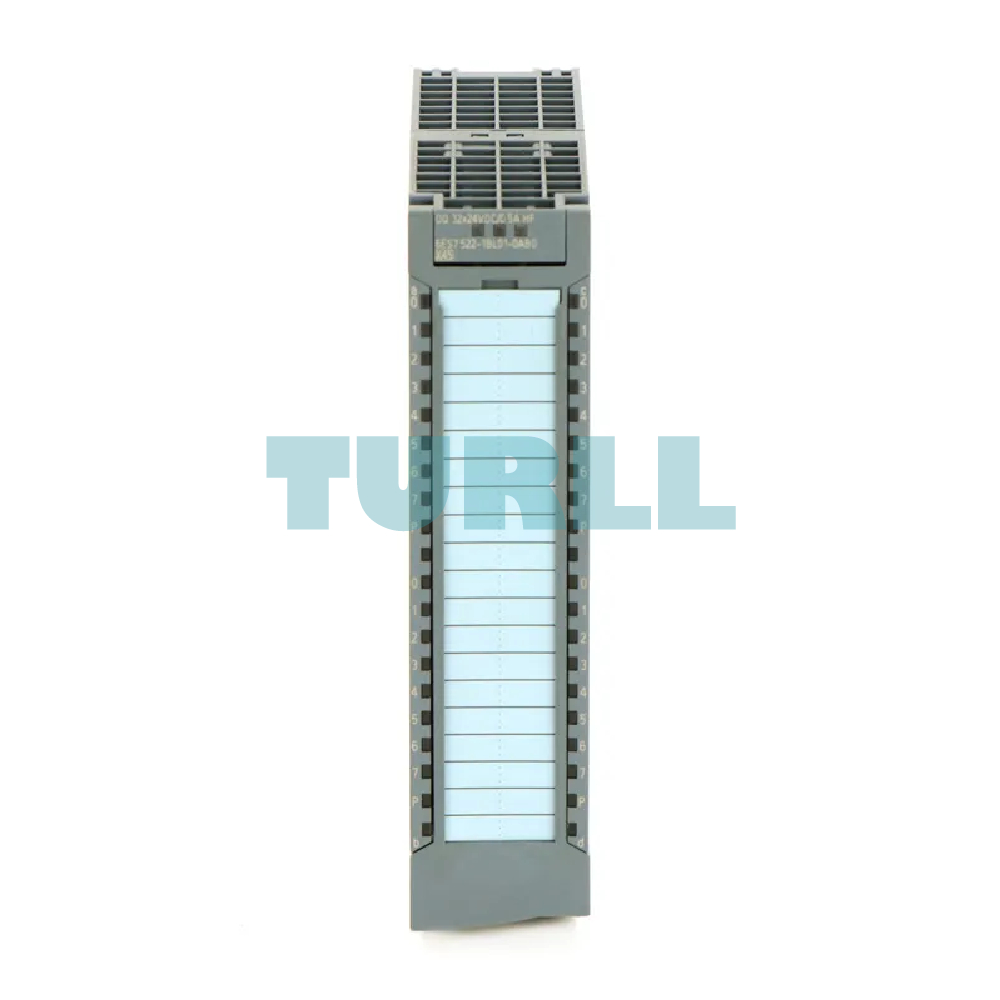

Siemens 6ES7522-1BL01-0AB0 SIMATIC S7-1500 Digital Output Module DQ 32x24V DC/0.5A HF Original Brand New

Overview

Siemens 6ES7522-1BL01-0AB0 is a high-performance SIMATIC S7-1500 digital output module (DQ 32x24V DC HF) designed for demanding industrial automation applications. Featuring 32 digital output channels, advanced diagnostics, and safety-oriented shutdown up to SIL2, this module ensures reliable, precise, and safe control of connected actuators in modern PLC systems.

Engineered for flexibility and performance, the module supports high-speed switching, single-channel diagnostics, and detailed actuator monitoring, making it ideal for production lines, machine automation, and safety-critical environments.

Key Benefit

• Enhanced Safety: Supports safety-oriented shutdown of load groups up to SIL2 (EN IEC 62061) and PL d (ISO 13849).

• Granular Diagnostics: Features single-channel diagnostics to pinpoint faults instantly, reducing downtime.

• Predictive Maintenance: Includes an integrated switching cycle counter for connected actuators.

• High Density: 32 channels in a compact form factor, organized in groups of 8 for efficient wiring.

Function & Features

• Digital output module DQ 32x24V DC / 0.5A HF

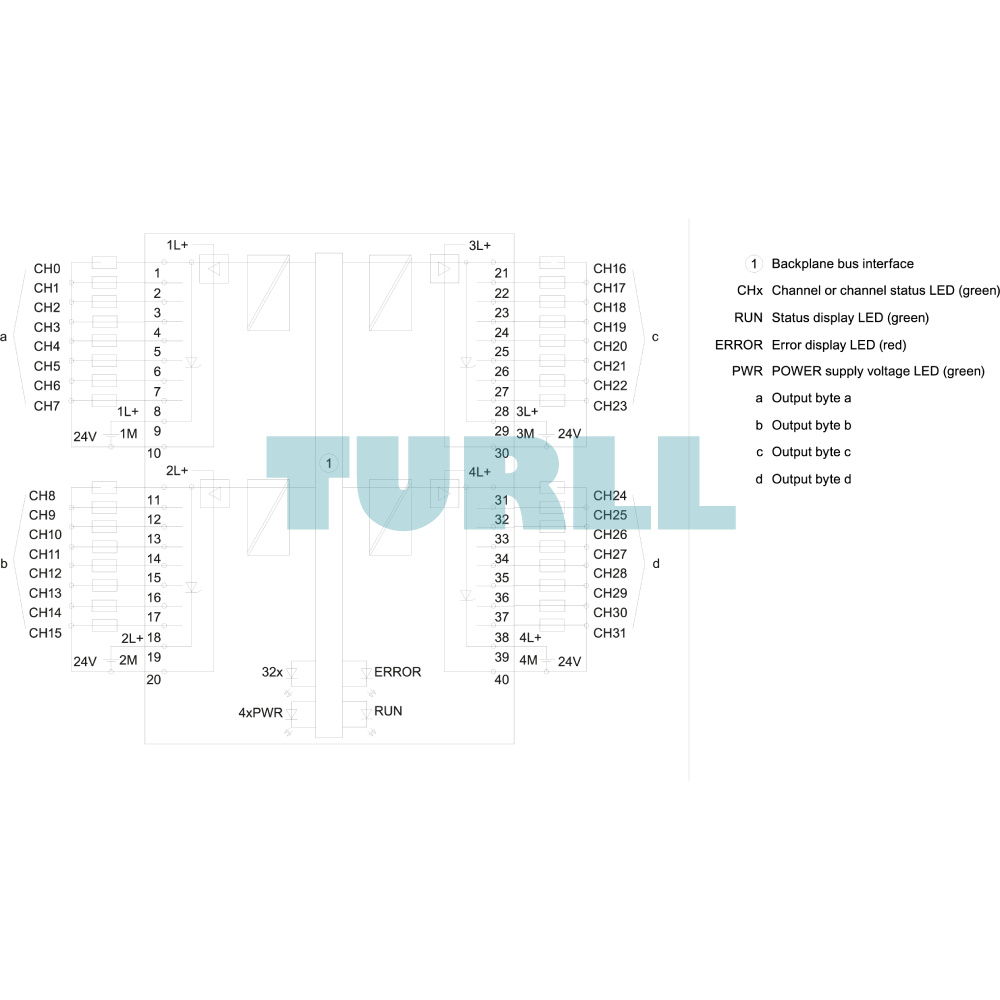

• 32 output channels, organized in groups of 8

• Maximum 4 A per group

• Single-channel diagnostics for each output

• Substitute value functionality for fault scenarios

• Switching cycle counter for connected actuators

• Supports safety-oriented shutdown of load groups

• Compliance with:

  • SIL2 according to EN IEC 62061:2021

  • Category 3 / PL d according to EN ISO 13849-1:2015

• Front connector (screw terminals or push-in) must be ordered separately
