Siemens 6ES7522-1BL10-0AA0 SIMATIC S7-1500 Digital Output Module DQ 32x24VDC/0.5A BA Original Brand New

Overview

The SIMATIC S7-1500 Digital Output Module 6ES7522-1BL10-0AA0 is designed for high-performance automation tasks requiring reliable switching of DC actuators. As part of the "Basic" (BA) line, it offers a cost-effective yet robust solution for controlling valves, contactors, and small motors.

This module is uniquely engineered to support the safety-oriented shutdown of load groups. It complies with modern safety standards (EN IEC 62061:2021 and EN ISO 13849-1:2015), allowing it to integrate into safety-critical environments without requiring additional specialized safety hardware for every channel.

Key Benefit

• High Density: Control 32 digital outputs within a single compact module, saving valuable DIN rail space.

• Integrated Safety: Supports load group shutdowns up to SIL2 (Category 3 / PL d), enhancing plant safety protocols.

• Efficient Wiring: Comes standard with a push-in front connector, reducing installation time and preventing loose connections.

• Scalability: Perfect for the SIMATIC S7-1500 system, ensuring seamless integration with TIA Portal.

Technical Function

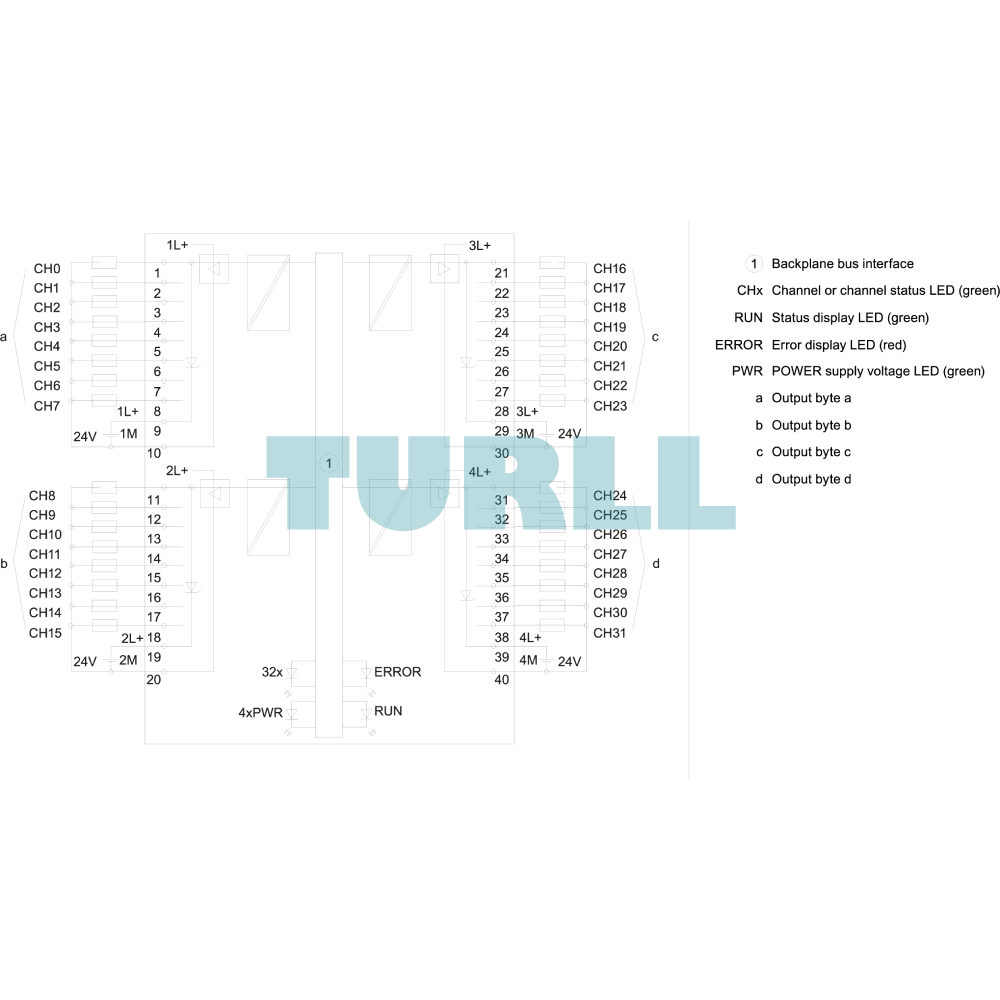

• Channels: 32 Digital Outputs (DQ).

• Configuration: Grouped in 4 sections of 8 channels each.

• Current Load: 0.5 A per channel; max 4 A per group.

• Voltage: 24V DC.

• Safety Standards: SIL2 (EN IEC 62061) and PL d (EN ISO 13849).

• Diagnostics: Basic diagnostic functions for module status and error tracking.

Download

Datasheet in PDF

Visit 6ES7522-1BL10-0AA0 for more detail info
