High Feature (HF) analog input module for the SIMATIC S7-1500 PLC range. It features 8 channels for voltage, resistance, RTD, and thermocouple measurements with an ultra-high resolution of up to 21 bits and a remarkable 0.1% accuracy for precision industrial automation.
The SIMATIC S7-1500 AI 8xU/R/RTD/TC HF is designed for applications requiring extreme precision and flexibility. Whether you are monitoring complex temperature gradients via thermocouples (including Type C) or measuring high-resolution voltage signals, this module provides the diagnostic depth and hardware interrupts necessary for mission-critical processes.
Ultra-High Precision: Achieve up to 21-bit resolution for RTD and TC measurements, ensuring even the smallest fluctuations are captured.
Scalable Temperature Range: Tailor your measuring range to your specific application for better granularity.
Maintenance Without Downtime: The "Calibrate in RUN" feature allows for system adjustments without stopping your processes.
Robust Protection: Includes integrated shield brackets and terminals to minimize electromagnetic interference (EMI).
Versatile Inputs: Supports Voltage (U), Resistance (R), Resistance Temperature Detectors (RTD), and Thermocouples (TC).
Advanced Diagnostics: Comprehensive monitoring of wire breaks, short circuits, and limit values.
Common Mode Voltage: Safety rated for 30 V AC / 60 V DC.
Hardware Interrupts: Set triggers based on process limits to ensure immediate PLC response.
Visit 6ES7531-7PF00-0AB0 for more detail info
For more our products visit turll
| SKU / Model | 6ES7531-7PF00-0AB0 |
|---|---|
| Product Condition | Brand New, New - Backlog, New - No Original Box, New - Original Box Opened, Used - Average, Used - Below Average, Used - Excellent, Used - Fairly Good, Used - Good, Used - Poor, Used - Very Good |
| Weight | 0.290 kg |

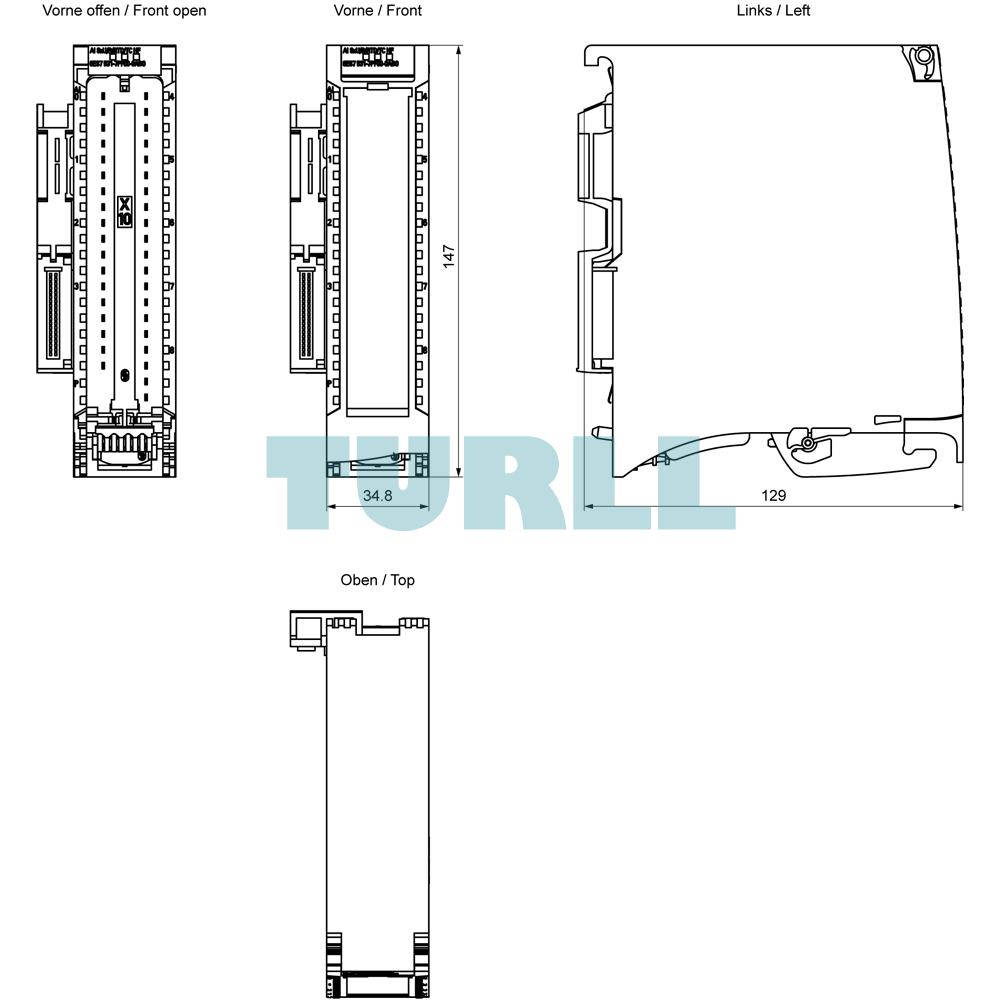

| Dimensions | 129 × 35 × 147 mm |
Request a quote for project quantities, discontinued or obsolete models, and pro-forma invoice / bank transfer orders. Our sourcing team responds fast.
