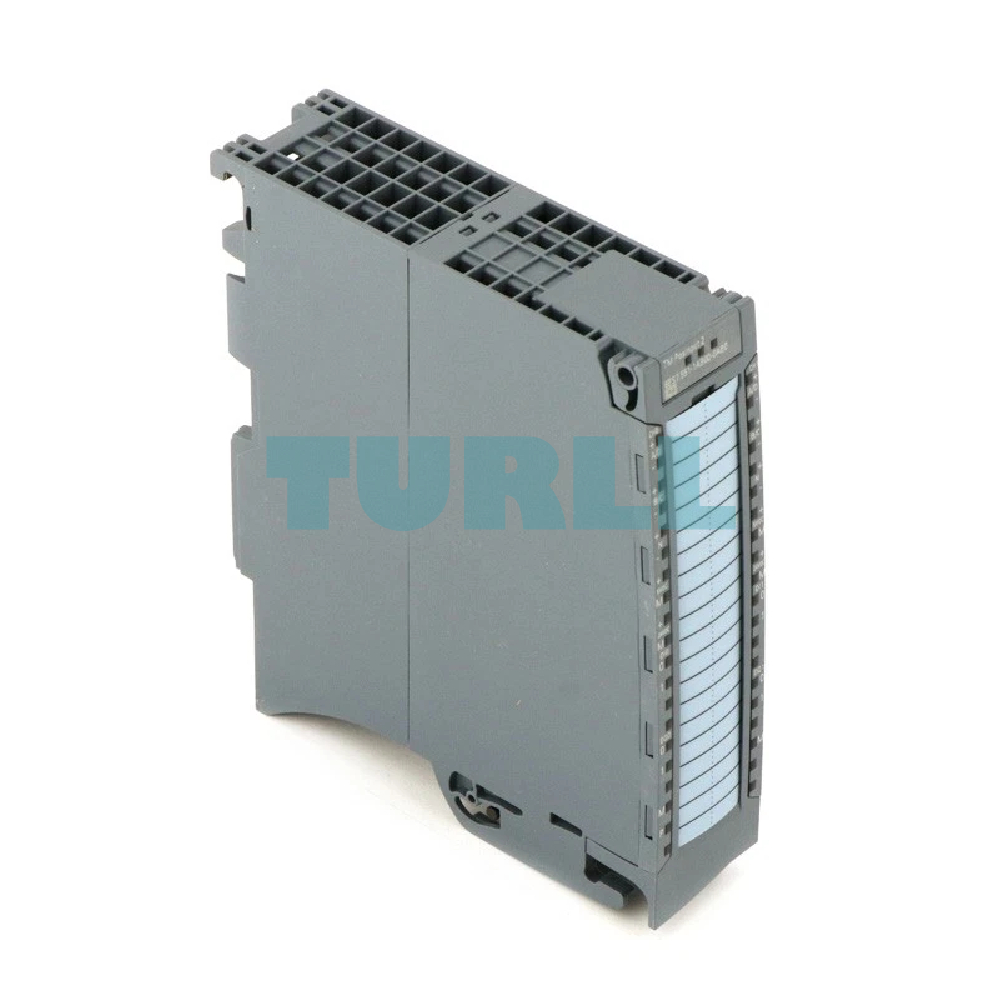

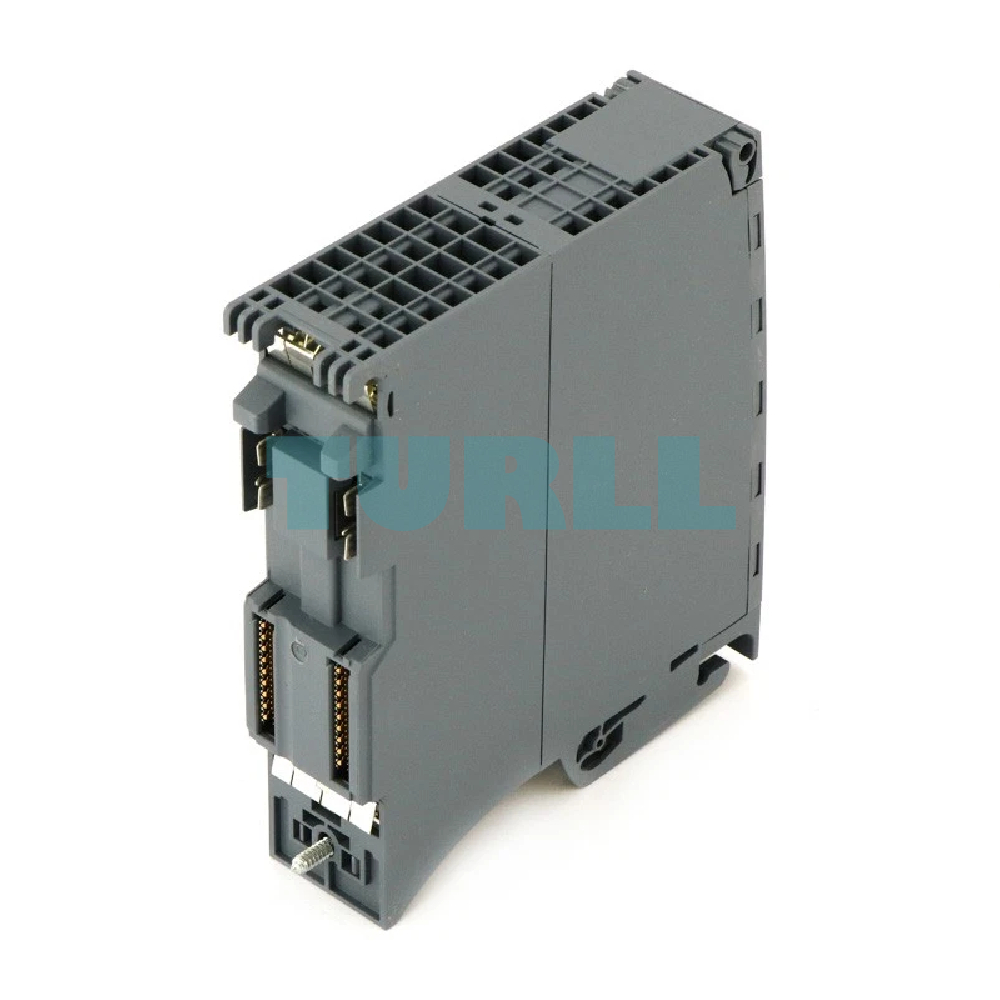

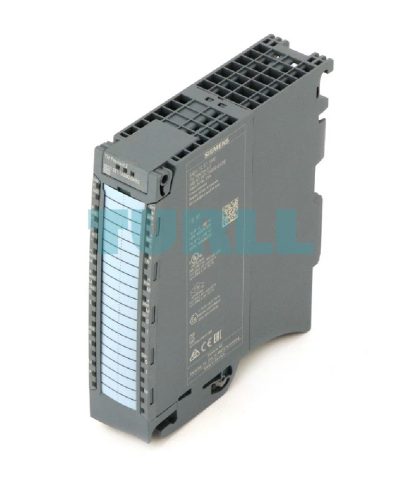

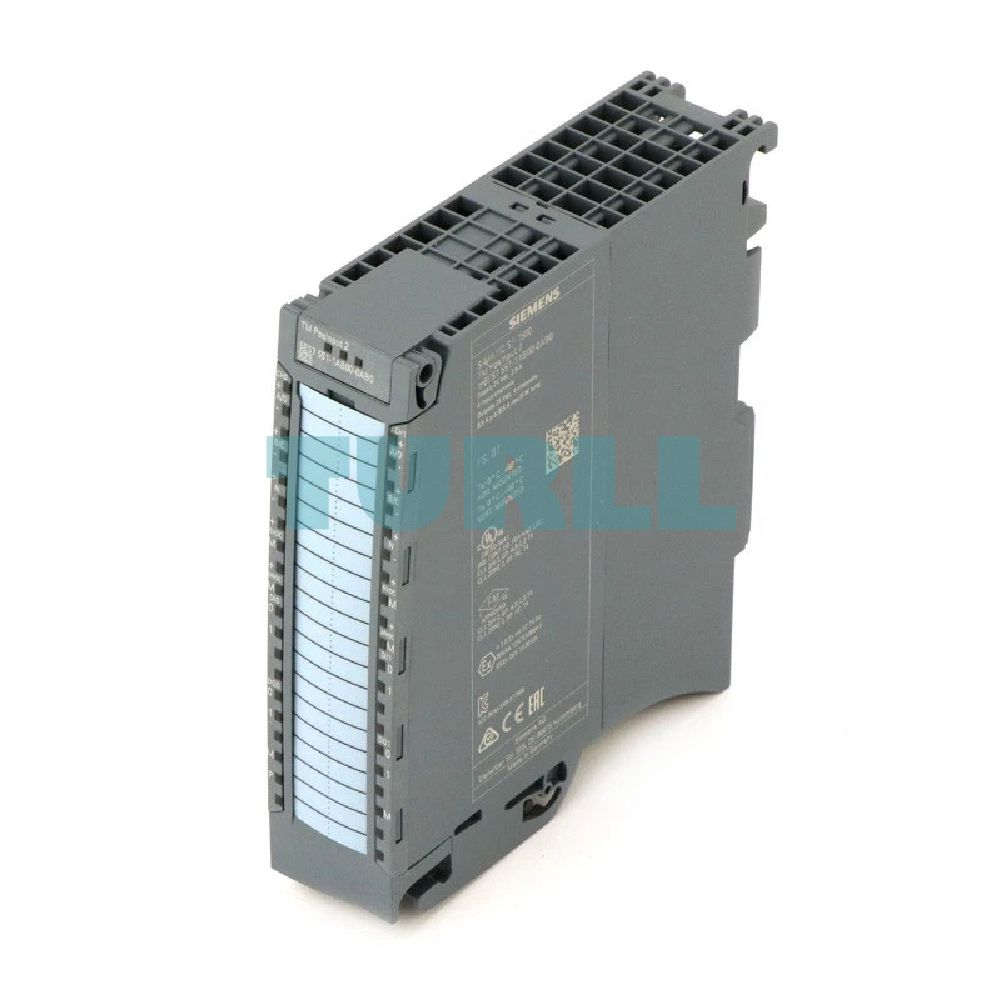

Siemens 6ES7551-1AB00-0AB0 SIMATIC S7-1500, TM PosInput 2 Counter, Position Detection Module Original Brand New

Overview

The TM PosInput 2 module is an essential component for the SIMATIC S7-1500 PLC system when high-speed motion sensing and position feedback are required. Whether you are tracking conveyor belt speeds or managing precise axis positioning, this module provides the interface needed to translate encoder signals into actionable industrial data.

Key Function

• High-Speed Counting: Accurate pulse detection for fast-moving industrial processes.

• Position Detection: Seamless integration with RS-422 incremental encoders and SSI absolute encoders.

• Integrated I/O: Each of the 2 channels includes 2 Digital Inputs (DI) and 2 Digital Outputs (DQ) for direct hardware-level control and fast feedback loops.

• Frequency Measurement: Capable of measuring frequency and period duration.

Technical Benefit

• Versatility: Dual-mode support allows you to switch between different encoder types without changing hardware.

• System Integration: Fully integrated into the TIA Portal, allowing for easy configuration and diagnostics.

• Reduced CPU Load: By processing high-speed signals directly on the module, it frees up the main S7-1500 CPU for other logic tasks.

• Reliability: Built to the rugged standards of the SIMATIC S7-1500 line, ensuring long-term stability in harsh electrical environments.

Visit 6ES7551-1AB00-0AB0 for more detail info

For more our products visit turll

Download

Datasheet in PDF
