Siemens 6ES7972-0BA42-0XA0 SIMATIC DP PROFIBUS Connection Plug Original Brand New

Overview

The Siemens 6ES7972-0BA42-0XA0 is a premium SIMATIC DP connection plug designed for seamless integration into PROFIBUS networks. Engineered for high-speed data transmission up to 12 Mbit/s, this connector is a critical component for ensuring reliable communication between PLC systems and decentralized I/O.

Its compact design (15.8 x 54 x 39.5 mm) and 35° inclined cable outlet make it ideal for installations with limited space, providing a secure and vibration-proof connection.

Key Benefit

• High-Speed Efficiency: Supports transfer rates up to 12 Mbit/s for real-time industrial automation.

• Easy Troubleshooting: The integrated terminating resistor includes an isolating function, allowing for easy segment testing without disrupting the entire network.

• Space-Saving Design: The inclined cable outlet reduces the depth required in control cabinets.

• Robust Reliability: Built to Siemens’ rigorous SIMATIC standards for long-term durability in harsh industrial environments.

Function

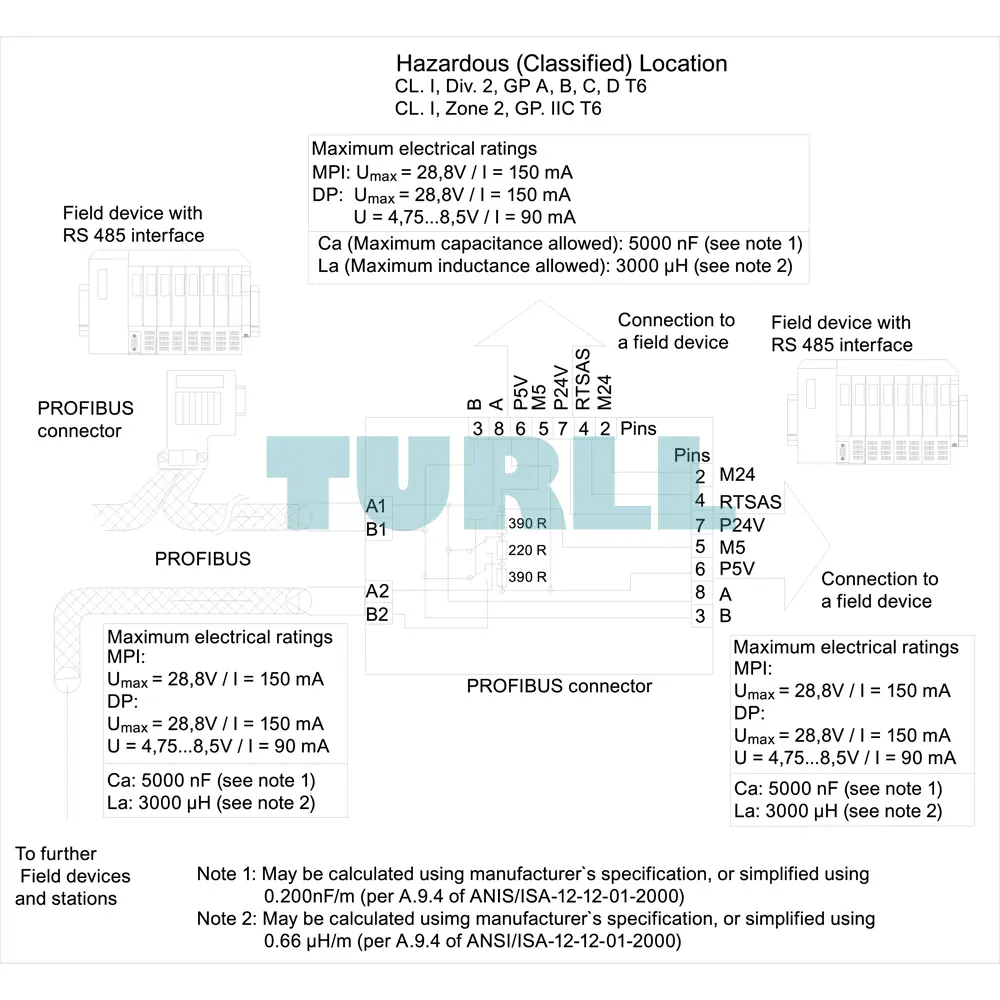

• Network Termination: Provides necessary bus termination to prevent signal reflections.

• Isolating Function: When the resistor is switched on, the outgoing bus cable is disconnected, simplifying commissioning.

• Plug-and-Play: Designed for quick attachment to RS 485 interfaces (9-pin Sub-D).

Technical Specification

• Product Number: 6ES7972-0BA42-0XA0

• Transfer Rate: Up to 12 Mbit/s

• Cable Outlet: Inclined (35 degrees)

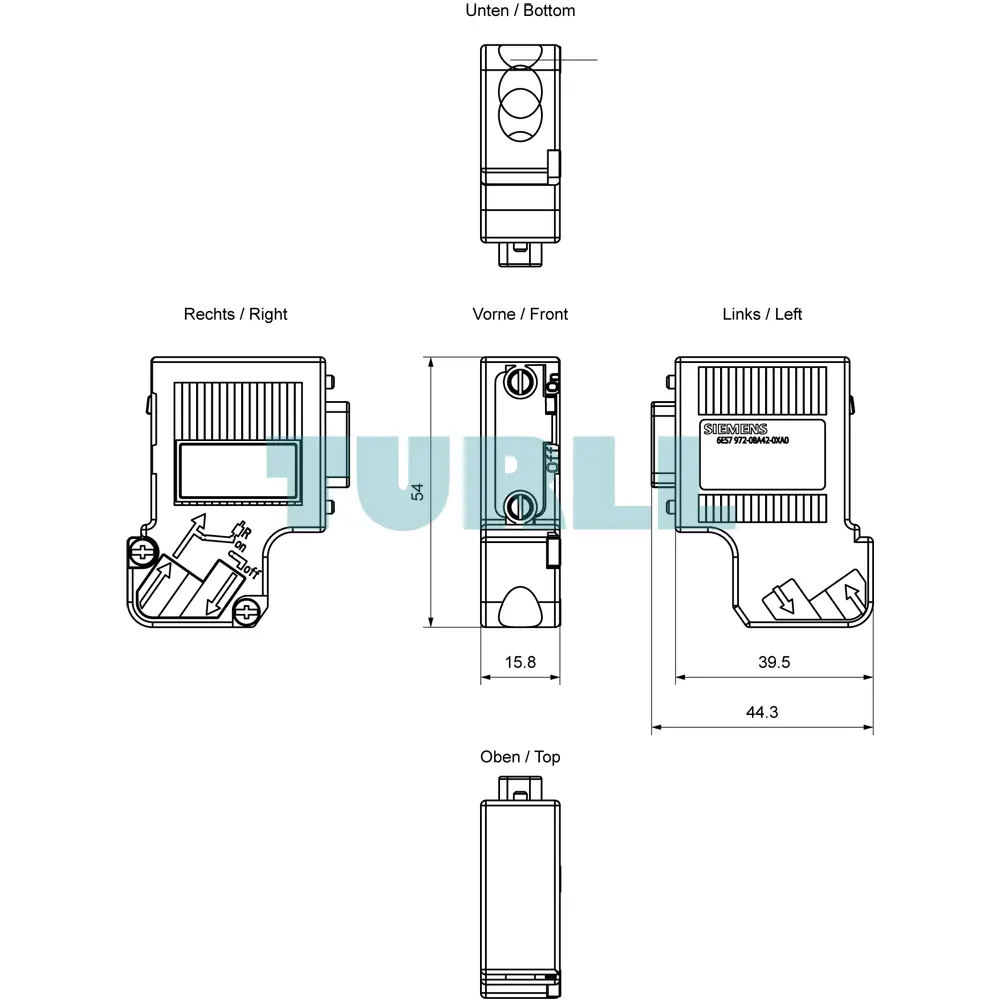

• Dimensions: 15.8 mm (W) x 54 mm (H) x 39.5 mm (D)

• PG Socket: No (Without Programming Device socket)

• Enclosure Rating: IP20
