6ES7972-0BA70-0XA0

Description

Overview

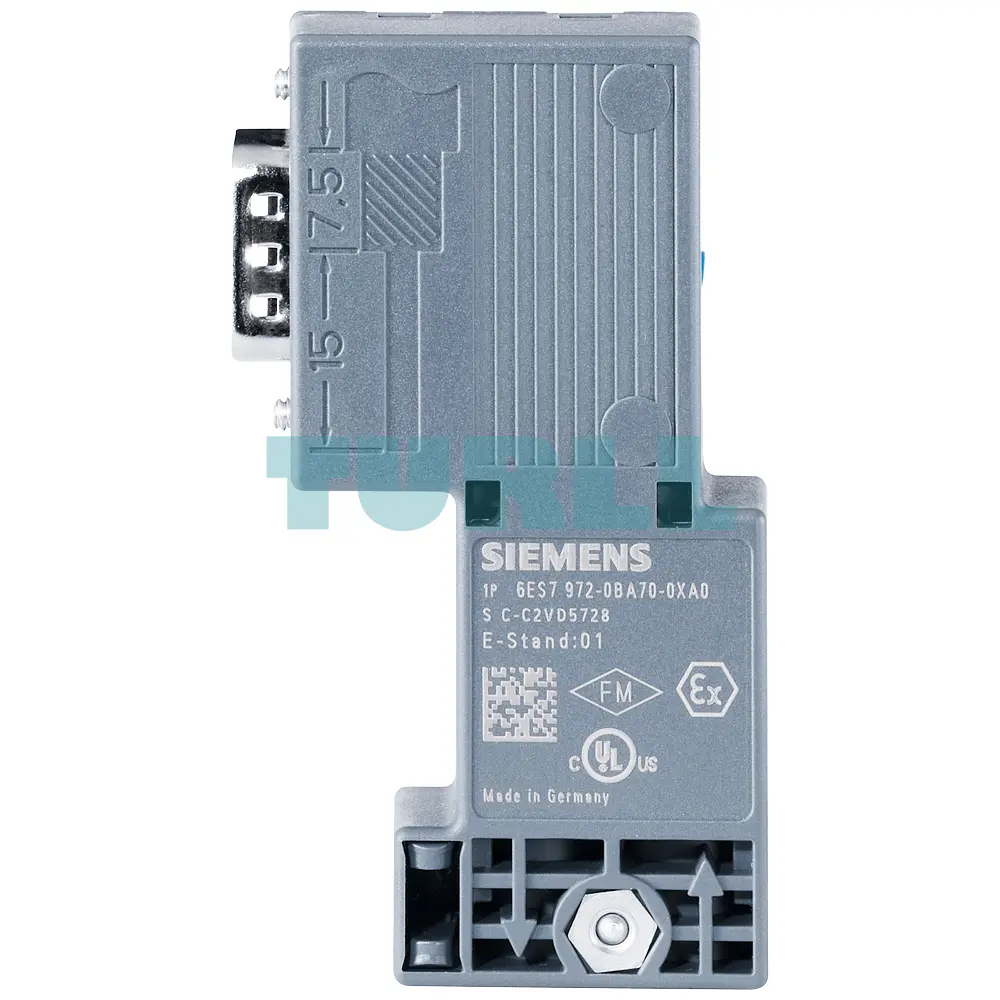

The Siemens 6ES7972-0BA70-0XA0 SIMATIC DP Connection Plug is a high-performance PROFIBUS DP connector designed for reliable and efficient industrial communication. It supports transmission speeds of up to 12 Mbit/s and features a 90° angled cable outlet, making it ideal for installations with limited space.

Using Siemens FastConnect insulation displacement technology, this connector allows quick, secure, and tool-efficient cable termination without stripping wires. Its compact dimensions and rugged construction make it suitable for demanding industrial automation environments.

Key Benefit

• Rapid Installation: The FastConnect technology allows for error-free, quick assembly.

• Space-Saving: The slim 15.8mm width and 90° outlet allow for high-density mounting on PLC modules.

• High-Speed Reliability: Fully optimized for data transfer rates up to 12 Mbit/s.

• Durable Housing: Built for industrial environments with a robust plastic casing.

Function & Features

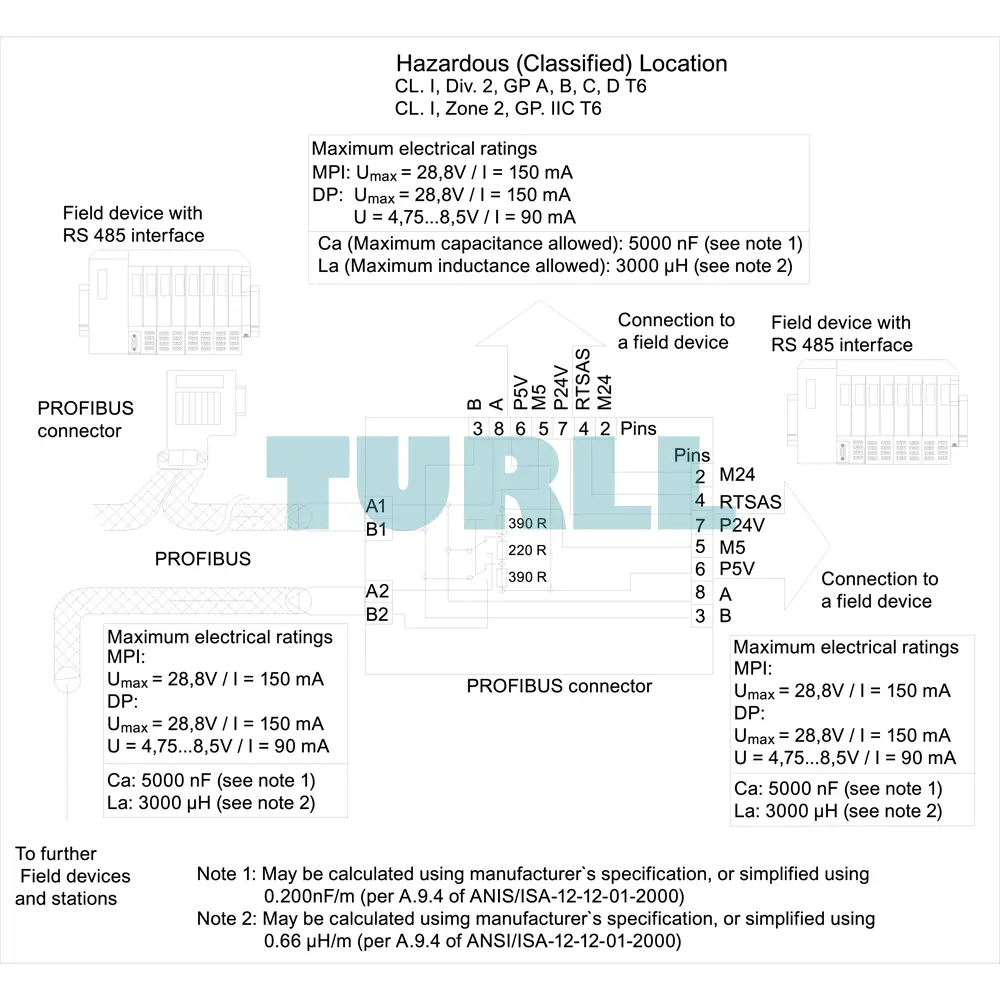

• Connection Type: RS485 Profibus.

• Cable Outlet: 90-degree angle for optimized cable routing.

• Termination Resistor: Integrated slide switch to engage/disengage network termination.

• FastConnect: Insulation displacement system for easy shielded cable connection.

Specification

• Manufacturer: Siemens

• Product Number: 6ES7972-0BA70-0XA0

• Series: SIMATIC DP

• Communication Protocol: PROFIBUS DP

• Max Data Rate: Up to 12 Mbit/s

• Cable Outlet: 90°

• Connection Method: Insulation Displacement (FastConnect)

• PG Socket: Not included

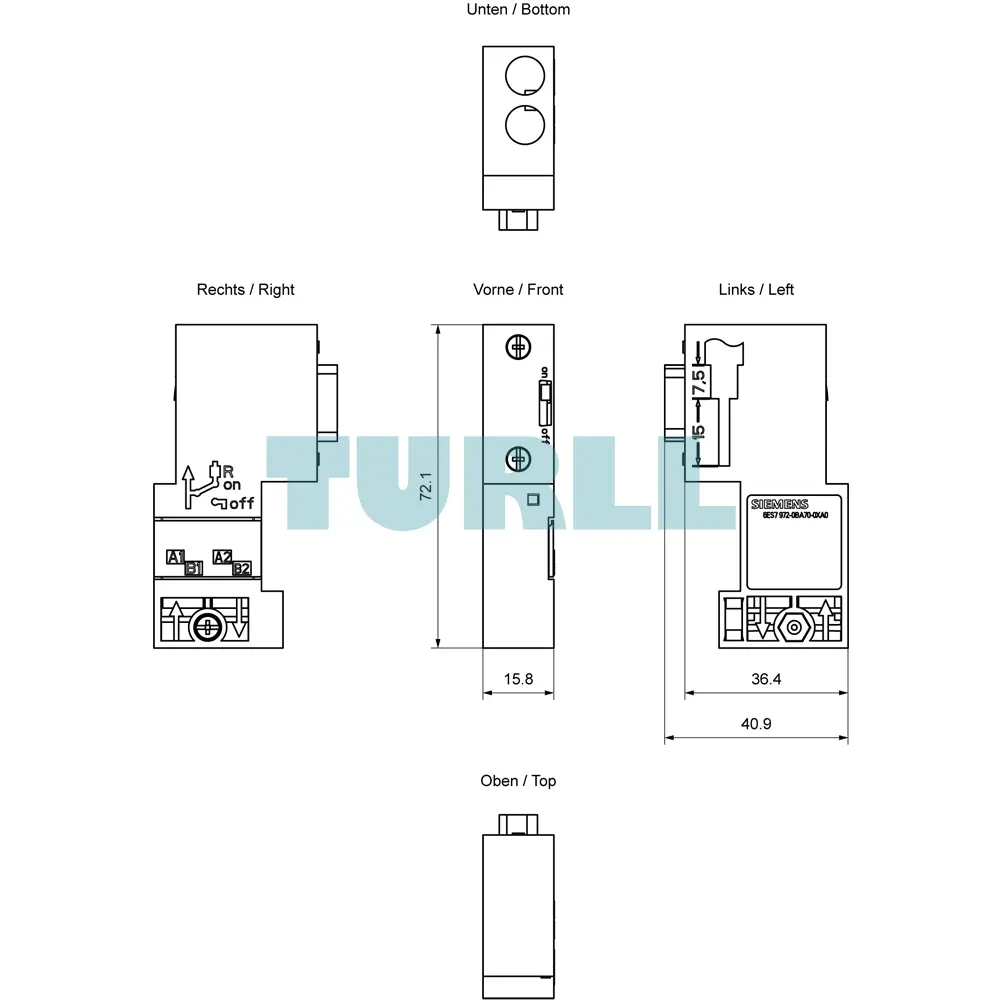

• Dimensions (WxHxD): 15.8 × 72.2 × 36.4 mm

Application

• Industrial automation systems

• PLC and PROFIBUS DP networks

• Control cabinets and panels

• Factory automation and process control

• Siemens SIMATIC installations
