ANT896-4ME mobile wireless antenna compatible with GSM (2G), UMTS (3G), and LTE (4G) networks. Features omnidirectional radiation, N-Connect female connection (3 dBi), IP66 rating (-40°C to +70°C), and easy control cabinet mounting. Includes instructions in German/English.
Backorder available · Factory lead time 2–3 weeks.

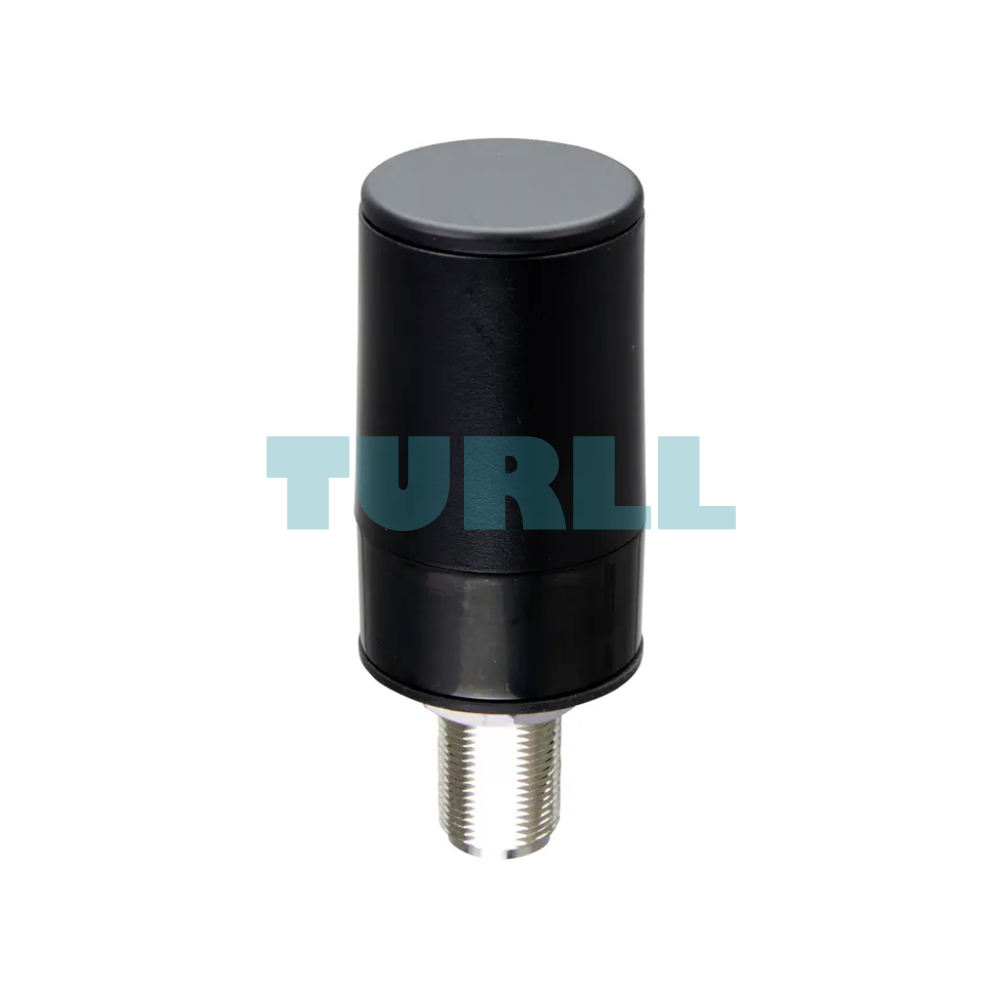

The Siemens 6GK5896-4ME00-0AA0 is a high-performance mobile wireless antenna designed for reliable connectivity across GSM, UMTS, and LTE networks. Its omnidirectional characteristic ensures consistent signal reception and transmission, making it ideal for industrial applications where stable mobile communication is critical. The antenna is rugged, IP66-rated, and capable of withstanding harsh environmental conditions, from extreme cold to high heat.
Future-Proof Connectivity: Supports all major mobile standards (2G, 3G, 4G/LTE) to ensure compatibility with current and future network infrastructure.
Reliable Coverage: The omnidirectional characteristic ensures a stable connection regardless of the orientation relative to the base station.
Industrial Durability: IP66 rated housing and robust design for protection against dust and high-pressure water jets, perfect for control cabinet mounting in challenging environments.
Simplified Installation: Comes with a standard N-Connect female connection for secure and easy integration into existing systems.
Omnidirectional antenna for mobile wireless applications
Robust IP66 housing for outdoor and industrial environments
Operating temperature range: -40°C to +70°C
Compatible with GSM, UMTS, and LTE networks
Includes N-Connect female connector (3 dBi)
Compact design with easy control cabinet mounting
National approvals compliance
Visit 6GK5896-4ME00-0AA0 for more detail info
For more our products visit turll
| SKU / Model | 6GK5896-4ME00-0AA0 |
|---|---|
| Brand | SIEMENS |
| product type designation | Antenna ANT896-4ME |
| type of wireless network / is supported | LTE, UMTS, GSM |
| operating frequency | 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1575.42 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2200 MHz, 2600 MHz |
| impedance | 50 Ω |
| polarization | linear vertical |
| radiation characteristic | omnidirectional |
| antenna gain compared to spherical radiator | - |
| ● with linear radiation | 3 dB |
| standing wave ratio (VSWR) / maximum | 2 |
| radiating angle of the antenna | - |
| ● horizontal | 360° |
| number of electrical connections / of the antenna | 1 |
| type of electrical connection / of the antenna | N-Connector |
| design of plug-in connection | female |
| ambient temperature | - |
| ● during operation | -40 ... +70 °C |
| protection class IP | IP66 |

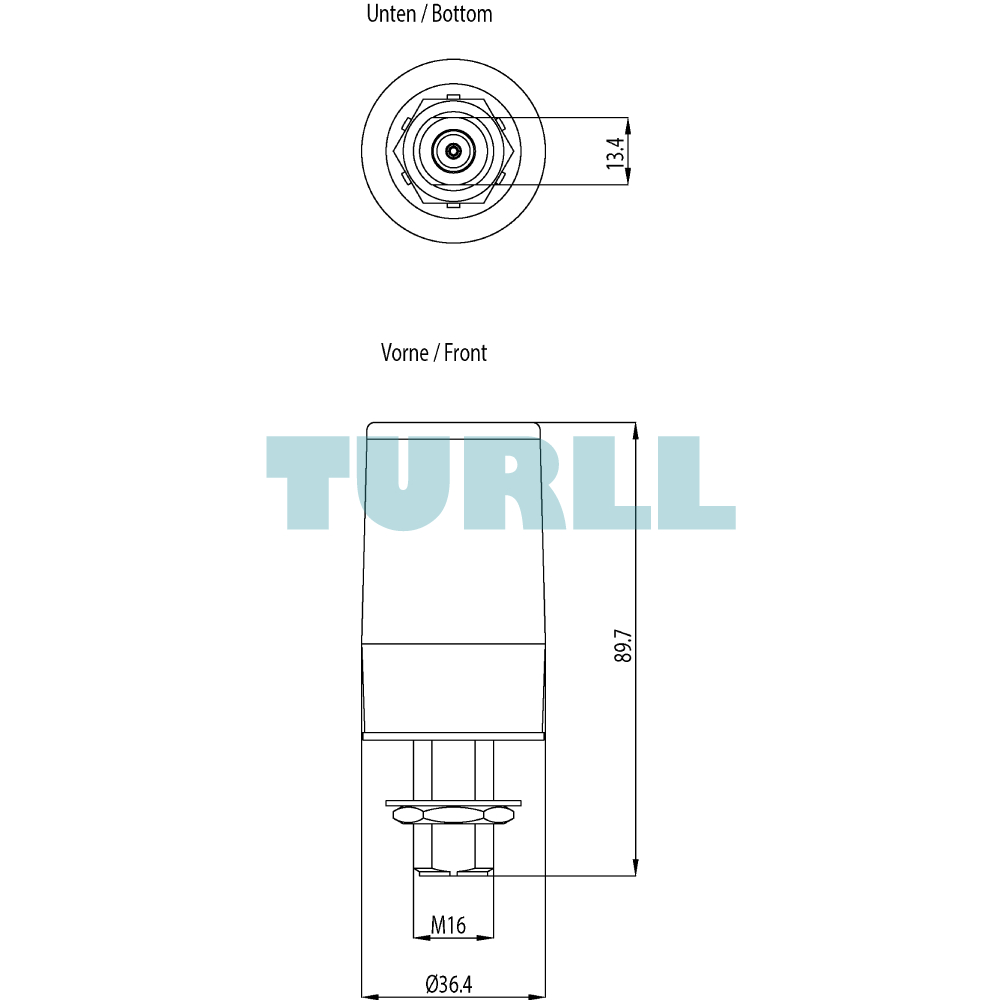

| diameter | 38.1 mm |
| fastening method | - |
| ● flat roof mounting | Yes |
| ● roof mounting | No |
| ● directly on the device | No |
| product feature / silicon-free | Yes |
| certificate of suitability | - |
| ● RoHS conformity | Yes |
| wireless approval | Current national approvals can be found on the Internet under www.siemens.com/mobilfunkzulassungen |
| reference code | - |
| ● acc. to IEC 81346-2 | TF |
| ● according to IEC 81346-2:2019 | TFB |
| Internet-Link | - |
| ● to web page: selection aid TIA Selection Tool | http://www.siemens.com/snst |
| ● to website: Industrial communication | http://www.siemens.com/simatic-net |
| ● to website: Industry Mall | https://mall.industry.siemens.com |
| ● to website: Information and Download Center | http://www.siemens.com/industry/infocenter |
| ● to website: Image database | http://automation.siemens.com/bilddb |
| ● to website: CAx-Download-Manager | http://www.siemens.com/cax |
| ● to website: Industry Online Support | https://support.industry.siemens.com |
| last modified: | 11/3/2021 |
| Weight | 0.300 kg |
| Dimensions | 1.00 × 1.00 × 1.00 mm |
