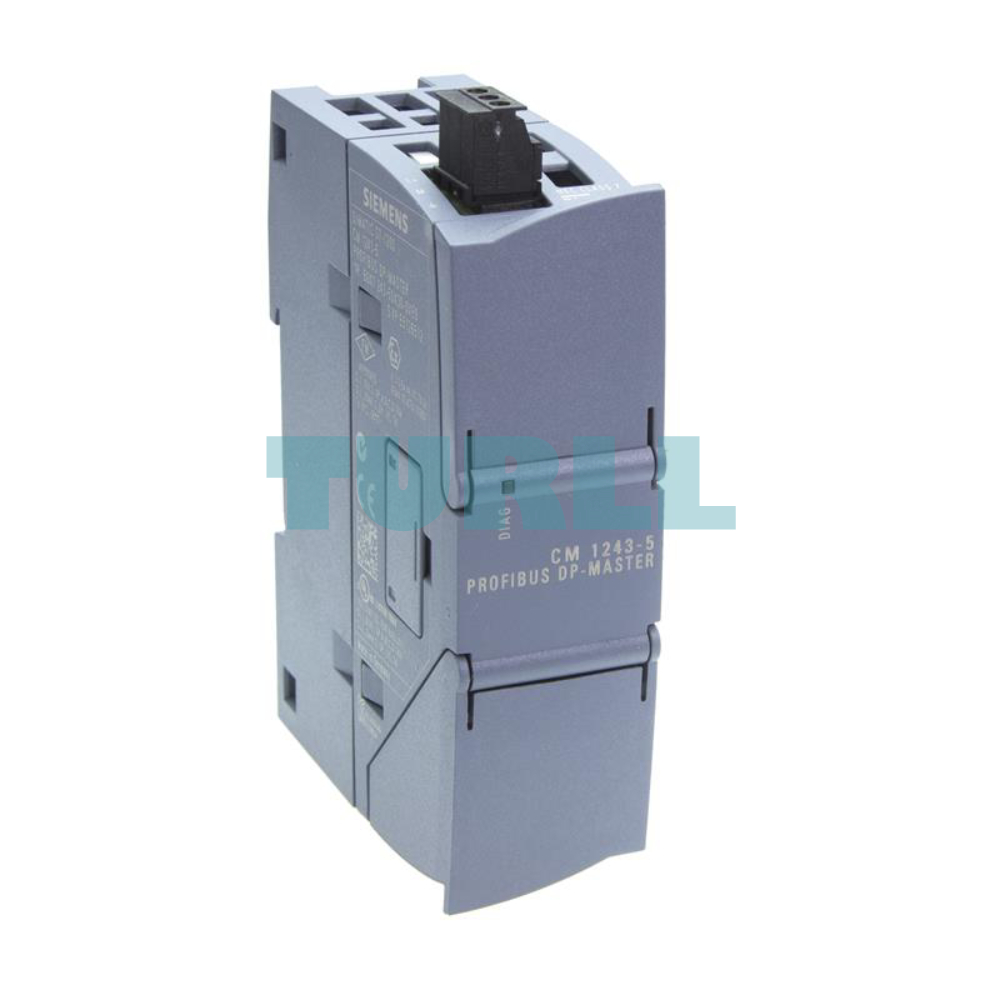

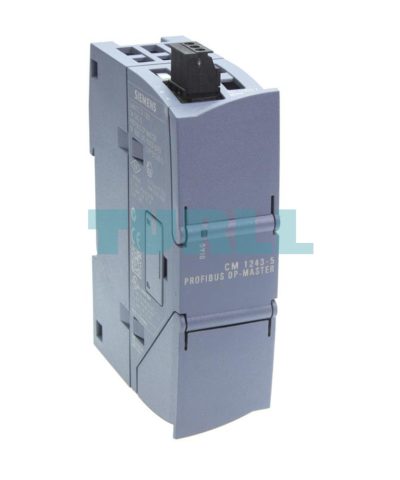

Siemens 6GK7243-5DX30-0XE0 CM 1243-5 Communication Module for SIMATIC S7-1200 Original Brand New
$352.88
Siemens CM 1243-5 is a communication module for SIMATIC S7-1200 PLCs, supporting PROFIBUS DP Master functionality, PG/OP communication, and S7 communication. Ideal for industrial automation systems requiring fast and reliable connectivity.
Availability: In stock
Overview
The Siemens CM 1243-5 (6GK7243-5DX30-0XE0) is a dedicated communications module designed to seamlessly integrate the SIMATIC S7-1200 series of programmable logic controllers (PLCs) into a PROFIBUS DP (Decentralized Periphery) network architecture. Serving specifically as a DP Master, this module enables the S7-1200 to efficiently control and exchange data with subordinate DP Slaves, making it an essential component for distributed control systems and complex machine automation. This module unlocks high-speed, reliable communication, extending the capabilities of the compact S7-1200 controller.
Key Benefit
-
Reliable Connectivity: Ensures seamless integration of SIMATIC S7-1200 PLCs into PROFIBUS networks.
-
Versatile Communication: Supports PG/OP and S7 communication for flexible operations.
-
Efficient Performance: Reduces communication delays, improving overall system responsiveness.
-
Durable Design: Engineered to meet industrial automation standards for long-lasting operation.
-
Easy Integration: Quick and simple installation with existing SIMATIC S7-1200 setups.
Functions & Features
-
PROFIBUS DP Master Module: Enables the S7-1200 PLC to act as a master in PROFIBUS networks.
-
PG/OP Communication Support: Allows direct programming and operator panel interaction.
-
S7 Communication: Facilitates reliable data exchange between S7 controllers.
-
High-Speed Data Transmission: Ensures quick and accurate communication across devices.
-
Compact and Robust Design: Perfect for industrial environments requiring reliability and space efficiency.
Visit 6GK7243-5DX30-0XE0 for more detail info
For more our products visit turll
Download
| Weight | 0.193 kg |
|---|---|
| Dimensions | 1.00 × 1.00 × 1.00 mm |
| Brand | SIEMENS |
| product type designation | CM 1243-5 |
| transfer rate | – |
| number of interfaces / acc. to Industrial Ethernet | 0 |
| number of electrical connections | – |
| type of electrical connection | – |

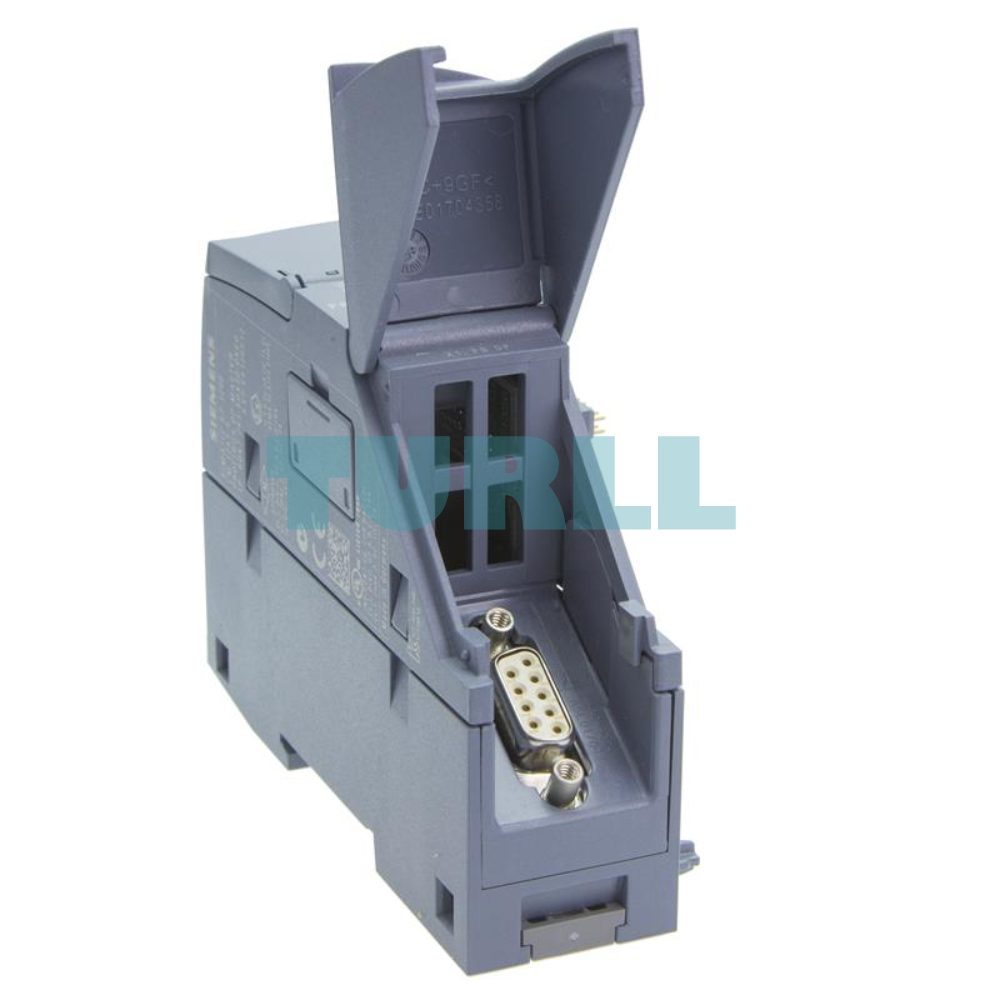

| ● at the 1st interface / acc. to PROFIBUS | 9-pin Sub-D socket (RS485) |
| ● for power supply | 3-pole terminal block |
| type of voltage / of the supply voltage | DC |
| supply voltage / external | 24 V |
| supply voltage / external / at DC / rated value | 24 V |
| relative positive tolerance / at DC / at 24 V | 20 % |
| relative negative tolerance / at DC / at 24 V | 20 % |
| consumed current | – |
| ● from external supply voltage / at DC / at 24 V / typical | 0.1 A |
| power loss [W] | 2.4 W |
| ambient temperature | – |
| ● for vertical installation / during operation | 0 … 45 °C |
| ● for horizontally arranged busbars / during operation | 0 … 55 °C |
| ● during storage | -40 … +70 °C |
| ● during transport | -40 … +70 °C |
| relative humidity | – |
| ● at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
| module format | Compact module S7-1200 single width |
| fastening method | – |
| ● 35 mm top hat DIN rail mounting | Yes |
| ● S7-300 rail mounting | No |
| ● wall mounting | Yes |
| number of units | – |
| ● per CPU / maximum | 3 |
| service / as DP master | – |
| number of DP slaves | – |
| ● on DP master / operable | 32 |
| data volume | – |
| ● of the address range of the inputs / as DP master / total | 512 byte |
| ● of the address range of the outputs / as DP master / total | 512 byte |
| ● of the address range of the inputs / per DP slave | 244 byte |
| ● of the address range of the outputs / per DP slave | 244 byte |
| ● of the address range of the diagnostic data / per DP slave | 240 byte |
| service / as DP slave | – |
| ● DPV0 | No |
| ● DPV1 | No |
| number of possible connections / for S7 communication | – |
| ● maximum | 8; max. 4 connections to other S7 stations |
| ● with PG connections / maximum | 1 |
| ● with PG/OP connections / maximum | 3 |
| number of active connections / with multi-protocol mode | – |
| ● without DP / maximum | 8 |
| ● with DP / maximum | 8 |
| protocol / is supported | – |
| ● TCP/IP | No |
| configuration software | – |
| ● required | STEP 7 Basic/Professional |
| certificate of suitability / CCC / for hazardous zone according to GB standard | Yes |
| Internet-Link | – |
| ● to web page: selection aid TIA Selection Tool | |
| ● to website: Industrial communication | |
| ● to website: Industry Mall | |
| ● to website: Information and Download Center | |
| ● to website: Image database | |
| ● to website: CAx-Download-Manager | |
| ● to website: Industry Online Support | |
| security information | Siemens provides products and solutions with industrial security functions that support the secure operation of plants, solutions, machines, equipment and/or networks. They are important components in a holistic industrial security concept. With this in mind, Siemens’ products and solutions undergo continuous development. Siemens recommends strongly that you regularly check for product updates. For the secure operation of Siemens products and solutions, it is necessary to take suitable preventive action(e.g. cell protection concept) and integrate each component into a holistic, state-of-the-art industrial security concept. Third-party products that may be in use should also be considered. For more information about industrial security, visit http://www.siemens.com/industrialsecurity. To stay informed about product updates as they occur, sign up for a product-specific newsletter. For more information, visit http://support.automation.siemens.com. (V3.4) |
| last modified: | 8/3/2021 |
| Product Condition | Brand New, New – Backlog, New – No Original Box, New – Original Box Opened, Used – Average, Used – Below Average, Used – Excellent, Used – Fairly Good, Used – Good, Used – Poor, Used – Very Good |
