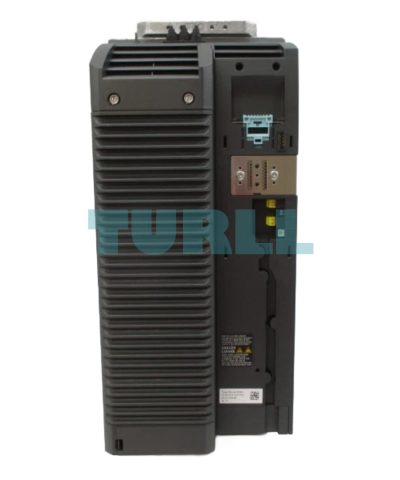

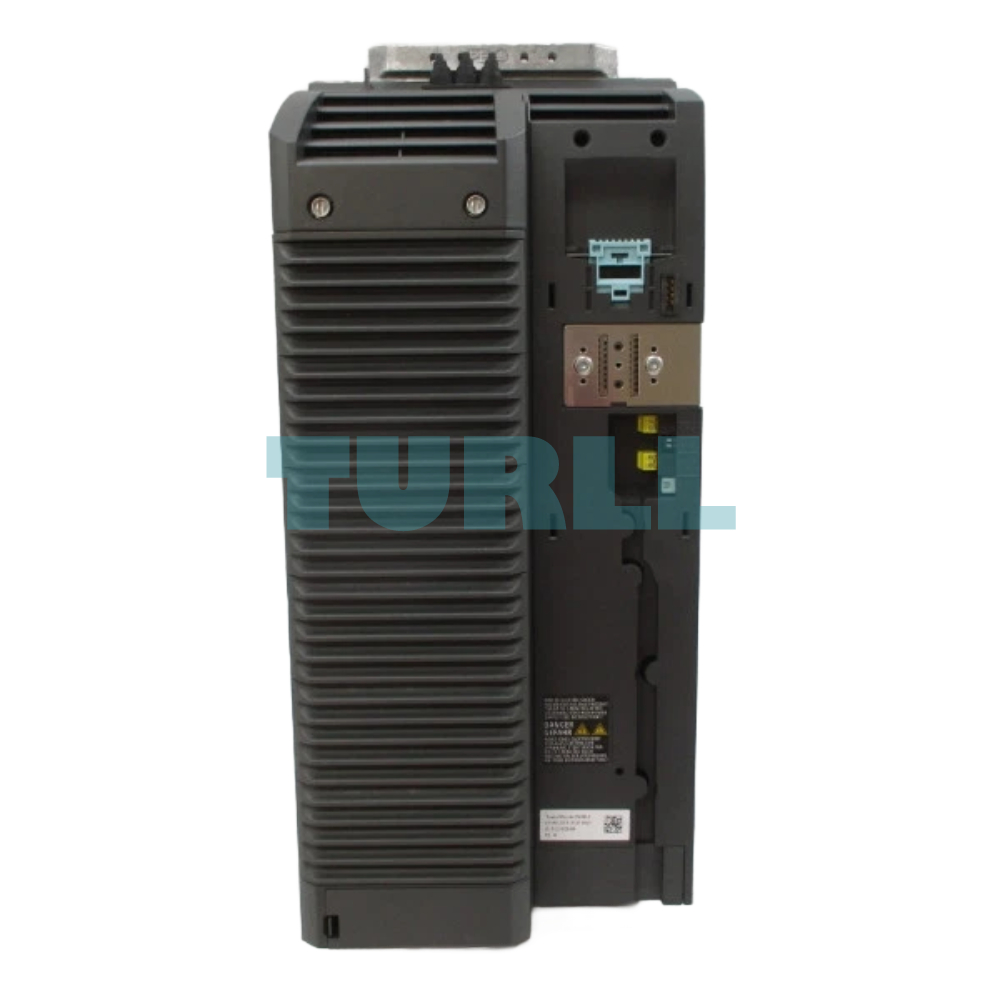

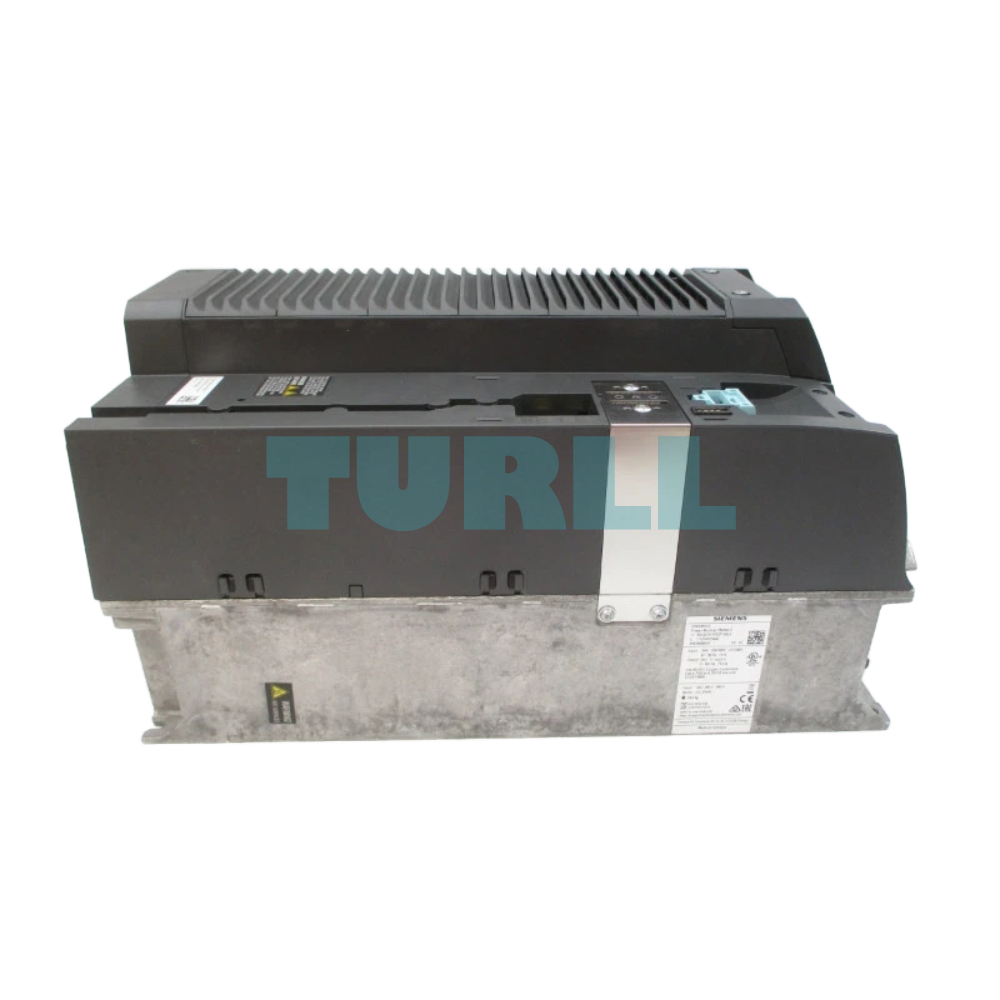

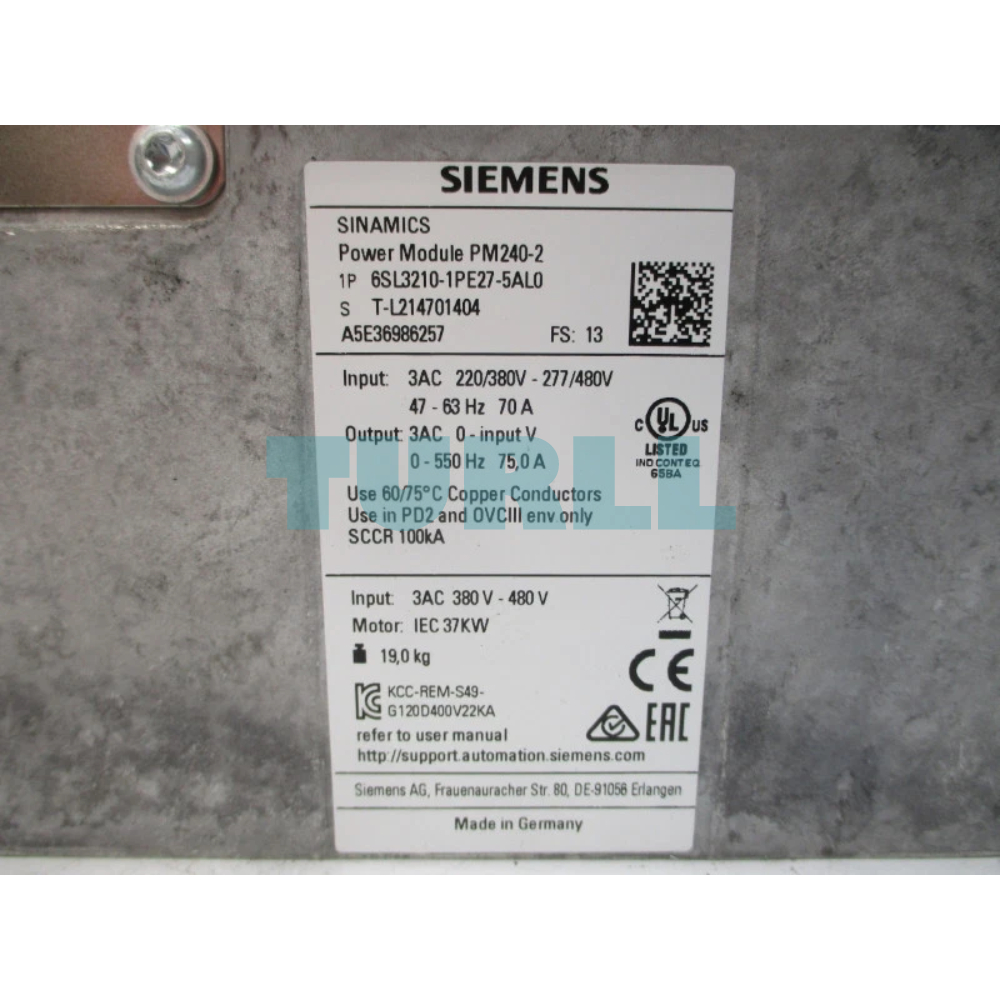

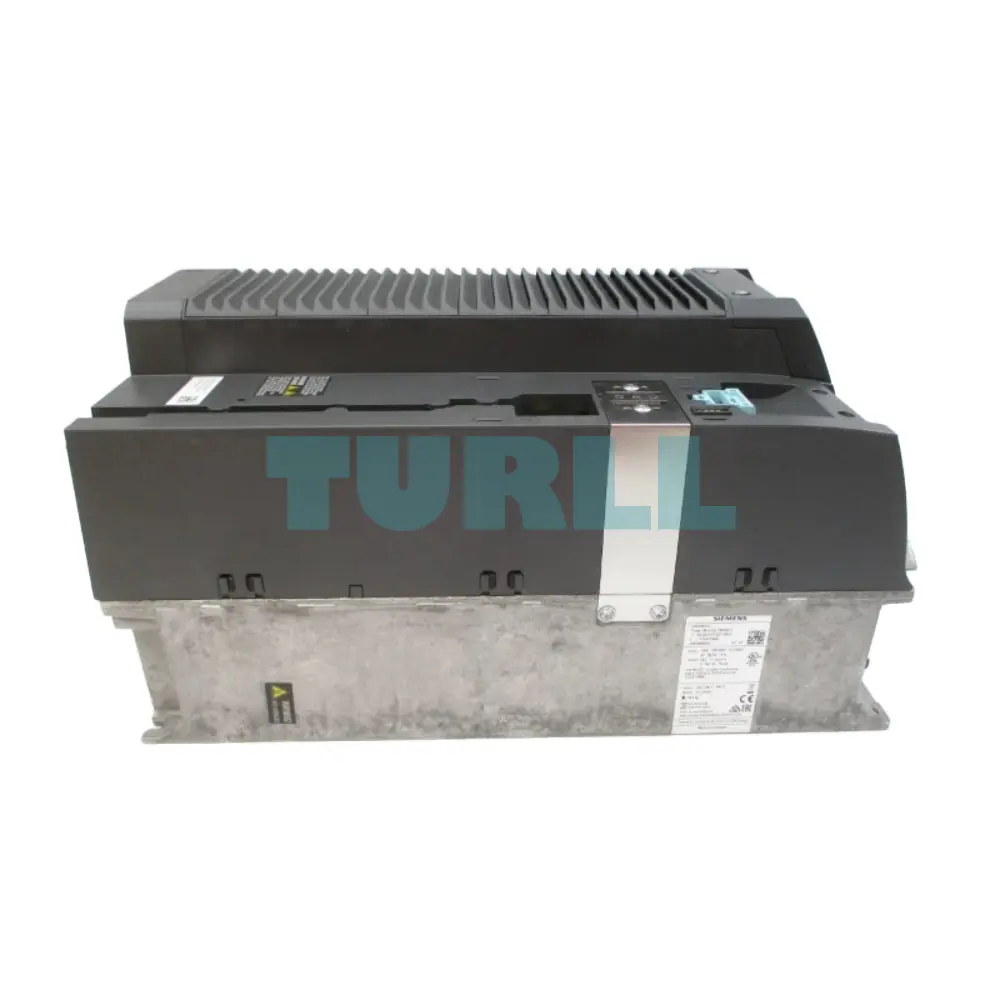

Siemens 6SL3210-1PE27-5AL0 SINAMICS G120 Power Module PM240-2, 37kW, 3-Phase 400V, Filter Class A Original Brand New

Overview

The Siemens SINAMICS G120 Power Module PM240-2 (6SL3210-1PE27-5AL0) is a high-performance drive power module designed for demanding industrial motor control applications. It features a built-in Class A line filter and integrated braking chopper, ensuring reliable operation, energy efficiency, and compliance with industrial standards.

Operating on a 3AC 380–480V power supply, this power module supports both high overload (HO) and low overload (LO) operation modes, making it ideal for applications such as conveyors, pumps, fans, compressors, and heavy-duty machinery. The unit is panel-approved, rated IP20, and compatible with Control Unit firmware version V4.7 HF8.

Key Benefit

• High overload capacity for demanding industrial applications

• Integrated braking chopper reduces external component requirements

• Built-in Class A filter for improved EMC performance

• Flexible HO and LO operation modes

• Wide ambient temperature range for harsh environments

• Compact design for efficient panel integration

• Siemens reliability and long service life

Function & Features

• Input Voltage: 3AC 380–480V (+10% / -20%)

• Frequency Range: 47–63 Hz

• High Overload (HO):

  • 30 kW

  • 200% for 3 seconds

  • 150% for 57 seconds

  • 100% for 240 seconds

  • Ambient temperature: -20°C to +50°C

• Low Overload (LO):

  • 37 kW

  • 150% for 3 seconds

  • 110% for 57 seconds

  • 100% for 240 seconds

  • Ambient temperature: -20°C to +40°C

• Protection Rating: IP20

• Frame Size: FSD

• Dimensions (H × W × D): 472 × 200 × 237 mm

• Integrated Components:

  • Braking chopper

  • Class A line filter

• Control Unit: Not included

• Firmware Compatibility: CU firmware version V4.7 HF8

Application

• Conveyor systems

• Pumps and fans

• Compressors

• Material handling equipment

• Industrial automation systems

• Manufacturing and process control
