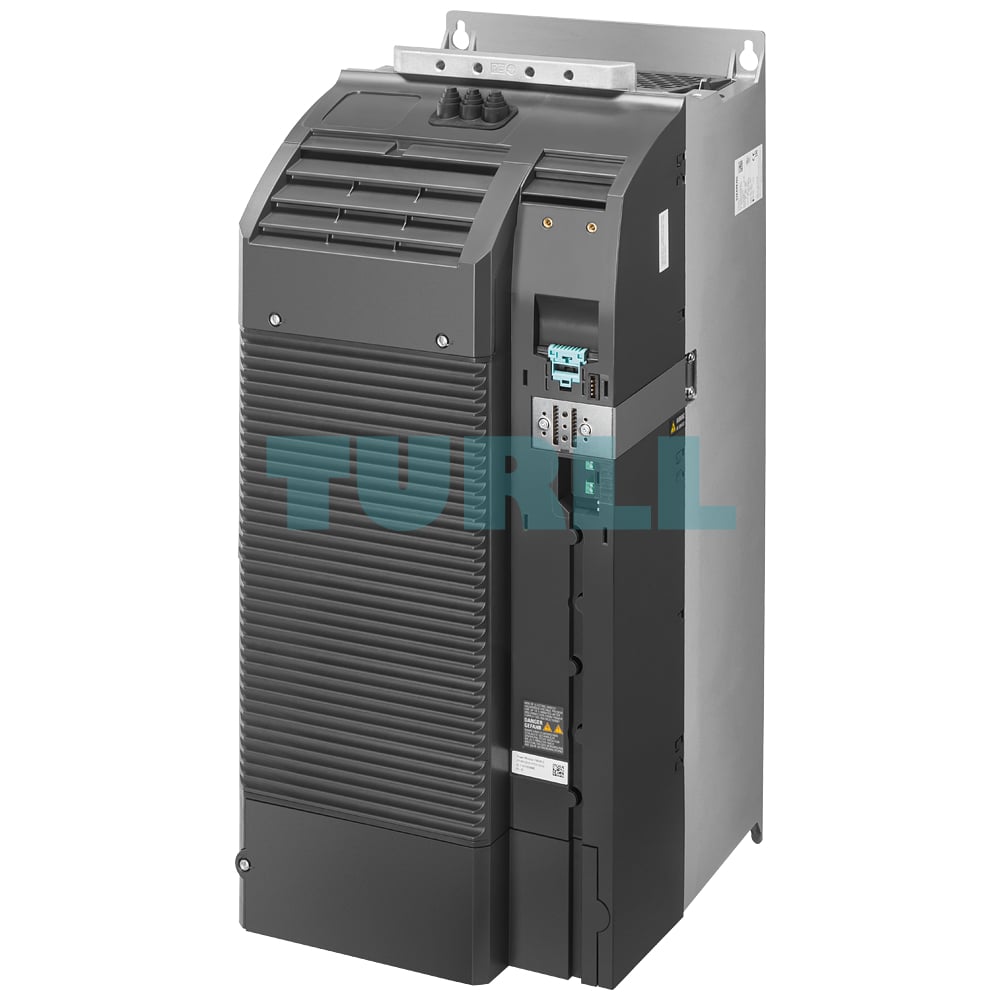

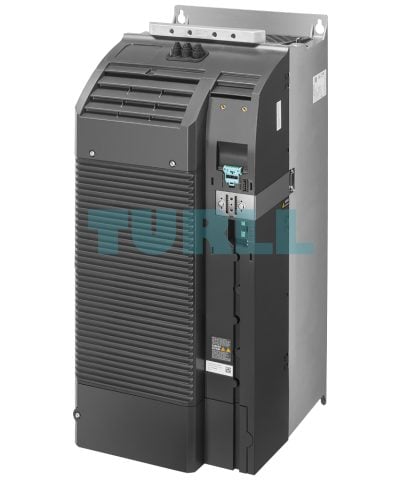

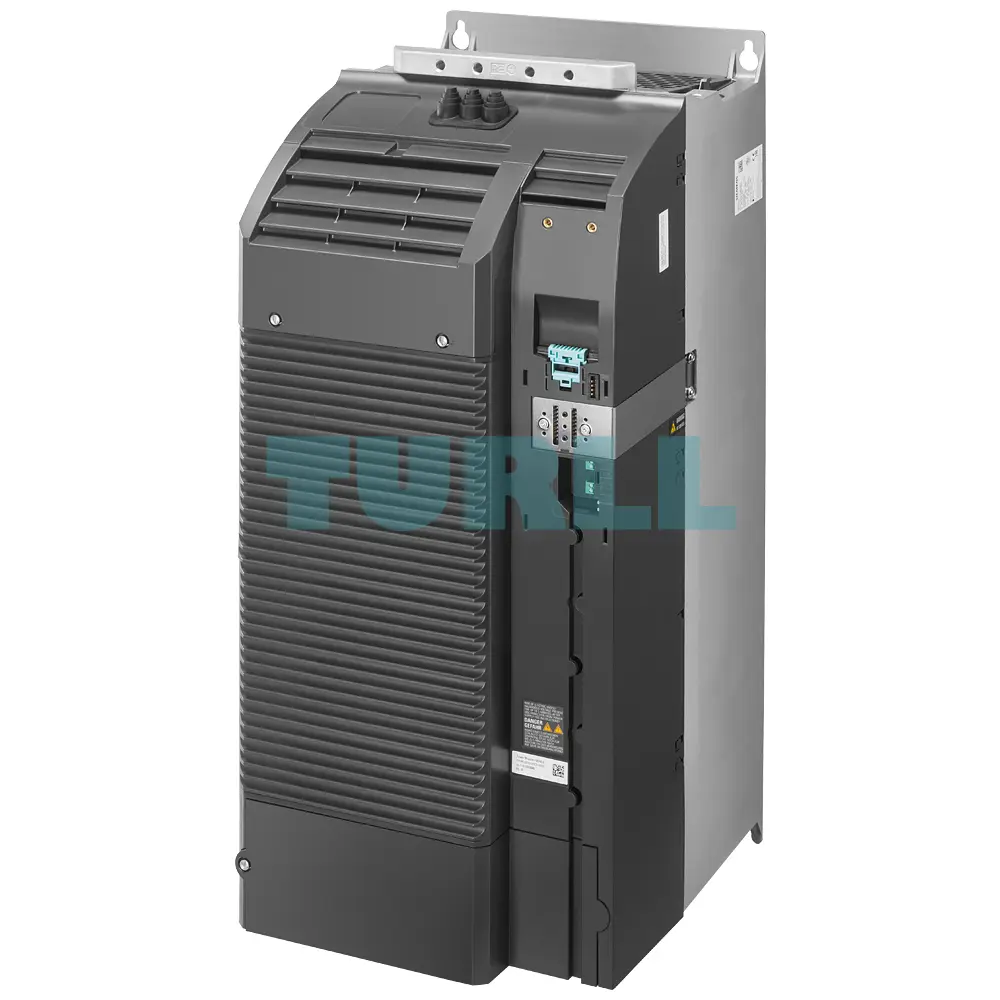

Siemens 6SL3210-1PE31-8UL0 SINAMICS G120, PM240-2 Power Module, 90kW Original Brand New

Overview

The Siemens SINAMICS G120 PM240-2 Power Module (6SL3210-1PE31-8UL0) is a high-performance variable frequency drive (VFD) power module designed for demanding industrial applications. Engineered for flexibility and efficiency, it supports both high overload (HO) and low overload (LO) operation, making it ideal for conveyors, pumps, compressors, and heavy-duty machinery.

This power module comes without a filter and includes a built-in braking chopper, ensuring precise motor control and enhanced braking performance. It is compatible with SINAMICS G120 control units and approved for CU firmware version V4.7 HF8.

Benefit

• High power density for demanding industrial environments

• Built-in braking chopper for efficient energy dissipation

• Supports both high overload (HO) and low overload (LO) operation

• Wide input voltage range (380–480V AC)

• Robust Siemens engineering ensures long service life

• Flexible integration with SINAMICS G120 control units

• Suitable for harsh ambient temperatures

Function & Features

• Input Voltage: 3AC 380–480V (+10% / -20%)

• Frequency Range: 47–63 Hz

• High Overload (HO):

  • 75 kW @ 200% for 3 seconds

  • 150% for 57 seconds

  • 100% for 240 seconds

  • Ambient temperature: -20°C to +50°C

• Low Overload (LO):

  • 90 kW @ 150% for 3 seconds

  • 110% for 57 seconds

  • 100% for 240 seconds

  • Ambient temperature: -20°C to +40°C

• Protection Class: IP20

• Frame Size: FSF

• Cooling: Optimized for industrial environments

• Dimensions (H × W × D): 708 × 305 × 357 mm

• Filter: Without line filter

• Control Unit: Not included

Visit 6SL3210-1PE31-8UL0 for more detail info

For more our products visit turll

Download

Datasheet in PDF
