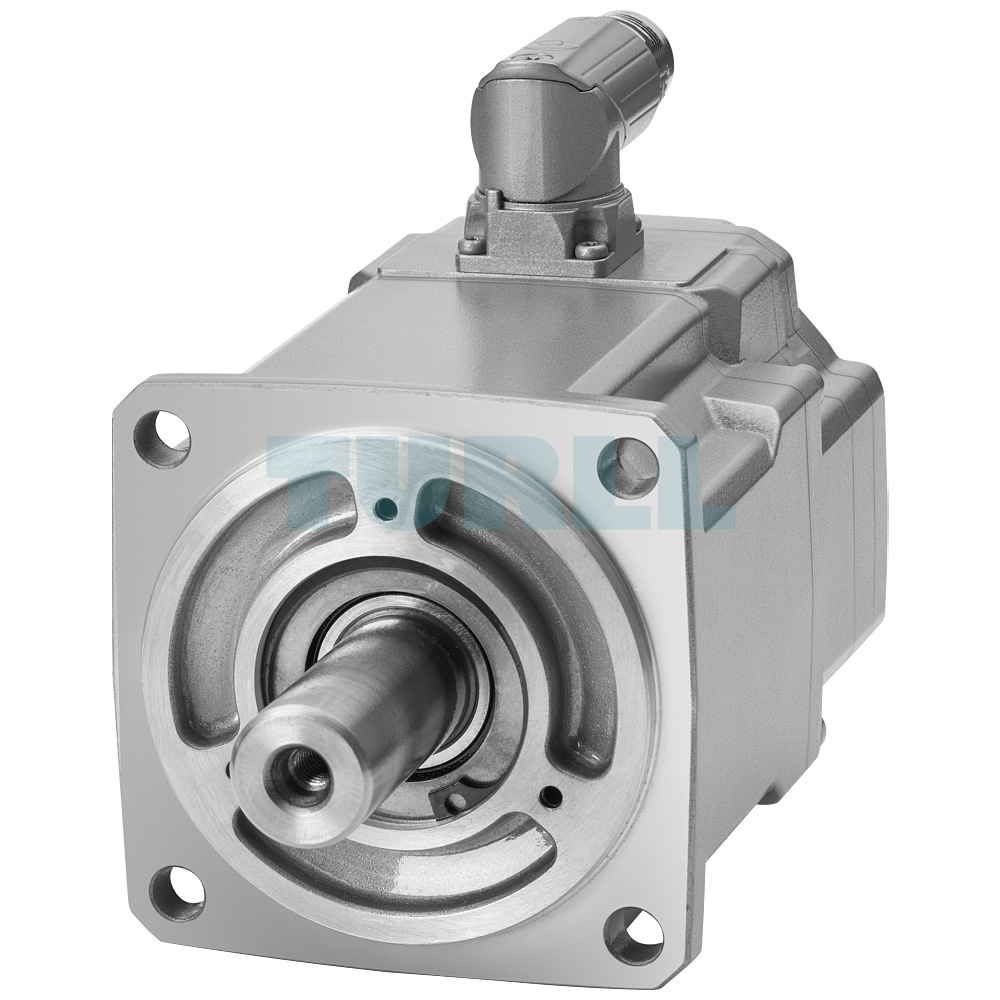

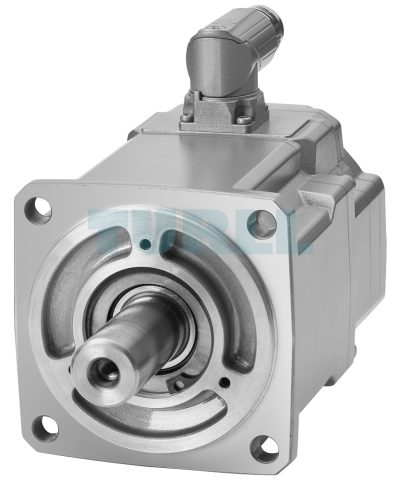

1FK2104-4AF11-1SA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New
$705.65
SIEMENS SIMOTICS S-1FK2 HD servo motor with 0.4 kW power, 1.27 Nm torque, IP65 protection, integrated holding brake, and absolute encoder for precision automation.
1FK2104-4AF11-1SA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

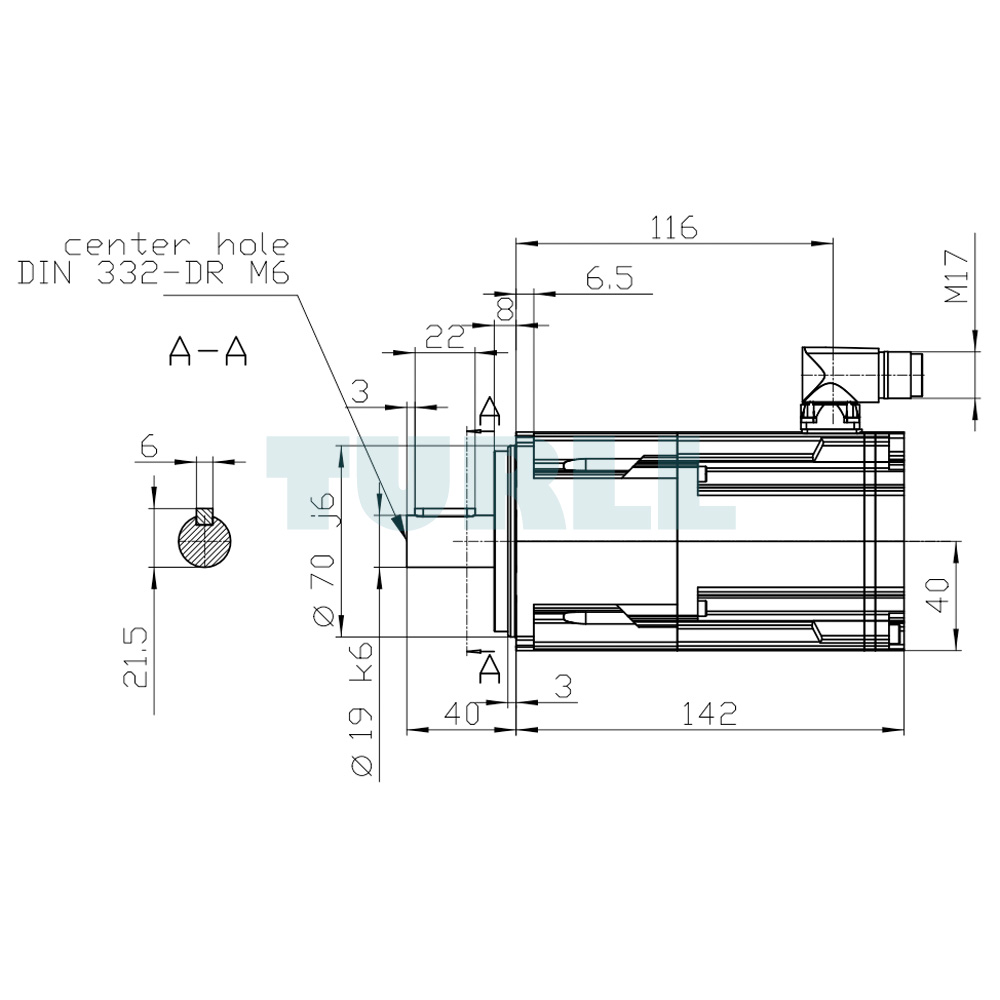

The SIEMENS 1FK2104-4AF11-1SA0 SIMOTICS S-1FK2 HD servo motor is engineered for precision, efficiency, and long-term reliability in industrial automation. This compact synchronous motor delivers a rated torque of 1.27 Nm and a power rating of 0.4 kW at 3000 rpm (380–480 V), as well as 0.2 kW at 1500 rpm (200–240 V). With its integrated holding brake, robust IP65 protection, and absolute encoder single-turn 22-bit (AS22DQC), the unit ensures dependable operation in demanding environments. A D19x40 mm shaft with feather key and rotatable M17 plug interface further enhances its usability and integration flexibility.
The SIMOTICS S-1FK2 family is known for its combination of high dynamic response and compact design, offering excellent performance for a wide range of servo drive applications. This particular model supports precise motion control, making it well-suited for automation systems that require stability, responsiveness, and resilience. Whether applied in packaging machinery, robotics, or material handling, the servo motor provides efficient energy usage and consistent results.
Overview
The SIMOTICS S-1FK2 motors are designed as highly dynamic synchronous servomotors with a focus on compactness and flexibility. They offer excellent overload capacity, high power density, and durable construction. As part of the SINAMICS S210 servo drive system, these motors simplify selection and integration by offering a streamlined range of options. For applications requiring even greater precision, the related 1FT2 motor series provides more finely graded speeds, torque levels, and additional variants.
SIMOTICS S-1FK2 Motor Variants
High Dynamic (HD): Optimized for applications with low inertia and small moving masses, offering rapid response and superior agility.
Compact: Designed for stability and smooth performance with medium to high moving masses, ensuring precise and reliable control.
Download
Product Code: 1FK2104-4AF11-1SA0
More Siemens products at Turll.com
| Weight | 2.9 kg |
|---|---|
| Dimensions | 452 × 250 × 267 mm |
