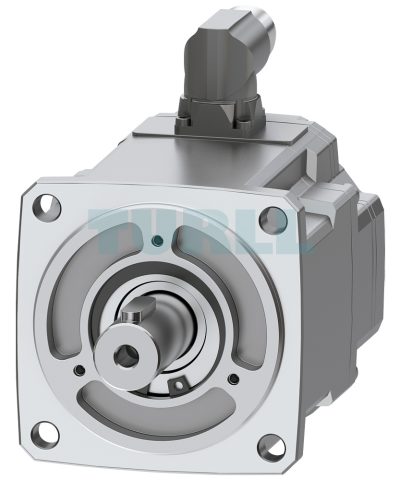

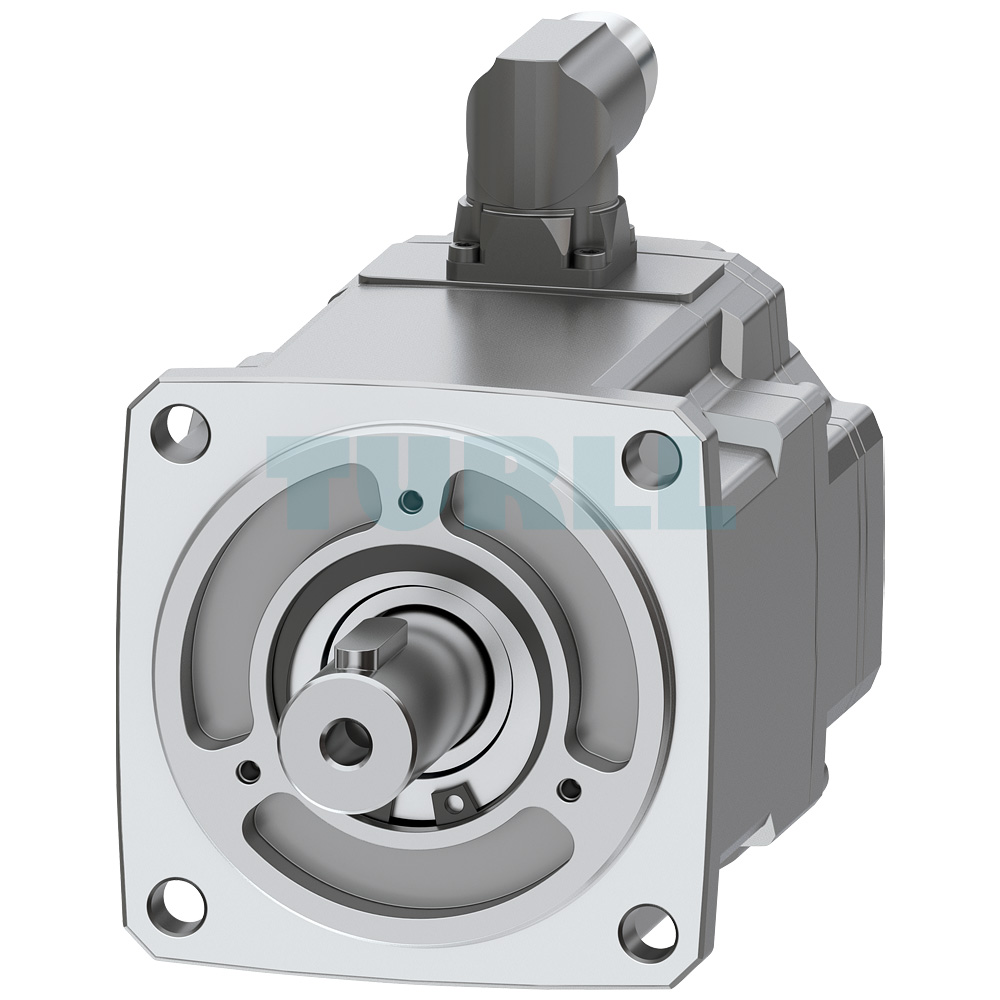

1FK2104-4AK01-1SA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New
$568.94
SIEMENS SIMOTICS S-1FK2 servo motor with 1.27 Nm torque, high dynamic response, compact design, IP65 protection, and integrated absolute encoder.
1FK2104-4AK01-1SA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New
The SIEMENS 1FK2104-4AK01-1SA0 is part of the SIMOTICS S-1FK2 High Dynamic series, designed to deliver precision, reliability, and durability in demanding automation environments. This servo motor provides a continuous torque of 1.27 Nm, with rated power of 0.6 kW at 6000 rpm (380–480 V) and 0.4 kW at 3000 rpm (200–240 V). Engineered with IP65 protection, a D19x40 mm shaft with feather key, and a single-turn 22-bit absolute encoder (AS22DQC), it ensures robust performance even under challenging industrial conditions. The OCC interface and rotatable M17 plug make integration simple, flexible, and efficient.
The SIMOTICS S-1FK2 range is renowned for compact construction, high power density, and outstanding overload capacity. These motors are well-suited for applications where dynamic response and precision control are critical. As part of the SINAMICS S210 servo drive system, this motor combines with state-of-the-art drive technology to provide a scalable, future-proof automation solution. Whether used in packaging machinery, robotics, material handling, or motion control, the motor guarantees consistent output and long service life.
Overview
The SIMOTICS S-1FK2 series covers both compact and high-dynamic variants. Compact models are optimized for stable control of medium to heavy loads with a balanced inertia ratio, while the high-dynamic models excel in applications requiring extremely fast response times and low-inertia configurations. With a streamlined range of variants, users benefit from simplified selection and efficient system design.
Additionally, the portfolio is extended by the SIMOTICS S-1FT2 motors, which provide finer speed grading, additional torque ranges, and greater customization options. Together, these series address a wide spectrum of servo drive requirements, ensuring adaptability to diverse industrial challenges.
Download
Product Code: 1FK2104-4AK01-1SA0
More Siemens products at Turll.com
| Weight | 2.05 kg |
|---|---|
| Dimensions | 452 × 250 × 267 mm |
