1FK2104-5AF00-1SA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

1FK2104-5AF00-1SA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

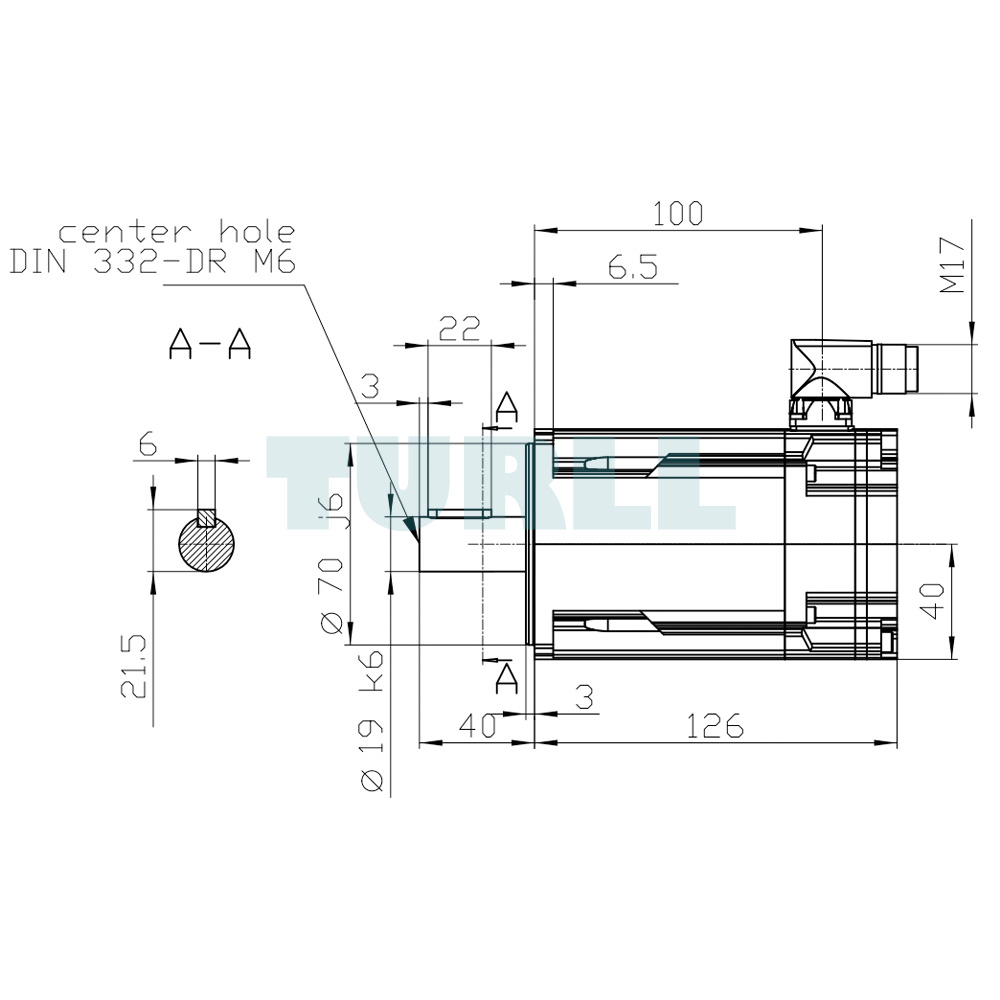

The SIEMENS 1FK2104-5AF00-1SA0 SIMOTICS S-1FK2 servo motor is a high-performance synchronous motor designed to deliver precision, power, and reliability for advanced automation systems. With a rated torque of 2.4 Nm and power output of 0.75 kW at 3000 rpm (380–480 V) or 0.375 kW at 1500 rpm (200–240 V), this compact motor provides outstanding flexibility across a wide voltage range. The robust build includes an IP64 degree of protection, ensuring reliable operation even in demanding environments. A shaft dimension of 19x40 mm with feather key enhances mechanical stability, while the integrated 22-bit single-turn absolute encoder (AS22DQC) ensures precise feedback and control.

This motor is equipped with a rotatable OCC interface and M17 plug, making installation and integration straightforward. The SIMOTICS S-1FK2 series is optimized for pairing with the SINAMICS S210 servo drive system, creating a seamless solution for industrial applications that require high dynamic response and precise motion control. Typical use cases include robotics, packaging machinery, handling systems, and machine tools, where accuracy, compact size, and durability are essential.

Overview

The SIMOTICS S-1FK2 product family represents compact, high-density servo motors with excellent overload capability and dynamic characteristics. With simplified configuration options, these motors streamline system selection and integration. As a core part of the SIEMENS motion portfolio, they are engineered to meet the challenges of modern servo drive technology.

The extended 1FT2 range complements the 1FK2 portfolio by offering more torque classes, finer speed options, and additional design variants. This flexibility enables industries to address even more demanding applications or environments while maintaining precise, efficient, and reliable performance.

Download

Data Sheet (PDF)

Product Code: 1FK2104-5AF00-1SA0
