1FK2104-5AF10-0MB0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New
$885.24
SIEMENS SIMOTICS S-1FK2 servo motor with 2.4 Nm torque, 0.75 kW power, IP64 protection, multiturn absolute encoder AM22DQC, and DRIVE-CLiQ connectivity.
1FK2104-5AF10-0MB0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

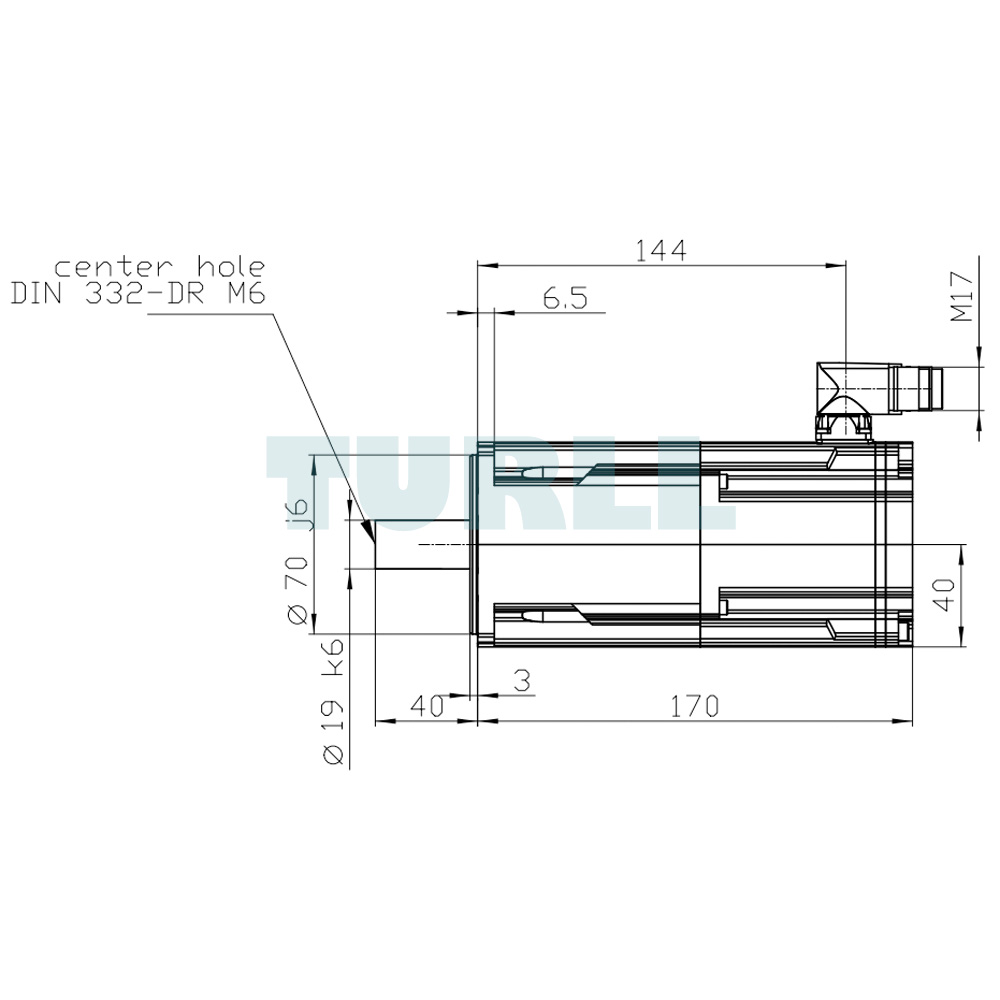

The SIEMENS 1FK2104-5AF10-0MB0 SIMOTICS S-1FK2 High Dynamic servo motor is designed to deliver precision, performance, and flexibility across a wide range of industrial automation tasks. With a rated torque of 2.4 Nm and power output of 0.75 kW at 3000 rpm (380–480 V), or 0.375 kW at 1500 rpm (200–240 V), this motor provides reliable operation under varying load and voltage conditions. The integrated holding brake, IP64 degree of protection, and cylindrical shaft with 19×40 mm dimensions ensure durability and suitability for demanding environments.
Equipped with a multiturn absolute encoder (22-bit + 12-bit, encoder AM22DQC) and DRIVE-CLiQ M17 connectivity, the motor ensures high-resolution feedback, efficient communication, and seamless integration with SINAMICS drive systems. Its compact size, high power density, and flexible connection options make it a preferred choice for machine tools, robotics, packaging, and material handling applications where dynamic performance and long-term reliability are required.
Overview
The SIMOTICS S-1FK2 motor series represents a new generation of synchronous servo motors offering dynamic response, overload capacity, and simplified configuration. These motors are optimized for the SINAMICS S210 servo drive system, making them the core solution for modern drive technology. With options tailored for both high-dynamic and compact applications, the 1FK2 family delivers precise and consistent results.
For applications demanding even greater flexibility, the extended 1FT2 motor portfolio adds finer speed gradations, higher torque ratings, and additional configurations. Together, the 1FK2 and 1FT2 product ranges provide scalable solutions capable of mastering both standard and highly demanding automation challenges.
Download
Product Code: 1FK2104-5AF10-0MB0
More Siemens products at Turll.com
| Weight | 3.7 kg |
|---|---|
| Dimensions | 452 × 250 × 267 mm |
