1FK2104-5AK00-0MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New
$748.54
SIEMENS SIMOTICS S-1FK2 servo motor with 2.4 Nm torque, multiturn 22-bit + 12-bit encoder AM22DQC, OCC interface, and IP64 protection.
1FK2104-5AK00-0MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

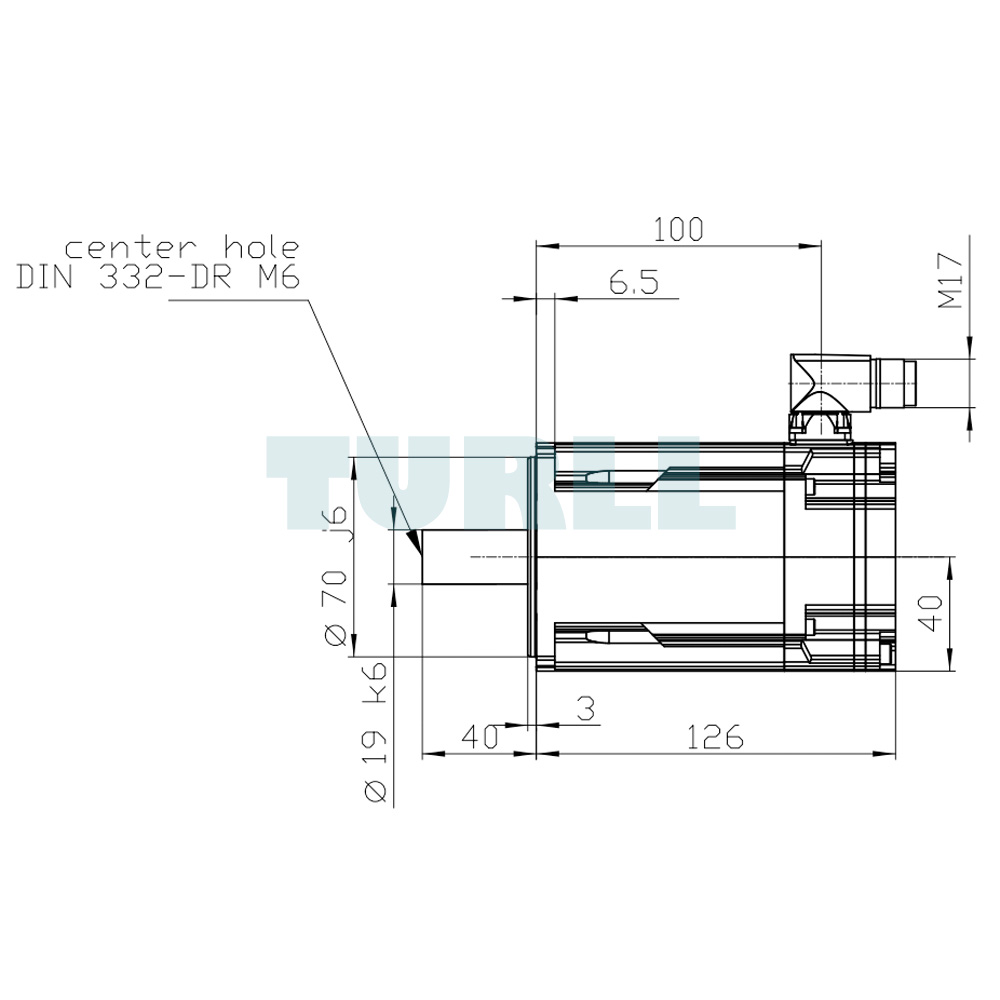

The SIEMENS 1FK2104-5AK00-0MA0 SIMOTICS S-1FK2 High Dynamic servo motor is a powerful and compact synchronous motor designed for precision, stability, and high performance in industrial automation. Delivering a rated torque of 2.4 Nm, this unit provides 1.07 kW at 6000 rpm (380–480 V) and 0.75 kW at 3000 rpm (200–240 V), making it suitable for diverse applications across multiple voltage ranges. With its cylindrical shaft (D19x40 mm), IP64 degree of protection, and advanced encoder system, this servo motor ensures durability, reliability, and accurate motion control even in demanding conditions.
Equipped with a multiturn 22-bit + 12-bit absolute encoder (AM22DQC), the motor delivers high-resolution positioning feedback for precise synchronization. Its OCC interface with rotatable M17 plug further enhances installation flexibility and connectivity. The robust design supports stable operation in machine tools, robotics, material handling, and packaging machinery, where precision and responsiveness are critical to productivity.
Overview
The SIMOTICS S-1FK2 portfolio represents a new generation of compact, high-dynamic synchronous motors optimized for the SINAMICS S210 servo drive system. Known for excellent power density, overload capability, and ease of integration, the series addresses key challenges in modern servo drive technology. The limited number of variants simplifies configuration and selection without sacrificing performance.
For extended requirements, the 1FT2 motor range expands this portfolio by offering additional torque classes, more finely graded speed levels, and a wide range of options. Together, SIMOTICS S-1FK2 and 1FT2 ensure precise motion control and efficient performance, whether for dynamic applications with low inertia or stable control with medium to high mass systems. Their versatility makes them an essential solution for demanding industrial automation tasks.
Download
Product Code: 1FK2104-5AK00-0MA0
More Siemens products at Turll.com
| Weight | 2.85 kg |
|---|---|
| Dimensions | 452 × 250 × 267 mm |
