1FK2104-5AK00-1MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

1FK2104-5AK00-1MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

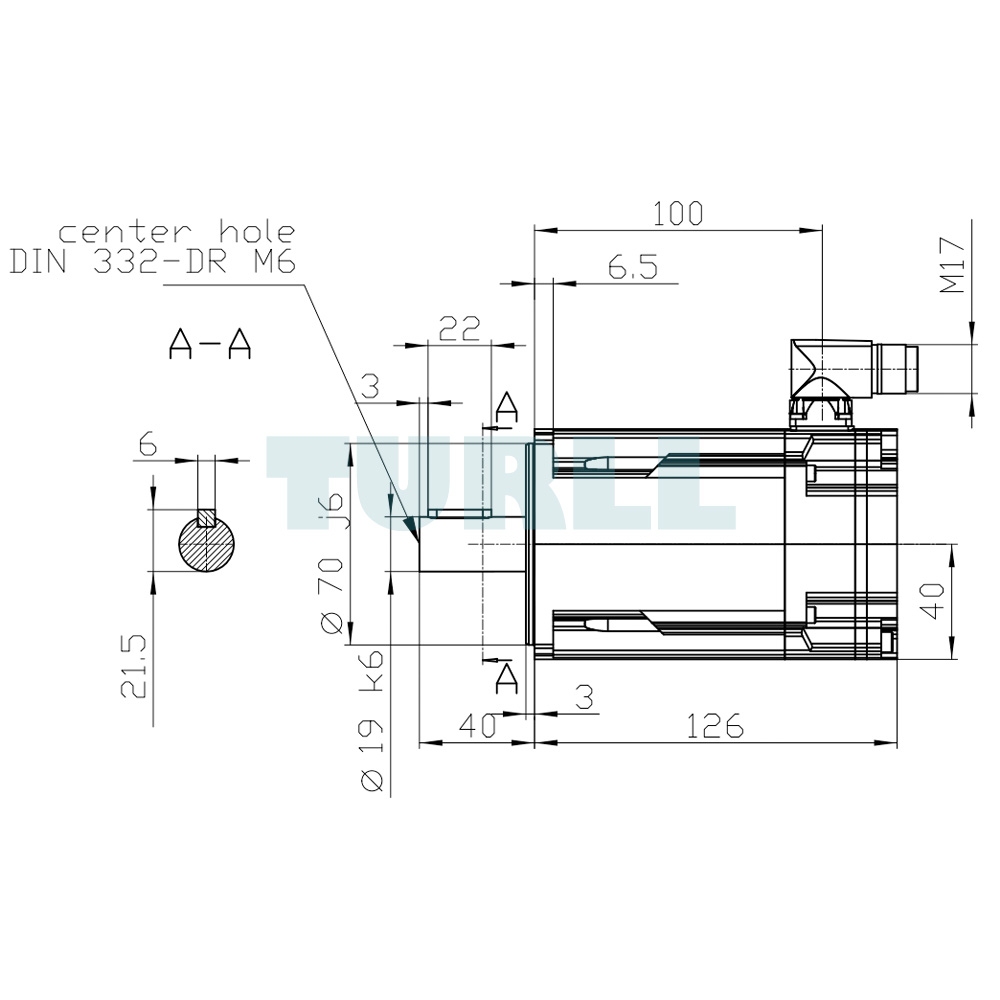

The SIEMENS 1FK2104-5AK00-1MA0 SIMOTICS S-1FK2 High Dynamic servo motor is designed for maximum precision, reliability, and efficiency in modern industrial automation. Delivering a rated torque of 2.4 Nm and an output of 1.07 kW at 6000 rpm with a 380–480 V supply, or 0.75 kW at 3000 rpm with a 200–240 V supply, this synchronous motor combines high power density with compact construction. Its IP64 protection rating ensures dependable performance in challenging environments, while the 19x40 mm shaft with feather key provides mechanical strength and operational stability.

This model integrates a high-resolution 22-bit absolute encoder combined with a 12-bit multiturn encoder (AM22DQC), offering precise position feedback for complex motion control tasks. Featuring a flexible OCC interface and rotatable M17 connector, the motor provides easy installation and smooth integration into automation systems. These capabilities make it ideal for machine tools, packaging machinery, robotics, and advanced motion applications requiring both speed and accuracy.

Overview

The SIMOTICS S-1FK2 servo motors are engineered to deliver high dynamic response, overload capacity, and a wide performance spectrum. As the foundation of the SINAMICS S210 servo drive system, they are built to handle applications that demand rapid acceleration, controlled motion, and stable operation. The compact structure, paired with efficient cooling, makes them suitable for environments with limited space but high performance needs.

For even greater flexibility, the extended SIMOTICS 1FT2 family complements the 1FK2 portfolio with additional torque levels and refined speed variations, allowing industries to meet highly specialized requirements. Together, these motor ranges represent Siemens’ commitment to scalable, future-ready drive solutions for automation and manufacturing sectors worldwide.

Download

Data Sheet (PDF)

Product Code: 1FK2104-5AK00-1MA0
