1FK2104-5AK01-0SA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

1FK2104-5AK01-0SA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

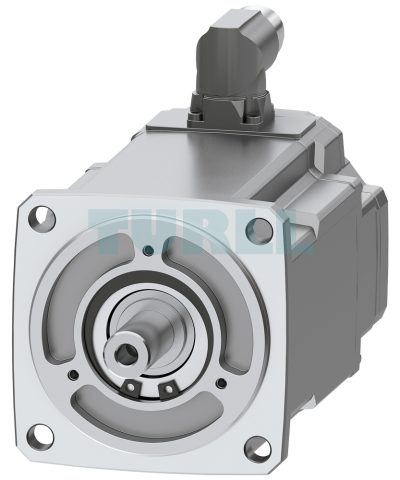

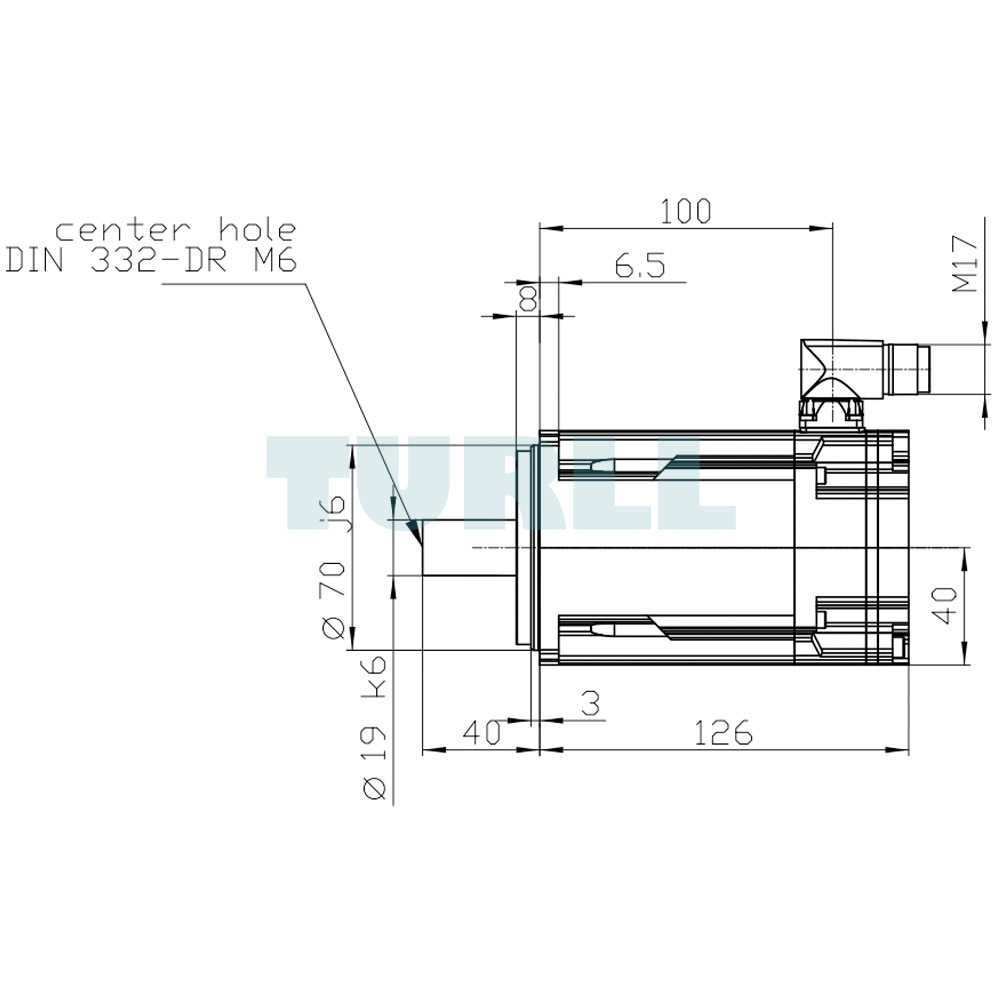

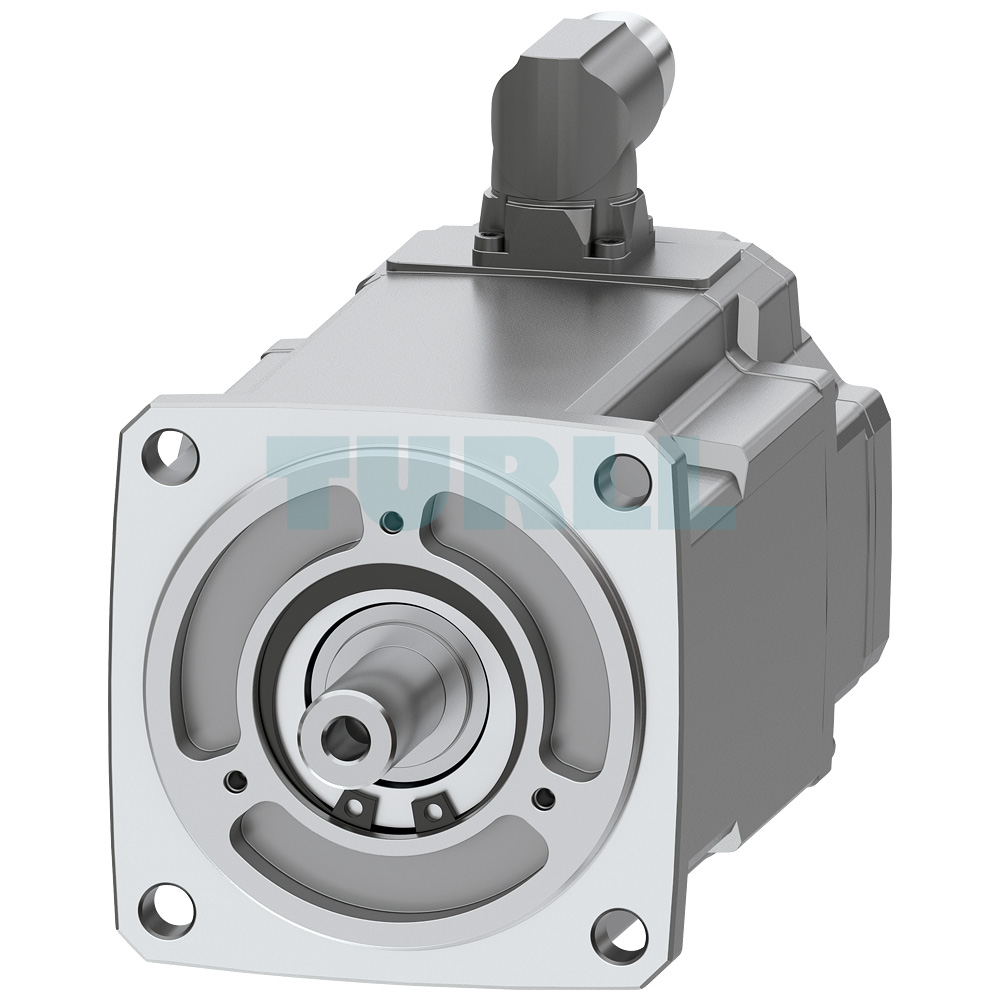

The SIEMENS 1FK2104-5AK01-0SA0 SIMOTICS S-1FK2 High Dynamic servo motor is a compact and high-performance synchronous motor designed to deliver superior motion control across a wide range of industrial applications. With a rated torque of 2.4 Nm and power output of 1.07 kW at 6000 rpm (380–480 V), or 0.75 kW at 3000 rpm (200–240 V), this unit offers flexibility for different system requirements. The motor is engineered with IP65 protection, ensuring resilience against dust and water ingress, while the cylindrical shaft D19x40 mm adds mechanical strength and reliability in heavy-duty usage.

Equipped with a 22-bit absolute encoder (AS22DQC) for precise positioning, an OCC interface, and a rotatable plug size M17, the servo motor integrates seamlessly into advanced automation systems. Its design emphasizes efficiency, responsiveness, and precision, making it well-suited for robotics, packaging, machine tools, and conveyor systems where stable control and rapid acceleration are crucial.

Overview

The SIMOTICS S-1FK2 motor family is known for high power density, overload capability, and simplified selection, making it a reliable solution for modern automation. As the foundation of the SINAMICS S210 servo drive system, these motors address the challenges of dynamic drive technology with ease.

For more demanding requirements, the extended SIMOTICS 1FT2 range provides additional torque levels, finer speed options, and wider configurations to handle complex industrial needs. Together, the 1FK2 and 1FT2 series enable flexible, scalable, and precise solutions for diverse automation environments.

Download

Data Sheet (PDF)

Product Code: 1FK2104-5AK01-0SA0
