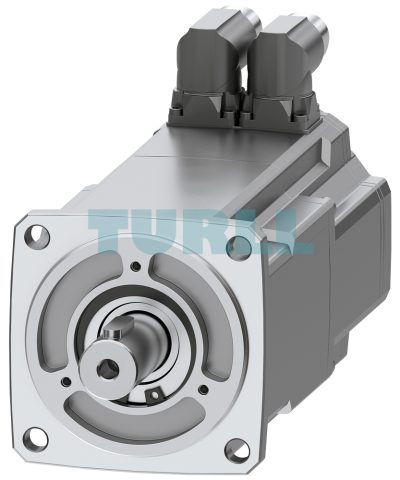

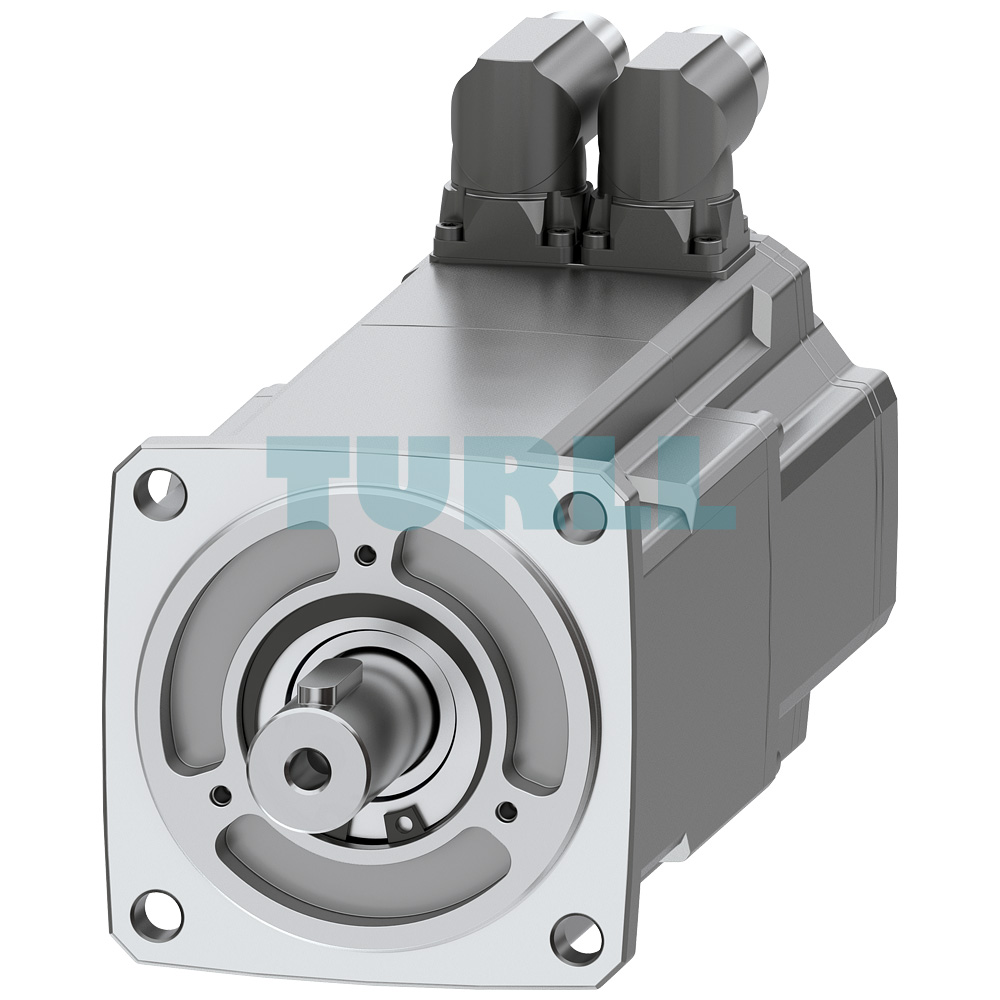

1FK2104-5AK10-1MB0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New
$885.24
SIEMENS SIMOTICS S-1FK2 High Dynamic servo motor with 2.4 Nm torque, 1.07 kW output, IP64 protection, multiturn encoder AM22DQC, and DRIVE-CLiQ connectivity.
1FK2104-5AK10-1MB0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

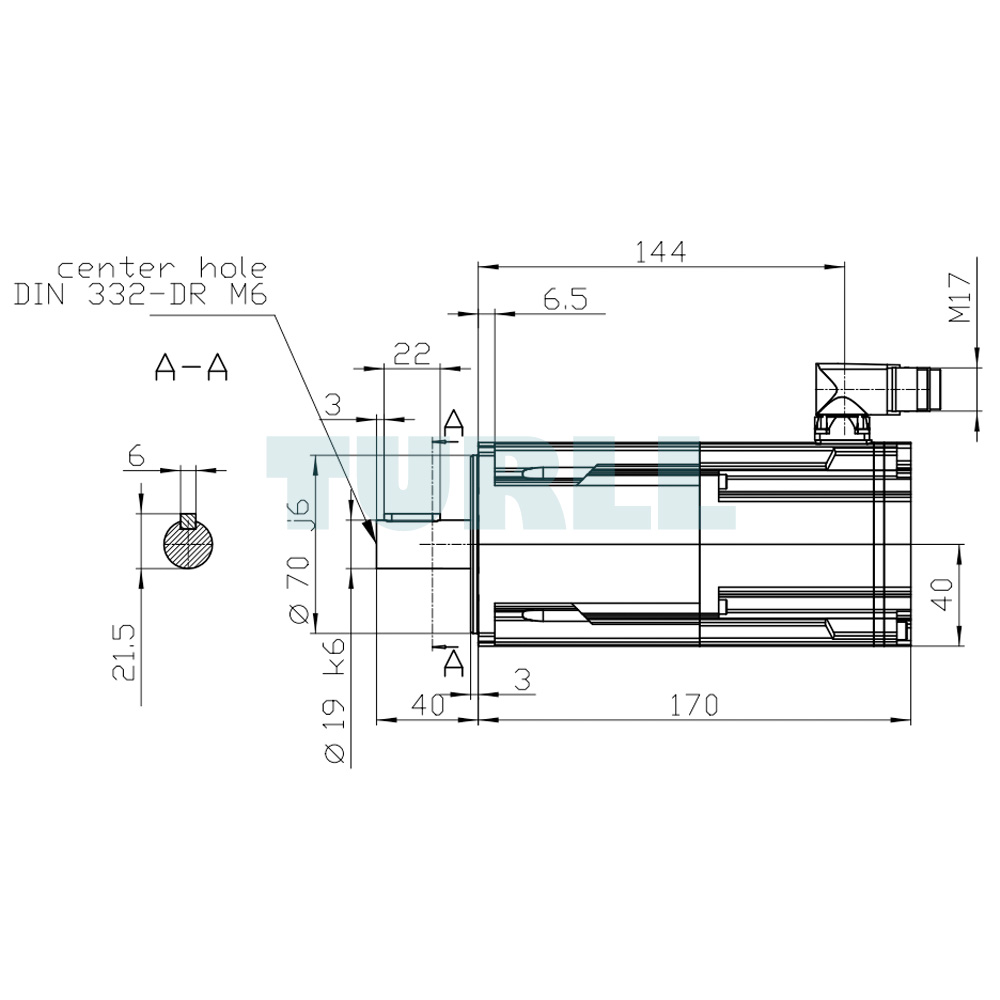

The SIEMENS 1FK2104-5AK10-1MB0 SIMOTICS S-1FK2 High Dynamic servo motor is designed to deliver precision, efficiency, and flexibility in modern industrial automation. With a rated torque of 2.4 Nm and a power output of 1.07 kW at 6000 rpm (380–480 V) or 0.75 kW at 3000 rpm (200–240 V), this synchronous motor provides reliable performance across multiple operating conditions. Equipped with an integrated holding brake, IP64 protection, and a durable 19×40 mm shaft with a feather key, it ensures long-term stability and robust operation even in demanding environments.
The motor incorporates an absolute encoder with 22-bit single-turn and 12-bit multiturn resolution (AM22DQC), combined with a DRIVE-CLiQ M17 interface for precise feedback and seamless communication with SINAMICS drive systems. Its compact structure and high power density make it an excellent choice for machine tools, robotics, packaging systems, and general automation that require dynamic and accurate motion control.
Overview
The SIMOTICS S-1FK2 family is well recognized for its combination of compact size, overload capacity, and versatility. The 1FK2 series forms the foundation of the SINAMICS S210 servo drive system, meeting the requirements of applications ranging from fast positioning with low inertia to stable motion with medium inertia. For more advanced performance, the 1FT2 portfolio expands this range, offering additional torque levels and finely graded speed options for specialized industrial needs.
Together, these product lines create scalable solutions that allow engineers and system integrators to address both straightforward and highly complex drive technology challenges. The result is a motor family that combines dynamic response, reliability, and adaptability for industries moving toward smarter automation.
Download
Product Code: 1FK2104-5AK10-1MB0
More Siemens products at Turll.com
| Weight | 3.7 kg |
|---|---|
| Dimensions | 452 × 250 × 267 mm |
