1FK2104-6AF01-0MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

1FK2104-6AF01-0MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

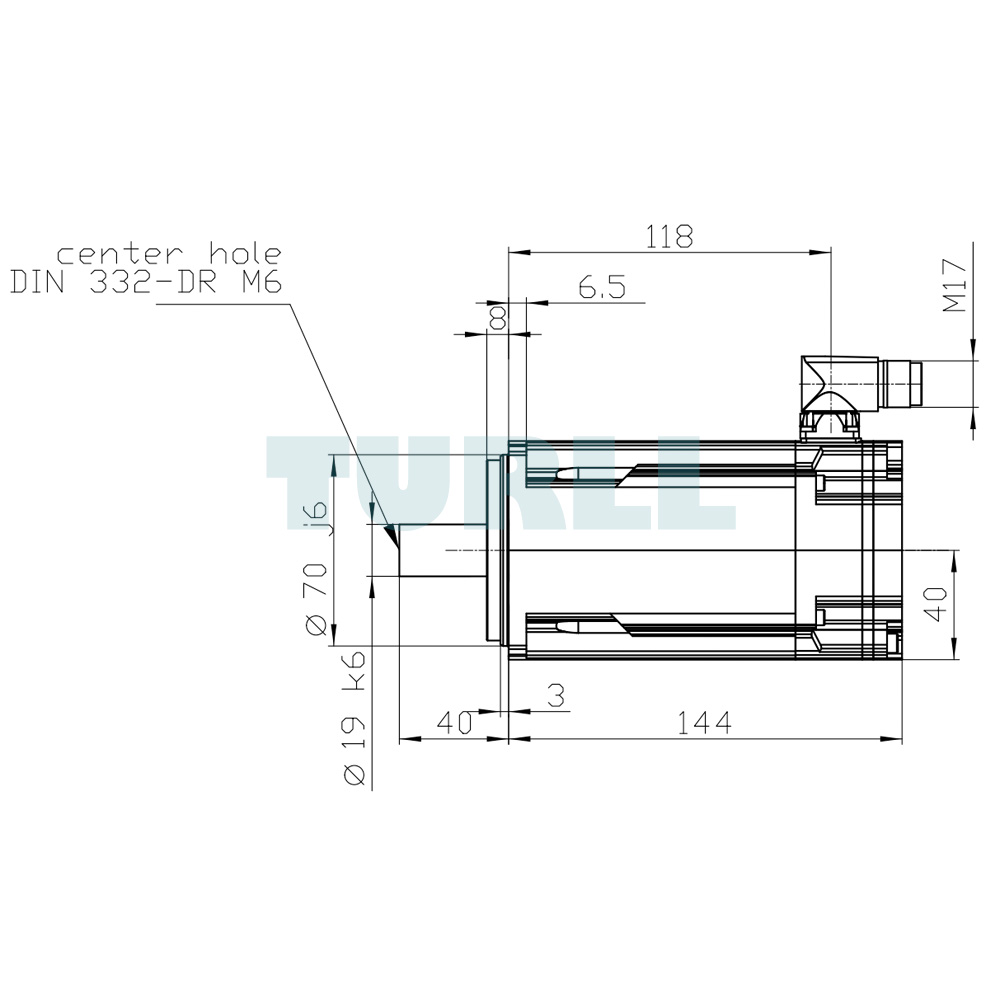

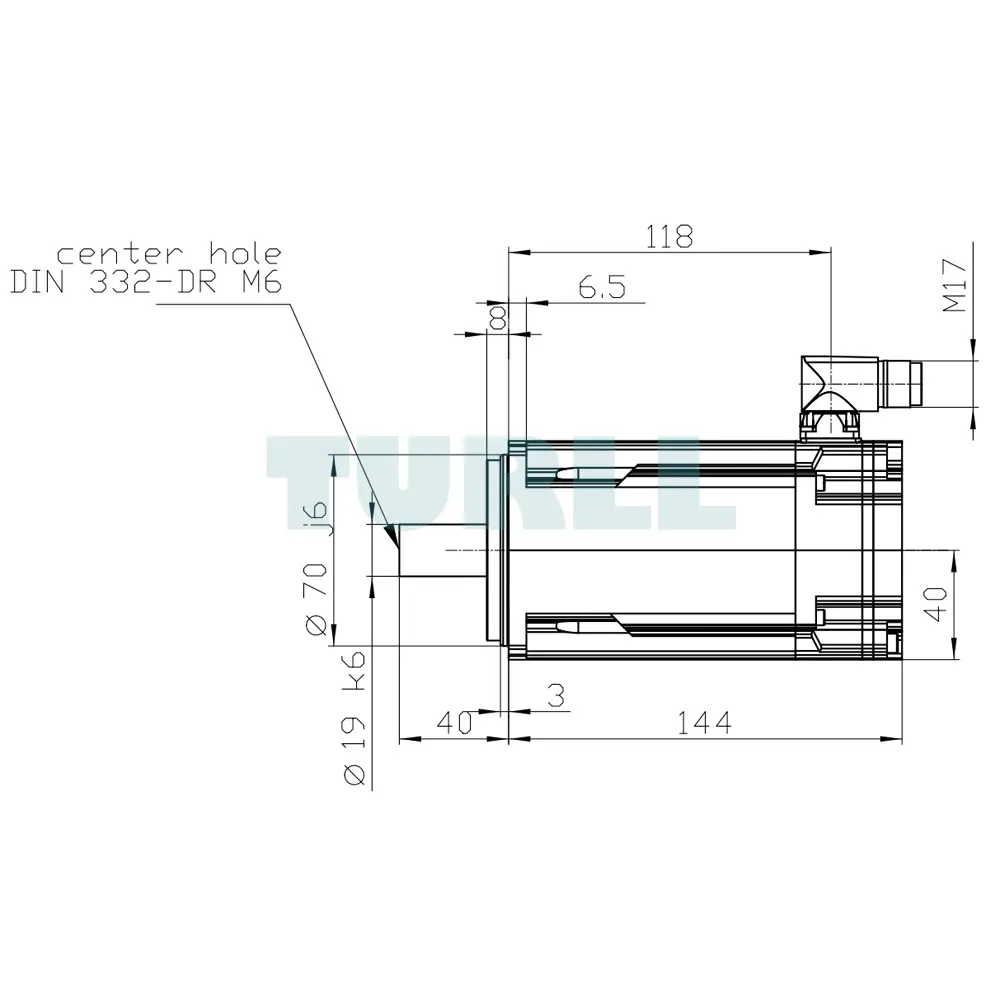

The SIEMENS 1FK2104-6AF01-0MA0 SIMOTICS S-1FK2 High Dynamic servo motor is a high-performance synchronous motor designed to meet the requirements of modern automation and motion control. With a rated torque of 3.2 Nm and power output of 1 kW at 3000 rpm (380–480 V) or 0.5 kW at 1500 rpm (200–240 V), this motor combines flexibility and precision for diverse industrial environments. Built to IP65 protection standards and featuring a cylindrical shaft of 19×40 mm, it provides excellent durability and robust operation even in demanding conditions.

Equipped with an advanced 22-bit absolute encoder with 12-bit multiturn functionality (AM22DQC), the unit ensures high-resolution feedback and precise positioning. The OCC interface with rotatable M17 connector makes installation adaptable and straightforward. This versatility makes it ideal for applications such as robotics, packaging, material handling, and high-speed machine tools where reliability and fast response are critical.

Overview

The SIMOTICS S-1FK2 motor family is known for compact design, high dynamic response, and strong overload capability. These motors serve as the foundation of the SINAMICS S210 servo drive system, delivering reliable performance across a wide variety of automation tasks. With their balance of power density and efficiency, they provide an optimal solution for industries requiring consistent motion precision.

For extended performance needs, the 1FT2 range expands the SIMOTICS portfolio, offering additional torque levels, finely graded speeds, and more configuration options. This combination ensures that industries can meet both standard and demanding drive technology challenges with confidence.

Download

Data Sheet (PDF)

Product Code: 1FK2104-6AF01-0MA0
