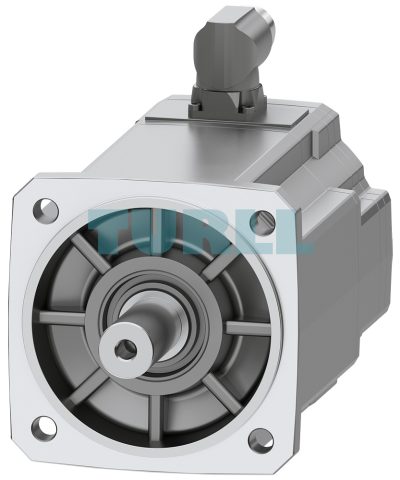

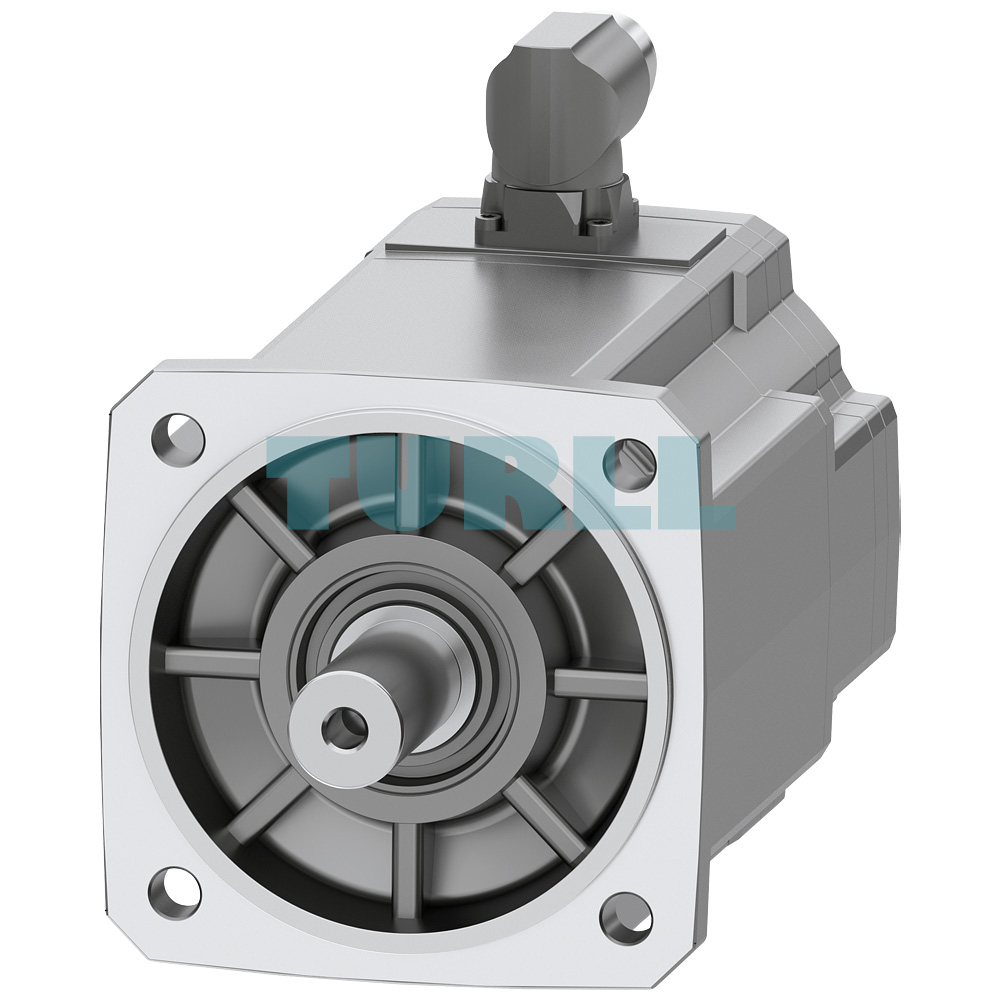

1FK2106-6AF10-0MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New
$1,469.57
The SIEMENS 1FK2106-6AF10-0MA0 SIMOTICS S-1FK2 servo motor delivers 16 Nm torque, 3.3 kW at 3000 rpm, compact design, IP64 protection, and high dynamic performance with multiturn encoder and flexible connectivity.
1FK2106-6AF10-0MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New
The SIEMENS SIMOTICS S-1FK2 servo motor, model 1FK2106-6AF10-0MA0, is a high-performance synchronous motor designed for industrial applications that demand precision, power, and reliability. With a rated torque of 16 Nm and power output of 3.3 kW at 3000 rpm for 380–480 V operation, it delivers consistent efficiency even under demanding loads. At 1500 rpm with 200–240 V supply, it provides 2.15 kW of stable performance, making it highly adaptable to different power environments. This unit includes a holding brake, protection class IP64, and a durable cylindrical shaft measuring 24×50 mm, ensuring both safety and longevity in real-world operation.
The motor features an advanced 22-bit absolute encoder with 12-bit multiturn functionality (AM22DQC), offering excellent positioning accuracy and smooth motion control. With OCC interface and a rotatable M23 plug connector, integration into automation systems is fast and straightforward. This makes it an ideal solution for industries where high dynamics, flexibility, and accuracy are essential.
Overview
The SIMOTICS S-1FK2 family is recognized for its compact construction and exceptional power density. These synchronous motors are widely used in servo drive technology because of their outstanding overload capacity, robust construction, and simplified configuration. The design reduces complexity by offering standardized variants, helping engineers choose the right motor for specific applications without unnecessary complications.
The 1FK2 motors form the backbone of the SINAMICS S210 servo drive system, enabling seamless automation integration. For even greater flexibility, the extended 1FT2 motor portfolio builds on the 1FK2 concept by offering finer speed graduations, more torque levels, and additional variations, making it possible to address highly demanding environments with precision. Whether the application requires dynamic movements with low inertia or precise control with higher load inertia, the SIMOTICS range ensures optimum performance.
Product Code: 1FK2106-6AF10-0MA0
More Siemens products at Turll.com
| Weight | 13 kg |
|---|---|
| Dimensions | 460 × 265 × 285 mm |
