1FK2204-5AK10-0SA0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

1FK2204-5AK10-0SA0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

The SIEMENS 1FK2204-5AK10-0SA0 SIMOTICS S-1FK2 CT servo motor is an exclusive, high-performance solution designed for demanding industrial applications. This compact and highly dynamic synchronous motor delivers exceptional precision and stability while offering superior power density and overload capabilities. Engineered to integrate seamlessly with the SINAMICS S210 servo drive system, the 1FK2 servo motor ensures reliable performance in a wide range of automation and motion control tasks.

Featuring a rated torque of 2.4 Nm and power outputs of 0.57 kW at 6000 rpm (380–480 V) and 0.75 kW at 3000 rpm (200–240 V), the 1FK2204-5AK10-0SA0 provides precise motion control even in demanding environments. Its integrated holding brake, absolute encoder single-turn 22-bit (AS22DQC), and OCC interface deliver accurate position feedback and safe braking functions. The cylindrical shaft D19x40mm and rotatable M17 plug size ensure flexible installation in compact spaces while maintaining high mechanical reliability.

SIMOTICS S‑1FK2 motors are renowned for their high dynamic response, enabled by low rotor inertia, making them ideal for applications with small moved masses. Their compact design allows precise and stable control for medium to high moved masses, offering engineers versatile options for optimizing automation processes. The motor family includes limited variants for simplicity in selection, as well as advanced options to address complex tasks efficiently.

The 1FK2 series represents the core of SIEMENS servo drive solutions, while the 1FT2 series extends the product portfolio with additional torque levels, rated speeds, and variations for more challenging environments. With high protection class IP64, this servo motor is suitable for harsh industrial conditions, ensuring long-term durability and reliable operation in diverse applications.

Overview

• Compact and highly dynamic synchronous servo motor
• Rated torque: 2.4 Nm, power: 0.57 kW at 6000 rpm, 0.75 kW at 3000 rpm
• Integrated holding brake for safe stopping
• Absolute encoder single-turn 22-bit (AS22DQC) with OCC interface

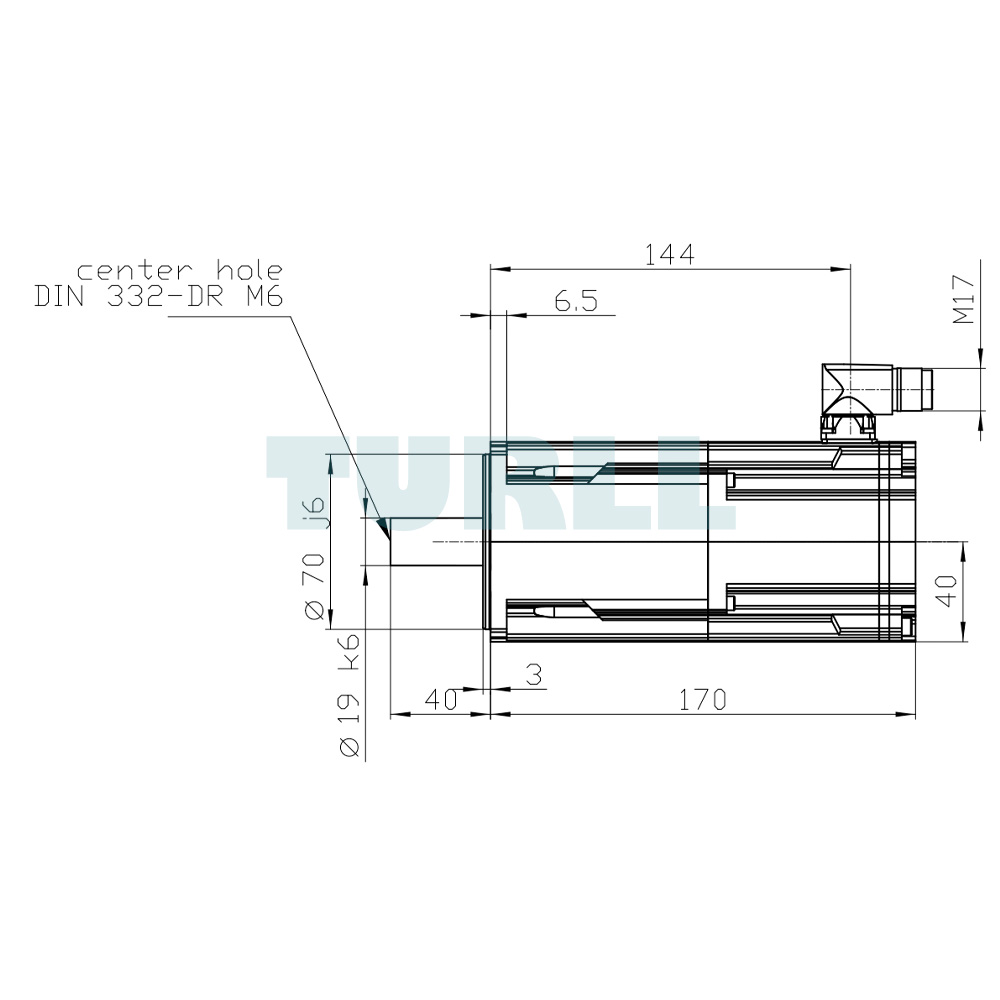

• Cylindrical shaft D19x40mm, M17 rotatable plug
• High power density, low inertia for precise motion control
• Designed for SINAMICS S210 servo drive system integration
• Protection class: IP64 for harsh environments

Download

Data Sheet (PDF)

Product Code: 1FK2204-5AK10-0SA0
