1FK2204-5AK11-0SA0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

1FK2204-5AK11-0SA0 SIEMENS Exclusive SIMOTICS S-1FK2 CT Servo Motor Original Brand New

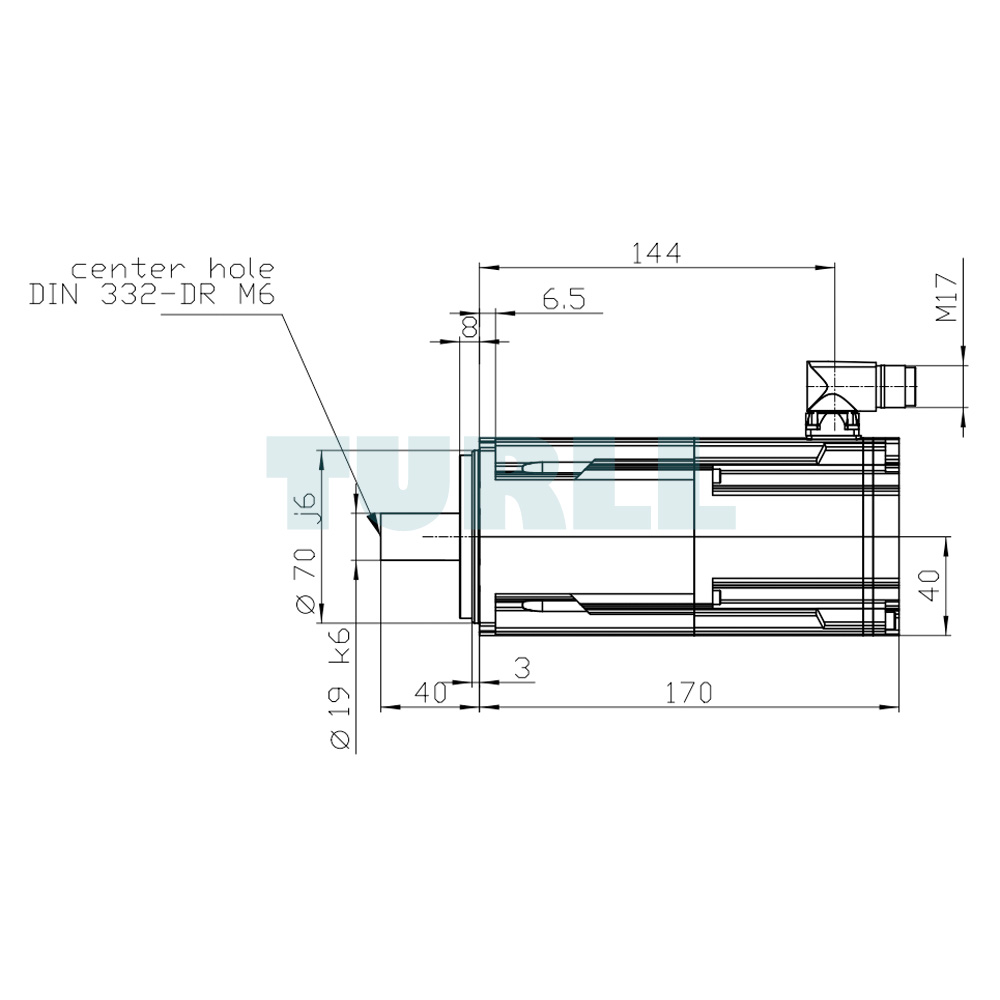

The SIEMENS SIMOTICS S-1FK2 CT servo motor with product code 1FK2204-5AK11-0SA0 is a high-quality synchronous motor engineered to deliver precision, durability, and performance in demanding automation environments. This motor is built for maximum flexibility, offering rated power of 0.57 kW at 6000 rpm (380–480 V) and 0.75 kW at 3000 rpm (200–240 V), with a nominal torque of 2.4 Nm. Designed with a cylindrical shaft (D19x40mm) and equipped with an integrated holding brake, it ensures reliable operation even in safety-critical applications. With an IP65 degree of protection, the motor provides resilience against dust and water, making it suitable for tough industrial conditions.

In addition to its robust mechanical design, the motor features a 22-bit single-turn absolute encoder (AS22DQC) for precise position feedback, ensuring outstanding control accuracy in motion systems. The OCC interface and rotatable M17 plug connection enhance installation convenience and adaptability in diverse automation setups. These characteristics make it an excellent solution for integration into modern servo drive systems.

Overview

The SIMOTICS S-1FK2 motor series is known for its compact structure and high dynamic response, making it ideal for applications requiring speed, precision, and efficiency. By combining compact dimensions with strong overload capacity, these motors are widely used in machinery and production lines where reliability and performance are non-negotiable. The portfolio is designed to simplify the selection process, offering only essential variants without overwhelming complexity, thereby streamlining integration into existing drive solutions.

Within this family, the motors serve as the backbone of the SINAMICS S210 servo drive system, ensuring smooth interaction with advanced automation platforms. For customers seeking even greater flexibility, the 1FT2 motor range extends the offering with additional torque levels and more finely graded speed options, providing solutions for more complex requirements in industrial environments.

SIMOTICS S-1FK2 Motor Variants

• High Dynamic motors – Deliver superior responsiveness with low inertia, best suited for applications with fast cycle times and low moved masses.
• Compact motors – Provide precise and stable control for medium-to-high moved masses with medium inertia, offering an excellent balance between efficiency and robustness.

Download

Data Sheet (PDF)

Product Code: 1FK2204-5AK11-0SA0
