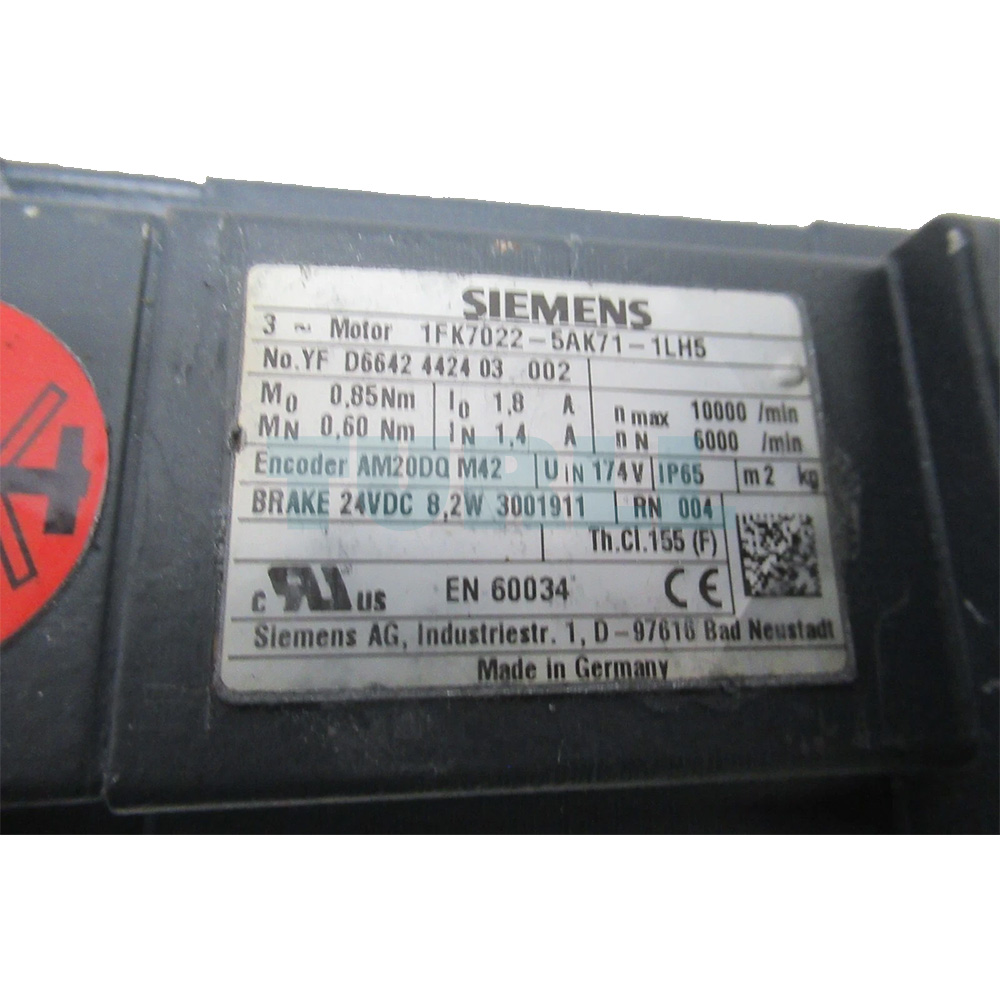

1FK7022-5AK71-1LH5 SIEMENS Exclusive SIMOTICS S-1FK7 Compact Servo Motor Original Brand New

1FK7022-5AK71-1LH5 SIEMENS Exclusive SIMOTICS S-1FK7 Compact Servo Motor Original Brand New

The SIEMENS 1FK7022-5AK71-1LH5 SIMOTICS S-1FK7 Compact servo motor is an advanced synchronous solution engineered for precision, durability, and efficiency in demanding industrial environments. Delivering 0.85 Nm torque, 0.38 kW power, and speeds up to 6000 rpm, this motor offers high dynamic response while maintaining energy efficiency and reliability. The naturally cooled design ensures simple operation without the need for external cooling systems, and the plain shaft with holding brake provides secure motion control. Featuring an absolute encoder (20-bit + 12-bit multi-turn) with DRIVE-CLiQ interface, this motor ensures superior position and speed accuracy, making it ideal for modern automation requirements. With IP65 protection and IP67 flange sealing, it guarantees consistent performance even in harsh conditions.

Compact in design yet powerful in output, the SIMOTICS S-1FK7 motor family is known for high power density and flexibility. The 1FK7022-5AK71-1LH5 is perfectly suited for integration with SINAMICS S120/S220 drive systems, creating a robust automation setup with seamless connectivity and optimized control. This motor provides excellent overload capacity, ensuring stability and dependability during peak operational demands. The 270° rotatable connector allows simplified installation and flexible orientation within control cabinets or machine frames, contributing to reduced downtime and easy maintenance.

Overview

The SIMOTICS S-1FK7 motors are compact permanent-magnet synchronous motors designed for universal use. Their modularity, combined with multiple options for encoders and gearboxes, allows full adaptation to diverse industrial applications. High power density enables space-saving installation while still delivering strong output performance. With integrated encoder systems, users can achieve precise speed and position control. These motors are designed to operate without external cooling, with heat dissipation handled via the motor housing, ensuring efficient and reliable performance over the long term.

Benefits

• Compact design with very high power density for space-saving installation.
• Available in Compact, High Dynamic, and High Inertia variants to suit different applications.
• Enhanced flexibility with multiple encoder and gearbox options.
• Low commissioning effort and robust closed-loop control, even for variable load inertia.
• Durable protection (IP65 housing, IP67 flange) for challenging environments.

Application

• Machine tools and precision machining equipment
• Robots and automated handling systems
• Wood, glass, ceramics, and stone processing
• Packaging, plastics, and textile machinery
• Printing systems and auxiliary drive axes

Product Code: 1FK7022-5AK71-1LH5
