1FK7022-5AK71-1LH5-ZJ03 SIEMENS Exclusive SIMOTICS S-1FK7 Compact Servo Motor Original Brand New

1FK7022-5AK71-1LH5-ZJ03 SIEMENS Exclusive SIMOTICS S-1FK7 Compact Servo Motor Original Brand New

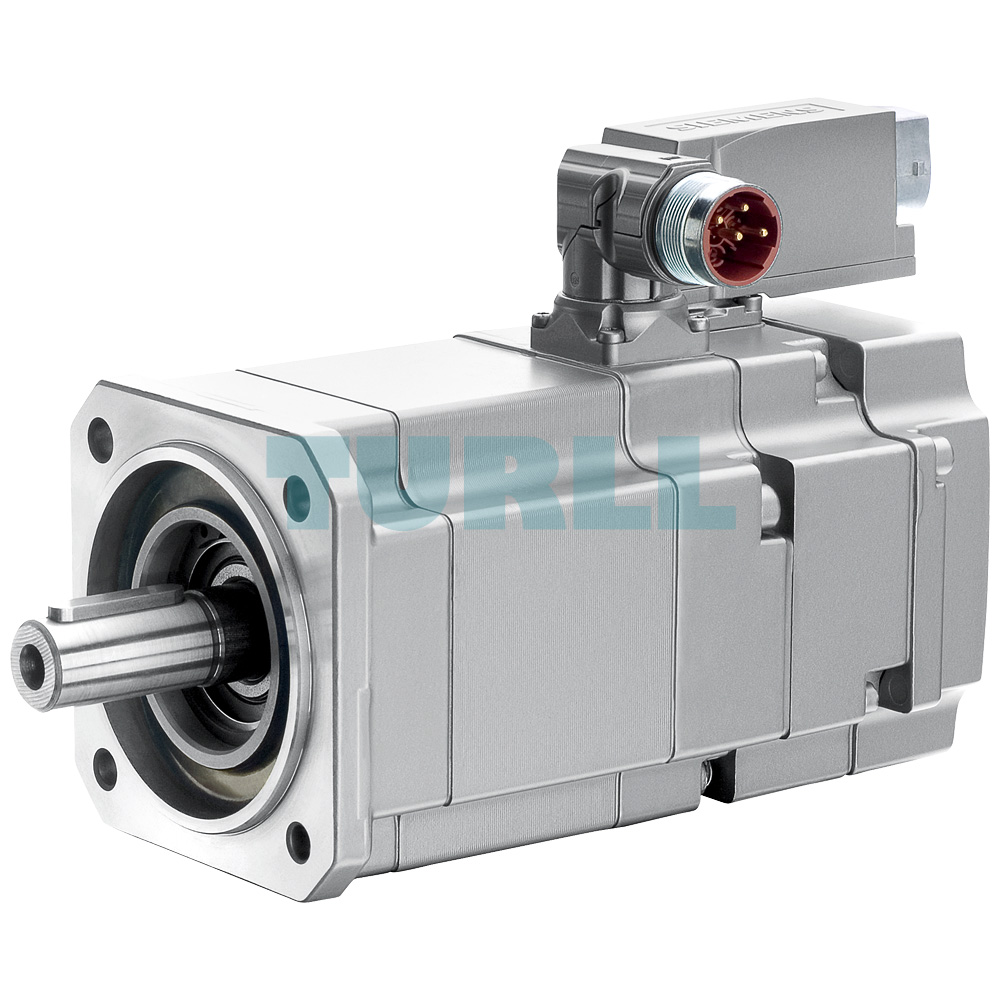

The SIEMENS 1FK7022-5AK71-1LH5-ZJ03 SIMOTICS S-1FK7 Compact synchronous servo motor is engineered for precision, reliability, and efficiency across a wide variety of automation tasks. Delivering a torque of 0.85 Nm and rated power of 0.38 kW at 6000 rpm, this model provides consistent performance with natural cooling. Its advanced design includes a rotatable connector system with 270° adjustment, plain shaft with tolerance N, and integrated holding brake for added reliability. With a high degree of protection, IP65 at the shaft and IP67 at the flange, the motor ensures long-term durability in harsh environments. It features a 20-bit absolute encoder combined with a 12-bit multiturn function, connected via Drive-CLiQ interface for precise speed and position feedback.

This servo motor is equipped with planetary gearing ALPHA SP+ SP 060S-MF1, one stage with ratio i=5, ensuring smooth torque transmission and efficient operation. The combination of compact dimensions, high torque density, and easy integration makes this motor well-suited for machine tools, robotic systems, packaging machines, and specialized industrial applications. Its paint finish in RAL7016 provides additional resistance to wear and corrosion, extending the motor’s service life in demanding conditions.

Overview

The SIMOTICS S-1FK7 motor series represents the new generation of compact permanent-magnet synchronous motors. With multiple options for gearboxes and encoder systems, the portfolio offers flexible adaptation to diverse automation challenges. The motors are designed to operate without external cooling, relying on their efficient thermal management system. This enables a high overload capability while maintaining compact size and stable performance. When combined with SINAMICS S120 or S220 drive systems, these motors form a powerful automation solution with advanced functionality and seamless integration.

Benefits

• Compact installation due to very high power density, saving valuable machine space.
• Flexible application range covering machine tools, robotics, and material handling.
• High dynamic performance enabled by low rotor inertia.
• Strong closed-loop control for high or variable load inertia requirements.
• Reduced commissioning time thanks to optimized encoder integration and diagnostics.

Application Areas

• Machine tools and CNC systems
• Robotics and automated handling systems
• Wood, glass, ceramics, and stone working machines
• Packaging, plastics, and textile production equipment
• Printing machinery and auxiliary axes

Product Code: 1FK7022-5AK71-1LH5-ZJ03
