1FK7042-2AF71-1CH1 SIEMENS Exclusive SIMOTICS S-1FK7 Compact Synchronous Motor Original Brand New
$2,134.18
The SIEMENS SIMOTICS S-1FK7 Compact Motor (1FK7042-2AF71-1CH1) delivers 0.82 kW of power and 3 Nm torque at 3000 rpm. It features an AM24DQI absolute encoder, rotatable connector, and IP65 protection for reliable automation performance in compact machines.
1FK7042-2AF71-1CH1 SIEMENS Exclusive SIMOTICS S-1FK7 Compact Synchronous Motor Original Brand New

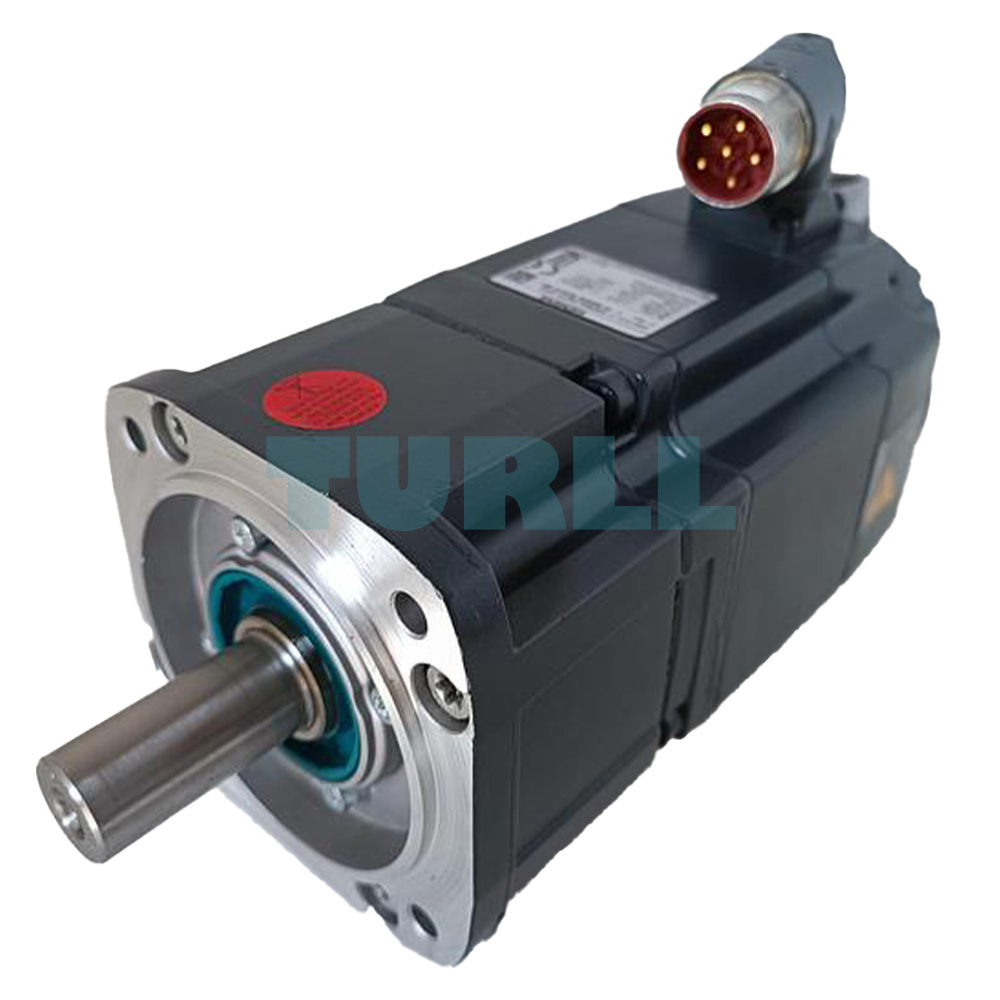

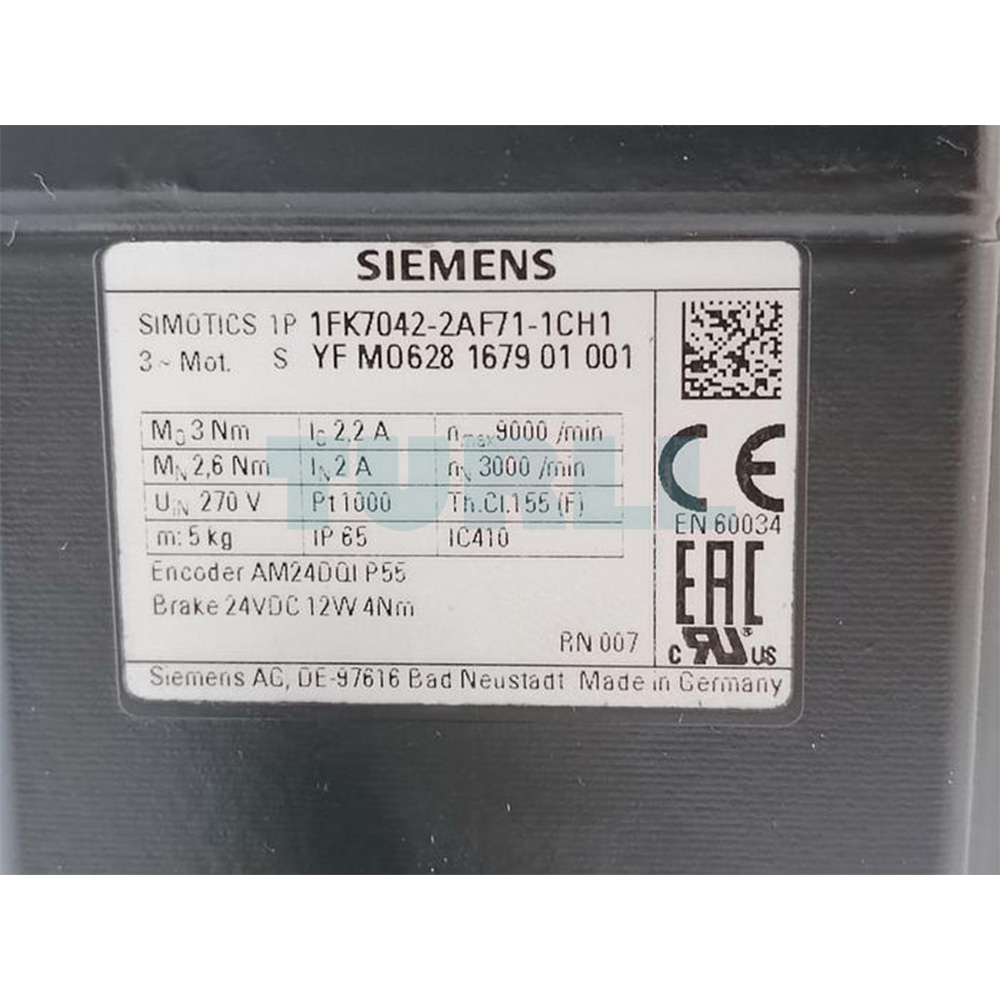

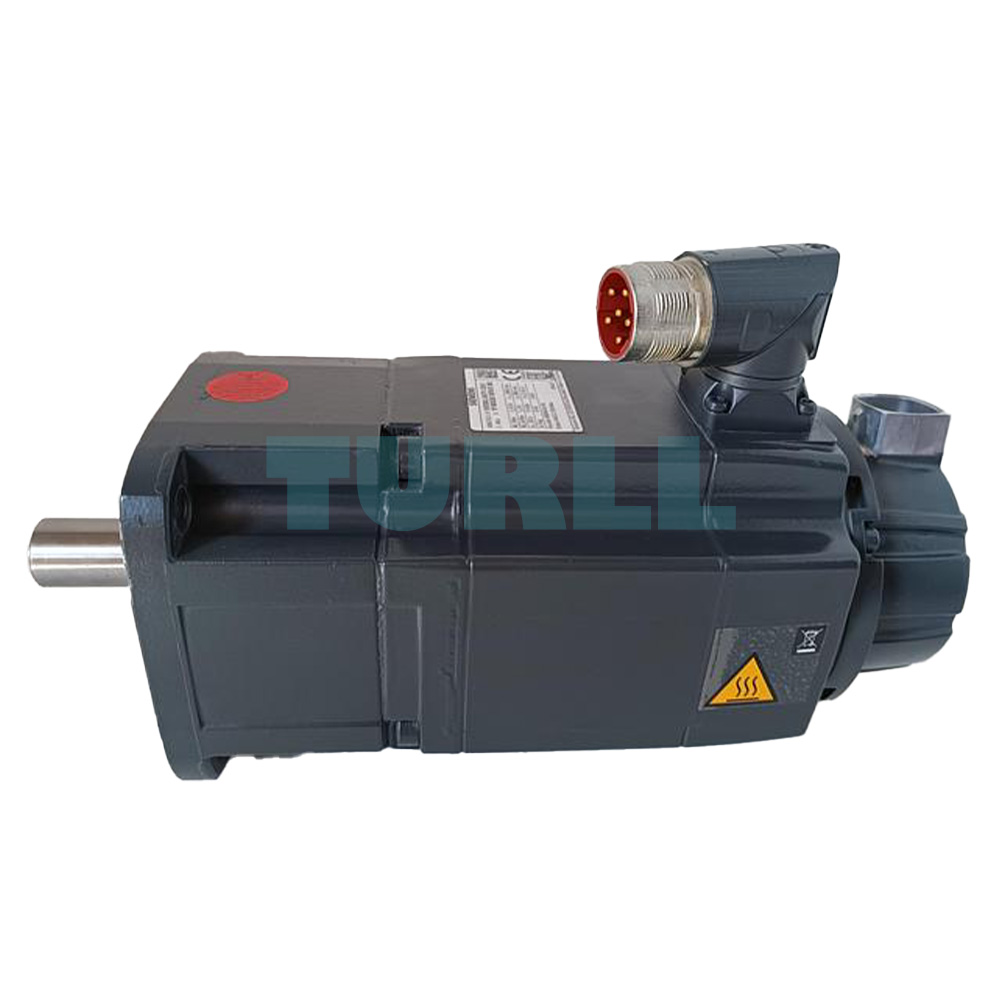

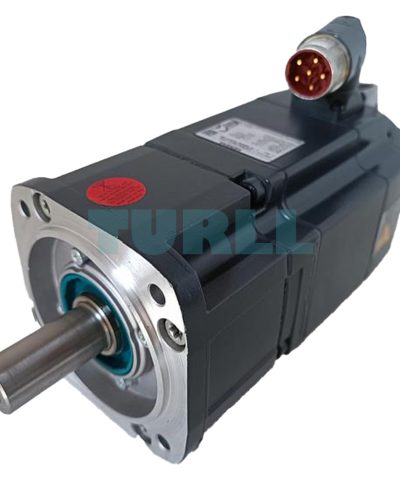

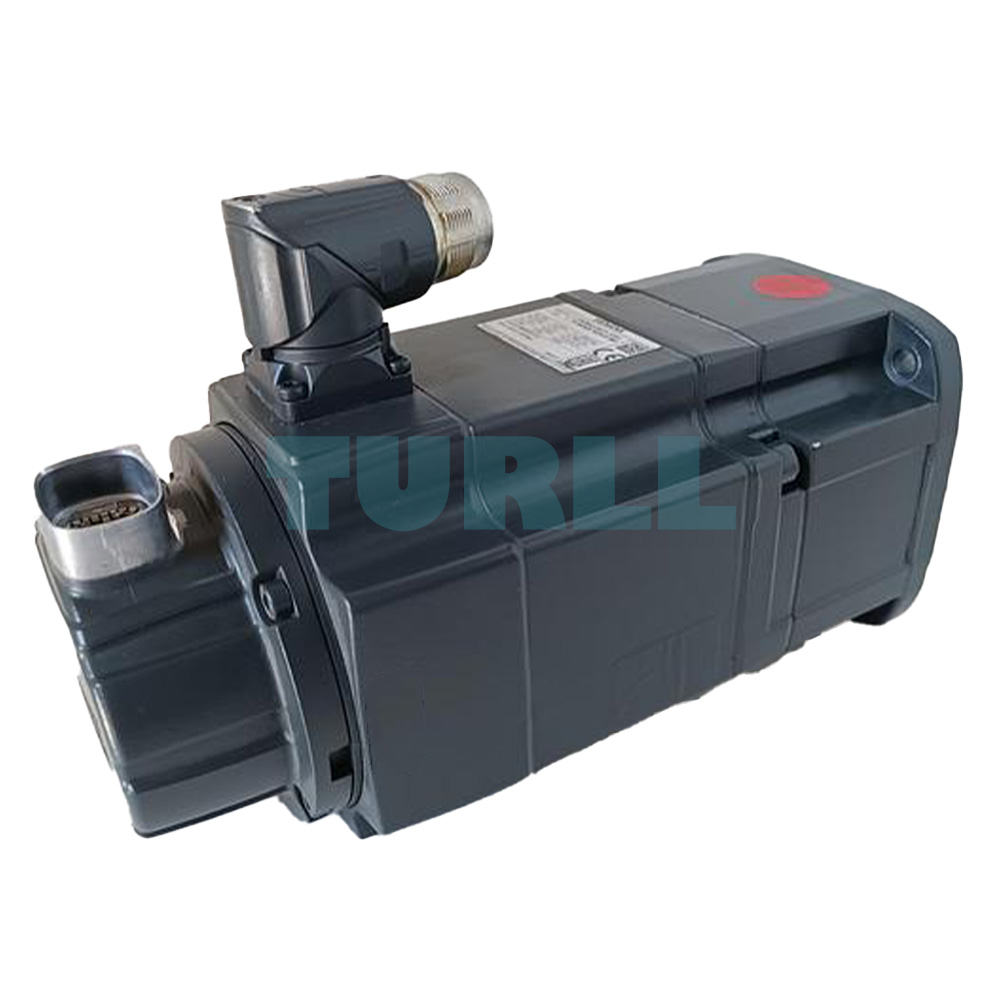

The SIEMENS SIMOTICS S-1FK7 Compact Synchronous Motor with part number 1FK7042-2AF71-1CH1 is a high-precision servo solution engineered for demanding automation environments. Delivering a rated power of 0.82 kW and a rated torque of 3 Nm at 3000 rpm, this naturally cooled motor ensures accurate positioning and dynamic performance in continuous operation. Its compact design supports a space-saving installation while maintaining long-term reliability and stable torque output. The motor features a robust IP65 protection level, plain shaft with holding brake, and an integrated AM24DQI absolute encoder offering 24-bit + 12-bit multiturn resolution through a DRIVE-CLiQ interface for seamless integration with SINAMICS drive systems.
Overview
The SIMOTICS S-1FK7 motor series represents a generation of compact, permanent-magnet synchronous motors designed to deliver precision, efficiency, and high dynamic response. When combined with SINAMICS S120 or S220 drives, the 1FK7 family forms a highly functional servo system suitable for complex motion-control applications. These motors are optimized for operation without external cooling — heat is dissipated via the motor housing, ensuring reduced maintenance and higher durability. Their integrated encoder systems enable excellent speed and position control, adaptable to a variety of industrial tasks.
Design and Benefits
The 1FK7 motors feature a rugged construction with rotatable power connectors and standardized flange mounting for flexible installation. The compact version offers outstanding power density, supporting universal applications across multiple sectors. High Dynamic variants deliver exceptional responsiveness due to their lightweight rotors, while High Inertia models ensure stable closed-loop control under variable load conditions. Together, these options minimize commissioning effort and enhance overall productivity.
Applications include machine tools, robotics and handling systems, packaging and printing machinery, as well as wood, glass, ceramics and stone processing equipment. Each motor is precision-engineered for reliability in continuous operation, providing long service life and consistent performance even in demanding industrial environments.
Download
Product Code: 1FK7042-2AF71-1CH1
More Siemens products at Turll.com
| Weight | 4.9 kg |
|---|
