1FK7060-2AC71-1CH0 SIEMENS Exclusive SIMOTICS S-1FK7 Synchronous Motor Original Brand New

1FK7060-2AC71-1CH0 SIEMENS Exclusive SIMOTICS S-1FK7 Synchronous Motor Original Brand New

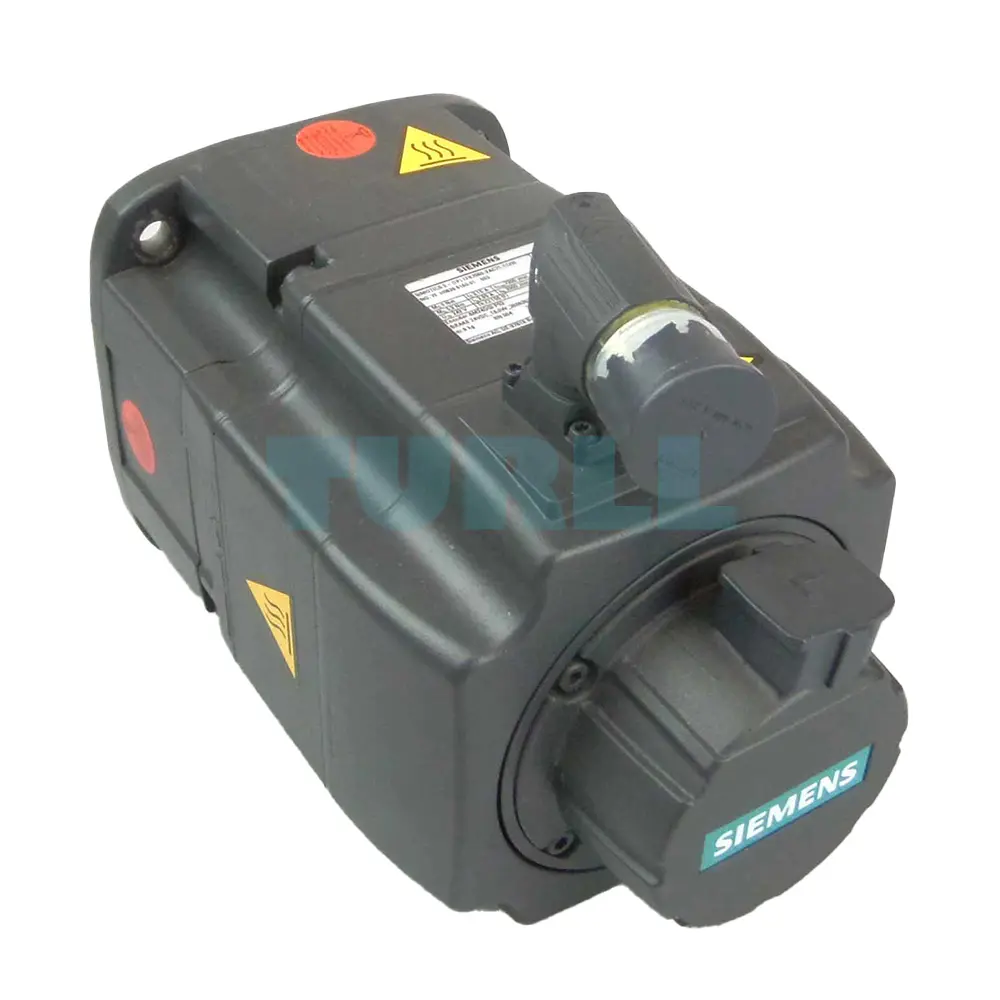

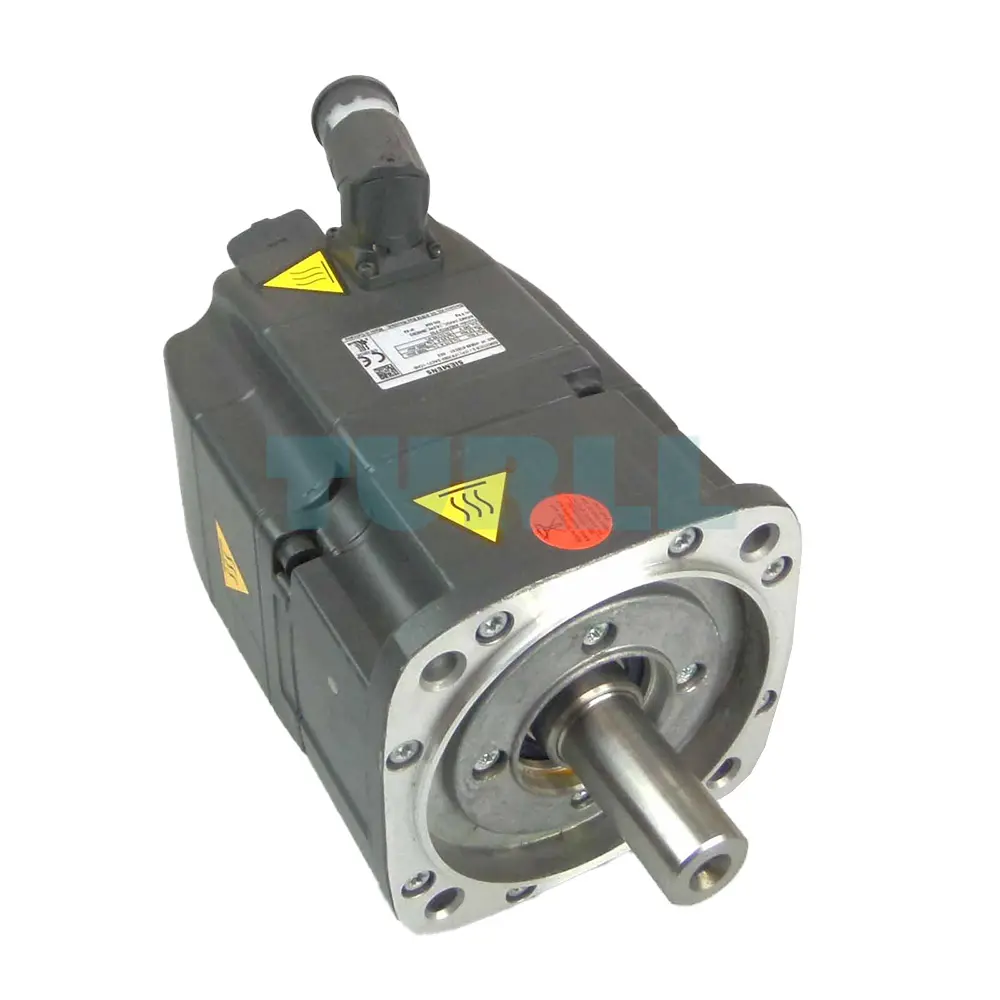

The SIEMENS SIMOTICS S-1FK7 synchronous motor delivers exceptional performance for modern industrial automation applications. Designed as a compact permanent-magnet motor, it combines high power density with space-saving installation, making it ideal for machine tools, robots, handling systems, and specialized machinery in the wood, glass, ceramics, plastics, textile, and packaging sectors.

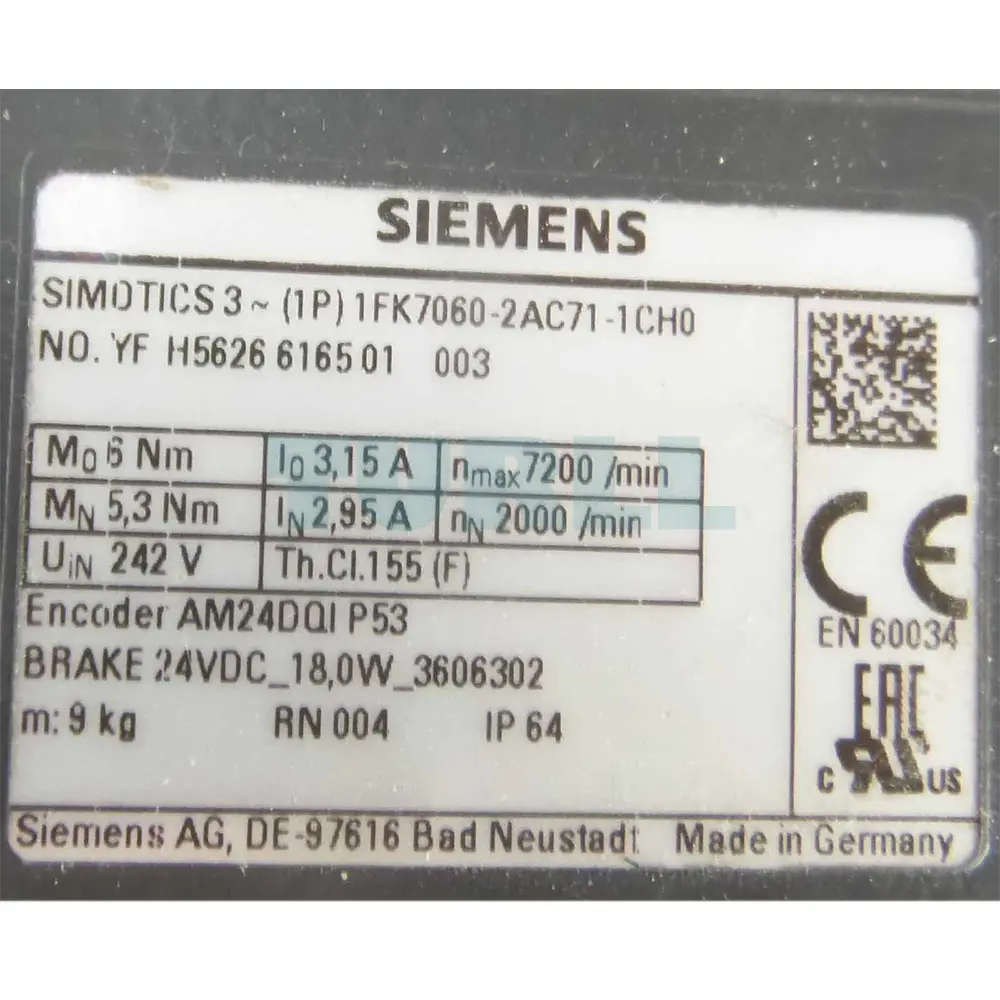

This model features a power rating of 1.1 kW with a nominal voltage of 600V and a torque output of 6 Nm. Its design operates without external cooling, with heat effectively dissipated through the motor surface. The naturally cooled IMB 5 frame ensures reliable performance, while the flange 1 mounting and rotatable power connector allow flexible installation. The integrated absolute encoder system includes a 24-bit + 12-bit multi-turn configuration with Drive-CLiQ interface, ensuring precise speed and position control suitable for high-performance drive applications.

Overview

The SIMOTICS S-1FK7 motor series offers a versatile platform capable of adapting to a wide range of industrial applications. Combining these motors with the SINAMICS S120 or S220 drive system enables a highly functional, integrated solution. The modular design allows selection of encoders and gearboxes to match application requirements, providing a system that meets the demanding standards of modern machinery.

Key benefits include space-saving installation due to high power density, universal compatibility across multiple machine types, and minimal optimization and commissioning effort. High dynamic variants offer rapid response thanks to a low rotor moment of inertia, while high inertia variants provide robust closed-loop control for variable load conditions.

Applications

• Machine tools and CNC equipment
• Robotics and handling systems
• Wood, glass, ceramics, and stone processing machines
• Packaging, plastics, and textile machinery
• Printing and auxiliary machine axes

Download

Data Sheet (PDF)

Product Code: 1FK7060-2AC71-1CH0
