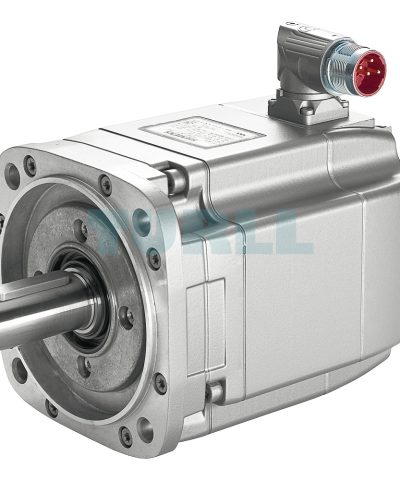

1FK7060-2AF71-1QH0 SIEMENS Exclusive SIMOTICS S Synchronous Motor Original Brand New
$1,571.37
The SIEMENS 1FK7060-2AF71-1QH0 SIMOTICS S motor delivers precise motion control with 1.5 kW power, high-resolution feedback, and dependable performance for advanced industrial applications.
1FK7060-2AF71-1QH0 SIEMENS Exclusive SIMOTICS S Synchronous Motor Original Brand New
The SIEMENS SIMOTICS S 1FK7060-2AF71-1QH0 synchronous motor is engineered to deliver reliable performance, consistent efficiency, and long-term stability for a wide range of industrial environments. With a rated power of 1.5 kW, a torque capacity of 6 Nm, and a nominal speed of 3000 rpm, this motor is developed to support demanding machine automation tasks. Its naturally cooled construction, IMB 5 mounting compatibility, and rotatable power connector ensure flexible integration in modern machine systems. The motor is equipped with a high-resolution 20-bit absolute encoder featuring Drive-CLiQ, enabling precise position and speed feedback. With an IP64 protection rating, smooth shaft, and integrated holding brake, the unit is prepared for continuous use in advanced production lines.
The SIMOTICS S-1FK7 series is known for compact dimensions, high power density, and excellent mechanical rigidity. These qualities make it suitable for installations where strong dynamic response and a robust control profile are required. This motor family can be paired seamlessly with SINAMICS S120 or S220 drive systems, forming a coordinated platform with enhanced diagnostic, control, and commissioning capabilities. Various encoder and gearbox configurations available within the broader series help adapt the motor to a variety of applications without compromising performance or thermal stability.
Overview
The SIMOTICS S-1FK7 range has been developed to meet the growing demands of modern machinery. The motors use permanent-magnet technology to achieve high torque output in a compact form. They operate efficiently without external cooling, transferring heat through the optimized motor surface. With strong overload capability and a selection of motor variants—Compact, High Dynamic, and High Inertia—the product family allows engineers to choose the configuration that best suits the mechanical load characteristics of their system.
Benefits
- Compact build for space-optimized installation
- Wide performance spectrum suitable for universal applications
- High Dynamic variants for fast acceleration and responsive motion
- High Inertia models for stable control under fluctuating loads
- Reduced commissioning time thanks to well-tuned closed-loop behavior
Application
- Machine tools and precision production systems
- Robotics, handling, and automation units
- Machinery for wood, glass, stone, and composite materials
- Packaging, plastics, and textile equipment
- Printing systems and auxiliary axes
Download
Product Code:1FK7060-2AF71-1QH0
More Siemens products at Turll.com.
| Weight | 7.4 kg |
|---|
