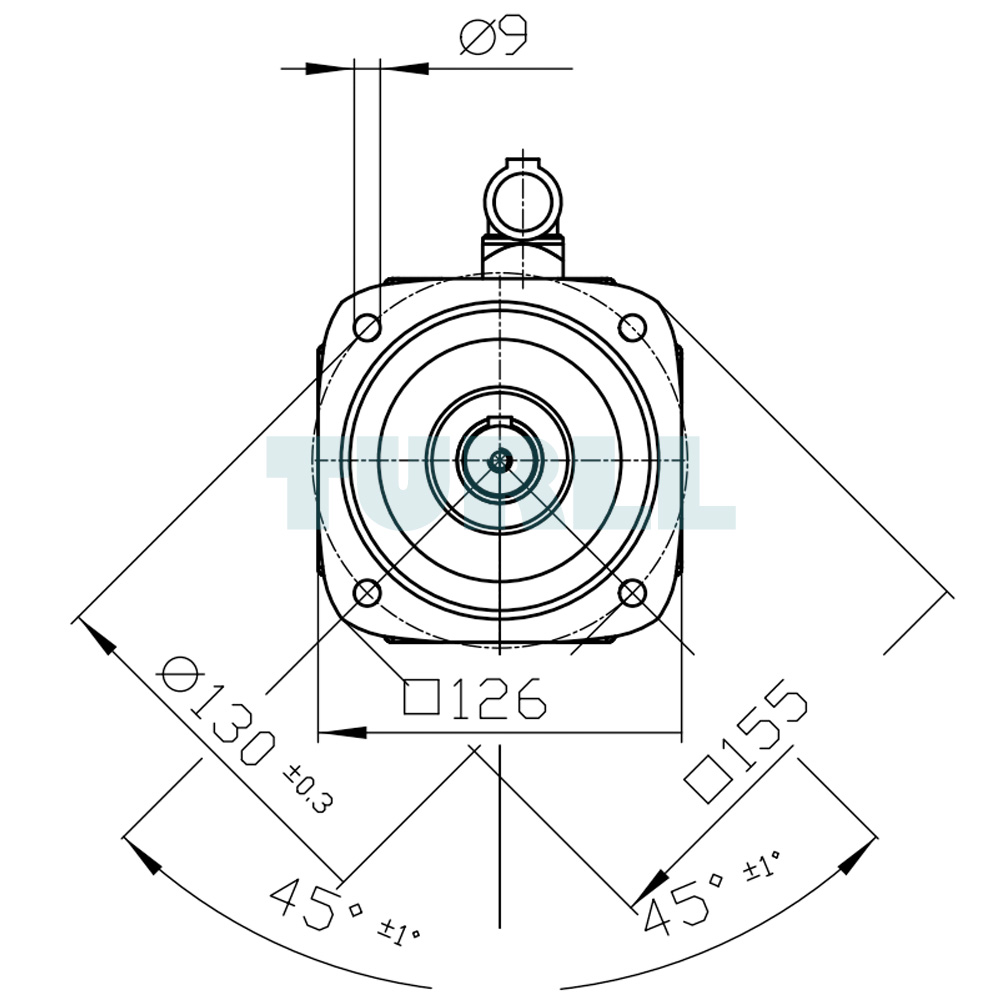

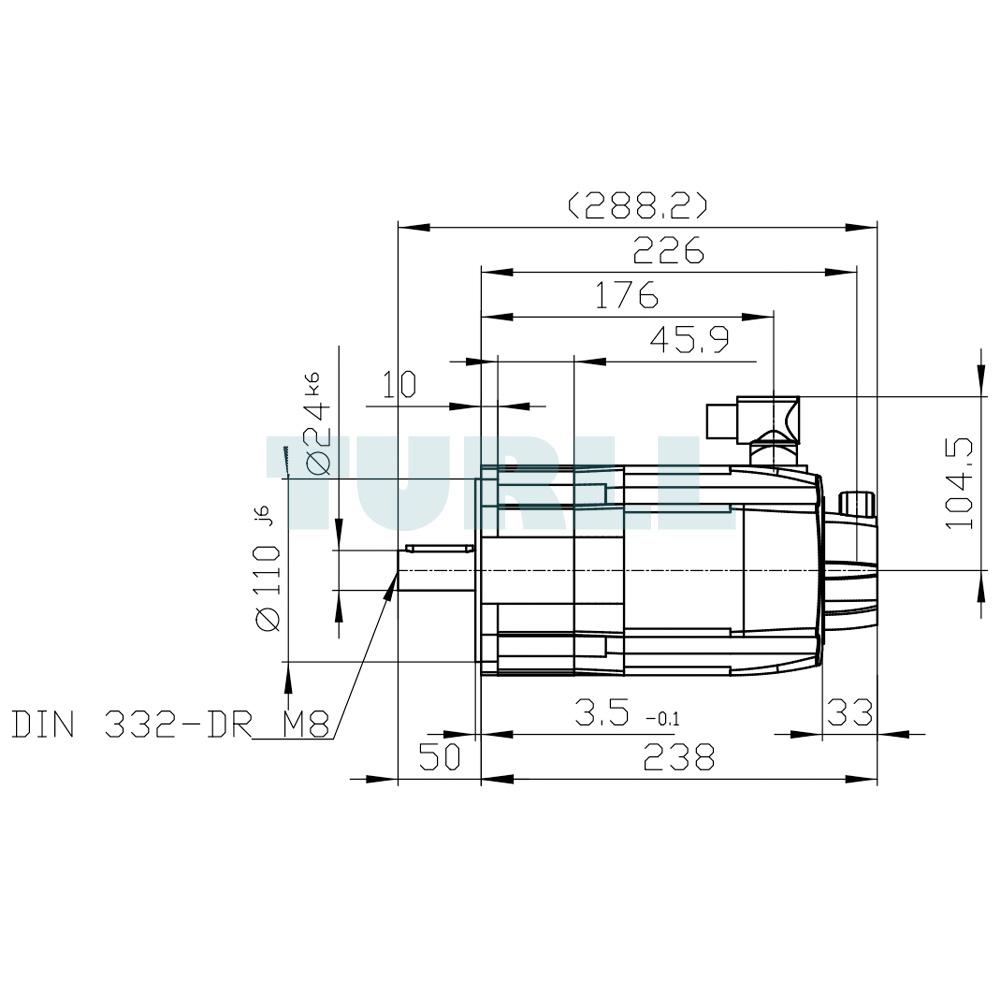

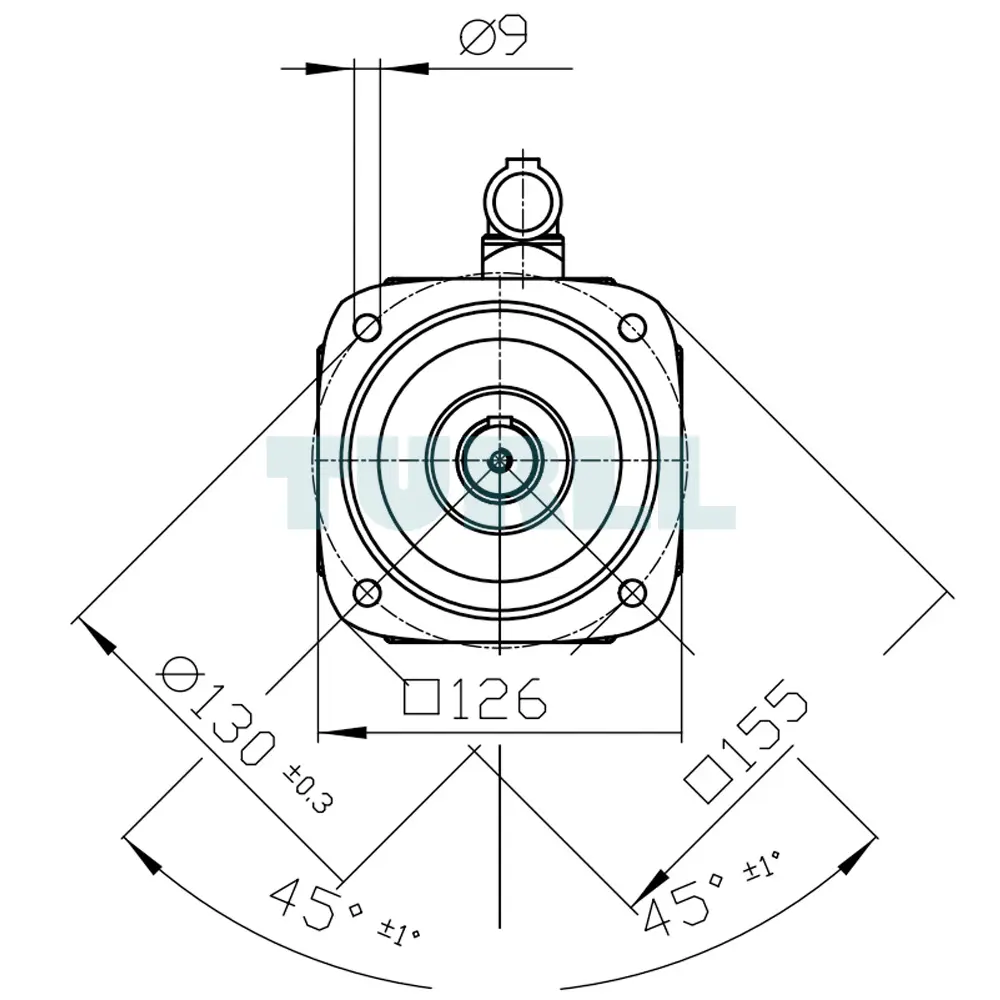

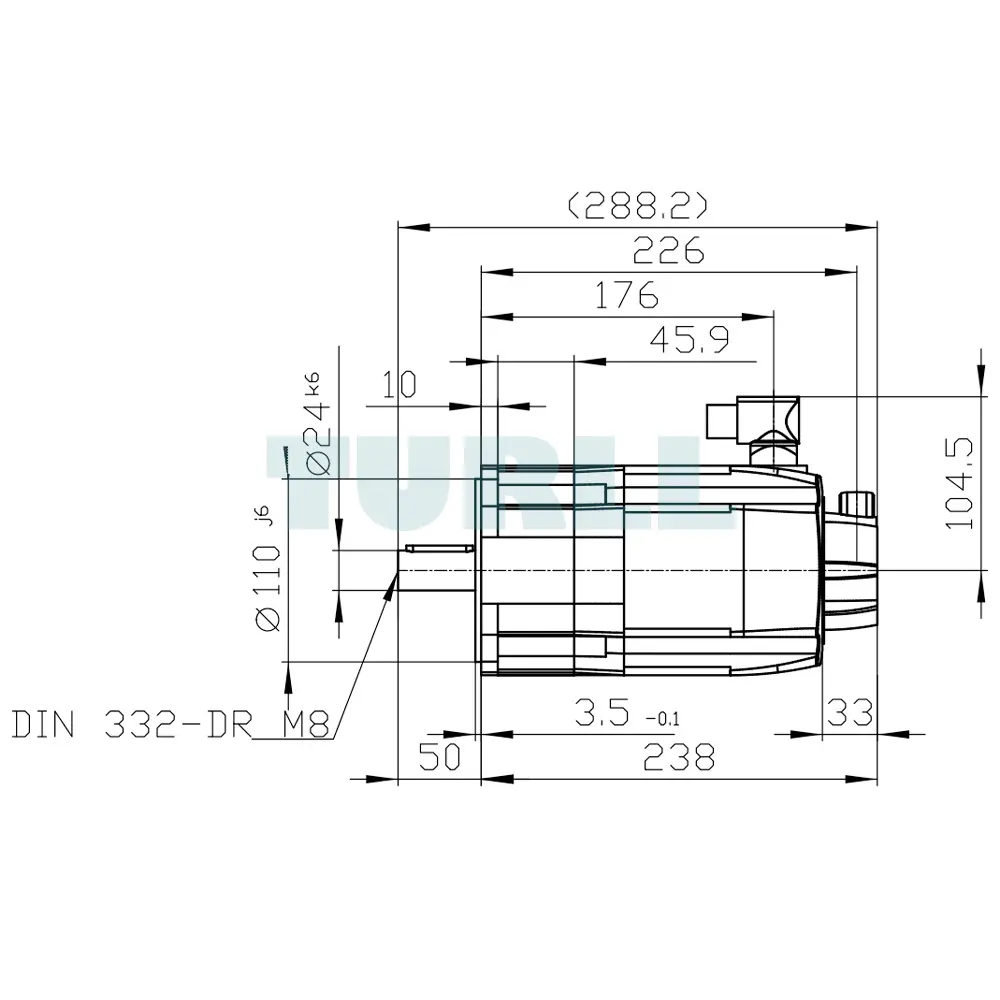

The SIEMENS 1FK7061-4CF71-1CB1 is an advanced SIMOTICS S synchronous motor engineered to deliver precise motion control and outstanding performance in demanding industrial environments. This motor belongs to the 1FK7-HD series, offering 1.7 kW rated power, 600 V DC link voltage, a torque specification of 6.4 Nm at 100K, and a nominal speed of 3000 rpm. Developed with a naturally cooled IMB 5 frame and a rotatable power connector, this model supports easy mechanical integration while ensuring consistent thermal stability.

Equipped with an AM24DQI absolute encoder featuring 24-bit plus 12-bit multiturn resolution and DRIVE-CLiQ communication, the motor enables accurate speed and position feedback for high-performance automation tasks. The fitted keyed shaft, N-tolerance class, and integrated holding brake provide additional reliability for applications that require stable positioning or secure load handling.

Designed for long-term durability, the motor is enclosed with an IP65 protection rating, offering resistance against dust and water projected from any direction. This rugged construction makes the device suitable for industrial conditions where reliability and precision must be guaranteed. The combination of performance, robust mechanics, and advanced encoder technology makes this product ideal for machine builders and system integrators who require stable and precise axis control.

Overview

The SIMOTICS S-1FK7 series represents a versatile family of compact permanent-magnet synchronous motors. These machines can be adapted to a wide range of industrial applications thanks to the availability of multiple encoder options, gearbox combinations, and mechanical variants. When paired with SINAMICS S120 or S220 drive systems, they form a highly capable solution that supports advanced automation requirements with ease. The motors are designed for surface cooling and offer high overload tolerance, making them suitable for dynamic operational cycles.

Benefits

• Compact construction with high power density for space-efficient installation
• Extensive range of mechanical and electrical configurations
• High-dynamic variants for fast acceleration behavior
• High-inertia versions for stable closed-loop control under varying loads
• Reduced commissioning effort due to optimized control characteristics

Application

• Machine tools and precision machinery
• Robotic and automated handling systems
• Wood, glass, stone, and ceramic processing
• Packaging, textile, and plastics machinery
• Printing applications and auxiliary axes

Download

Data Sheet (PDF)

Product Code: 1FK7061-4CF71-1CB1 —
