1FK7062-2AC71-1BB0 SIEMENS Exclusive SIMOTICS S Synchronous Motor Original Brand New

1FK7062-2AC71-1BB0 SIEMENS Exclusive SIMOTICS S Synchronous Motor Original Brand New

The SIEMENS 1FK7062-2AC71-1BB0 SIMOTICS S synchronous motor is a high-performance industrial motor engineered for precision, reliability, and versatility. Delivering 1.5 kW of power and a nominal torque of 8.5 Nm at 2000 rpm, this motor ensures smooth and stable operation for a wide range of automation and motion control applications. Its naturally cooled design allows efficient heat dissipation through the motor surface, eliminating the need for additional cooling devices and reducing overall system complexity. The motor’s compact construction and IMB 5 frame with flange type 1 enable easy integration into machinery with limited space.

Equipped with a rotatable power connector and a high-precision 24-bit absolute single-turn encoder (AS24DQI) with DRIVE-CLiQ interface, this motor provides accurate speed and position control. The shaft features a feather key with tolerance N and includes a holding brake for reliable positioning during stationary periods. Its IP64 protection rating ensures robust performance in challenging industrial environments, protecting the motor from dust and splashing water.

Overview

SIMOTICS S-1FK7 motors are compact permanent-magnet synchronous motors designed for universal automation tasks. Their wide range of variants, including different power ratings, encoder options, and mounting configurations, allows precise adaptation to specific application needs. When paired with the SINAMICS S120 or S220 drive system, these motors form highly capable motion control solutions with advanced functionality and precise closed-loop control.

With exceptional overload capacity, high efficiency, and a broad selection of mechanical and electrical options, the 1FK7062-2AC71-1BB0 is suitable for machine tools, robotic systems, packaging equipment, and material handling applications. Its compact size and high power density enable space-saving installation while maintaining performance reliability under demanding conditions.

Design & Key Features

• Permanent-magnet synchronous motor with 1.5 kW power and 8.5 Nm torque
• Absolute encoder AS24DQI, 24-bit single-turn with DRIVE-CLiQ interface
• Rotatable power connector for flexible installation
• Feather key shaft with tolerance N and integrated holding brake
• Naturally cooled for efficient heat dissipation

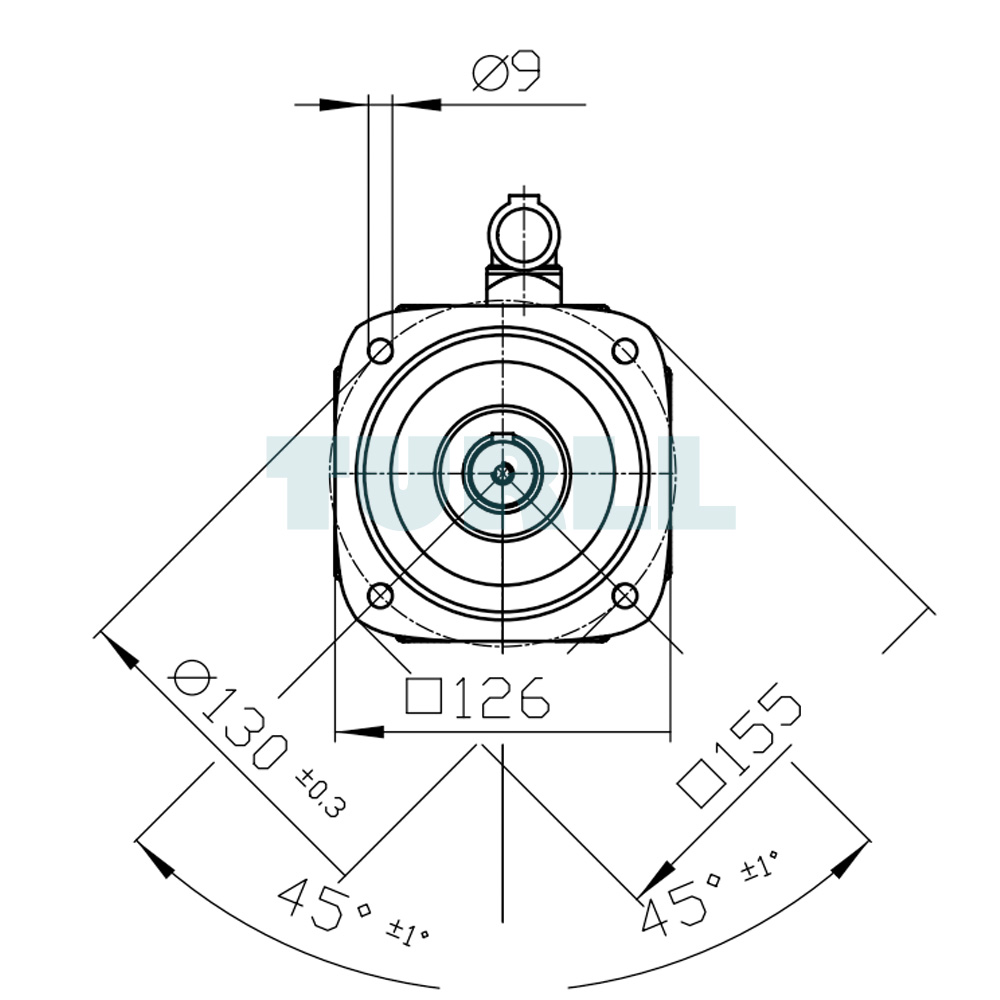

• Compact IMB 5 frame, flange type 1
• Degree of protection IP64 for dust and water resistance
• High overload capacity for demanding industrial tasks

Download

Data Sheet (PDF)

Product Code: 1FK7062-2AC71-1BB0
